T&S Brass B-0123-12CRB8TP EasyInstall Commercial Faucets & Plumbing
$1,549.35
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
T&S Brass B-0123-12CRB8TP EasyInstall Commercial Faucets & Plumbing is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

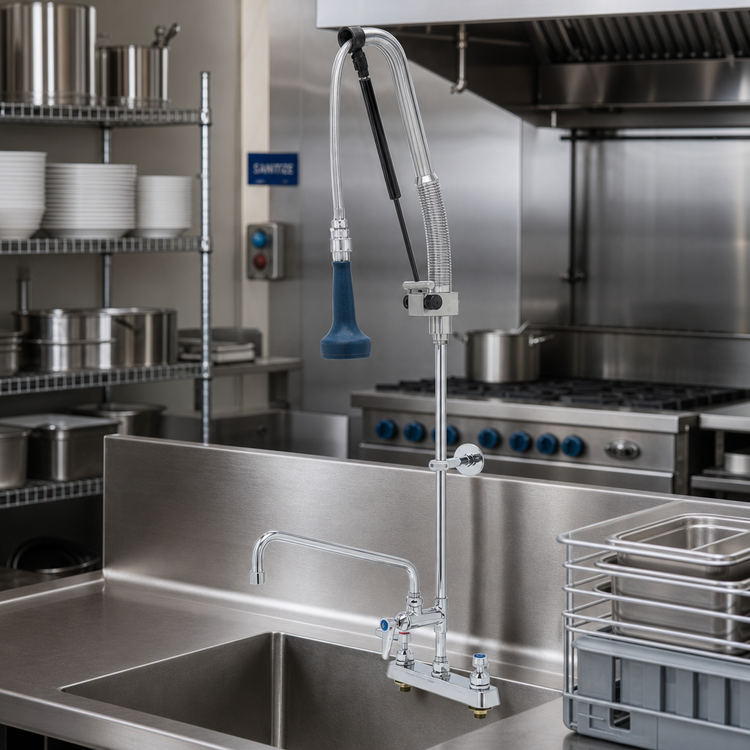

EasyInstall Pull-Down Pre-Rinse Unit – 8" Deck Mount
Model B-0123-12CRB8TP | T&S BrassCut prep-and-rinse times while keeping installation fast and frustration-free. The EasyInstall Series combines a rugged 8" deck-mount mixing faucet, efficient 1.07 GPM spray valve, and a convenient 12" swing spout add-on faucet—all pre-packaged with the hardware you need to hit the ground running.
Key Features
- 8" deck-mount mixing faucet with polished chrome plated brass body
- EasyInstall add-on faucet with quarter-turn Cerama cartridges & check valves
- 12" swing spout delivers up to 5.35 GPM for fast pot-filling
- Spring-action, pull-down spray valve rated at an eco-friendly 1.07 GPM
- 30" flexible stainless-steel hose & insulated grip handle for all-day comfort
- 18" rigid riser plus accessory tee for future attachments
- 6" adjustable wall bracket stabilizes the assembly—no wobble, no worries
- Lever handles with color-coded indexes for instant hot/cold ID
- Low-lead compliant & fully certified for commercial kitchens
Performance Data
| Spray Valve Flow | 1.07 GPM @ 60 psi (DOE PRSV-Class II) |
|---|---|
| Add-On Faucet Flow | 5.35 GPM @ 60 psi |
| Pressure Range | 20 – 125 psi |
| Temperature Range | 40 °F – 140 °F |
Technical Specifications
| Mounting | 8" deck mount, adjustable 7 3⁄4" – 8 1⁄4" |
|---|---|
| Inlets | ½" NPT female, 2" Ø flanged |
| Riser | 18" rigid, 3⁄8" NPT |
| Hose Length | 30" flexible stainless steel |
| Spray Valve | 1.07 GPM blue spray, auto shut-off upon release |
| Swing Spout | 12" reach, stream regulator outlet (Series 1) |
| Handles | Lever, quarter-turn, color-coded |
| Cartridges | Cerama with check valves (lifetime limited warranty) |
| Construction | Polished chrome plated brass & stainless steel |
| Wall Bracket | 6" adjustable (B-0109-01) |
Certifications & Compliance
- ASME A112.18.1 / CSA B125.1
- NSF 61 – Section 9 (Low Lead)
- NSF 372 (≤0.25 % Pb)
- 2019 DOE PRSV – Class II
What’s Included
- Pre-assembled faucet body & add-on swing spout
- Pull-down spray valve with 30" hose & spring
- 18" rigid riser & accessory fitting tee
- 6" wall-mount stabilizing bracket
- EasyInstall hardware kit (nut, bushing, O-ring, lock & star washers)
- Pair of ½" NPT eccentric flanges with 2" escutcheons
Rock-Solid Warranty
• Seven-year limited warranty on the complete assembly
• Lifetime limited warranty on Cerama cartridges
Installer Tip: The EasyInstall hardware lets one person mount the faucet from
above the deck—no cramped reach-unders required. Save time on every job!
Features & Specs
Features & Specs
Manufacturer
T&S Brass
Brand_name
EasyInstall

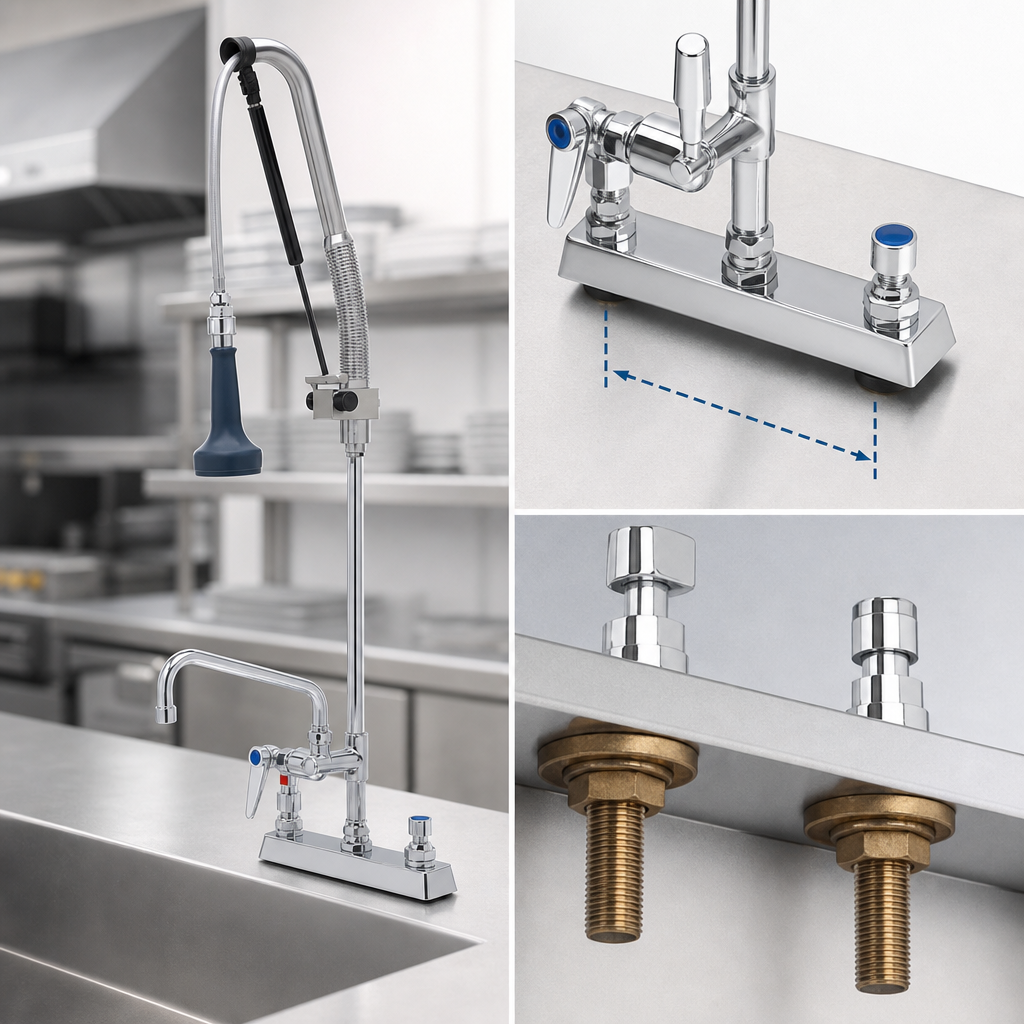

Faucet Centers
8" adjustable centers
Valve Type
ceramic valves
Wall or Deck Mount
deck mount
Spout / Nozzle Type
standard swing / swivel spout
Spout Length (overall)
10 - 12 inches
Specifications
EasyInstall Pull Down Pre-Rinse Unit, deck mount base, 8" adjustable center, spring action gooseneck, 1.07 GPM spray valve, 12" swing spout add-on faucet, 18" riser, 30" flexible stainless steel hose, accessory fitting tee, 2" Ø deck flanges with 1/2" NPT female flanged inlets, 6" wall bracket, lever handles, quarter-turn Cerama cartridges, low lead, 2019 DOE PRSV - Class II
