Description

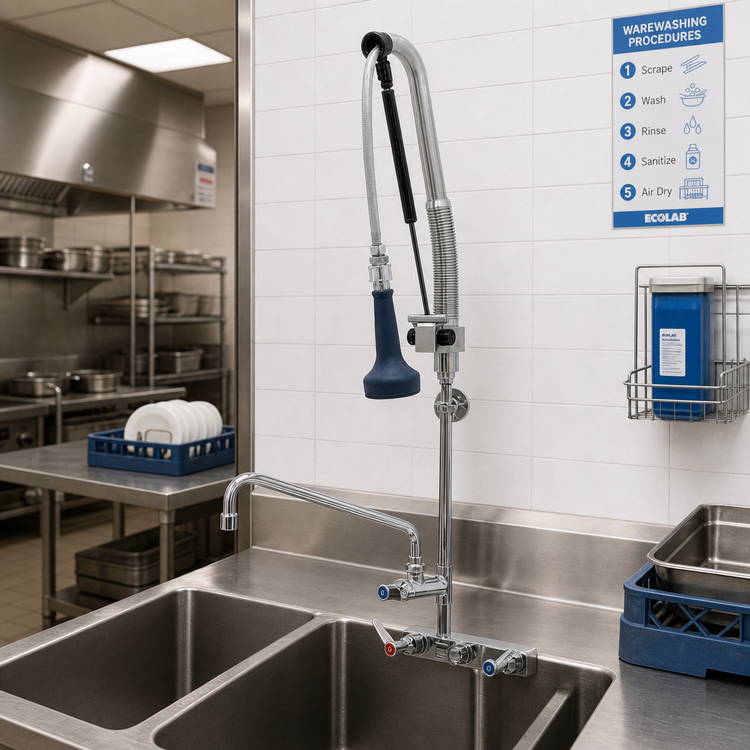

EasyInstall Pull-Down Pre-Rinse Unit
T&S Brass • Model B-0123-12-CRB8PDesigned for faster installs and greener kitchens, the EasyInstall Pull-Down Pre-Rinse Unit pairs a high-efficiency 1.07 GPM spray valve with a rugged 12 inch add-on swing spout. From quick rinses to high-volume filling, this DOE Class II compliant assembly delivers the versatility, durability and water savings today’s food-service operations demand.
Key features

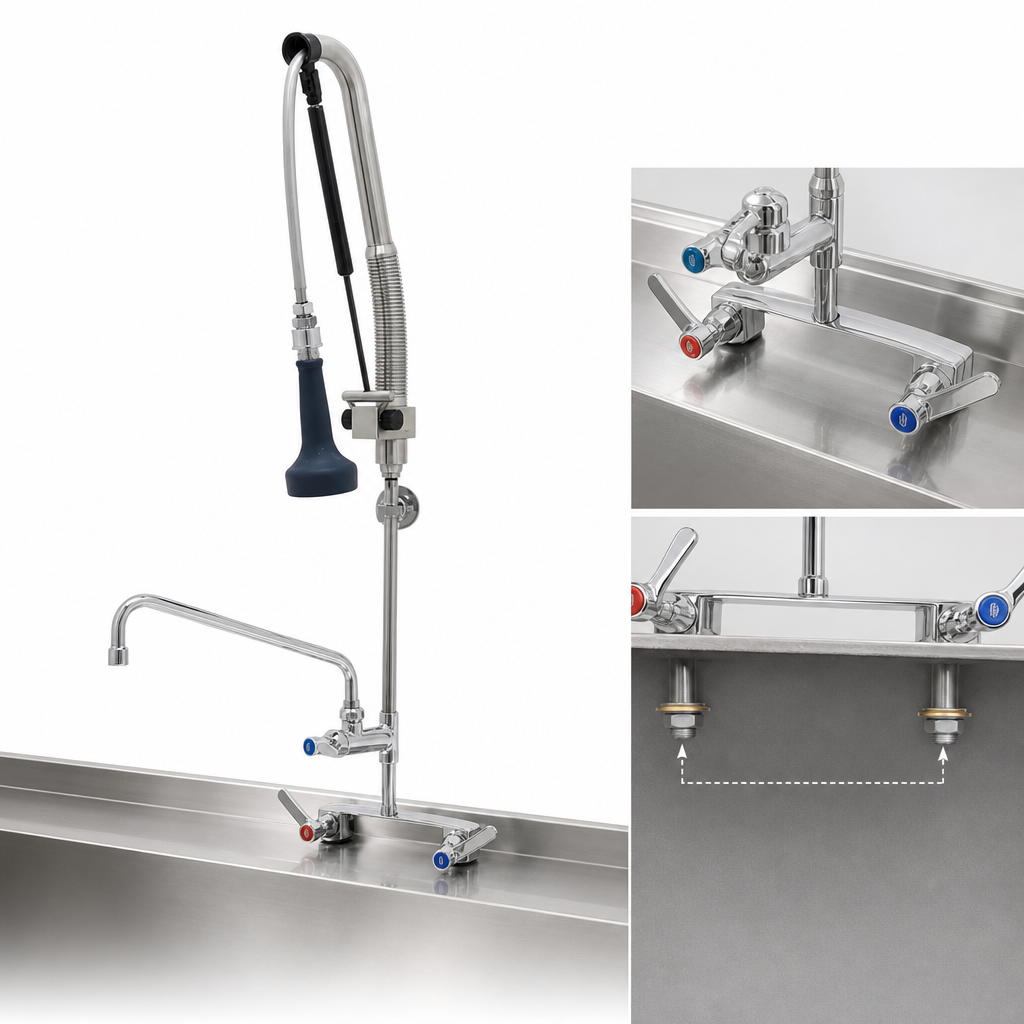

- Deck-mount base with 8 in (203 mm) adjustable centers and 2 in Ø flanges
- 30 in flexible stainless-steel hose & spring-action gooseneck for smooth pull-down operation
- 1.07 GPM blue spray valve reduces water use without sacrificing rinsing power
- 12 in swing-spout add-on faucet delivers up to 5.35 GPM for fast pot or sink filling
- 18 in rigid riser with 6 in adjustable wall bracket for rock-solid support
- Quarter-turn Cerama cartridges with built-in check valves—lifetime limited warranty
- Lever handles with red/blue indexes for instant temperature ID
- Low-lead, polished chrome-plated brass body resists corrosion and cleans easily
- Certified to ASME A112.18.1/CSA B125.1, NSF 61/372 & 2019 DOE PRSV – Class II
Technical specifications
| Manufacturer | T&S Brass and Bronze Works |
|---|---|
| Model / SKU | B-0123-12-CRB8P (EasyInstall) |
| Mounting | Deck mount, 8 in centers, 1/2 in NPT female inlets |
| Overall height | 46 15/16 in • 1 191 mm |
| Spray valve flow | 1.07 GPM @ 60 psi |
| Add-on faucet flow | 5.35 GPM @ 60 psi |
| Operating pressure | 20 – 125 psi |
| Operating temperature | 40 °F – 140 °F • 4 °C – 60 °C |
| Cartridges | Quarter-turn Cerama with check valves (lifetime limited warranty) |
| Construction | Polished chrome-plated brass body & add-on faucet, stainless hose & spring |
| Certifications | ASME A112.18.1/CSA B125.1, NSF 61-9, NSF 372, DOE PRSV Class II |
| Warranty | 7-year limited on unit • Lifetime limited on Cerama cartridges |
Why choose EasyInstall?
- Factory-preassembled EZ-K mounting kit slashes installation time and labor costs
- Water-saving spray valve helps meet sustainability targets and utility rebates
- Modular design accepts optional wrist-action, 4-arm or vandal-resistant handles (sold separately)
- Backed by one of the longest warranties in the industry for worry-free ownership
Looking for alternate aerators, handles or replacement parts? Contact us—our team will configure the perfect EasyInstall unit for your kitchen.
