Description

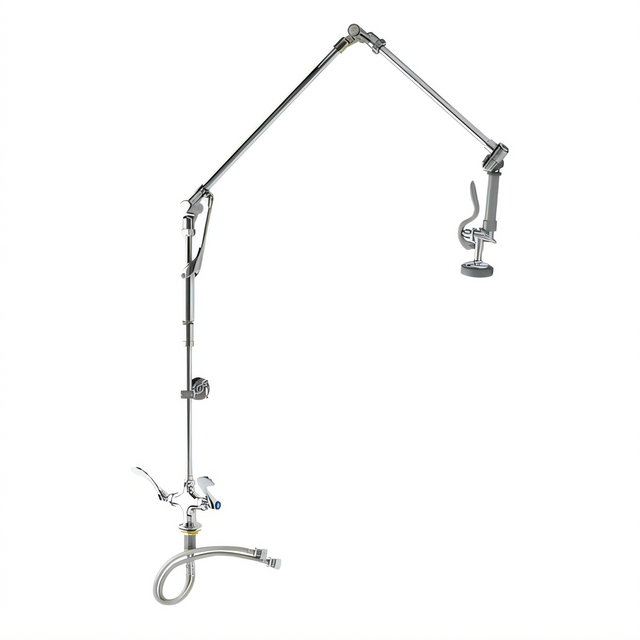

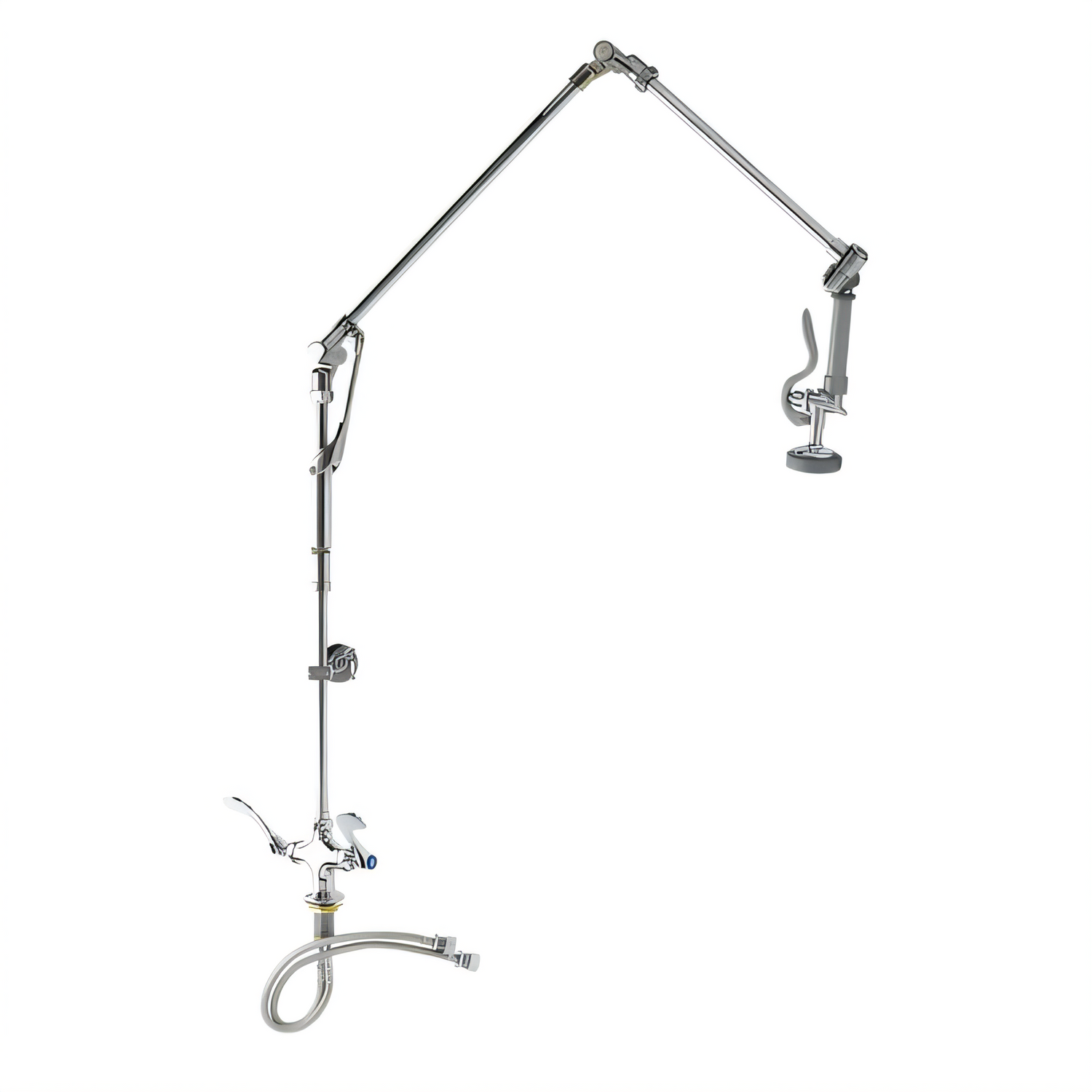

EasyInstall Pre-Rinse Unit

T&S Brass • Model B-0114-01B-WH4

Purpose-built for high-volume kitchens, the EasyInstall roto-flex pre-rinse combines a space-saving single-hole deck mount with water-saving performance and an installer-friendly design. From the ergonomic 4" wrist-action handles to the quick-connect stainless supply hoses, every detail speeds up installation and stands up to daily abuse.

Why you’ll love it

  • EasyInstall lock-nut & bushing drastically cut installation time.
  • Roto-flex arm provides smooth 360° rotation and a 29 ¼" max pull-down reach without kinking.
  • Water-saving B-0107 spray valve delivers a full-force 1.15 GPM (DOE PRSV Class II).
  • Quarter-turn Eterna cartridges with built-in spring checks prevent cross-flow and simplify service.
  • Heat-resistant gray handle and hold-down ring reduce operator fatigue.
  • 44" flexible stainless steel hose and 18" braided stainless supply lines with ½" NPSM / ⅝" compression ends.
  • 6" wall bracket stabilizes the riser for safer, one-handed operation.
  • Low-lead certified polished chrome brass body backed by a 3-year limited warranty.

Technical specifications

Mounting Single-hole deck mount
Overall height 42 13⁄16" (normal hanging)
Maximum pull-down 29 ¼"
Overhang reach ≈21 15⁄16"
Spray valve B-0107 • 1.15 GPM @ 60 psi
Handles 4" wrist-action, color-coded indexes
Cartridges Quarter-turn Eterna w/ spring checks (hot & cold)
Hoses 44" pre-rinse hose & (2) 18" stainless supply lines
Wall support 6" adjustable bracket
Flow/pressure range 20–125 psi • 1.15 GPM @ 60 psi
Water temp range 40 °F – 140 °F
Body material Polished chrome plated brass
Certifications ASME A112.18.1 / CSA B125.1, NSF 61-9, NSF 372 (low lead), 2019 DOE PRSV Class II
Warranty 3-year limited (T&S Brass)

Fully complies with current U.S. Federal and State low-lead legislation and is third-party certified for commercial foodservice use.

Features & Specs

Manufacturer

T&S Brass

Brand_name

EasyInstall

Shipping Weight

13.41lbs

Wall or Deck Mount

deck mount

Valve Type

compression valves

Faucet Centers

single hole centers

Specifications

EasyInstall Pre-Rinse Unit, roto-flex design, single hole base, 4" wrist action handles, 1.15 GPM spray valve (B-0107), retractable arm assembly, 29-1/4" max pull down position, 44" flexible stainless steel hose, 18" flexible supply lines, 6" wall bracket, quarter-turn Eterna cartridges, low lead, 2019 DOE PRSV - Class II
