T&S Brass B-0113-M EasyInstall Commercial Faucets & Plumbing
Description

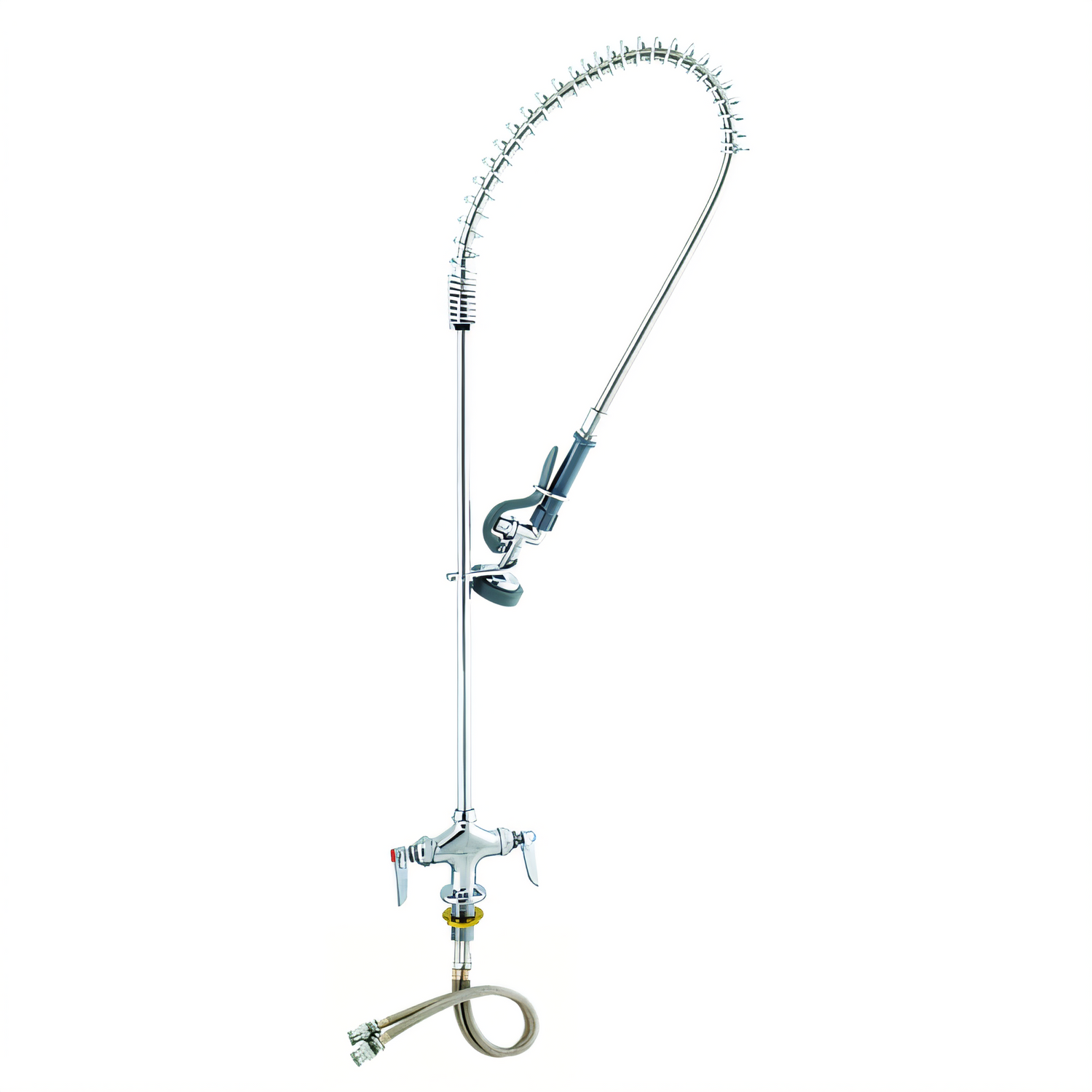

T&S Brass EasyInstall Pre-Rinse Unit – Model B-0113
Single-hole deck-mount faucet • 45" spring gooseneck • 1.42 GPM spray valveEngineered for fast installs and years of trouble-free service, the EasyInstall B-0113 arrives largely pre-assembled—just secure the deck flange, connect the supplies and you’re ready to rinse. A rugged chrome-plated brass body, stainless-steel hose and spring, plus a water-saving 1.42 GPM spray valve give busy kitchens the reliability they demand without wasting resources.
Key Features
- 45" (1143 mm) spring-action gooseneck delivers full-sink reach and easy recoil
- EasyInstall 24" riser ships pre-assembled to locking fittings—cuts installation time dramatically
- B-0107 spray valve with heat-resistant handle blasts food soil at an efficient 1.42 GPM
- 44" stainless-steel hose with integral vacuum breaker (B-0044-V9) for backflow protection
- Quarter-turn Eterna cartridges with spring checks prevent hot/cold cross-flow
- Lever handles with color-coded indexes for quick, intuitive operation
- 18" flexible stainless-steel supply lines with 5/8" compression fittings (convertible to 1/2" NPSM)
- Polished chrome-plated brass body and spray valve for maximum corrosion resistance
- Certified low-lead, ASME A112.18.1/CSA B125.1, NSF 61 & 372, and EPAct 2005 compliant
- Shipped six (6) units per master pack—perfect for multi-station projects
Dimensions
| Overall Height | 45" / 1143 mm |
|---|---|
| Overhang (from riser) | 14" / 356 mm |
| Clearance (spray valve to deck) | 19-3/8" / 492 mm |
| Riser Height | 24" / 610 mm |
| Maximum Deck Thickness | 1-3/8" / 35 mm |
| Deck Flange Diameter | 2-1/4" / 57 mm |
Technical Specifications
| Flow Rate | 1.42 GPM (5.38 L / min) @ 60 psi |
|---|---|
| Operating Pressure | 20 – 125 psi (1.38 – 8.62 bar) |
| Operating Temperature | 40 °F – 140 °F (4 °C – 60 °C) |
| Inlet Connections | 18" SS supply hoses, 5/8" compression or 1/2" NPSM female |
| Cartridges | Quarter-turn Eterna with spring checks |
| Body Material | Polished chrome-plated brass |
| Certifications | ASME A112.18.1 / CSA B125.1, NSF 61-9, NSF 372 (Low Lead), EPAct 2005 |
| Warranty | 3-year limited |
What’s in the Box
- Pre-assembled EasyInstall pre-rinse unit w/ 24" riser & overhead spring
- B-0107 1.42 GPM spray valve
- B-0044-V9 44" stainless-steel hose with vacuum breaker
- (2) 18" stainless-steel supply hoses
- Finger hook (field adjustable)
- Deck flange & mounting hardware
- Installation and maintenance manual
Looking for a different flow rate or handle style? Low-flow spray valves (0.65 GPM) and wrist-action or 4-arm handles are available—contact our team for details.
