Description

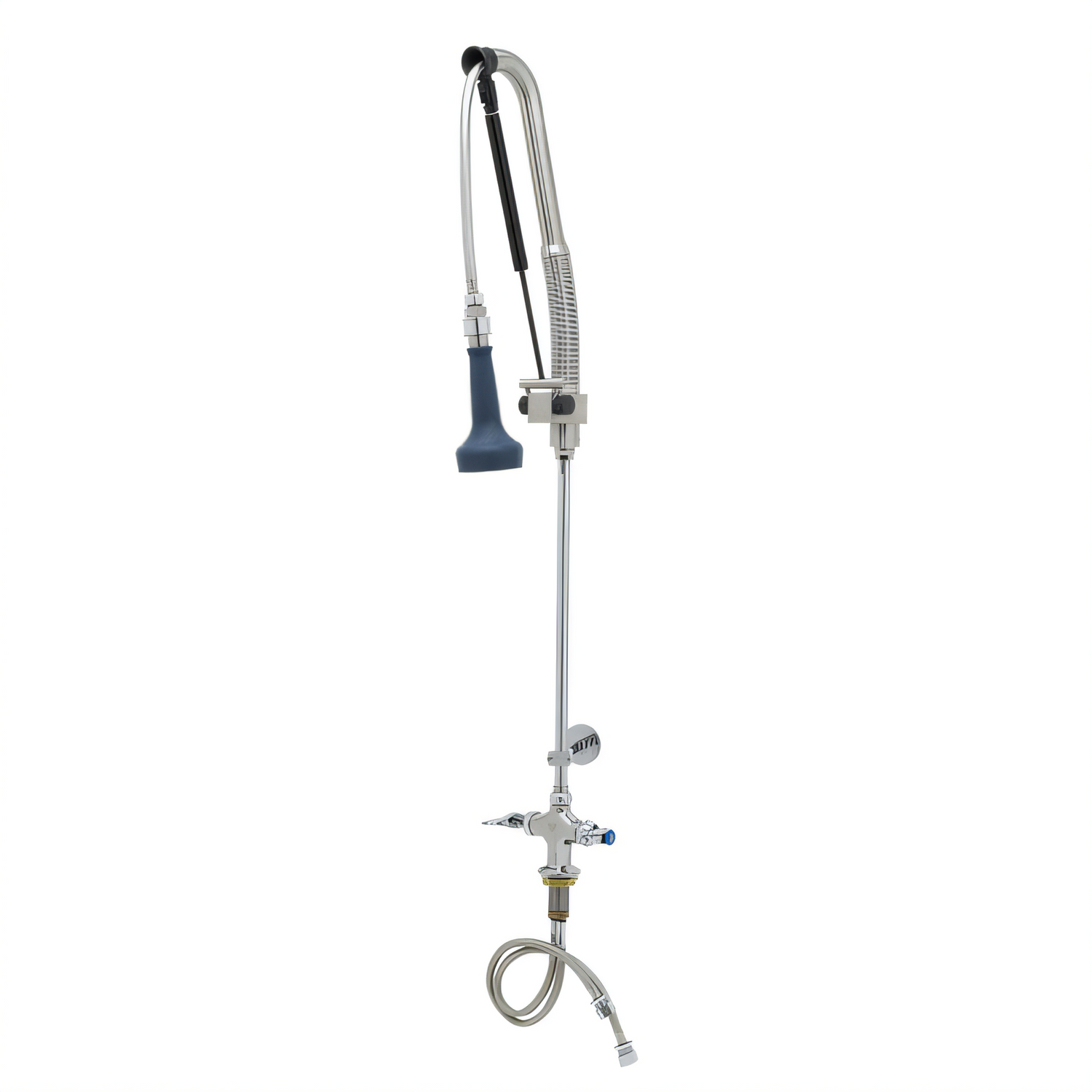

EasyInstall DuraPull™ Pre-Rinse Unit
Model B-0113-CR-B8P • T&S BrassPurpose-built for today’s high-volume commercial kitchens, the EasyInstall DuraPull™ combines T&S Brass’ legendary reliability with a true plug-and-play installation kit. From its quarter-turn Cerama cartridges to the 1.07 GPM swivel spray valve, every component is engineered to conserve water, cut install time and outlast the rush.
Key features & benefits
- Single-hole deck-mount mixing faucet with polished chrome-plated brass body
- 30" flexible stainless-steel hose, spring & air-cylinder pull-down for smooth, controlled retraction
- 1.07 GPM blue swivel spray valve – meets 2019 DOE PRSV Class II requirements
- Quarter-turn Cerama cartridges with check valves to prevent cross-flow (lifetime limited warranty)
- Color-coded lever handles for intuitive hot & cold operation
- 18" EasyInstall riser plus 6" adjustable wall bracket for rock-solid support
- Pair of 18" stainless-steel supply hoses with 1/2" NPSM / 5/8" compression fittings
- Low-lead certified (NSF 61 & NSF 372)
- Ships complete with lock nut, star washer & all mounting hardware – installs through a single 1 1/2" hole
Performance data
| Flow rate | 1.07 GPM @ 60 psi (4.0 L/min) |
|---|---|
| Operating pressure | 20 – 125 psi (1.4 – 8.6 bar) |
| Water temperature | 40 °F – 140 °F (4 °C – 60 °C) |
Dimensional highlights
| Overall height | 42 7/8" (1090 mm) |
|---|---|
| Deck to spray valve | 23 7/8" (606 mm) |
| Body width | 7 1/4" (185 mm) |
| Maximum deck thickness | 1 1/4" (32 mm) |
| Mounting hole | 1 1/2" (38 mm) single hole |
Certifications & compliance
- ASME A112.18.1 / CSA B125.1
- NSF 61, Section 9 (drinking-water system components)
- NSF 372 – Low lead content
- 2019 DOE PRSV – Class II (pre-rinse spray valves)
Warranty
• Seven-year limited warranty on the complete unit
• Lifetime limited warranty on Cerama cartridges
Replacement parts and repair kits are always in stock from T&S Brass for decades of service.
