Description

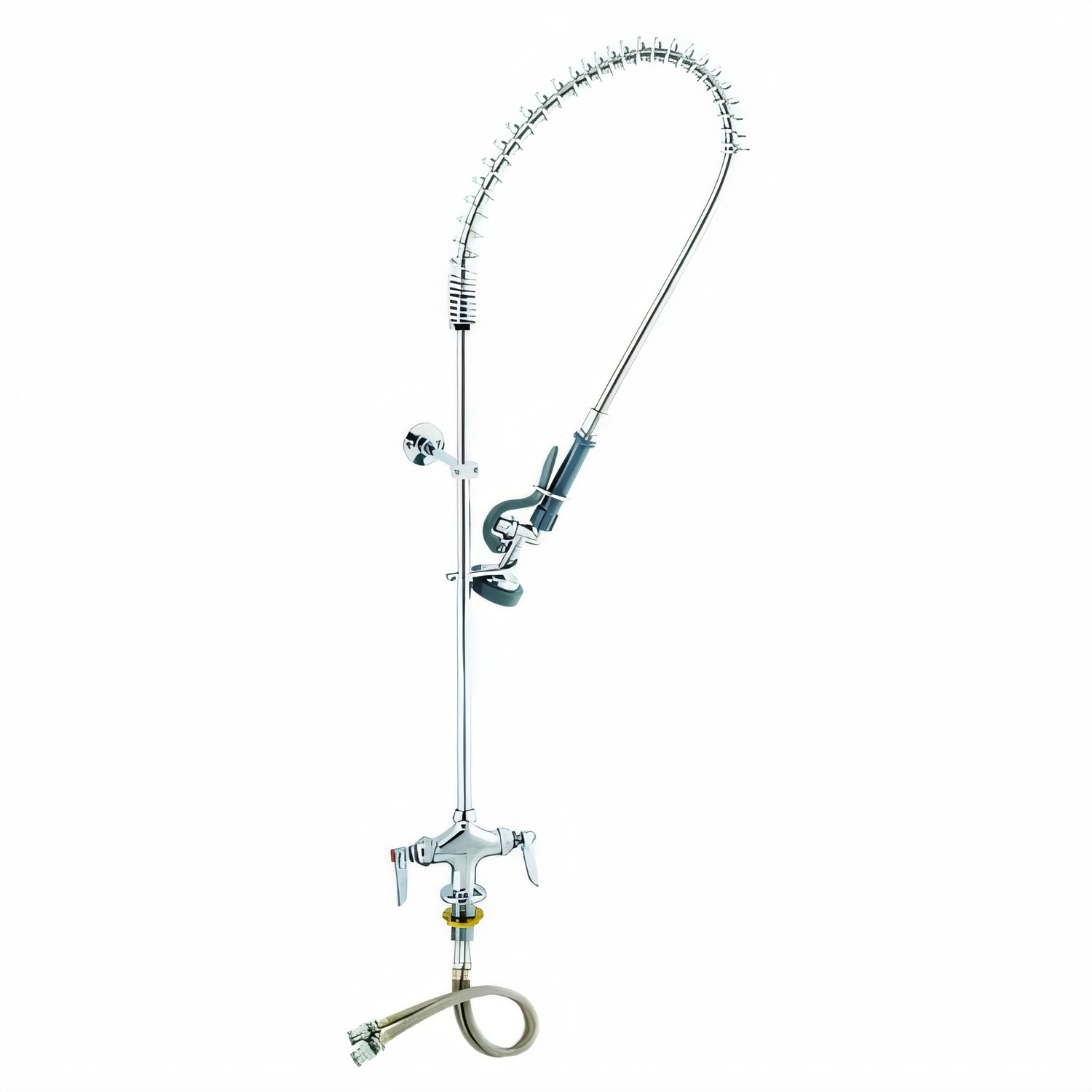

EasyInstall™ Pre-Rinse Unit

1.15 GPM spring action gooseneck – T&S Brass

Built for speed, reliability and new 2019 DOE flow-rate standards, the EasyInstall™ Pre-Rinse Unit combines T&S Brass’ legendary durability with a truly installer-friendly design. A single-hole deck mount, quick-connect riser and flexible stainless steel hose mean you’ll be up and running in minutes, while the quarter-turn Cerama cartridges deliver smooth, drip-free service shift after shift.

Key features & benefits
  • Single-hole deck mount mixing faucet with polished chrome-plated brass body
  • EasyInstall 24 in. riser attaches without thread sealant for faster set-up
  • 44 in. flexible stainless steel hose with heat-resistant gray handle & hold-down ring
  • B-0107 spray valve – 1.15 GPM flow complies with 2019 DOE PRSV Class II
  • Spring-action gooseneck provides full pot-rinsing reach yet snaps back instantly
  • Quarter-turn Cerama cartridges with internal check valves prevent cross-flow
  • 18 in. stainless steel supply hoses with 1/2 in. NPSM / 5/8 in. compression ends
  • 6 in. adjustable wall bracket adds stability to tall assemblies
  • Low-lead construction certified to NSF 372
Technical specifications
Mounting Single-hole deck mount
Overall height 42 1/16 in. (1068 mm)
Riser height 24 in.
Hose length 44 in. stainless steel, heat-resistant handle
Spray valve B-0107, 1.15 GPM @ 60 psi
Flow rate class DOE PRSV Class II (2019)
Operating pressure 20 – 125 psi
Water temperature 40 °F – 140 °F (4 °C – 60 °C)
Cartridges Quarter-turn Cerama with check valves
Supply connections 18 in. flex hoses, 1/2 in. NPSM / 5/8 in. compression
Wall bracket 6 in. adjustable
Material Polished chrome-plated brass body; stainless steel hose
Pack quantity 6 units per master pack
Certifications & compliance
  • ASME A112.18.1 / CSA B125.1
  • NSF 61 – Section 9 (Drinking Water)
  • NSF 372 – Low-Lead Content
  • EPAct 2005 & 2019 DOE PRSV – Class II
Warranty

3-year limited warranty on the complete unit  |  Lifetime limited warranty on Cerama cartridges.

Installation note: For best performance and to maintain certification, have this unit installed by a licensed plumber and flush the water lines prior to first use.

Features & Specs

Manufacturer

T&S Brass

Brand_name

EasyInstall

Shipping Weight

76.98lbs

Wall or Deck Mount

deck mount

Valve Type

ceramic valves

Faucet Centers

single hole centers

Specifications

EasyInstall Pre-Rinse Unit, spring action gooseneck, single hole deck mount, 1.15 GPM spray valve (B-0107), 44" flexible stainless steel hose, 24" riser, 18" flexible supply lines, 6" wall bracket, quarter-turn Cerama cartridges, low lead, 2019 DOE PRSV - Class II (6 each per master pack)
