Description

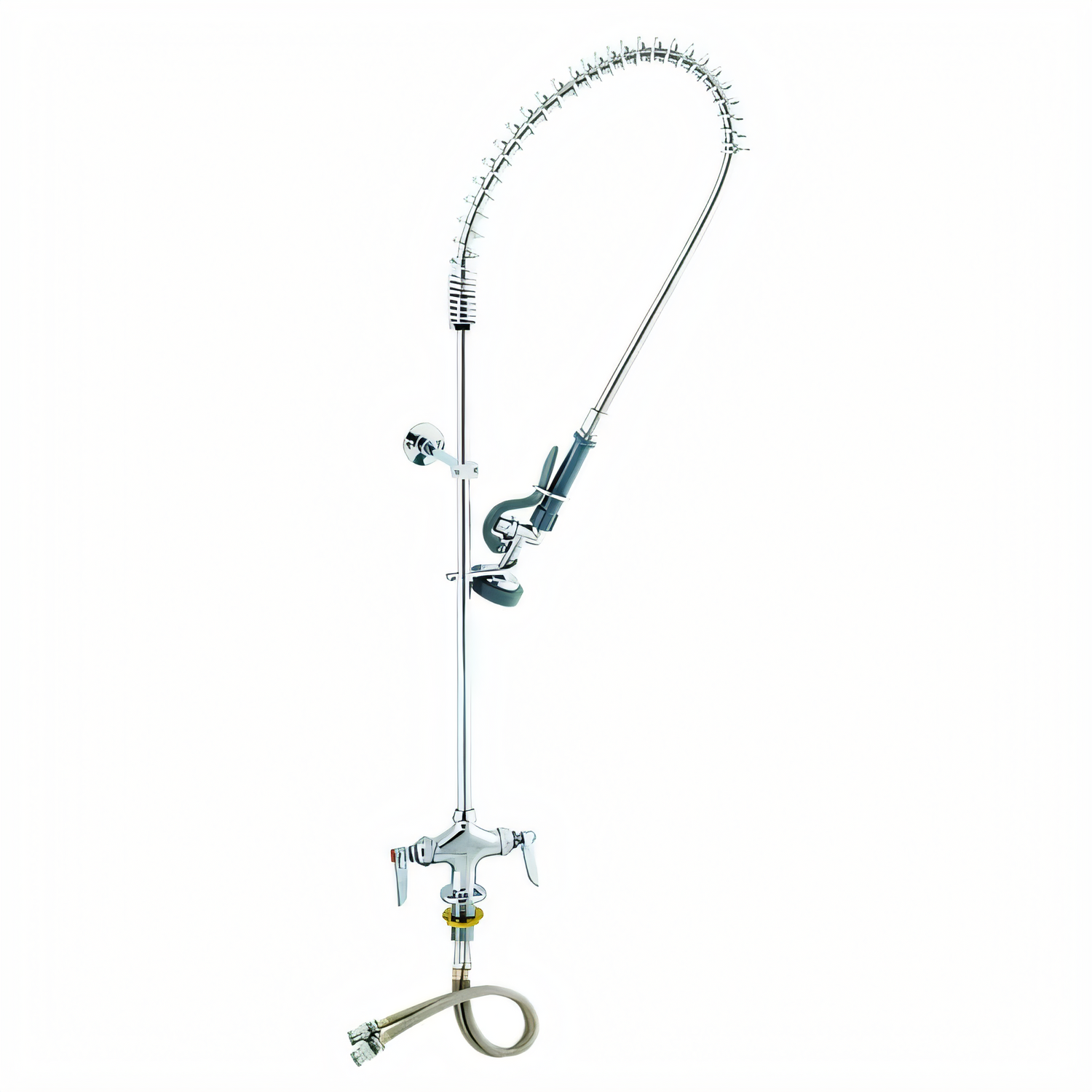

EasyInstall® Pre-Rinse Unit – Model B-0113-B

45" spring-action gooseneck | 1-hole deck mount | 1.42 GPM

Built for the punishing pace of commercial kitchens, the T&S Brass EasyInstall Pre-Rinse Unit drops into a single deck hole and is ready to rinse in minutes. A factory-pre-assembled riser with overhead spring, powerful B-0107 spray valve and rugged stainless supply lines deliver years of leak-free, water-saving performance.

Key Features

  • EasyInstall riser ships pre-assembled for one-person, fast installation.
  • 45 in (1143 mm) overall height with 14 in overhang and 19 3⁄8 in clearance—ideal for deep sinks & elevated racks.
  • B-0107 spray valve delivers a 1.42 GPM focused jet while meeting EPAct 2005 requirements.
  • 44 in (B-0044-H) stainless steel flex hose with heat-resistant handle and hold-down ring.
  • Polished chrome plated brass body & 24 in 3⁄8" NPT riser for superior corrosion resistance.
  • Quarter-turn Eterna compression cartridges with spring checks prevent cross-flow.
  • Lever handles with red/blue indexes for intuitive hot & cold identification.
  • 18 in stainless supply hoses with 1⁄2" NPSM swivel or 5⁄8" OD compression connection.
  • 6 in wall bracket (B-0109-01) stabilizes the riser against heavy use.
  • Three-year limited warranty backed by T&S Brass.

Technical Specifications

Model B-0113-B (EasyInstall Pre-Rinse)
Mounting Single-hole deck mount
Overall Height 45 in (1143 mm)
Overhang 14 in (356 mm)
Deck-to-Spray Clearance 19 3⁄8 in (492 mm)
Riser Pipe 24 in, 3⁄8" NPT, chrome plated brass
Spray Valve B-0107, 1.42 GPM @ 60 psi
Hose B-0044-H, 44 in stainless steel flex with heat-resistant handle
Supply Lines 18 in stainless, 1⁄2" NPSM male swivel x 5⁄8" compression
Wall Bracket B-0109-01, 6 in adjustable
Flow Rate 1.42 GPM (5.4 L/min) @ 60 psi
Pressure Range 20 – 125 psi (1.4 – 8.6 bar)
Temperature Range 40 °F – 140 °F (4 °C – 60 °C)
Body Material Polished chrome plated brass
Compliance ASME A112.18.1 / CSA B125.1; NSF 61-9; NSF 372 (Low Lead); EPAct 2005 PRSV
Warranty Three-year limited

What’s in the Box

  • Pre-assembled faucet body, 24 in riser, overhead spring & finger hook
  • B-0107 1.42 GPM spray valve
  • B-0044-H 44 in stainless hose with heat-resistant handle
  • B-0109-01 6 in wall bracket with mounting hardware
  • (2) 18 in stainless steel supply hoses
  • Color-coded lever handles with Eterna cartridges & spring checks
  • Installation manual
Sold in master packs of 6 units. Quantity 1 in cart equals 6 complete pre-rinse assemblies.

Need individual units or custom spray valves? Contact our sales team for assistance.

Features & Specs

Manufacturer

T&S Brass

Brand_name

EasyInstall

Shipping Weight

82.05lbs

Wall or Deck Mount

deck mount

Specifications

EasyInstall Pre-Rinse Unit, spring action gooseneck & hole base faucet, 18" flex stainless steel sup. lines with comp. fittings, 45"H, 14" overhang, 19-3/8" clearance, 24" riser, spray valve (B-0107), stainless steel hose (B-0044-H) with 6" wall bracket (B-0109-01) (6 each per master pack)
