T&S Brass B-0108-M Commercial Faucets & Plumbing

$1,372.52
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Submittal Instructions
Related Searches
Faucet Components Pre-rinse Faucet Parts Restaurant Equipment Restaurant Equipment Parts

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

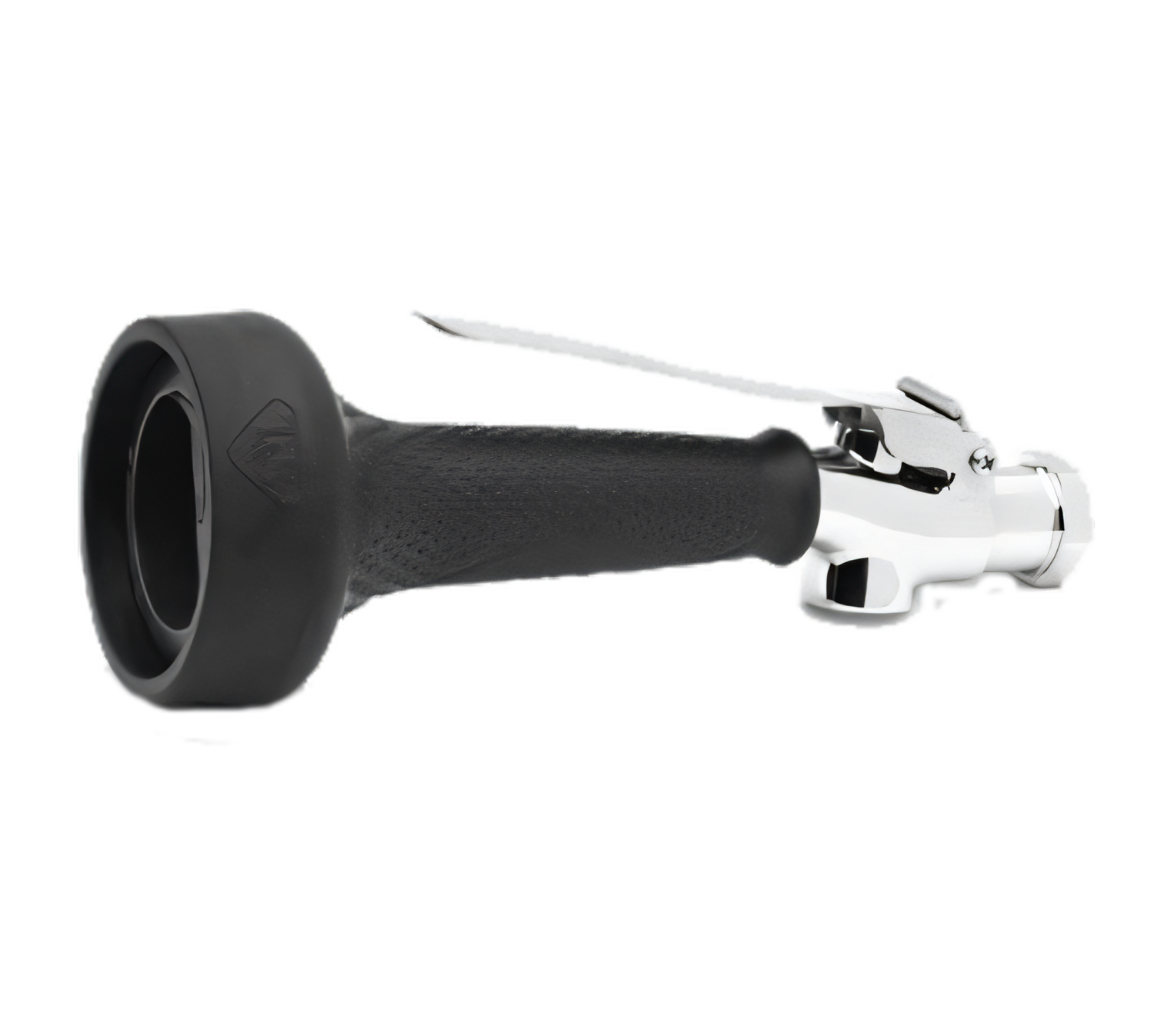

T&S Brass B-0108 JetSpray Spray Valve – 1.07 GPM

Ergo-Grip handle, stainless-steel trigger & smart one-handed lock

Upgrade any pre-rinse assembly with the industry’s most trusted spray valve. The B-0108 delivers a high-impact 1.07 GPM JetSpray stream while protecting users with an ergonomic, heat-insulated Santoprene grip and a surgical-grade stainless-steel trigger that locks in place with a single touch. Built for commercial kitchens, it’s NSF/ANSI certified, EPAct compliant and field-serviceable with drop-in cartridges and replaceable spray faces.

Why you’ll love it

  • Standard-flow JetSpray nozzle delivers 1.07 GPM (4.05 L/min) @ 60 psi
  • Built-in check valve prevents costly backflow incidents
  • Trigger catch lets you lock the spray on with one hand – now with anti-rotation stop
  • Surgical-grade polished stainless-steel trigger resists wear and corrosion
  • Non-slip Santoprene Ergo-Grip with heat-dissipation channels for all-day comfort
  • Replaceable valve cartridge & spray face keep maintenance fast and affordable
  • Removable screen filter traps sediment before it reaches the nozzle
  • Crush-resistant internal Delrin® waterways for long service life
  • 7/8-20 UN male inlet threads directly to most pre-rinse hoses
  • 12 valves per master pack – ideal for multi-unit roll-outs

Technical Specifications

Model / MPN B-0108
Flow rate 1.07 GPM (4.05 L/min) @ 60 psi
Spray force 7.2 oz-force (204 g-force) @ 60 psi
Pressure range 20 – 125 psi (1.4 – 8.6 bar)
Temperature range 40 °F – 140 °F (4 °C – 60 °C)
Overall length 8 5/16 in │ 212 mm
Spray face Ø 3 1/4 in │ 83 mm
Inlet connection 7/8-20 UN male
Body material Chrome-plated forged brass
Handle / grip Santoprene® rubber with heat-dissipation channels
Trigger material Polished stainless steel (surgical grade)
Certifications ASME A112.18.1 / CSA B125.1, NSF/ANSI 61-Section 9, NSF/ANSI 372 (Low Lead), 2019 DOE PRSV Class II, EPAct 2005
Warranty 1-year limited commercial warranty

Field-serviceable repair kits (sold separately)

  • 108V-RK – Valve repair kit
  • 108T-RK – Trigger repair kit
  • 108S-RK – Inlet screen & washer kit
  • 108SF-RK – 1.07 GPM spray face kit (standard flow)
  • 108CSF-RK – 0.65 GPM low-flow spray face kit
  • 108HSF-RK – High-flow spray face kit

T&S Brass JetSpray valves are patented (U.S. 7,150,415) and manufactured in an ISO-certified facility for consistent performance batch after batch.

California Proposition 65: This product can expose you to chemicals including lead and chromium, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.

Features & Specs

Manufacturer

T&S Brass

Shipping Weight

17.65lbs

Flow Rate

0.65 - 1.07 GPM

Specifications

Spray Valve, 1.07gpm, built-in check valve, replaceable cartridges & spray face, removable screen filter, one-handed trigger lock with anti-rotational feature, surgical-grade polished stainless steel trigger, non-slip ergonomic Santoprene grip with heat dissipation channels, 7/8-20 UN male inlet (12 each per master pack)
