T&S Brass Safe-T-Link AG-6D Gas Appliance Connector, Swivelink, 3/4" NPT
$69.46
/each
Ships in 3–6 business days
- Connection type and size
- 3/4" NPT SwiveLink; 3/4" NPT inlet and outlet
- Swivel material
- Brass
- Nut material
- Stainless steel
- Maximum pressure
- 0.5 psi
- Maximum temperature
- 350 °F with fusible link thermal shut-off
- Listed dimensions
- 2 15/16" x 1 3/8" x 1 3/8"
Specifications
Connection type and size
3/4" NPT SwiveLink; 3/4" NPT inlet and outlet
Swivel material
Brass
Nut material
Stainless steel
Maximum pressure
0.5 psi
Maximum temperature
350 °F with fusible link thermal shut-off
Listed dimensions
2 15/16" x 1 3/8" x 1 3/8"
Description

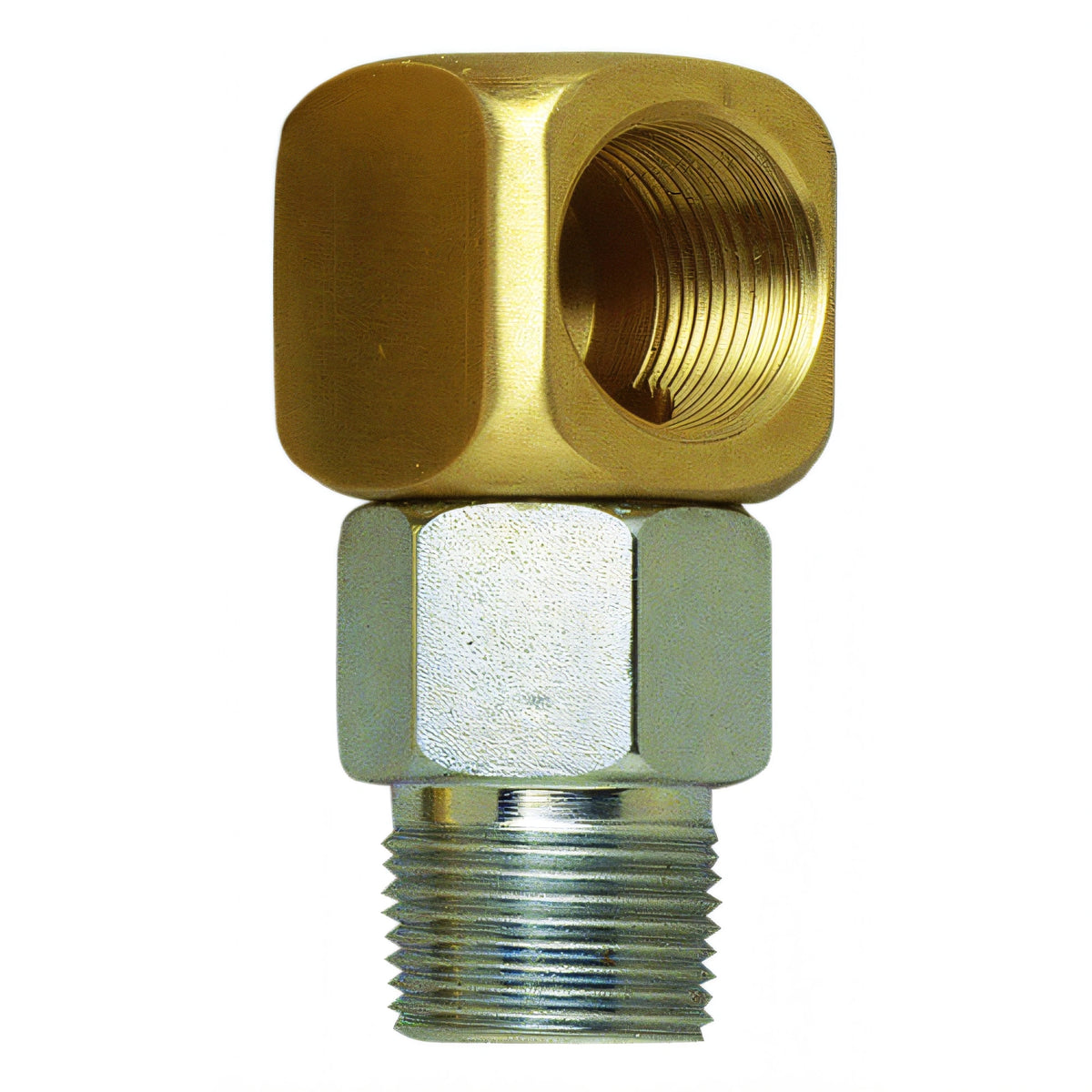

The T&S Brass Safe-T-Link AG-6D is a gas appliance connector with a 3/4" NPT SwiveLink connection.
- Provides stress-free, torque-free swivel motion.
- Helps eliminate kinking so the entire connector length can be used.
- Constructed with a brass swivel and stainless steel nut.
- Complies with NFPA 54.
Product Weight:
0.75 lbSwiveLink motion
Provides consistent, stress-free, torque-free swivel motion.
Kink reduction
Helps eliminate kinking, allowing the entire connector length to be used.
Connection
Features a 3/4" NPT inlet and outlet.
Materials
Includes a brass swivel and stainless steel nut.
Maximum pressure
Rated for 0.5 psi maximum pressure.
Maximum temperature
Rated for 350 °F maximum with fusible link thermal shut-off.
Documentation
Frequently Asked Questions
The AG-6D uses a 3/4" NPT SwiveLink connection with a 3/4" NPT inlet and outlet.
The swivel is brass and the nut is stainless steel.
The maximum pressure is 0.5 psi.
The maximum temperature is 350 °F with a fusible link thermal shut-off.
The AG-6D complies with NFPA 54.
The product has a five-year limited warranty.
