Key specifications
- Type
- Appliance Connector
- Style
- Quick Disconnect
- Material
- Brass
- Connection Size
- 3/4 in NPT
- Inlet Connection
- 3/4 in NPT Female Freespin
- Outlet Connection
- 3/4 in NPT Female Freespin
Spec sheet

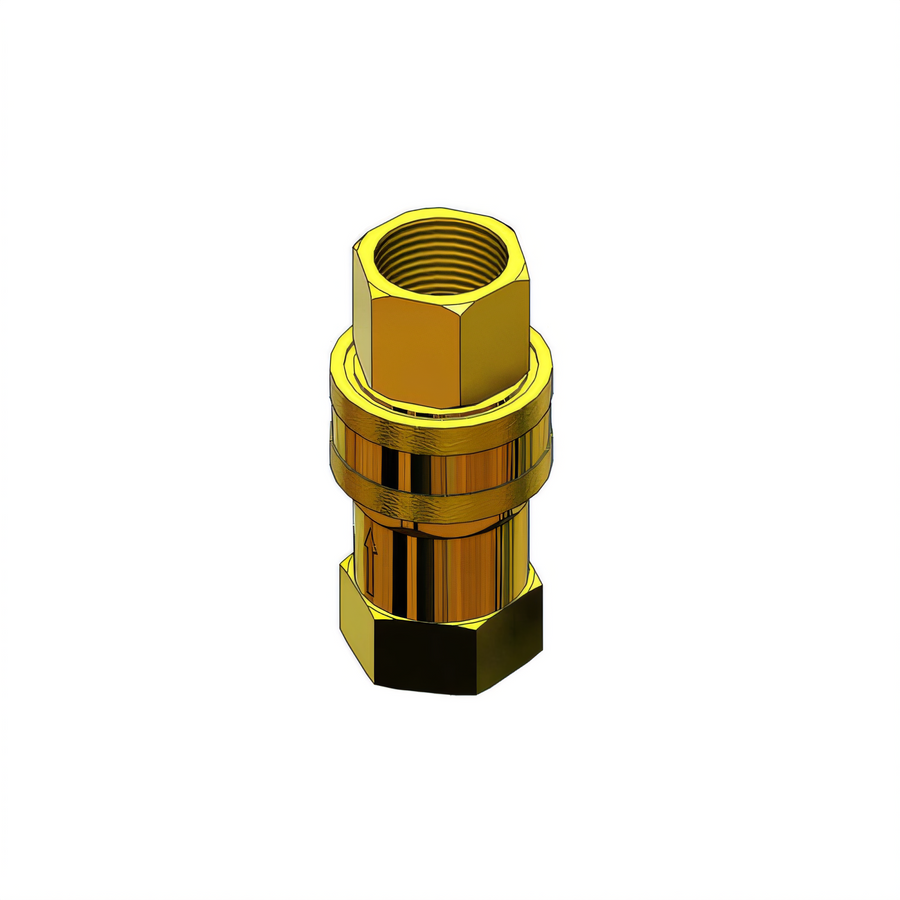

T&S Brass Safe-T-Link AG-5D Gas Appliance Connector, Quick Disconnect, 3/4"
$65.27
/each
Estimated to ship in 4–7 business days
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Type
Appliance Connector
Style
Quick Disconnect
Material
Brass
Connection Size
3/4 in NPT
Inlet Connection
3/4 in NPT Female Freespin
Outlet Connection
3/4 in NPT Female Freespin
Piece Count
2
Maximum Pressure
0.5 psi
Maximum Temperature
350 °F
Thermal Shut-Off
Fusible Link
Description
The Safe-T-Link AG-5D is a 2-piece quick disconnect for gas appliance connections.
- 3/4 in NPT female freespin inlet and outlet
- Brass socket and plug
- Socket acts as a shut-off valve when the plug and socket are disconnected
- Maximum pressure of 0.5 psi
- Maximum temperature of 350 °F with fusible link thermal shut-off
Product Weight:
1.2 lb2-Piece Quick Disconnect
The assembly uses a two-piece quick-disconnect design.
Female Freespin Connections
Includes 3/4 in NPT female freespin inlet and outlet.
Socket Shut-Off Valve
The socket acts as a shut-off valve when the plug and socket are disconnected.
Brass Construction
The socket and plug are brass.
Fusible Link Thermal Shut-Off
Maximum temperature is 350 °F with fusible link thermal shut-off.
Documentation
Certifications & Compliance
Frequently Asked Questions
It is a 2-piece quick disconnect for gas appliance connections.
It has a 3/4 in NPT female freespin inlet and a 3/4 in NPT female freespin outlet.
The socket and plug are brass.
Yes. The socket acts as a shut-off valve when the plug and socket are disconnected.
The maximum pressure is 0.5 psi, and the maximum temperature is 350 °F with fusible link thermal shut-off.
The product has a five-year limited warranty.
