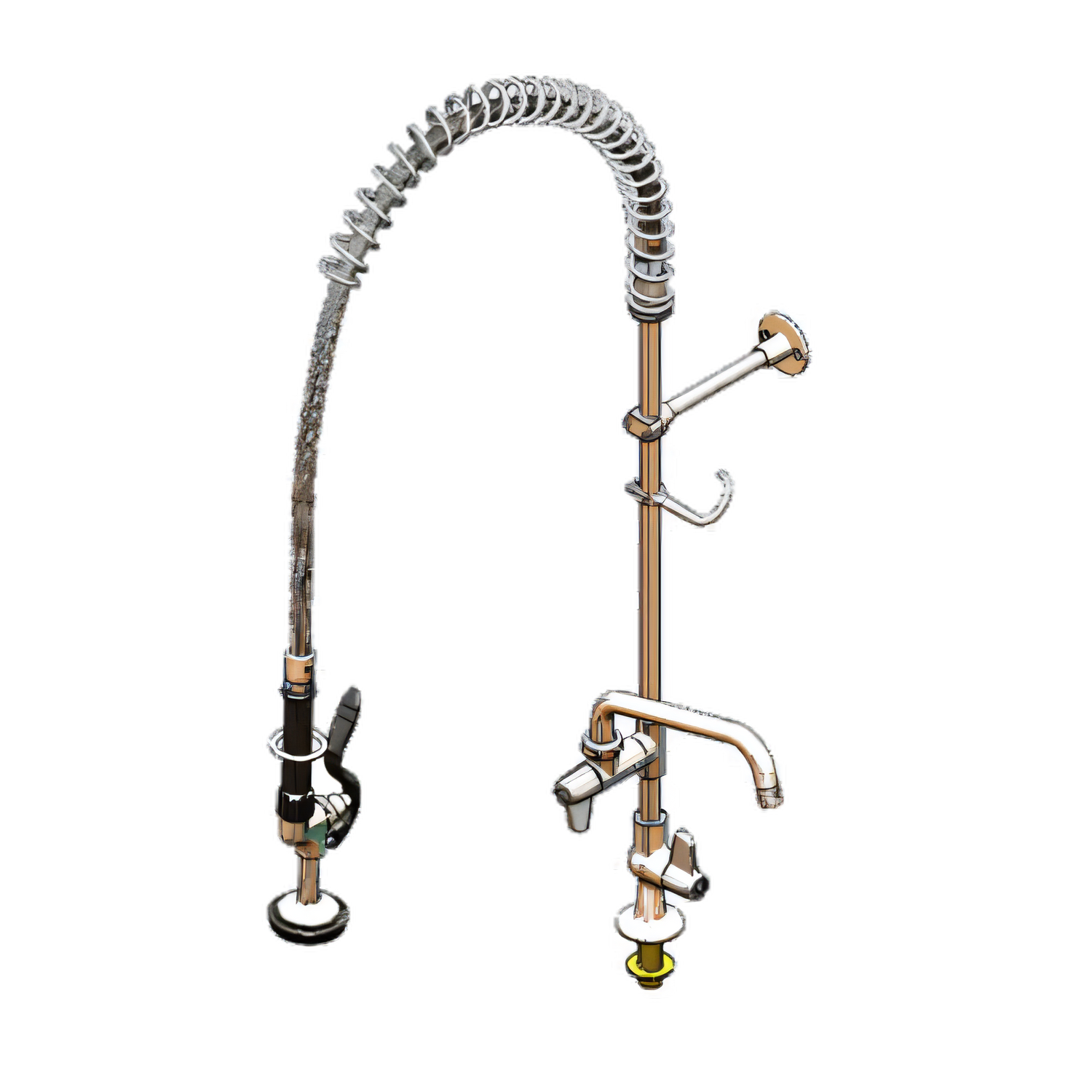

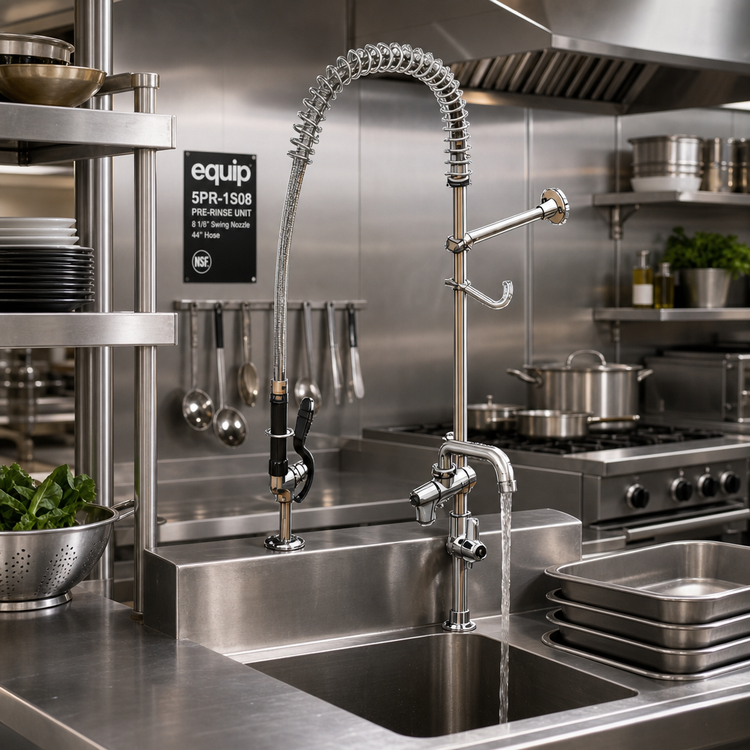

equip 5PR-1S08 Single-Hole Deck-Mount Pre-Rinse Unit with 8 1/8" Swing Nozzle and 44" Hose

Polished chrome-plated brass body, quarter-turn ceramic cartridge, 44" flexible stainless hose

Heavy-duty single-hole deck-mounted pre-rinse unit with an 8 1/8" swing nozzle, 44" flexible hose and quarter-turn ceramic cartridge for reliable, low-lead commercial rinsing.

  • Single-hole deck-mount pre-rinse unit with polished chrome-plated brass construction and Ø 2 1/4" deck flange
  • 8 1/8" swing nozzle with laminar flow device and 44" flexible stainless steel hose with heat-resistant handle
  • Quarter-turn ceramic cartridge with lever handle (color coded screw) for durable, easy operation
  • Includes 18" rigid riser, 6" adjustable wall bracket, finger hook and 1/2" male inlet
  • Performance: Spray valve 1.42 GPM @ 60 psi; add-on faucet 3.93 GPM @ 60 psi; operating pressure 20–125 psi; temperature range 40 °F–140 °F
  • Certified to ASME A112.18.1 / CSA B125.1, NSF 61 Section 9 and NSF 372 (Low Lead). One-year limited warranty.

Product Weight:

11.0 lb

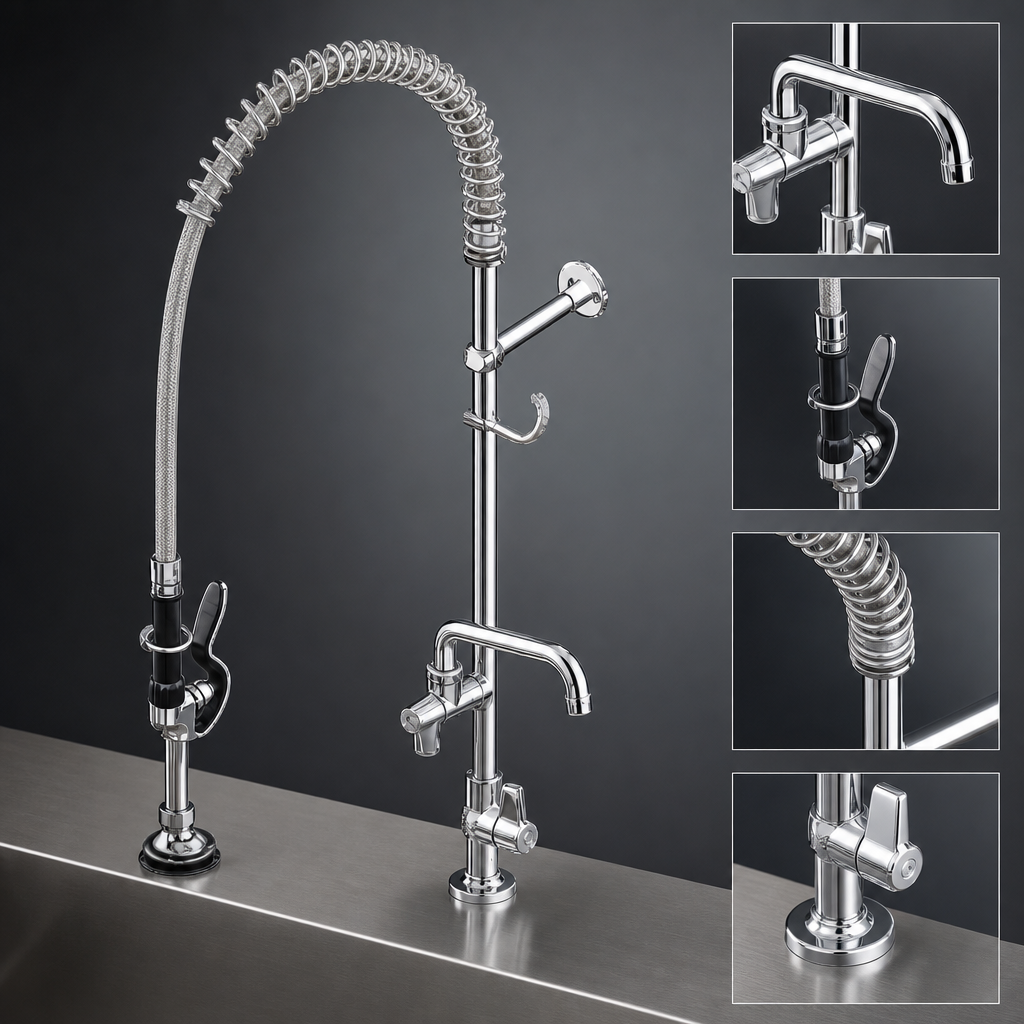

Construction

Polished chrome-plated brass body and tubular nozzle; chrome-plated metal handles; stainless steel hose and brass add-on faucet body.

Nozzle

8 1/8" swing nozzle with integral laminar flow device for controlled rinse pattern.

Hose & Riser

18" rigid riser and 44" flexible stainless steel hose with heat-resistant black handle and hold-down ring.

Spray Valve

equip spray valve (part 5SV); performance listing shows 1.42 GPM @ 60 psi.

Cartridge & Handle

Quarter-turn ceramic cartridge with equip lever handle and color-coded screw for hot/cold identification.

Mounting / Rough-In

Single-hole deck mount with Ø 2 1/4" deck flange; rough-in requires Ø 1" mounting hole; maximum deck thickness 1 5/8"; includes 6" adjustable wall bracket and finger hook.

Inlet

1/2" male inlet provided (document lists 1/2" NPSM/NPT male inlet).

Standards & Compliance

Certified to ASME A112.18.1 / CSA B125.1, NSF 61 - Section 9, NSF 372 (Low Lead); EPAct 2005 PRSV; 2019 DOE PRSV - Class II.

Type Pre-Rinse Unit
Installation Type Deck Mount
Material Brass
Finish Polished Chrome
Spout Length 8 1/8 Inches
Nozzle Type Swing Nozzle with Laminar Flow Device
Riser Length 18 Inches
Hose Length 44 Inches
Valve Type Quarter-Turn Ceramic Cartridge
Water Inlet Size 1/2 Inch (Male)
Flow Rate Spray Valve 1.42 GPM @ 60 psi; Add-On Faucet 3.93 GPM @ 60 psi
Operating Pressure 20 - 125 psi
Temperature Range 40 °F - 140 °F
Rough-In Requirement 1 Inch Diameter Mounting Hole
Max Deck Thickness 1 5/8 Inches
Selling Unit Each
Units Per Case 1
Shipping Weight 11 lb.

Warranty & Protection

One Year (Limited)

Documents

PDF Cutsheet PDF Download PDF Installation and maintenance instructions PDF Download PDF Submittal PDF Download

Frequently Asked Questions

Includes add-on faucet with 8 1/8" swing nozzle, 44" flexible stainless steel hose with heat-resistant handle, 18" rigid riser, spray valve (part 5SV), 6" adjustable wall bracket, finger hook, and 1/2" male inlet with Ø 2 1/4" deck flange.
Performance data lists Spray Valve at 1.42 GPM @ 60 psi and Add-On Faucet at 3.93 GPM @ 60 psi. Operating pressure range is 20–125 psi and temperature range is 40 °F–140 °F.
Single-hole deck mount; requires a 1" diameter mounting hole and accepts decks up to 1 5/8" thick. Deck flange is Ø 2 1/4".
Certified to ASME A112.18.1 / CSA B125.1, NSF 61 - Section 9 and NSF 372 (Low Lead). Meets EPAct 2005 PRSV requirements and is listed as 2019 DOE PRSV - Class II in the documentation.
One Year (Limited) manufacturer warranty.
