T&S Brass

Equip Open Wall-Mounted Retractable Hose Reel Assembly with Single-Temperature Faucet, 50 ft. Hose, and Spray Valve

SKU: 5HR-242-01XE2
GTIN: 671262820851
$1,738.18
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cleaning & Janitorial Supplies Cleaning, Janitorial & Facility Supplies Floor Care & Drainage Floor Maintenance New Arrivals Retractable Hose Reel T&S Brass

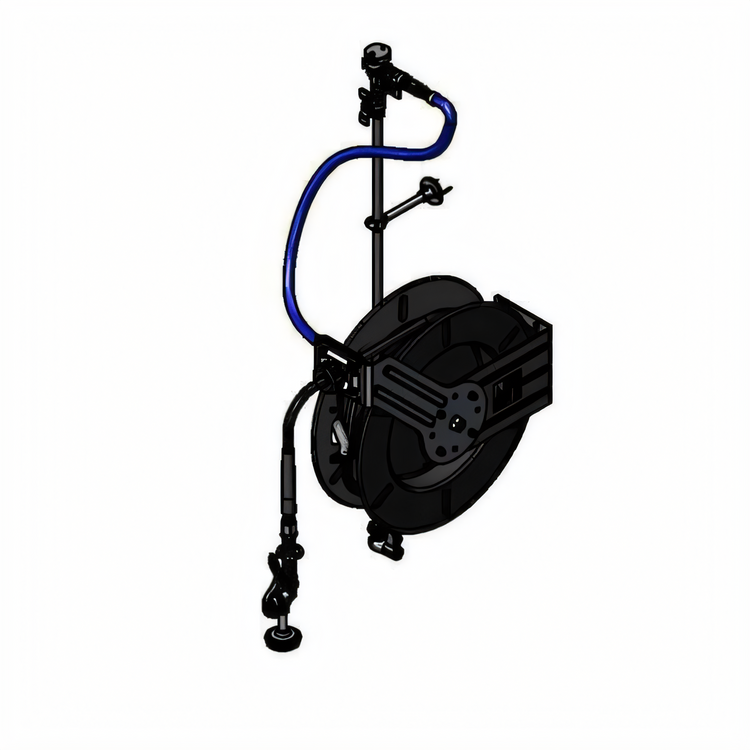

Equip Open Wall-Mounted Retractable Hose Reel Assembly with Single-Temperature Faucet, 50 ft. Hose, and Spray Valve

Epoxy-Coated Steel Reel with Chrome-Plated Brass Faucet Body and Vacuum Breaker

Build a dependable washdown station with an all-in-one retractable hose reel system that combines long reach, smooth retraction, and built-in backflow protection.

  • All-in-one hose reel assembly combines the reel, faucet, spray valve, hose, and backflow protection in one unit.
  • 50 ft. of 3/8 in. hose provides extended reach for cleaning and rinse-down tasks.
  • Ratcheting retraction system holds the hose at the desired length and retracts with a slight tug.
  • Continuous-pressure vacuum breaker with integral check valve helps protect the water supply.
  • Quarter-turn ceramic cartridges and lever handle deliver smooth single-temperature operation.
  • 36 in. flexible water connector with stainless steel quick disconnect simplifies installation and service.
  • Multi-fit bracket supports flexible mounting options, including wall, ceiling, or under-counter use.

All-In-One Washdown System

Combines the faucet, hose reel, spray valve, hose, and vacuum breaker into a single integrated assembly.

Open Epoxy-Coated Steel Reel

Open reel design helps keep the hose accessible while the epoxy-coated steel construction supports durability.

50 Ft. 3/8 In. Hose

Provides a long reach for washdown and cleaning applications.

Single-Temperature Wall-Mount Faucet

Includes a polished chrome-plated brass faucet body with a lever handle for simple single-temperature control.

Quarter-Turn Ceramic Cartridges

Promotes smooth operation and dependable shutoff performance.

Continuous-Pressure Vacuum Breaker

Includes an integral check valve to help prevent backflow.

Stainless Steel Quick Disconnect

The 36 in. flexible water connector includes a stainless steel quick disconnect for easier service and installation.

Ratcheting Retraction System

Locks the hose at the selected length and retracts automatically with a slight tug.

Adjustable Hose Bumper

Lets the user set the hose stop position for improved reach control.

High-Flow Spray Valve

Designed to support efficient rinsing and washdown performance.

Type Hose Reel Assembly
Style Open
Installation Type Wall Mounted
Temperature Control Single Temperature
Controls Lever Handle
Material Steel
Finish Epoxy Coated
Hose Length 50 Feet
Hose Diameter 3/8 Inch
Water Inlet Size 1/2 Inch NPT Female
Flow Rate 2.27 GPM @ 60 PSI
Temperature Range 40 °F to 140 °F
Operating Pressure 20 PSI to 125 PSI
Shipping Weight 55 lb.
Selling Unit Each
Units Per Case 1

Warranty & Protection

1-year limited

Documents

PDF Cutsheet PDF Download PDF Submittal PDF Download

Frequently Asked Questions

The assembly includes an open epoxy-coated steel hose reel, 50 ft. of 3/8 in. hose, a high-flow spray valve, a continuous-pressure vacuum breaker, a 36 in. flexible water hose connector with stainless steel quick disconnect, a single-supply wall-mount faucet, and wall brackets.
It uses a ratcheting system that holds the hose at the desired length until a slight tug retracts it automatically.
Yes. The documentation notes a multi-fit bracket that supports wall, ceiling, or under-counter mounting.
The documented performance range is 20 psi to 125 psi, with a temperature range of 40 °F to 140 °F and a flow rate of 2.27 GPM at 60 psi.
It includes a continuous-pressure vacuum breaker with an integral check valve and is certified to ASSE 1056 (VB).
The faucet assembly has a 1/2 in. NPT female inlet.
