T&S Brass

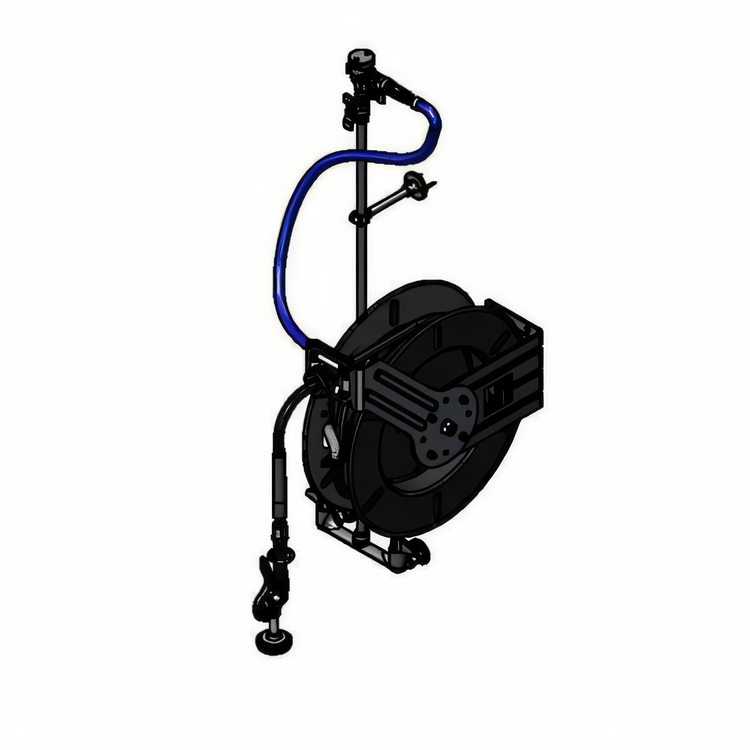

T&S equip Open Wall-Mounted Dual-Temperature Complete Hose Reel System with 50-Foot Hose and 8-Inch Mixing Faucet

SKU: 5HR-242-01XE1
GTIN: 671262820844
$1,764.77
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cleaning & Janitorial Supplies Cleaning, Janitorial & Facility Supplies Floor Care & Drainage Floor Maintenance New Arrivals Retractable Hose Reel T&S Brass

T&S equip Open Wall-Mounted Dual-Temperature Complete Hose Reel System with 50-Foot Hose and 8-Inch Mixing Faucet

8-inch adjustable-center mixing faucet, vacuum breaker, and high-flow spray valve

This complete wall-mounted wash-down system combines a retractable 50-foot hose, mixing faucet, and high-flow spray valve for efficient cleaning.

  • Complete hose reel system combines the reel, mixing faucet, hose, spray valve, and backflow protection in one assembly.
  • 50-foot, 3/8-inch hose with a ratcheting retract system and adjustable hose bumper.
  • 8-inch wall-mount mixing faucet with quarter-turn ceramic cartridges and color-coded lever handles.
  • Continuous pressure vacuum breaker, integral check valves, and quick-disconnect connector support safe, serviceable operation.
  • Multi-fit bracket allows wall, ceiling, or under-counter mounting.
  • NSF 61 Exempt for non-potable use and certified to ASSE 1056.

Complete Wash-Down Assembly

Integrates an open hose reel, 8-inch mixing faucet, spray valve, vacuum breaker, and hose connections into one system.

Retractable Hose Reel

Includes 50 feet of 3/8-inch hose with a ratcheting system that holds position until a slight tug retracts the hose.

Dual-Temperature Mixing Faucet

Wall-mount faucet uses quarter-turn ceramic cartridges and lever handles with color-coded indexes for simple hot/cold control.

Backflow Protection

Continuous pressure vacuum breaker with integral check valve and in-line check valves helps protect the water supply.

Quick-Disconnect Water Connector

36-inch flexible water hose connector includes a stainless steel quick disconnect for easier installation and service.

Adjustable Mounting Support

Multi-fit bracket supports wall, ceiling, or under-counter mounting, and the system includes wall brackets.

High-Flow Spray Valve

High-flow spray valve supports efficient wash-down performance.

Compliance and Application

Documented as NSF 61 Exempt (Non-Potable) and certified to ASSE 1056.

Type Complete Hose Reel System
Style Open
Installation Type Wall Mounted
Material Steel
Finish Black Powder Coated
Water Inlet Size 1/2 Inch NPT Female
Hose Length 50 Feet
Hose Diameter 3/8 Inch
Flow Rate 2.27 GPM @ 60 PSI
Operating Pressure 20 PSI - 125 PSI
Operating Temperature 40 °F - 140 °F
Shipping Weight 55 lb.
Selling Unit Each
Units Per Case 1

Warranty & Protection

1-year limited warranty.

Documents

PDF Cutsheet PDF Download PDF Submittal PDF Download

Frequently Asked Questions

The system includes a 50-foot hose.
It uses a ratcheting system that holds the hose length in place until a slight tug releases it for automatic retraction.
Yes. The multi-fit bracket supports wall, ceiling, or under-counter mounting.
The system uses 1/2-inch NPT female inlets and includes a 36-inch flexible water hose connector with a stainless steel quick disconnect.
The documented flow rate is 2.27 GPM at 60 PSI, with an operating pressure range of 20 PSI to 125 PSI and a temperature range of 40 °F to 140 °F.
No. The product is listed as NSF 61 Exempt (Non-Potable).
