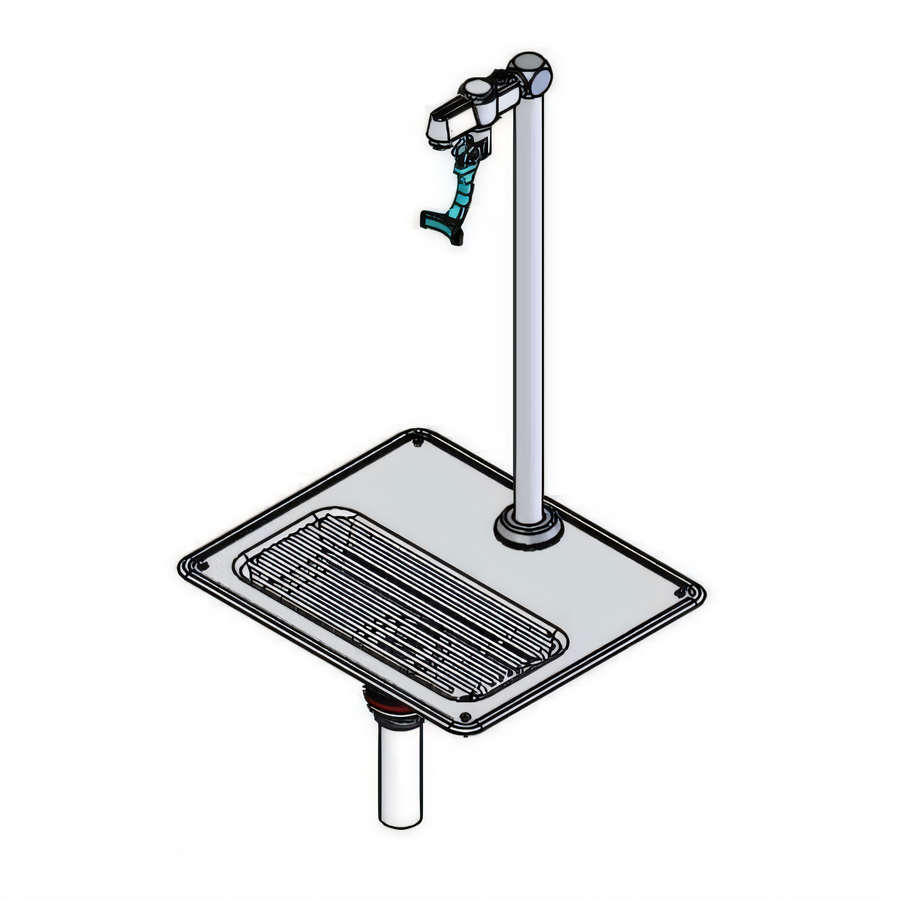

T&S Brass 16-Inch Deck-Mount Pedestal Water Station Glass Filler with Adjustable Flow and Drip Pan

Push-Back Actuation, 1/2-Inch NPT Male Inlet, ADA Compliant

A compact deck-mount water station built for quick, controlled glass filling with adjustable flow and a durable stainless steel drip pan.

  • 16-inch pedestal deck-mount design for standard countertop installations.
  • Push-back, self-closing Lexan arm provides simple, fast operation.
  • Adjustable flow outlet with instantaneous shut-off helps control splash and waste.
  • 18-gauge stainless steel drip pan and grid with 1-1/4-inch drain helps keep the station clean.
  • Polished chrome plated brass body and pedestal are built for commercial durability.
  • Low lead construction and ADA compliance support code-conscious installations.

Overall Dimensions:

12.63"W x 10.63"D x 25.19"H

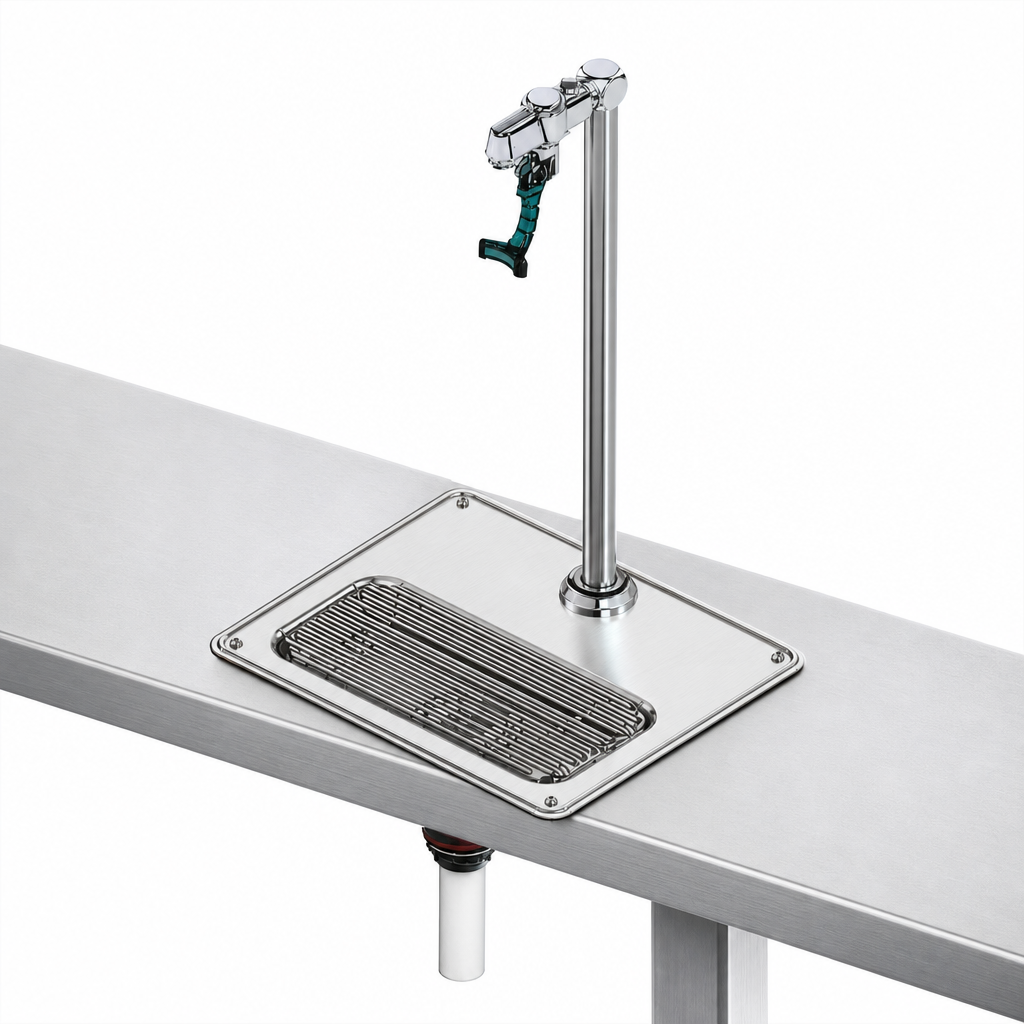

Deck-Mount Pedestal Design

Glass filler mounts on the deck/counter and uses a 16-inch pedestal for a compact water station setup.

Adjustable Flow Outlet

Screwdriver-adjustable outlet lets operators fine-tune the fill rate and provides instantaneous shut-off.

Push-Back Self-Closing Arm

Blue Lexan actuating arm offers easy push-back operation and self-closing action.

Adjustable Deck Flange

Pedestal includes an adjustable flange to help accommodate installation requirements and deck thickness variation.

Stainless Steel Drip Pan

18-gauge stainless steel drip pan with grid helps contain messes and includes a 1-1/4-inch drain.

Durable Brass Construction

Polished chrome plated brass body and pedestal provide a durable, easy-to-clean commercial finish.

Low Lead and ADA Compliant

Designed to meet low lead requirements and ADA accessibility needs for commercial use.

Type Glass Filler
Style Pedestal
Installation Type Countertop
Mounting Type Deck Mount
Controls Push Back
Material Brass
Finish Polished Chrome Plated
Water Inlet Size 1/2 Inch NPT Male
Drain Connection Size 1-1/4 Inches
Temperature Range 40 to 140 °F
Flow Rate 0.25 GPM Min @ 60 PSI / 2.50 GPM Max @ 60 PSI
Shipping Width 13 Inches
Shipping Depth 11 Inches
Shipping Height 26 Inches
Shipping Weight 7 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

One Year (Limited)

Documents

PDF Cutsheet PDF Download PDF Installation and maintenance instructions PDF Download PDF Submittal PDF Download

Frequently Asked Questions

Yes. It is designed as a deck-mount water station.
It uses a push-back, self-closing Lexan arm for dispensing.
Yes. The outlet is screwdriver adjustable and includes instantaneous shut-off.
It uses a 1/2-inch NPT male inlet and a 1-1/4-inch drain.
Yes. The product is ADA compliant and low lead compliant.
The document lists a one-year limited warranty.
