equip 12-Inch Deck-Mount Pedestal Push-Back Glass Filler with Adjustable Flange and Blue Self-Closing Arm
equip 12-Inch Deck-Mount Pedestal Push-Back Glass Filler with Adjustable Flange and Blue Self-Closing Arm
1/2" NPT Male Inlet, ADA Compliant
Compact deck-mounted glass filler with push-back actuation, adjustable flow control, and a self-closing blue Lexan arm for fast, reliable service.
- 12-inch pedestal-style glass filler designed for deck-mount installation.
- Push-back valve design provides instantaneous shut-off.
- Adjustable flow control can be set with a screwdriver.
- Blue self-closing Lexan arm adds durable, automatic return action.
- Polished chrome-plated brass body and pedestal with adjustable deck flange.
- Meets ADA requirements and is certified low lead compliant.
Product Weight:

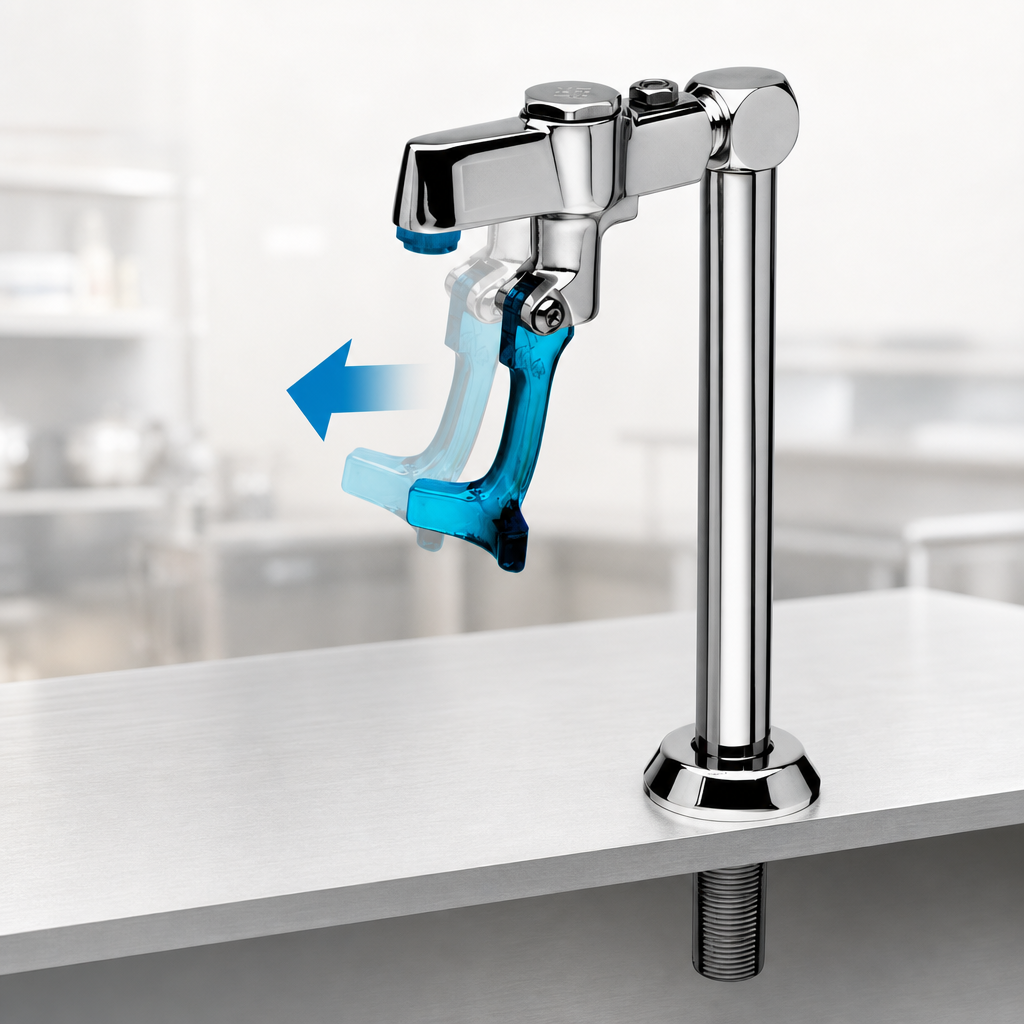

3.2 lbPush-Back Actuation
Push-back design provides instantaneous shut-off for quick, easy operation.
Adjustable Flow Control
Flow can be adjusted with a screwdriver to help set the desired fill rate.
Self-Closing Lexan Arm
Blue thermoplastic lever arm returns automatically after use.
Adjustable Deck Flange
Includes an adjustable flange for deck installation and a clean finished appearance.
1/2 Inch NPT Male Inlet
Uses a 1/2" NPT male shank/inlet for water connection.
Chrome-Plated Brass Construction
Polished chrome-plated brass body and pedestal provide durable commercial performance.
ADA Compliant
Meets ANSI A117.1 / ICC A117.1 accessibility requirements.
Low-Lead Compliant
Certified to NSF 61 Section 9 and NSF 372 low lead standards.
Maximum Deck Thickness
Designed for decks up to 1 1/8 inches thick.
Rough-In Requirement
Requires a 1-inch diameter hole for installation.
Warranty & Protection
One year limited
