T&S Brass

Equip Single-Hole Wall-Mount Touchless Electronic Sensor Faucet with Swivel Gooseneck Spout, 2.2 GPM, Chrome Finish

SKU: 5EF-1D-WGAT
$555.58
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Faucets Commercial Faucets & Plumbing Commercial Plumbing Supplies New Arrivals Restaurant Equipment Sinks & Handwashing Stations T&S Brass Touchless Faucets

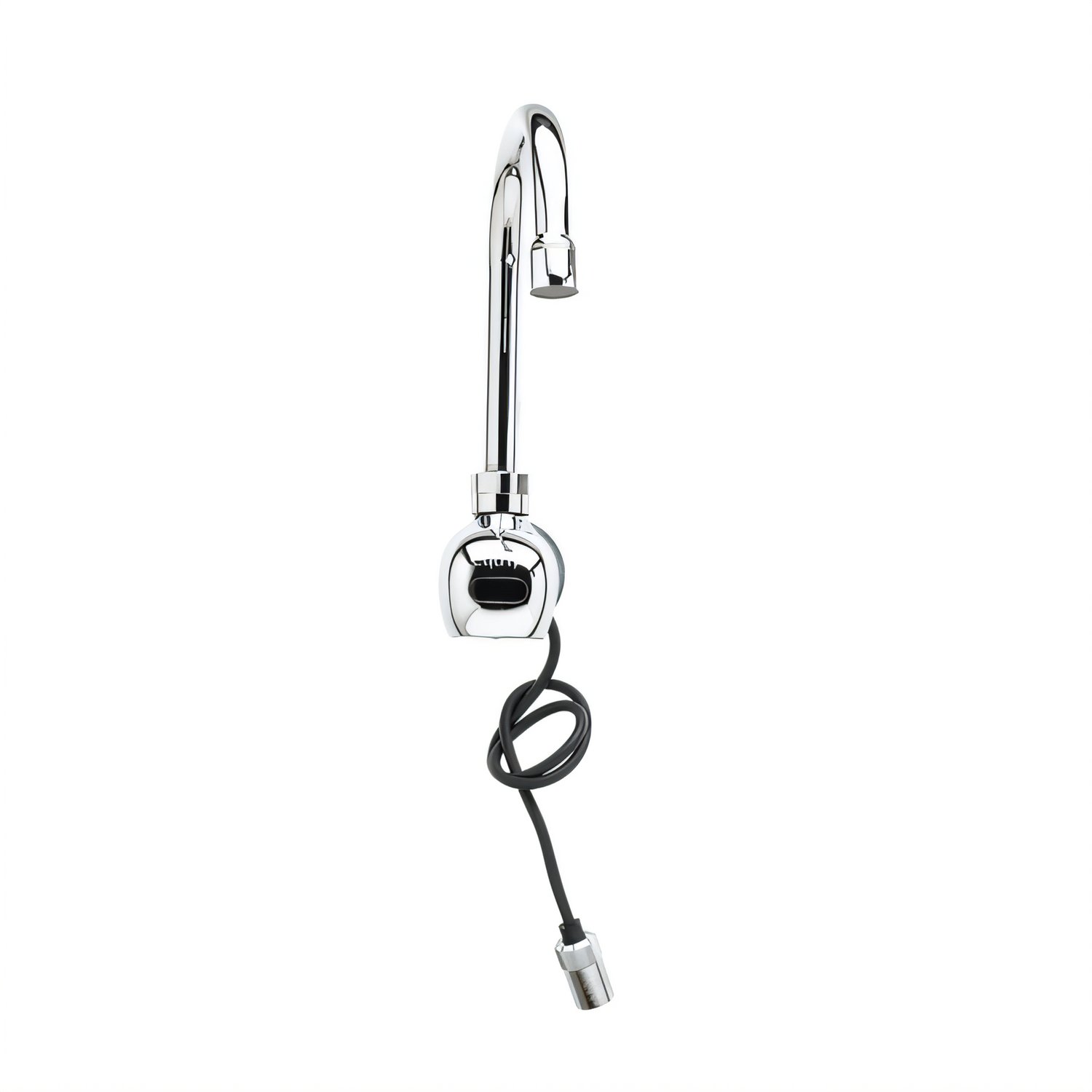

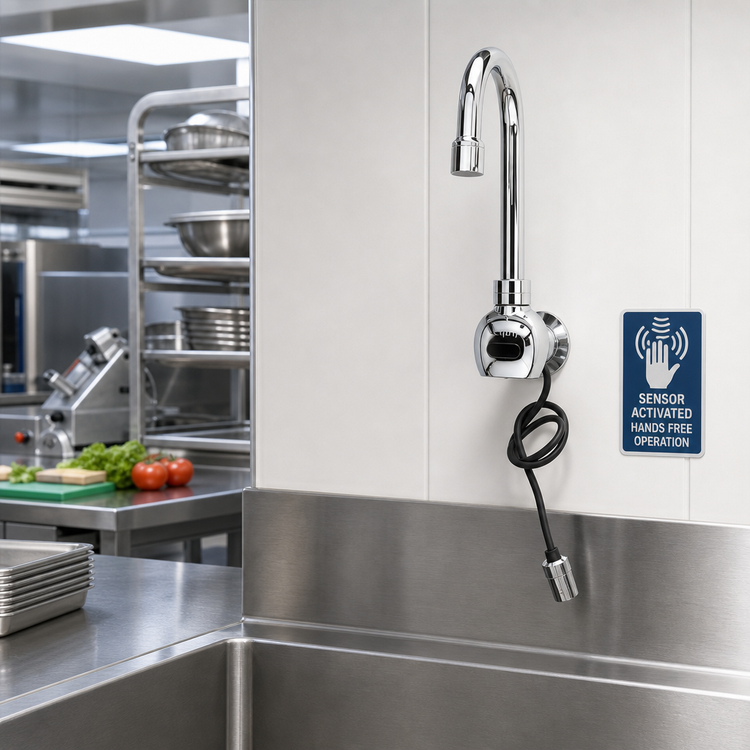

Equip Single-Hole Wall-Mount Touchless Electronic Sensor Faucet with Swivel Gooseneck Spout, 2.2 GPM, Chrome Finish

AC/DC operation, low-lead brass body, and temperature control mixing valve

This wall-mount touchless faucet combines hands-free operation, dual-power flexibility, and a temperature mixing valve for dependable commercial handwashing.

  • Single-hole wall-mount design supports splash or wall installation.
  • Swivel gooseneck spout delivers 2.2 GPM through a vandal-resistant aerator.
  • AC/DC control module supports hardwired or battery-powered operation.
  • Mechanical mixing valve with check valves helps regulate mixed water temperature.
  • Chrome-plated brass body and stainless steel supply hoses are built for commercial durability.
  • ADA compliant and low-lead certified for code-conscious installations.

Product Weight:

7.0 lb

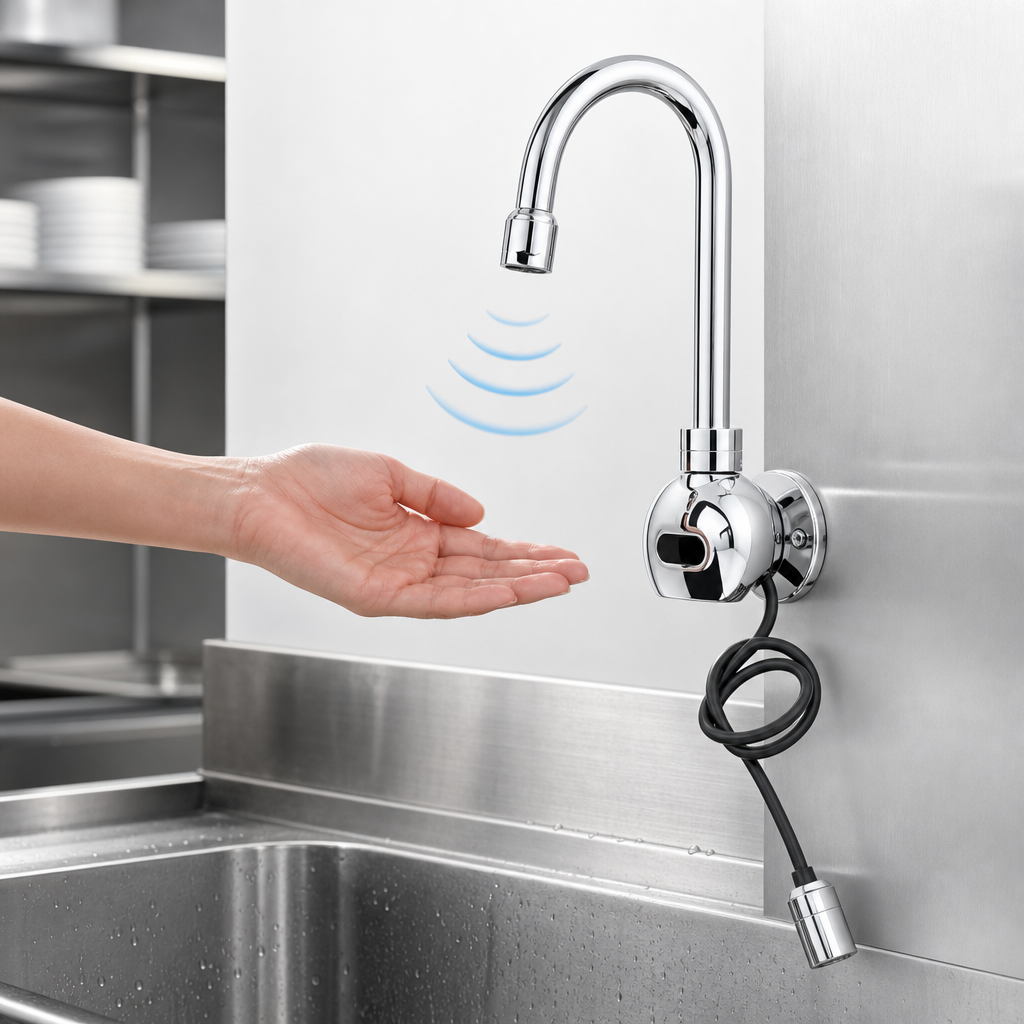

Hands-Free Sensor Operation

Electronic sensing provides touchless water activation to help reduce contact at the sink.

Wall-Mount Single-Hole Design

Designed for wall mounting with a single-hole center configuration.

Swivel Gooseneck Spout

The 4 3/16-inch swivel gooseneck spout adds reach and flexibility at the sink.

Vandal-Resistant Aerator

2.2 GPM aerator helps maintain a controlled flow while resisting tampering.

AC/DC Control Module

Operates on AC or DC power and includes a 100-240 VAC adapter plus battery capability.

Temperature Control Mixing Valve

Mechanical mixing valve with check valves supports mixed-water delivery.

Flexible Stainless Steel Connections

Includes two 18-inch flexible stainless steel supply hoses with compression connections.

Compliance-Ready Construction

Meets ADA requirements and is certified to low-lead, NSF, ASME/CSA, and UL standards.

Type Touchless Faucet
Style Swivel Gooseneck
Installation Type Wall Mounted
Mounting Type Single Hole
Controls Sensor
Flow Rate 2.2 GPM
Spout Length 4 3/16 Inches
Nozzle Type Vandal Resistant Aerator
Material Brass
Finish Chrome
Voltage 100-240 Volts AC
Water Inlet Size 3/8 Inch Compression
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It is a single-hole wall-mount faucet.
The control module operates on AC or DC power and includes a 100-240 VAC adapter; it can also run on (4) AA batteries.
The vandal-resistant aerator delivers 2.2 GPM.
Yes. It includes a mechanical temperature control mixing valve with check valves.
The rough-in requirement is a 1 1/8-inch mounting hole with a maximum mounting thickness of 3/4 inch.
Yes. It meets ADA ANSI/ICC A117.1 requirements and NSF 372 low-lead compliance.
