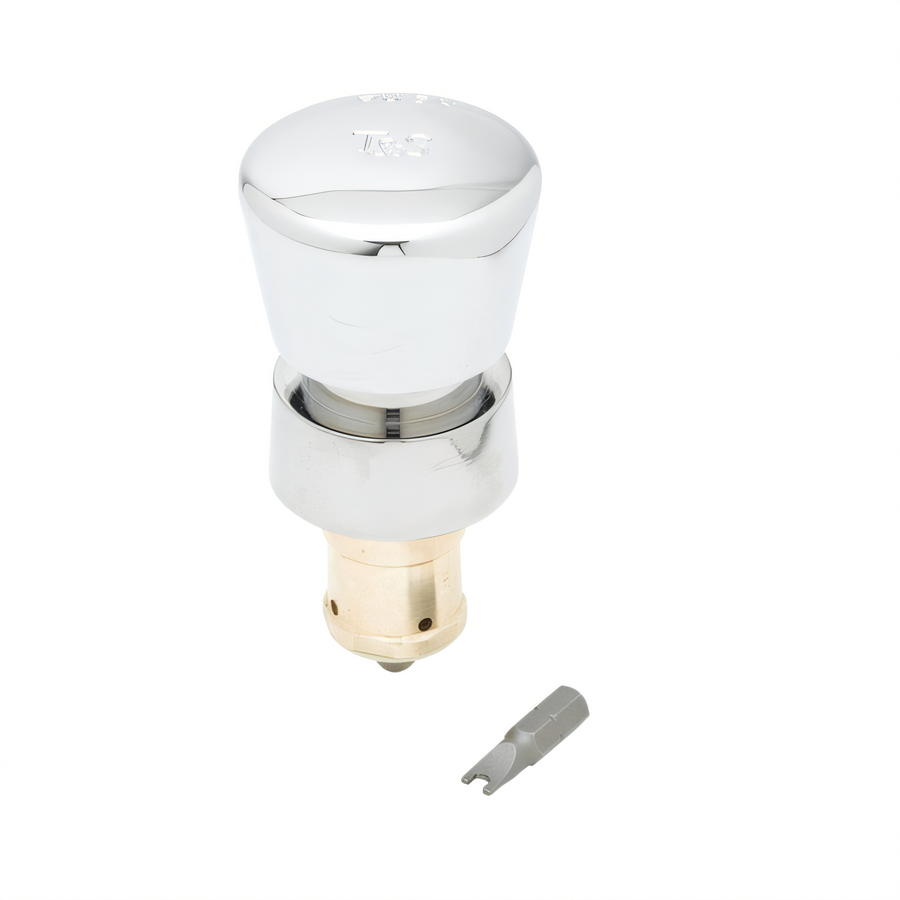

T&S Brass Self-Closing Adjustable Metering Cartridge with Blank Push Button

Chrome-Plated Brass, 10-30 Second Cycle, ADA Compliant

A durable, ADA-compliant metering cartridge that delivers adjustable timed flow with vandal-resistant protection for commercial sink applications.

  • Adjustable metering cycle from 10 to 30 seconds for controlled water delivery.
  • Self-closing operation helps conserve water between uses.
  • Blank push button cap with vandal-resistant screw helps deter tampering.
  • Chrome-plated brass body and metal cap provide durable commercial performance.
  • Filter washer helps protect internal components from debris.
  • ADA compliant and adjustable with a 3/32-inch hex key wrench.

Overall Dimensions:

1.75"W x 1.75"D x 3.31"H

Product Weight:

0.95 lb

Adjustable Metering Cycle

Cycle time can be adjusted from 10 to 30 seconds.

Self-Closing Operation

Automatically shuts off after the timed cycle to help conserve water.

Blank Push Button Cap

Blank push button design includes a vandal-resistant screw for added protection.

Filter Washer

Built-in filter washer helps reduce debris-related wear and performance issues.

Durable Construction

Chrome-plated brass body with a chrome-plated metal cap for long service life.

Adjustment Access

Metering adjustment requires a 3/32-inch hex key wrench.

ADA Compliant

Meets ADA ANSI/ICC A117.1 requirements.

Included Spanner Bit

#8 spanner bit is included for service and adjustment.

Type Metering Cartridge
Style Self-Closing
Controls Push Button
Material Brass
Finish Chrome Plated
Flow Rate 3.14 GPM @ 60 PSI
Temperature Range 40 °F - 140 °F
Shipping Width 2 Inches
Shipping Depth 2 Inches
Shipping Height 4 Inches
Shipping Weight 0.95 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

1-year limited warranty

Documents

PDF Cutsheet PDF Download PDF Submittal PDF Download

Frequently Asked Questions

The cartridge has an adjustable metering cycle from 10 to 30 seconds.
Yes. It meets ADA ANSI/ICC A117.1 requirements.
Adjustment access requires a 3/32-inch hex key wrench, and a #8 spanner bit is included.
It has a chrome-plated brass body and a chrome-plated metal cap.
The documentation lists a flow rate of 3.14 GPM at 60 PSI, a pressure range of 20 to 125 PSI, and a temperature range of 40 °F to 140 °F.
