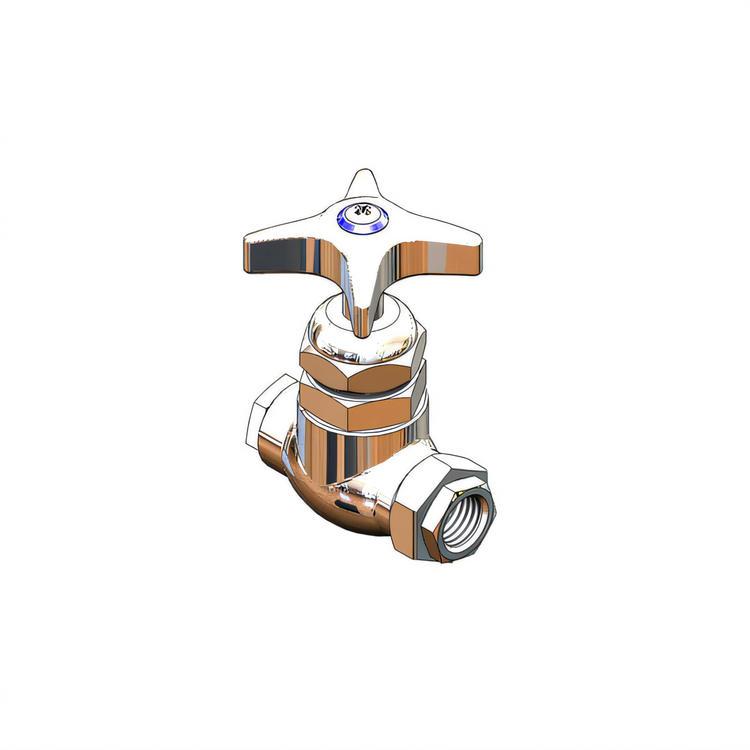

T&S Brass 3-Inch Shut-Off Control Valve with Cross Handle, 1/2-Inch Female NPT

Blue Index, Big-Flo Cartridge, Loose Bushings for Optional 3/8-Inch Female NPT Connections

This compact shut-off valve combines a Big-Flo cartridge, flexible NPT connection options, and a durable chrome-plated brass body for dependable flow control.

  • 3-inch shut-off control valve designed for reliable manual flow control.
  • 1/2-inch female NPT inlet and outlet with loose bushings for optional 3/8-inch female NPT connections.
  • Includes a Big-Flo cartridge for smooth operation and strong flow performance.
  • 4-arm cross handle with blue index for easy identification and use.
  • Chrome-plated brass construction for durability in demanding environments.
  • Meets ADA and NSF requirements and includes a one-year limited warranty.

Product Weight:

1.6 lb

1/2-Inch Female NPT Inlet/Outlet

Valve includes 1/2-inch female NPT inlet and outlet connections for standard installation.

Loose Bushings Included

Supplied with loose bushings for optional 3/8-inch female NPT connections.

Big-Flo Cartridge

Includes a Big-Flo cartridge to support smooth shut-off control and high-flow performance.

Cross Handle with Blue Index

A 4-arm cross handle with blue index makes the valve easy to identify and operate.

Chrome-Plated Brass Construction

Chrome-plated brass body provides durable performance and a clean finish.

Code-Compliant Design

Meets ASME A112.18.1/CSA B125.1, NSF 61 Section 9, NSF 372, and ANSI A117.1 requirements.

Type Shut-Off Control Valve
Handle Type Cross Handle
Connection Size 1/2 Inch Female NPT
Material Brass
Finish Chrome Plated
Pressure Range 20 to 125 PSI
Temperature Range 40 °F to 140 °F
Flow Rate 8.96 GPM at 60 PSI
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

One-year limited warranty.

Documents

PDF Cutsheet PDF Download PDF Submittal PDF Download

Frequently Asked Questions

It has 1/2-inch female NPT inlet and outlet connections, and includes loose bushings for optional 3/8-inch female NPT connections.
The valve includes a Big-Flo cartridge and loose bushings.
It is made of chrome-plated brass.
The flow rate is 8.96 GPM at 60 psi.
The valve is rated for 20 to 125 psi and 40 °F to 140 °F.
