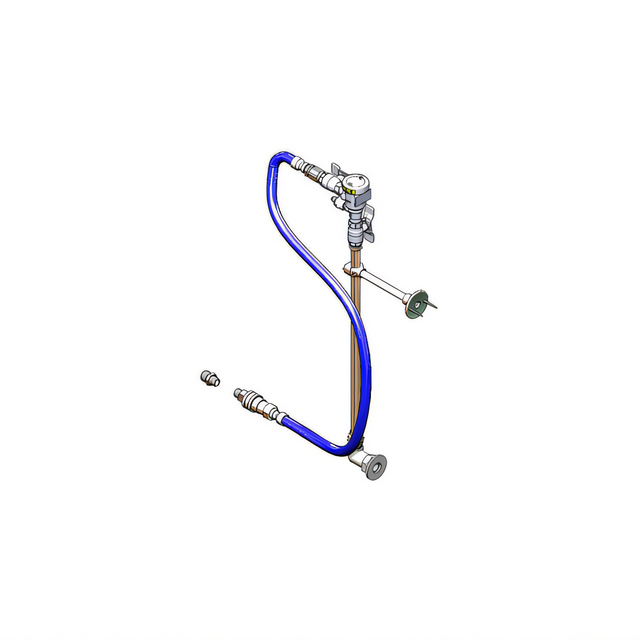

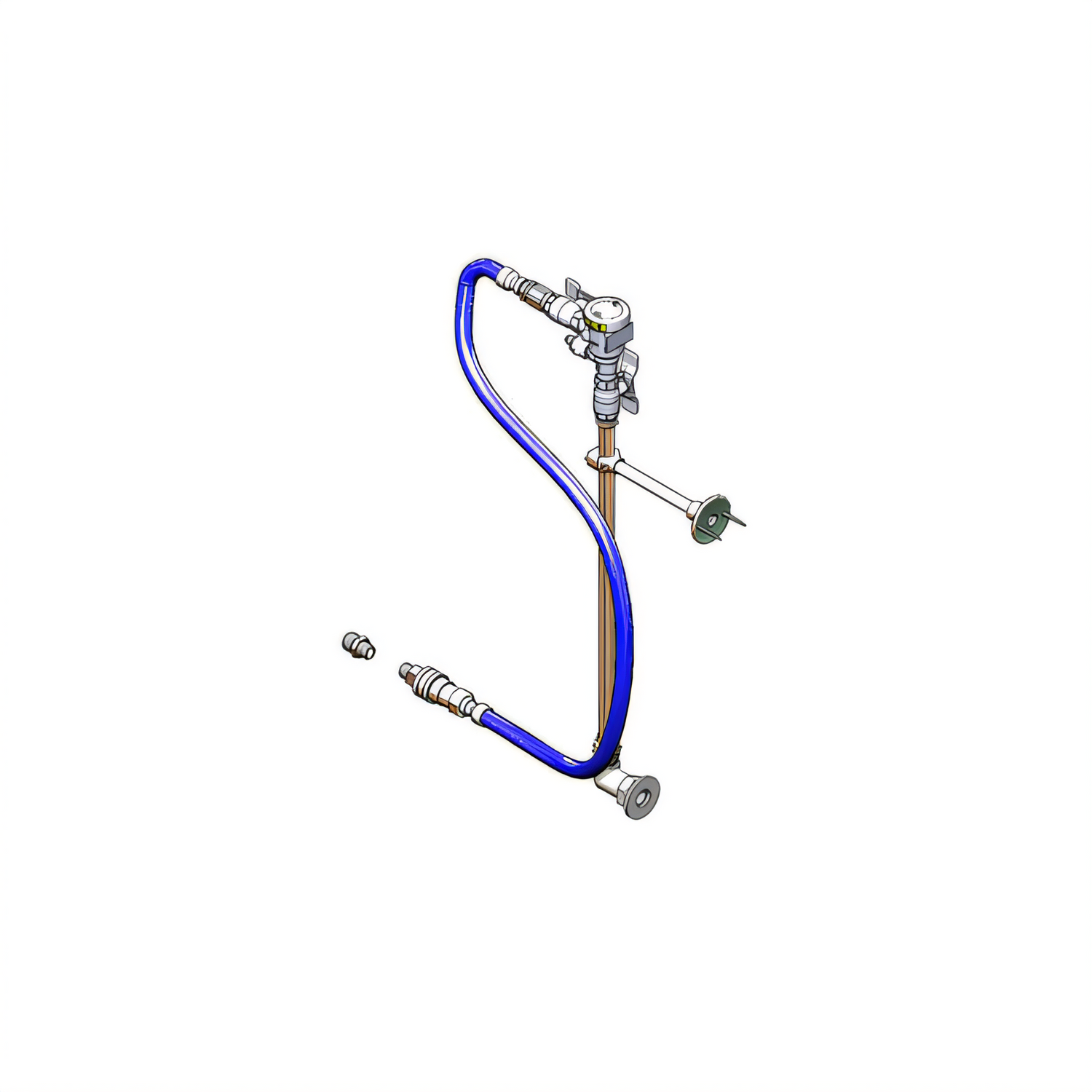

T&S Brass Hose Reel Connector Kit with Vacuum Breaker, 18-Inch Riser, and 36-Inch Flexible Water Connector

SKU: 0RK-SK
GTIN: 671262581806
$692.08
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Coffee & Accessories Commercial Faucets & Plumbing New Arrivals Restaurant Equipment Restaurant Equipment Parts Sinks & Handwashing Stations Supply Lines T&S Brass

T&S Brass Hose Reel Connector Kit with Vacuum Breaker, 18-Inch Riser, and 36-Inch Flexible Water Connector

Polished Chrome Plated Brass, 1/2" NPT Inlet, 3/8" NPT Connections

A complete hose reel connector kit with built-in backflow protection and flexible reach for reliable commercial water hookup.

  • Complete kit for hose reel water connections with riser, flexible connector, bracket, and quick disconnect.
  • Includes a continuous pressure vacuum breaker with integral check valve for backflow protection.
  • 36-inch flexible water connector helps simplify installation and positioning.
  • Polished chrome plated brass construction for durability in commercial environments.
  • Rated for 20-125 psi, 40°F-140°F, and 9.5 GPM at 60 psi.

Product Weight:

7.2 lb

Hose Reel Connector Kit

Complete connector kit designed for hose reel applications.

1/2 Inch NPT Inlet Elbow

Includes a 1/2" NPT inlet swivel elbow and flange for the supply connection.

18-Inch Riser

3/8" NPT x 18" riser provides installation clearance and reach.

6-Inch Wall Bracket

Wall bracket adds support for a more secure installation.

Vacuum Breaker

Continuous pressure vacuum breaker with integral check valve helps prevent backflow.

36-Inch Flexible Water Connector

Flexible 3/8" NPT x 36" connector allows easier positioning and hookup.

Stainless Steel Quick Disconnect

Quick disconnect with 3/8" close nipple supports fast hose changes.

Polished Chrome Plated Brass Construction

Durable brass body with a polished chrome plated finish.

Compliance

Listed as NSF 61 Exempt (Non-Potable) and certified to ASSE 1056 (VB).

Type Hose Reel Connector Kit
Style Hose Reel Accessory
Material Brass
Finish Polished Chrome Plated
Hose Diameter 1/2 Inch
Length 36 Inches
Flow Rate 9.5 GPM @ 60 PSI
Pressure Range 20 PSI - 125 PSI
Temperature Range 40 °F - 140 °F
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

One-year limited warranty.

Documents

PDF Cutsheet PDF Download PDF Submittal PDF Download PDF Installation and maintenance instructions PDF Download

Frequently Asked Questions

The kit includes a 1/2" NPT inlet elbow, 3/8" NPT x 18" riser, 6" wall bracket, continuous pressure vacuum breaker with integral check valve, 3/8" NPT x 36" flexible water connector, and a stainless steel quick disconnect with 3/8" close nipple.
The kit is made from polished chrome plated brass.
The listed pressure range is 20 to 125 psi, temperature range is 40°F to 140°F, and flow rate is 9.5 GPM at 60 psi.
Yes. It includes a continuous pressure vacuum breaker with an integral check valve.
The document lists NSF 61 Exempt (Non-Potable) and ASSE 1056 (VB).
Yes. The product is covered by a one-year limited warranty.
