Key specifications

Amps
1.25 Amps (wine cellar); 1.0 Amp (refrigerator-freezer)
Phase
1-Phase
Dimensions
23.63"W × 23.5"D × 65.63"H
Type
Wine Cellar
Style
Refrigerator-Freezer Combo
Installation Type
Built-In
Spec sheet
Summit Commercial SKU: SWCDRF24

Summit Commercial Summit Appliance SWCDRF24 Commercial Dual-Zone Wine Cellar/Refrigerator-Freezer, 46-Bottle, Stainless Steel, 23-5/8"W

$3,431.02
/each
Estimated to ship in 6–9 business days
Included: Summit Commercial warranty One-year limited warranty with parts and labor in the 48 contiguous United States, plus a five-year compressor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $317/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Wine Cellar
Style Refrigerator-Freezer Combo
Installation Type Built-In
Material Stainless Steel
Finish Stainless Steel
Capacity 46 Bottles
Volume 3.9 cu. ft. (110 L)
Number of Zones 2
Temperature Range Upper: 41°F to 50°F; Lower: 50°F to 64°F
Shelf Count 6
Shelf Type Wire
Drawer Count 2
Door Type Double-Pane Tempered Glass
Door Swing Right-Hand Hinged
Reversible Door Yes
Defrost Type Automatic
Controls Digital Thermostat
Lighting LED Interior
Fan Type Interior and Exterior
Refrigeration Type Self-Contained, Bottom Mounted
Refrigerant Type R600a Hydrocarbon
Voltage 115 Volts
Amps 1.25 Amps (wine cellar); 1.0 Amp (refrigerator-freezer)
Hertz 60 Hz
Phase 1-Phase

Description

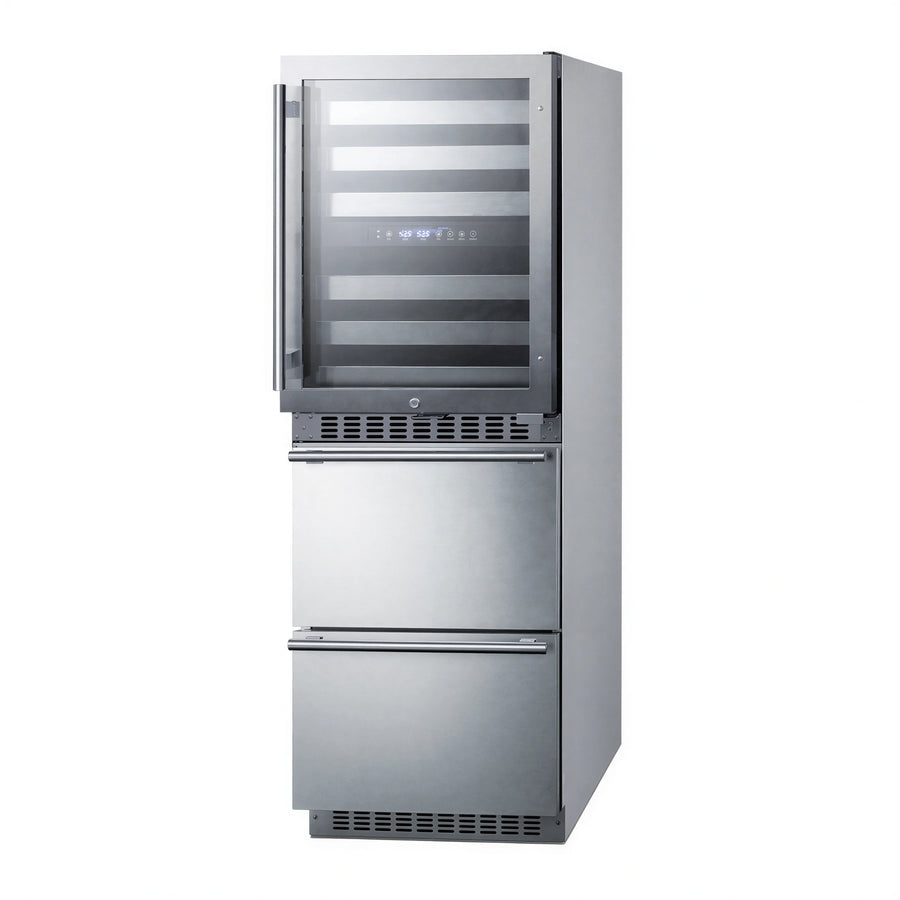

Dual-zone wine storage and refrigeration in a 23.63-inch-wide stainless steel unit with 46-bottle wine capacity and two refrigerator-freezer drawers.

The wine cellar provides an upper temperature range of 41°F to 50°F and a lower range of 50°F to 64°F. Built-in or freestanding installation supports flexible placement.

  • Six wire shelves and a reversible right-hinged glass door
  • Digital thermostat and LED interior lighting
  • Automatic defrost with self-contained, bottom-mounted refrigeration
  • R600a hydrocarbon refrigerant and interior and exterior fans

Overall Dimensions:

23.63"W x 23.5"D x 65.63"H

Product Weight:

150.0 lb

Dual-Zone Wine Storage

The wine cellar has two temperature zones: 41°F to 50°F in the upper zone and 50°F to 64°F in the lower zone.

46-Bottle Capacity

The wine cellar provides storage capacity for 46 bottles.

Refrigerator-Freezer Drawers

The combination includes two refrigerator-freezer drawers.

Built-In or Freestanding Installation

The unit is designed for built-in or freestanding use.

Digital Controls

Digital thermostats provide temperature management for the wine cellar and refrigerator-freezer.

LED Interior Lighting

LED lighting is provided in both units.

Reversible Glass Door

The wine cellar has one reversible right-hinged glass door with stainless steel trim.

Automatic Defrost

The refrigeration system uses automatic defrost and self-contained, bottom-mounted refrigeration.

Frequently Asked Questions

The wine cellar has a 46-bottle capacity.
The upper zone ranges from 41°F to 50°F, and the lower zone ranges from 50°F to 64°F.
Yes. The unit is designed for built-in or freestanding installation.
The combination includes two refrigerator-freezer drawers.
Yes. The glass door is right-hinged and reversible.
The product measures 23.63 inches wide, 23.5 inches deep, and 65.63 inches high, with a listed weight of 150 pounds.
The refrigeration system uses automatic defrost.
The product has a one-year limited warranty and a five-year compressor warranty. Compressor replacement does not include labor.
