Summit Commercial Summit Appliance SDHWC98PNR Commercial Dual-Zone Built-In Panel-Ready Wine Cellar, Shallow-Depth Glass Door

SKU: SDHWC98PNR
$3,634.80
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar & Beverage Refrigeration Best Sellers Commercial Refrigeration Commercial Refrigerators Commercial Wine Coolers Draft Beer & Wine Cooling Equipment New Arrivals Refrigeration & Ice Restaurant Equipment Summit Commercial Wine Coolers & Dispensers

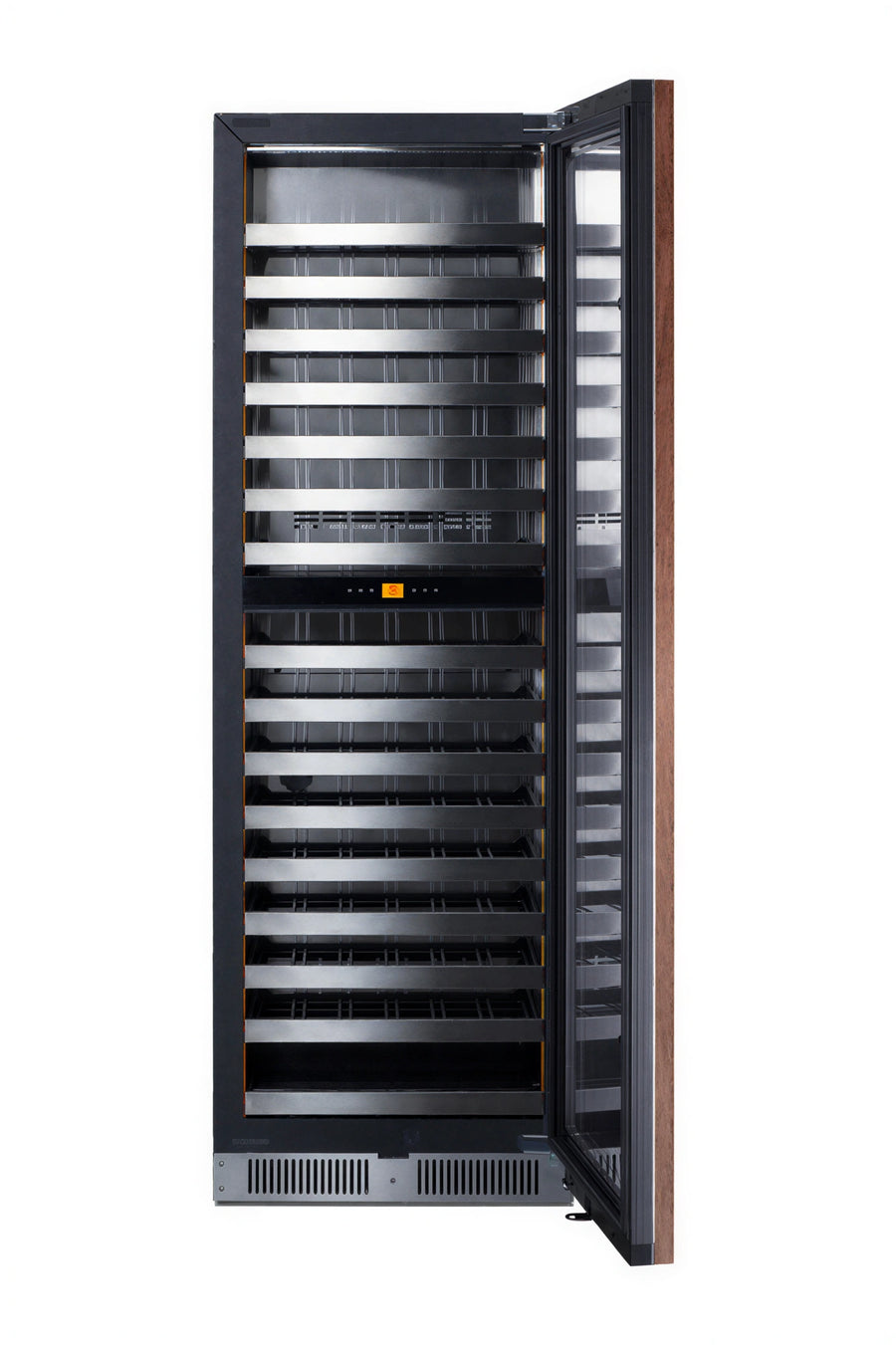

The Summit Appliance SDHWC98PNR is an 18.0-inch-deep built-in wine cellar with two independent temperature zones and capacity for 98 bottles. Its panel-ready, gently tinted glass door is designed for integration with surrounding cabinetry.

  • Dual-zone storage: The upper zone operates from 41 to 50°F, while the lower zone operates from 50 to 64°F.
  • Built-in design: Front-breathing cooling supports installation inside cabinetry.
  • Storage features: Sixteen full-extension wire shelves use ball-bearing glides and stainless steel front trim.
  • Lighting and controls: Digital controls and white, blue, or amber LED lighting provide selectable operation and display illumination.

Overall Dimensions:

23.5"W x 18.0"D x 71.75"H

Product Weight:

286.0 lb

Dual-zone storage

Two independent zones support upper-zone storage from 41 to 50°F and lower-zone storage from 50 to 64°F.

Built-in, front-breathing design

The front-breathing cooling system is designed for installation inside cabinetry.

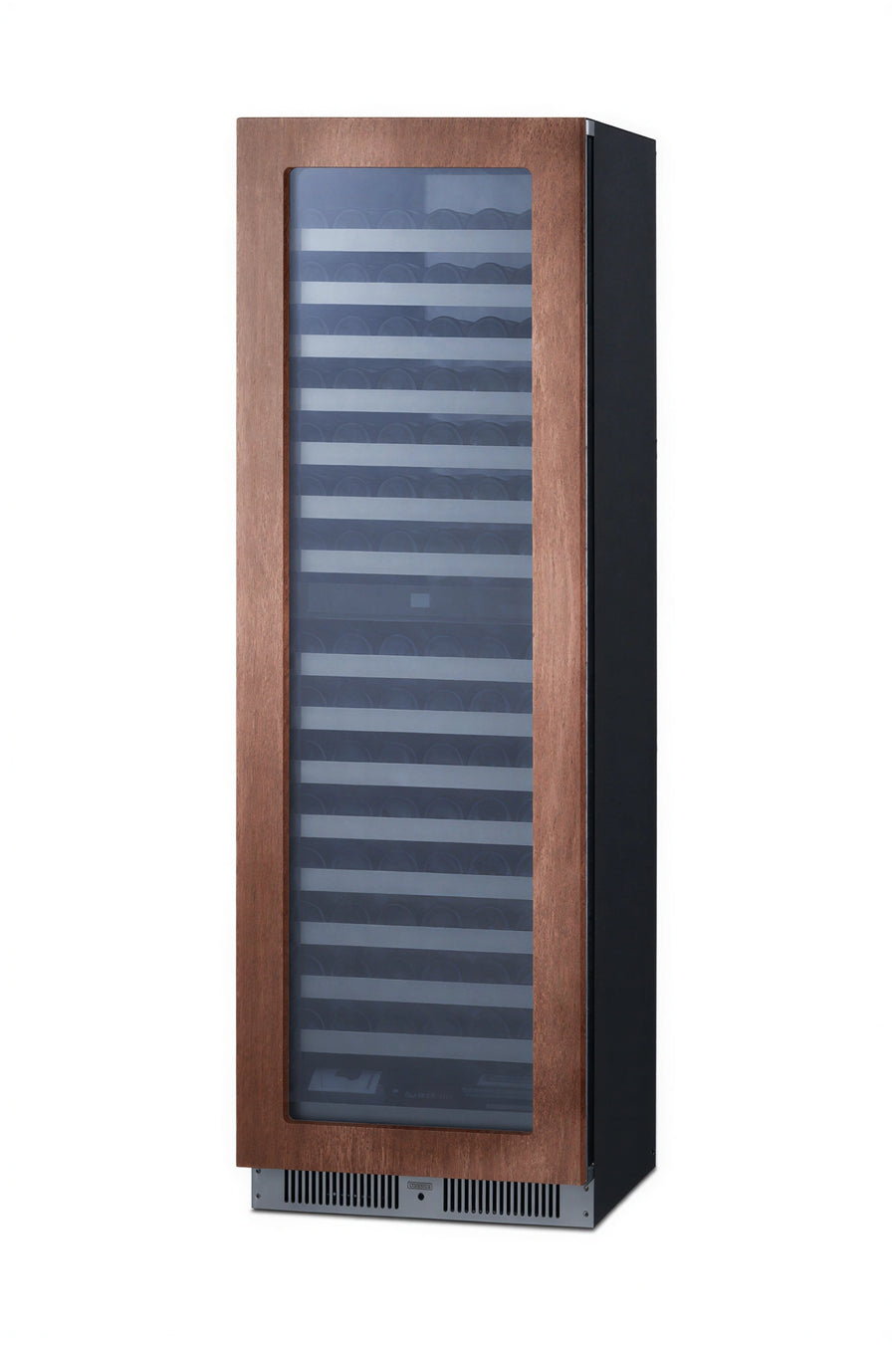

Panel-ready glass door

The gently tinted glass door accepts a custom panel; recommended panel dimensions are 3/4-inch thickness at 67 3/4 inches high by 23 3/4 inches wide, with a 3 1/4-inch by 3 1/4-inch inner frame.

Full-extension shelving

Sixteen wire shelves roll out on ball-bearing glides and include stainless steel trim on the shelf fronts.

Selectable LED lighting

White, blue, and amber LED lighting options illuminate the wine collection.

Digital controls and alarms

Digital controls are paired with Sabbath mode, a front lock, an open-door alarm, and a temperature alarm.

Commercially approved design

The product is ETL-S listed to NSF-7 standards for use in commercial establishments.

Shallow-depth cabinet

The 18.0-inch depth supports installation in shallow cutouts, while the black cabinet and unbranded exterior support cabinetry integration.

Product type Dual-zone wine cellar
Bottle capacity 98 bottles
Installation type Built-in
Temperature range Upper zone: 41 to 50°F; lower zone: 50 to 64°F
Door type Gently tinted glass, panel-ready
Cabinet color Black
Shelf quantity 16
Shelf type Wire, full-extension, ball-bearing glides
Controls Digital
Lighting White, blue, and amber LED
Defrost type Automatic
Sabbath mode Yes
Door swing Right-hand door; reversible
Sound level 32.2 dB
Refrigerant R600a
Electrical rating 115 V AC / 60 Hz; 5.0 A
Safety features Front lock, open-door alarm, temperature alarm, and anti-tip bracket
Recommended installation opening 72 in H x 24 in W x 20 in D
Recommended panel dimensions 3/4 in thickness; 67 3/4 in H x 23 3/4 in W; 3 1/4 in H x 3 1/4 in W inner frame

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

1-year parts-and-labor warranty and 5-year compressor warranty.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Product page PDF Download

Frequently Asked Questions

The wine cellar has capacity for 98 bottles.
The upper zone operates from 41 to 50°F, and the lower zone operates from 50 to 64°F.
Yes. It has a front-breathing cooling system for built-in installation, with a recommended opening of 72 inches high by 24 inches wide by 20 inches deep.
Yes. The product has a panel-ready, gently tinted glass door. The recommended panel is 3/4 inch thick, 67 3/4 inches high, and 23 3/4 inches wide, with a 3 1/4-inch by 3 1/4-inch inner frame.
The wine cellar has 16 full-extension wire shelves on ball-bearing glides.
The unit is rated for 115 V AC at 60 Hz and 5.0 amps.
The listed warranty is 1 year for parts and labor and 5 years for the compressor.
