Key specifications

Amps
7.2 Amps
Phase
1-Phase
Dimensions
43.0"W × 27.25"D × 48.25"H
Type
Gelato Case
Style
Dipping Cabinet
Installation Type
Floor Model
Spec sheet
Summit Commercial SKU: NOVA35PDC

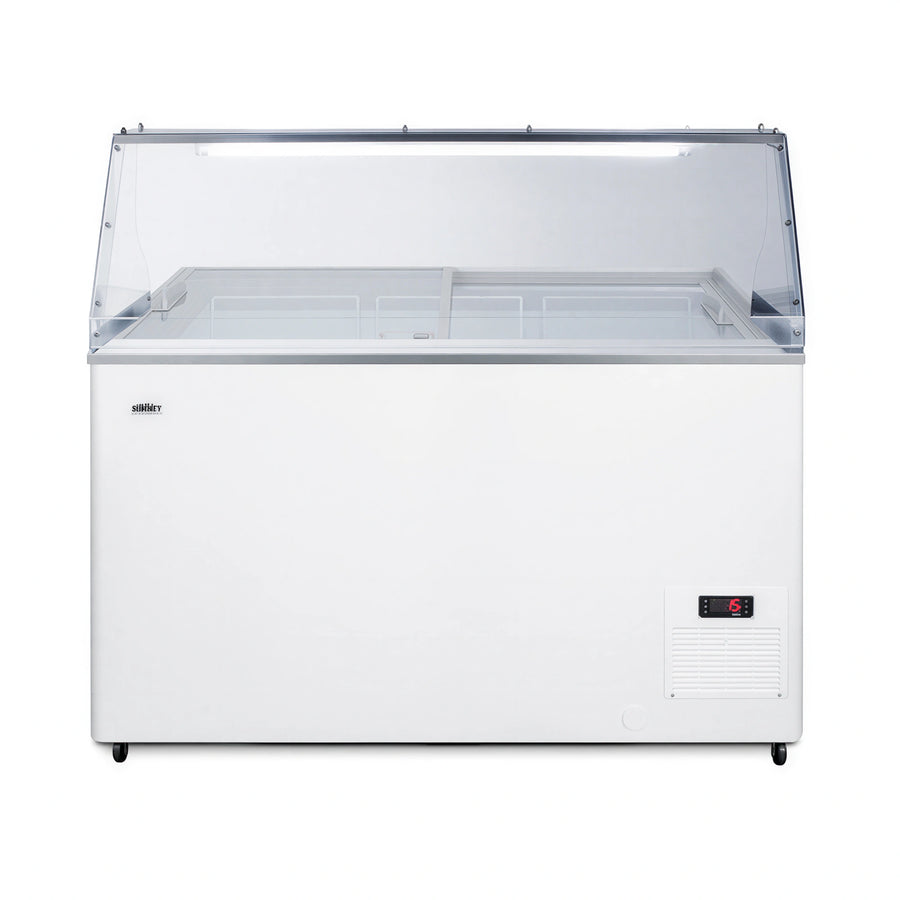

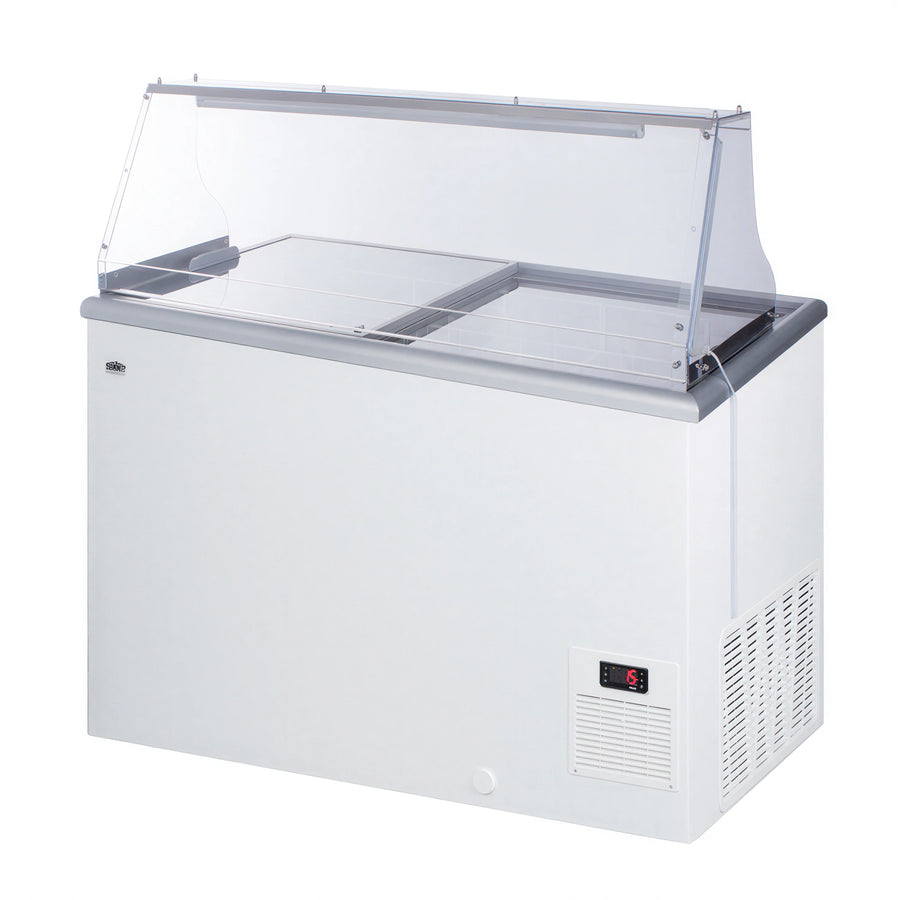

Summit Commercial NOVA35PDC 10-Tub Gelato Dipping Cabinet

$2,564.74
/each
Estimated to ship in 6–9 business days
Included: Summit Commercial warranty 1-year parts and labor warranty; 5-year compressor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $237/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Gelato Case
Style Dipping Cabinet
Installation Type Floor Model
Material Steel
Color White
Interior Finish White Steel
Capacity 11.7 cu. ft.
Pan Capacity 3 Gallons
Tub Count 10
Display Tub Count 6 Tubs
Storage Tub Count 4 Tubs
Top Display Glass Straight Glass
Glass Type Tempered Glass
Lid Type Sliding Glass
Controls Digital Thermostat
Refrigeration Type Self-Contained
Refrigerant Type R290a Hydrocarbon
Temperature Range -13°F to +23°F
Defrost Type Manual
Insulation Thickness 3 Inches
Voltage 115 Volts
Amps 7.2 Amps
Hertz 60 Hz
Phase 1-Phase

Description

The Summit Commercial NOVA35PDC is a 43-inch-wide gelato dipping cabinet with 11.7 cu. ft. of capacity, straight glass, and self-contained side-mounted refrigeration.

It holds 10 standard 3-gallon tubs, with six tubs displayed in epoxy-coated wire baskets and four tubs stored on the cabinet floor. Features include two tempered glass sliding locking lids, a polycarbonate sneeze guard with light, a digital thermostat, manual defrost, and white steel interior and exterior.

The temperature range is -13°F to +23°F. The cabinet uses R290a hydrocarbon refrigerant and operates at 115 Volts, 7.2 Amps, 60 Hz, and 1-Phase.

Overall Dimensions:

43.0"W x 27.25"D x 48.25"H

Product Weight:

170.0 lb

Tub Capacity

Holds 10 standard 3-gallon tubs, with 6 display tubs and 4 storage tubs.

Digital Thermostat

Provides a temperature range of -13°F to +23°F.

Sliding Glass Lids

Includes two tempered glass sliding locking lids.

Sneeze Guard and Light

Includes a pre-installed polycarbonate sneeze guard with light.

Tub Holder Baskets

Includes three epoxy-coated wire baskets with plastic lids.

Self-Contained Refrigeration

Side-mounted refrigeration uses R290a hydrocarbon refrigerant.

Manual Defrost

Uses manual defrost.

Insulation

Built with 3-inch-thick insulation.

Frequently Asked Questions

It holds 10 standard 3-gallon tubs: 6 for display in the included baskets and 4 for storage on the cabinet floor.
The digital thermostat provides a temperature range of -13°F to +23°F.
The cabinet is 43 inches wide, 27.25 inches deep, and 48.25 inches high, with a listed weight of 170 pounds.
It operates at 115 Volts, 7.2 Amps, 60 Hz, and 1-Phase.
It uses self-contained side-mounted refrigeration with R290a hydrocarbon refrigerant.
The specified warranty is 1 year for parts and labor and 5 years for the compressor.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.

What to have ready on delivery day

  • Count every piece against the delivery receipt.
  • Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
  • Photograph the freight on the truck before it’s moved.
  • If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.

Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.

How to inspect and sign for freight

Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.

If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.

Reporting damage after delivery

Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
