Summit Commercial

Summit Commercial HC24WW 24-Inch Under-Cabinet Range Hood, Convertible Ducted/Recirculating, White, 200 CFM

SKU: HC24WW
$158.44
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

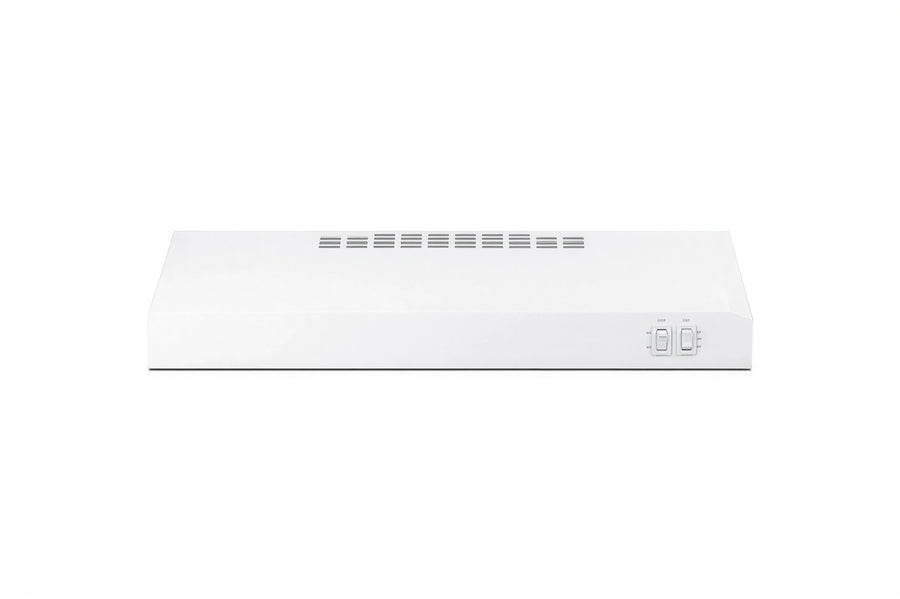

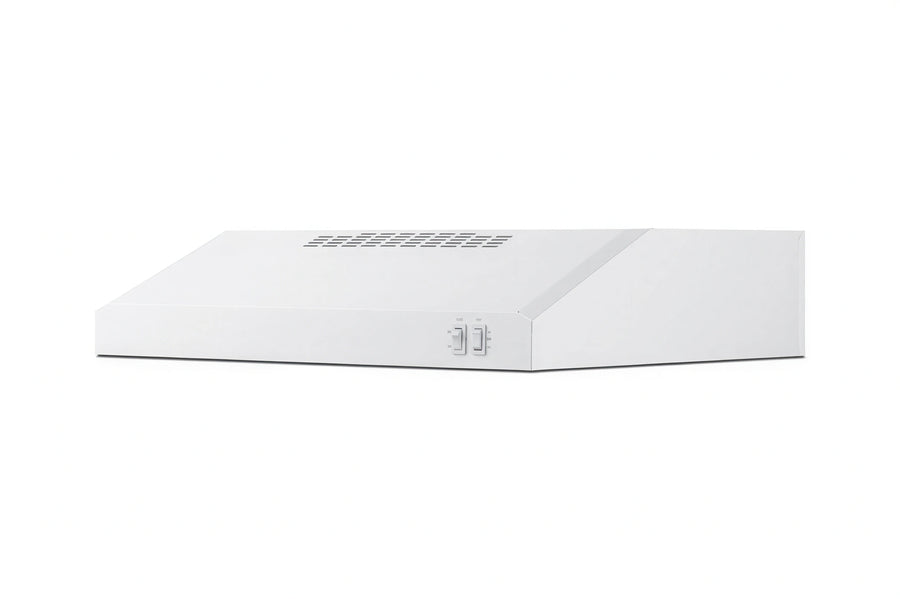

The Summit Commercial HC24WW is a white under-cabinet range hood designed for ducted or recirculating operation. Its low-profile design fits over 24-inch cooking surfaces and includes a 200 CFM blower.

The hood features multi-speed ventilation, rocker switch controls, a combination charcoal/aluminum mesh filter, and flexible vertical or horizontal venting options.

  • Convertible for ducted or recirculating installation
  • 200 CFM blower
  • White finish with steel construction
  • Incandescent light bulb required; bulb not included

Overall Dimensions:

23.88"W x 20.0"D x 5.5"H

Product Weight:

15.0 lb

Convertible operation

Can be configured for ducted exterior venting or recirculating ventilation.

200 CFM blower

Provides maximum air movement of 200 CFM.

Flexible venting

Supports 3 1/4-inch x 10-inch vertical or horizontal exterior venting, or 7-inch round vertical venting with transition.

Multi-speed fan

Offers multiple fan speed settings for ventilation.

Combination filter

Uses a combination charcoal/aluminum mesh filter.

Rocker switch controls

Provides manual rocker switch control of the hood.

Hard-wired installation

Designed to be hard-wired during installation.

Lighting

Uses an incandescent light bulb; the bulb is not included.

Related Searches

Best Sellers Commercial Kitchen Hoods Equipment Facility & Ventilation Equipment Home Chef Kitchen Appliances New Arrivals Residential Range Hood Summit Commercial
Product type Under-cabinet range hood
Width 23.88 in
Height 5.5 in
Depth 20.0 in
Finish White
Operation Convertible: ducted or recirculating
Airflow 200 CFM
Fan speeds Multi-speed
Controls Rocker switch
Filter Combination charcoal/aluminum mesh
Duct connections 3 1/4 in x 10 in vertical or horizontal exterior venting, or 7 in round vertical venting; transition required for both
Construction 21-gauge steel
Installation Under cabinet; designed to be hard-wired
Electrical 115 V / 60 Hz / 1 phase
Current 1.7 A
Lighting Incandescent bulb, not included
Sound level 6 sones
Origin and compliance Made in North America; TAA compliant

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

1-year parts and labor warranty

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Assembly diagram PDF Download

Frequently Asked Questions

Yes. It supports recirculating operation when external venting is not used.
The blower provides 200 CFM maximum air movement.
The hood supports 3 1/4-inch x 10-inch vertical or horizontal exterior venting, or 7-inch round vertical venting with transition.
No. An incandescent light bulb is required but not included.
The HC24WW is designed to be hard-wired and uses 115 V, 60 Hz, single-phase power.
The product includes a 1-year parts and labor warranty.
