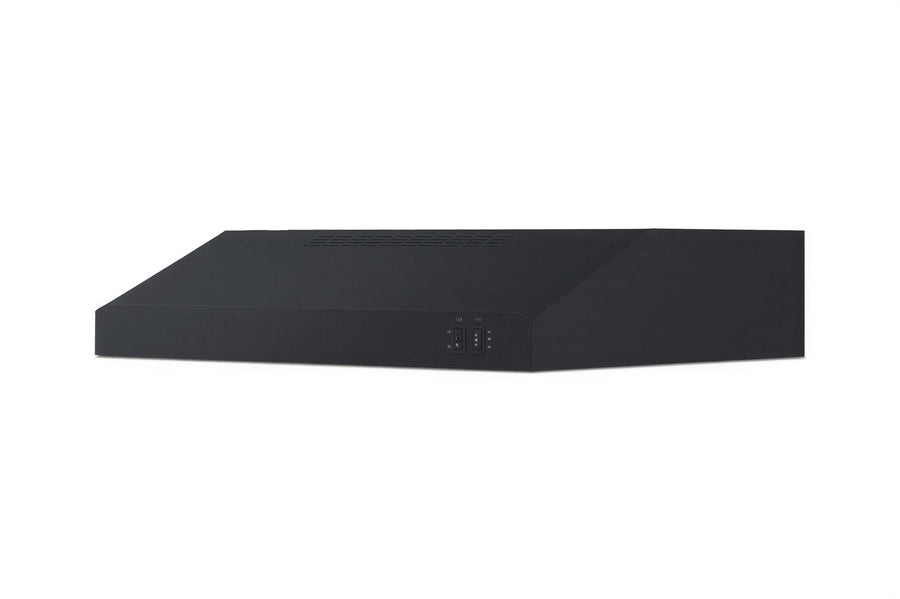

Summit Commercial HC24BBADA 24 in Under-Cabinet Range Hood, Convertible Ducted/Recirculating, Black, 270 CFM
The Summit Commercial HC24BBADA is a 24-inch under-cabinet range hood with a black finish and convertible operation for ducted or recirculating use.
- ADA-compliant access: The hood is wired to run from a wall switch and includes a remote terminal block.
- Convertible ventilation: It supports ducted exterior venting or recirculating operation.
- Venting options: Connect to 3-1/4 in x 10 in vertical or horizontal exterior venting, or 7 in round vertical venting with the required transition.
- Air movement: The blower provides up to 270 CFM with two fan speeds.

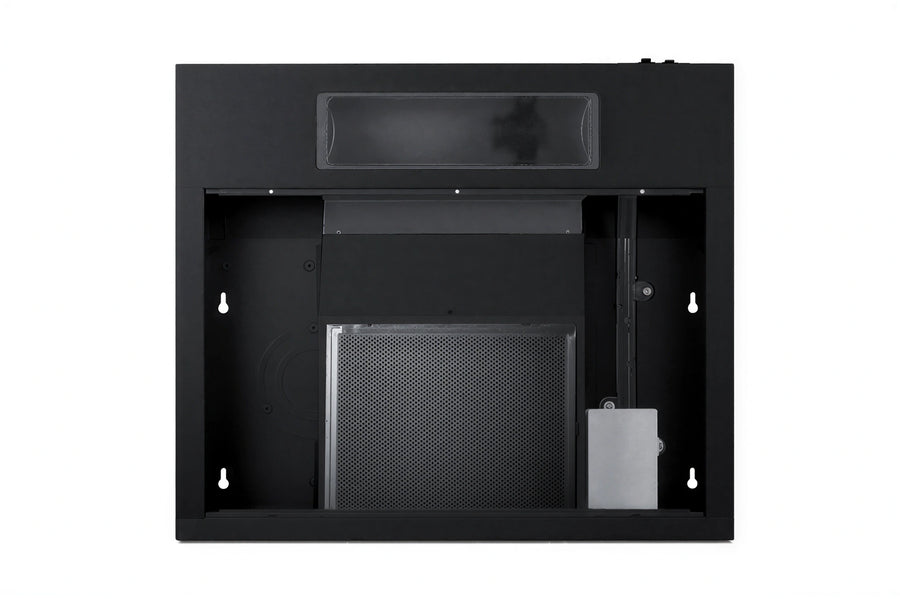

- Filtration: A combination charcoal and aluminum mesh filter is included.
The hood is designed to be hard-wired and uses an incandescent light bulb, which is not included.
Overall Dimensions:
23.88"W x 20.0"D x 5.5"HProduct Weight:
15.0 lbADA-compliant wall-switch operation
The hood is wired to run from a wall switch for improved accessibility and includes a remote terminal block.
Convertible ventilation
Supports ducted exterior venting or recirculating ventilation.
270 CFM blower
Provides maximum air movement of 270 CFM.
Two fan speeds
The fan has two operating speeds.
Flexible duct connections
Supports 3-1/4 in x 10 in vertical or horizontal exterior venting, or 7 in round vertical venting with a transition.
Combination filter
Uses a combination charcoal and aluminum mesh filter.
Hard-wired installation
Designed to be hard-wired.
TAA-compliant manufacture
Made in North America in a TAA-designated country.
Incandescent lighting
Uses an incandescent light bulb; the bulb is not included.
Certifications & Compliance
Warranty & Protection
1-year parts and labor warranty
