Summit Commercial Summit Appliance H24RW Under-Cabinet Convertible Range Hood, 24"W, white finish, convertible ventilation system for ducted or
$120.05
/each
Ships in 6–9 business days
- Mounting Type
- Under-cabinet
- Ventilation Type
- Convertible, ducted or ductless
- Finish
- White
- Dimensions
- 23.88"W × 18.63"D × 5.13"H
- Exhaust Fan Speeds
- 2
- Controls
- Front-mounted dial controls
Specifications
Mounting Type
Under-cabinet
Ventilation Type
Convertible, ducted or ductless
Finish
White
Width
23.88 in
Depth
18.63 in
Height
5.13 in
Exhaust Fan Speeds
2
Controls
Front-mounted dial controls
Lighting
Integrated incandescent
Filter
Removable metal grease filter
Venting Options
Top or rear
Duct Compatibility
3 1/4 in x 10 in rectangular or 6 in/7 in round with transition
Installation
Hardwired
Voltage
115 V
Frequency
60 Hz
Description

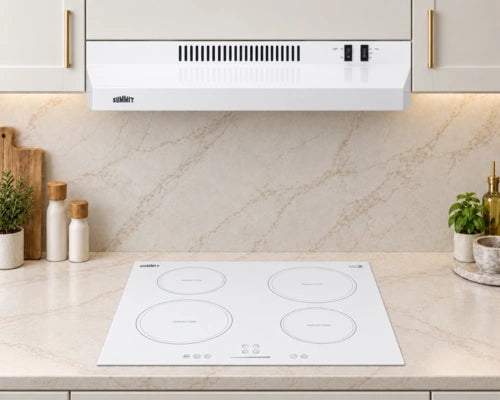

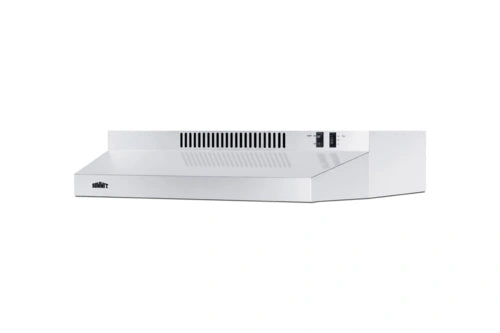

The Summit Appliance H24RW is a residential under-cabinet convertible range hood with a white finish and a compact low-profile design.
- Supports ducted or ductless installation with top or rear venting options.
- Includes a two-speed exhaust fan, front-mounted dial controls, integrated incandescent lighting, and a removable metal grease filter.
- Compatible with 3 1/4 in x 10 in rectangular ductwork or 6 in/7 in round ductwork with transition.
- Designed for hardwired installation at 115 V/60 Hz.
Overall Dimensions:
23.88"W x 18.63"D x 5.13"HProduct Weight:
15.5 lbConvertible ventilation
Supports ducted or ductless installation.
Venting options
Provides top or rear venting options.
Two-speed exhaust fan
Offers two exhaust fan speeds.
Front-mounted dial controls
Uses front-mounted dial controls.
Integrated incandescent lighting
Includes integrated incandescent lighting.
Removable metal grease filter
Includes a removable metal grease filter.
Duct compatibility
Compatible with 3 1/4 in x 10 in rectangular ductwork or 6 in/7 in round ductwork with transition.
Hardwired installation
Specified for hardwired installation.
Documentation
Certifications & Compliance
Frequently Asked Questions
Yes. The H24RW supports both ducted and ductless installation.
The H24RW provides top or rear venting options.
It is compatible with 3 1/4 in x 10 in rectangular ductwork or 6 in/7 in round ductwork with transition.
The H24RW has a two-speed exhaust fan.
The H24RW uses front-mounted dial controls.
Yes. It includes integrated incandescent lighting.
The H24RW is specified for hardwired installation.
