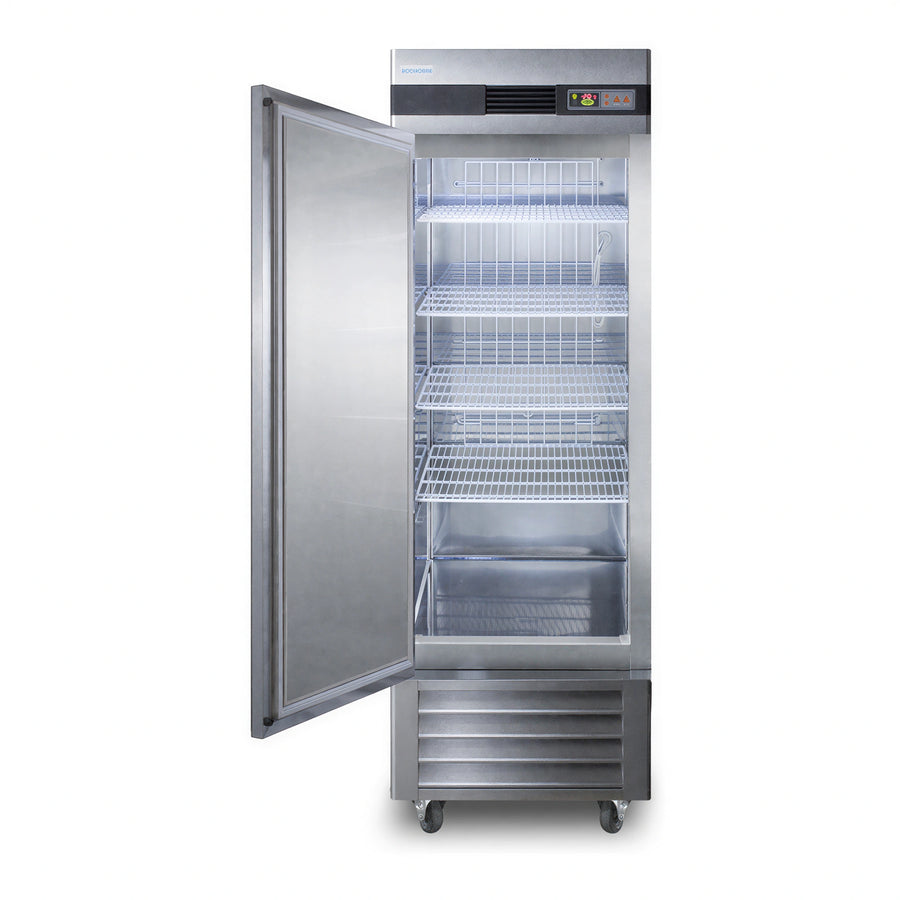

Summit Commercial Accucold® AFS23MLLH Medical/Lab Reach-In All-Freezer, 23 cu. ft., Stainless Steel, Left-Hinged Solid Door

SKU: AFS23MLLH
$3,004.74

Want to speak to an expert?

The AFS23MLLH is a one-section, 23 cu. ft. reach-in all-freezer designed for medical and laboratory storage. It provides an adjustable operating range of -30°C to -15°C with forced-air cooling, a digital thermostat, a separate temperature probe, and visual and audible temperature alarms.

  • Stainless steel interior and exterior
  • Left-hinged, self-closing solid locking door with a 90° stay-open feature
  • Four adjustable wire shelves
  • Frost-free defrost and interior light
  • Audible open-door alarm
  • Four 6-inch casters, including two locking casters
  • Self-contained, bottom-mounted refrigeration with R290a refrigerant

Overall Dimensions:

27.5"W x 31.0"D x 83.75"H

Product Weight:

150.0 lb

Adjustable temperature control

Digital thermostat with an adjustable operating range from -30°C to -15°C.

Temperature monitoring and alarms

Separate temperature probe, visual and audible temperature alarms, and an audible open-door alarm.

Stainless steel construction

Interior and exterior are constructed from stainless steel.

Self-closing locking door

Left-hinged solid door closes automatically, locks, and stays open at 90°.

Adjustable storage

Includes four adjustable wire shelves.

Forced-air cooling

Forced-air cooling supports temperature recovery inside the cabinet.

Mobility

Specified with four 6-inch casters, including two locking casters.

Refrigeration system

Self-contained refrigeration with a bottom-mounted compressor and R290a hydrocarbon refrigerant.

Capacity 23.0 cu. ft. (651 L)
Configuration One-section reach-in all-freezer
Door Left-hinged, self-closing solid locking door
Door feature 90° stay-open feature
Temperature range -30°C to -15°C
Defrost Frost-free
Cooling Forced-air
Thermostat Digital
Shelves 4 adjustable wire shelves
Interior light Yes
Open-door alarm Audible
Temperature alarms Visual and audible
Temperature probe Yes
Construction Stainless steel interior and exterior
Casters 4 x 6-inch casters; 2 locking
Refrigeration Self-contained, bottom-mounted compressor
Refrigerant R290a hydrocarbon
Electrical 115 V / 60 Hz / 1 phase; 8.0 A

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed
Certified badge of UL Certified
UL Certified

Warranty & Protection

2-year parts and labor warranty and 5-year compressor warranty.

Frequently Asked Questions

The freezer has a 23.0 cu. ft. capacity.
The adjustable operating range is -30°C to -15°C.
The solid door is left-hinged and is not reversible.
The freezer is specified with four adjustable wire shelves.
Yes. It has visual and audible temperature alarms, an audible open-door alarm, and a temperature probe.
It requires 115 V, 60 Hz, single-phase power and draws 8.0 amps.
It uses frost-free defrost.
The documented warranty is 2 years for parts and labor and 5 years for the compressor.
