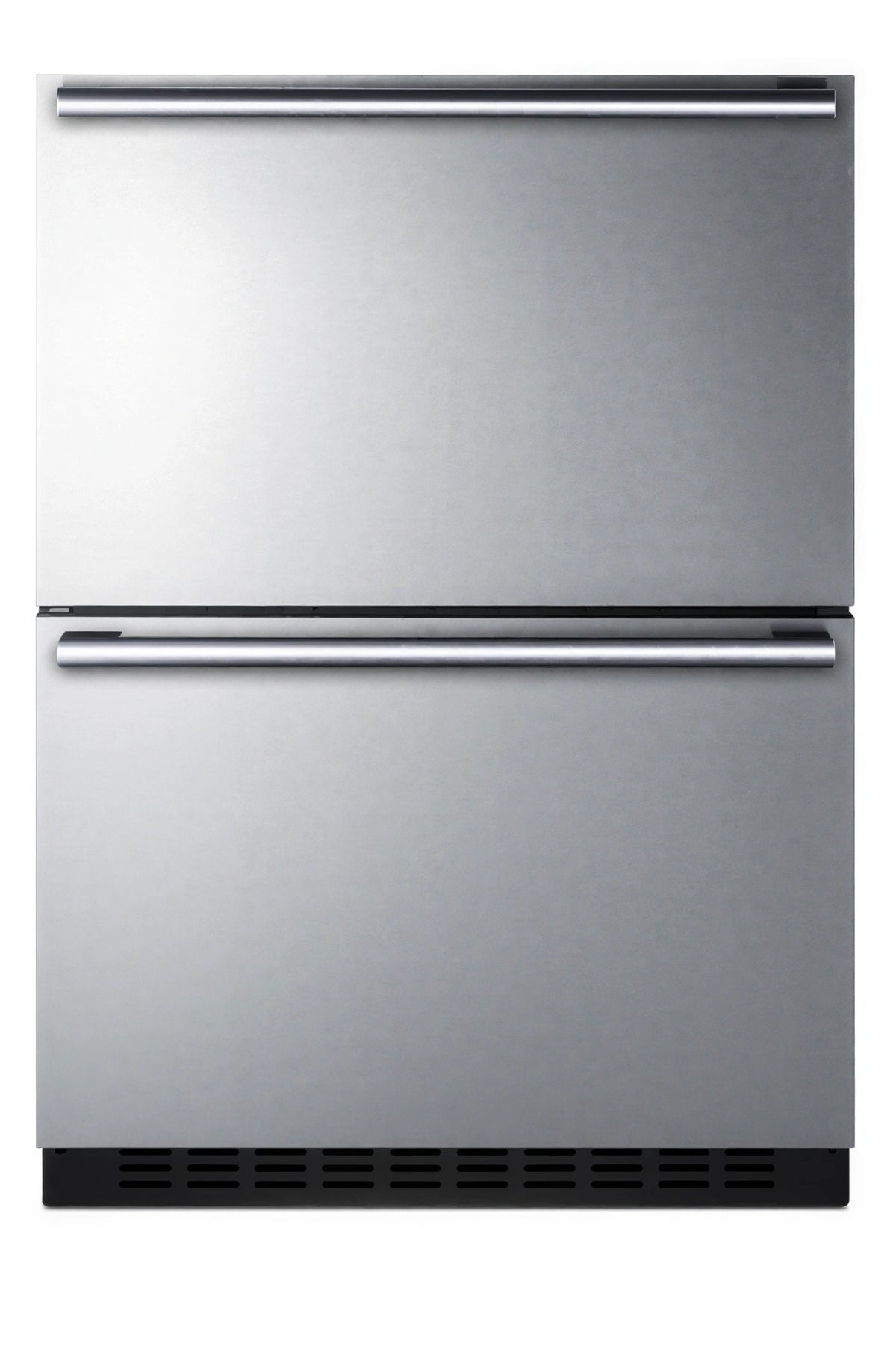

Summit Commercial Summit Appliance ADFD243IM All-Freezer, 3.7 cu. ft. capacity, Undercounter, built-in design with front-breathing ventilation
- Capacity
- 3.7 cu. ft. (105 L)
- Configuration
- All-freezer, 2 drawers
- Access type
- Drawers
- Installation
- Built-in capable; front-breathing ventilation
- Defrost
- Frost-free
- Temperature range
- -11°F to 11°F
Specifications
Description
ADFD243IM is a 3.7 cu. ft. all-freezer with two sliding drawers and a factory-installed automatic icemaker in the lower drawer. Frost-free operation and a temperature range of -11°F to 11°F support frozen food storage.
The built-in-capable, front-breathing design is suited to undercounter installation. Panel-ready drawer fronts accept custom overlay panels, while professional stainless steel handles provide access to the drawers.
- Digital temperature controls with Fahrenheit/Celsius display
- White LED lighting in the upper drawer
- Two adjustable, removable drawer dividers
- Removable full-width chrome storage basket
- High-temperature alarm, open-drawer alarm, child safety lock, and temperature memory
Overall Dimensions:
23.38"W x 22.38"D x 32.0"HProduct Weight:
138.5 lbTwo-drawer all-freezer
Provides 3.7 cu. ft. of freezer capacity in two sliding drawers.
Factory-installed icemaker
The automatic icemaker is located in the lower drawer.
Built-in capable and front-breathing
The front-breathing design supports undercounter installation and flush placement with other cabinets.
ADA-compliant design
The 32-inch height is specified to allow installation under lower ADA-compliant counters.

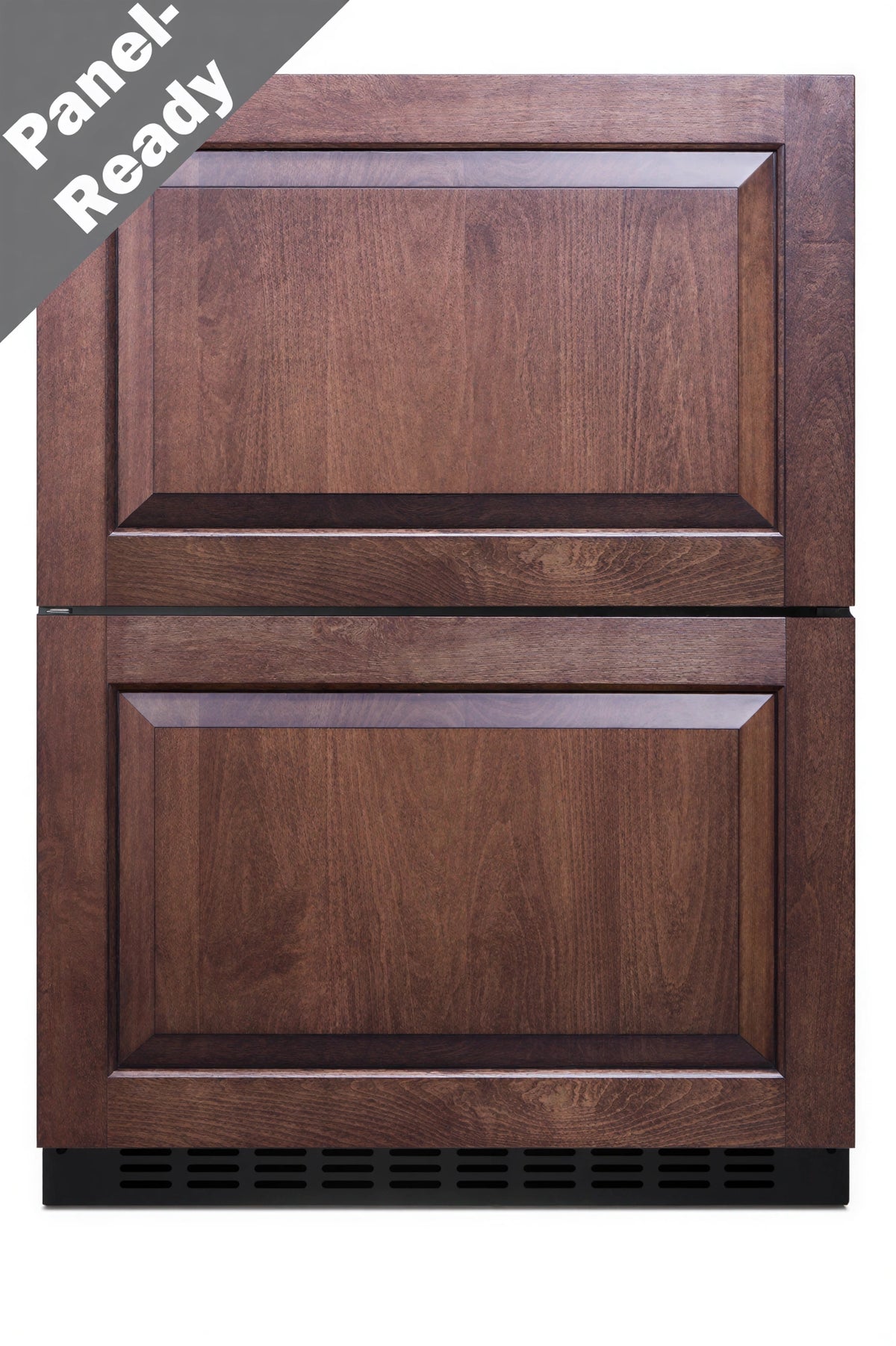

Panel-ready drawer fronts
Drawer fronts accept custom overlay panels measuring 23.13 in × 14.13 in at 3/4 in thick.
304-grade stainless steel drawers
Drawer interiors and exteriors are constructed from 304-grade stainless steel.
Frost-free operation
No-frost operation helps reduce the need for manual defrosting.
Digital temperature controls
Controls include an external readout that switches between Fahrenheit and Celsius.
Storage organization
Includes two adjustable, removable drawer dividers and a removable full-width chrome storage basket.
Freezer monitoring and safety
Features a high-temperature alarm, open-drawer alarm, child safety lock, temperature memory function, and anti-tip bracket.
Special operating modes
Includes SuperFreezer function and Sabbath mode.
Interior lighting
White LED lighting is provided in the upper drawer.
