Structural Concepts

Blend 71-3/4-Inch Refrigerated Self-Service Center Case

SKU: NM7255RSSV
$22,375.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Countertop Food Displays Countertop Refrigerated Display Cases Food Displays & Merchandisers Merchandising & Display Refrigeration New Arrivals Refrigeration, Freezing & Ice Restaurant Equipment Structural Concepts

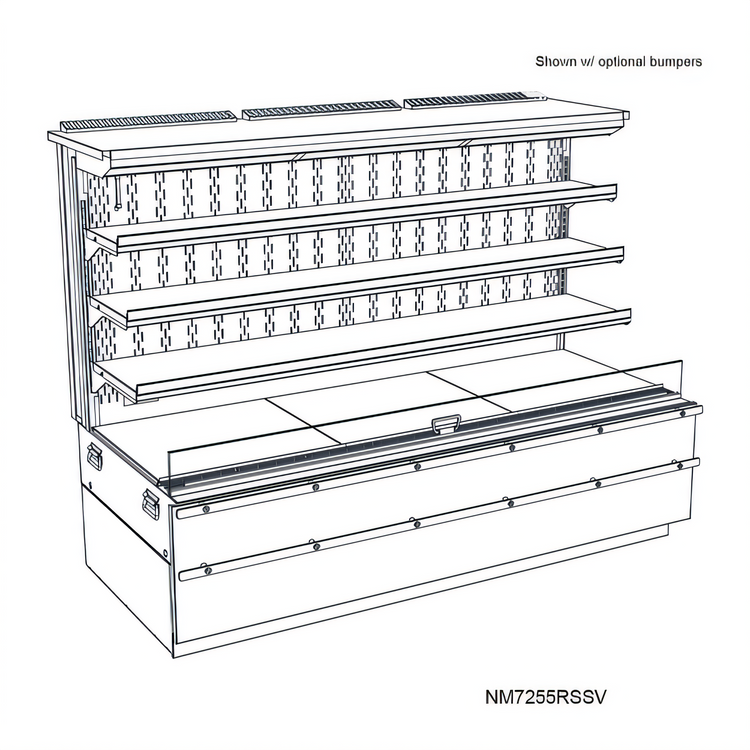

Blend 71-3/4-Inch Refrigerated Self-Service Center Case

Self-Contained R290, Front-Access, Black Powder-Coated, Type II

Merchandise packaged refrigerated products in a spacious, lighted self-service case with adjustable shelves, locking casters, and front-access refrigeration for easier service.

  • 71-3/4-inch-wide refrigerated self-service center case for packaged refrigerated products
  • Breeze~E Type II self-contained refrigeration with front access for easier service
  • Three solid, adjustable shelves provide flexible display layouts
  • LED top and shelf lights help showcase merchandise
  • One-piece formed ABS plastic tub supports easy cleaning and product containment
  • Adjustable locking casters make positioning and cleaning easier
  • Digital Fahrenheit thermometer and 40°F-or-less warmest average product temperature rating

Overall Dimensions:

71.75"W x 34.38"D x 55.38"H

Product Weight:

1100.0 lb

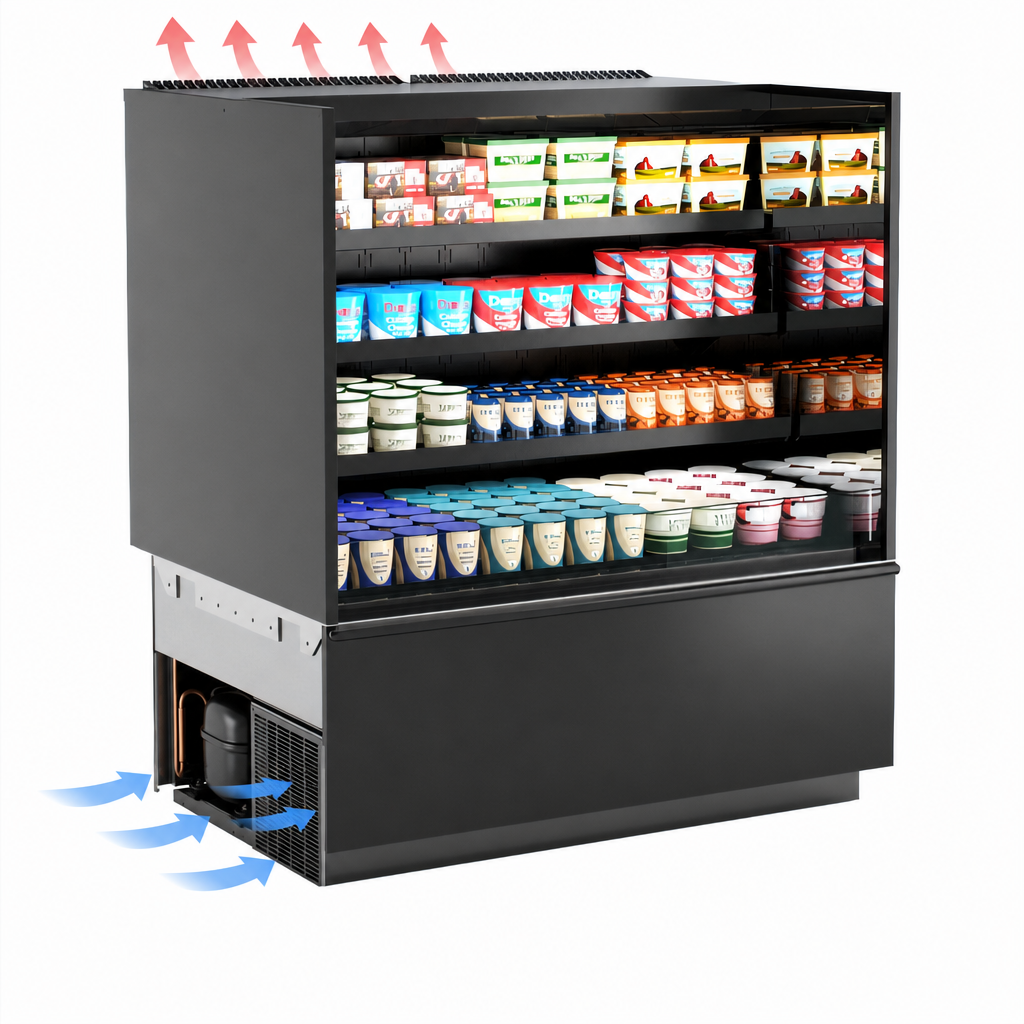

Front-Access Breeze~E Refrigeration

Self-contained Type II refrigeration is serviced from the front, with compressor air intake through the lower front panel and discharge through the top rear vent.

Front-Access Breeze~E Refrigeration

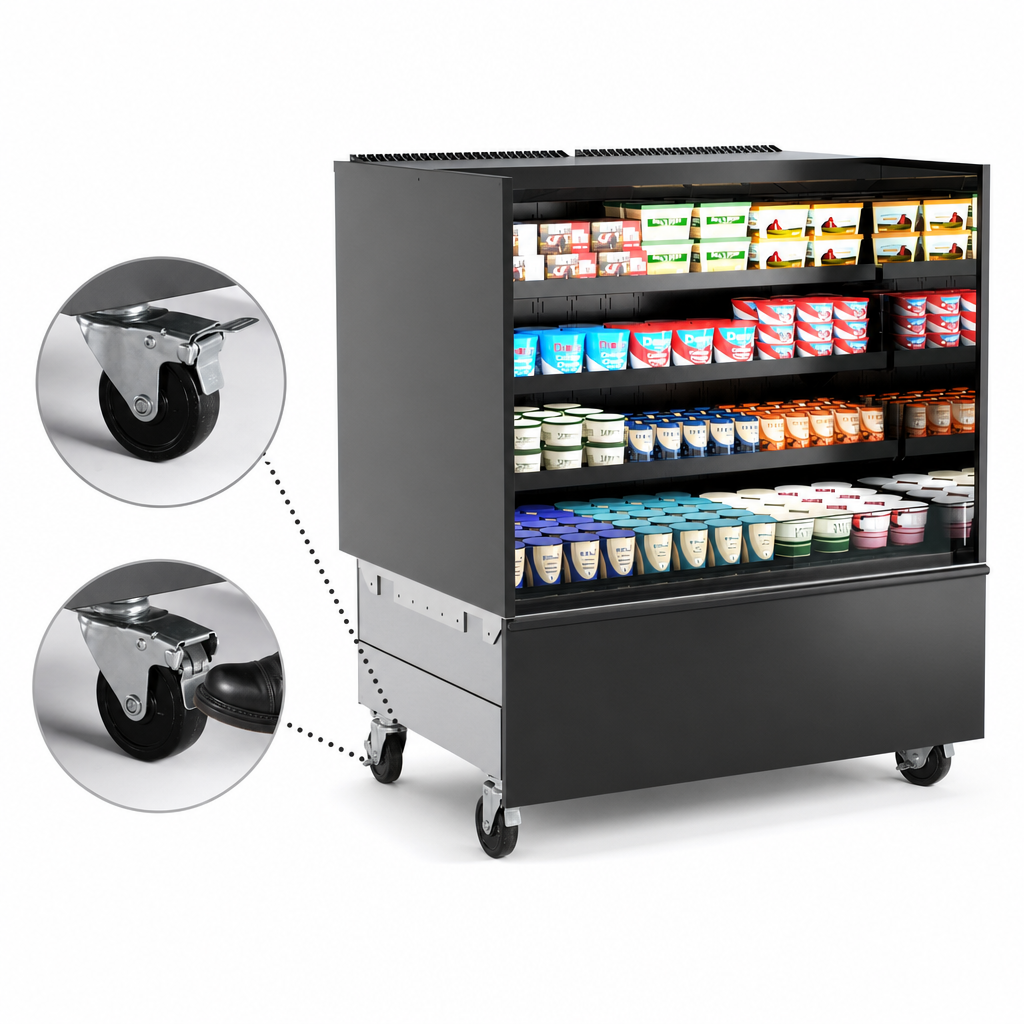

Adjustable Locking Casters

Caster base allows the case to be repositioned and then locked in place for stability.

Adjustable Locking Casters

Three Adjustable Shelves

Includes three solid shelf levels to create flexible merchandising and product organization.

LED Top and Shelf Lights

Integrated LED lighting helps improve product visibility across the display area.

One-Piece Formed ABS Plastic Tub

A seamless formed ABS tub supports easier cleaning and helps contain product and spills.

Black Powder-Coated Interior and Exterior

The black powder-coated finish creates a uniform merchandising appearance inside and out.

Digital Fahrenheit Thermometer

Built-in digital thermometer helps monitor cabinet temperature at a glance.

Type II Ambient Rating and Doorway Access

Designed for Type II ambient conditions of 80°F and 55% relative humidity, with a warmest average product temperature of 40°F or less; the front panel can be removed without tools to help fit through a 36-inch door.

Type Refrigerated Self-Service Center Case
Style Open Flat
Installation Type Floor Model
Refrigeration Type Self-Contained
Refrigerant Type R290
Voltage 208-240 Volts
Amps 16 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type 6-20P or L6-20P
BTU 6,660 BTU
Color Black
Interior Finish Black Powder Coated
Selling Unit Each
Units Per Case 1
Shipping Width 72 Inches
Shipping Depth 35 Inches
Shipping Height 56 Inches
Shipping Weight 1,100 lb.

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Warranty PDF Download PDF Map policy PDF Download PDF Exterior finishes and bumpers PDF Download PDF Lineup guide PDF Download PDF Spec guide PDF Download PDF Owner's manual PDF Download PDF Scc product nomenclature PDF Download

Frequently Asked Questions

The cutsheet shows Breeze~E Type II self-contained refrigeration with front access. Remote DX is also listed as an available option.
It includes three solid shelves, and all three are adjustable.
Yes. LED top and shelf lights are included.
Yes. Adjustable locking casters are included for mobility and stability.
The cutsheet lists a warmest average product temperature of 40°F or less in Type II ambient conditions.
The cutsheet lists a one-year parts and labor warranty.
