Structural Concepts Reveal® NE7227RSSV 71-3/4-Inch Self-Service Refrigerated Slide-In Deli Case, Self-Contained, 2 Adjustable Glass Shelves
- Product type
- Refrigerated self-service slide-in counter case
- Refrigeration system
- Breeze-E Type II self-contained refrigeration
- Refrigerant
- R290
- Dimensions
- 71.75"W × 33.0"D × 27.88"H
- Height above counter
- 27.88 in
- Overall height
- 47.25 in
Specifications
Description
The Structural Concepts Reveal® NE7227RSSV is a refrigerated self-service slide-in counter case measuring 71.75 inches wide by 33 inches deep. It provides 27.88 inches of display height above the counter and 47.25 inches of overall height.
- Refrigeration: Breeze-E Type II self-contained refrigeration with R290 refrigerant.
- Shelving: Two removable, adjustable clear glass shelves with 1-inch adjustment centers.
- Lighting: LED top and shelf lights.
- Construction: Glass ends, an upper rear solid back panel, and a one-piece formed ABS plastic tub.
- Service access: Slide-in case design with compressor air intake at the rear and discharge at the front.
Overall Dimensions:
71.75"W x 33.0"D x 27.88"HProduct Weight:

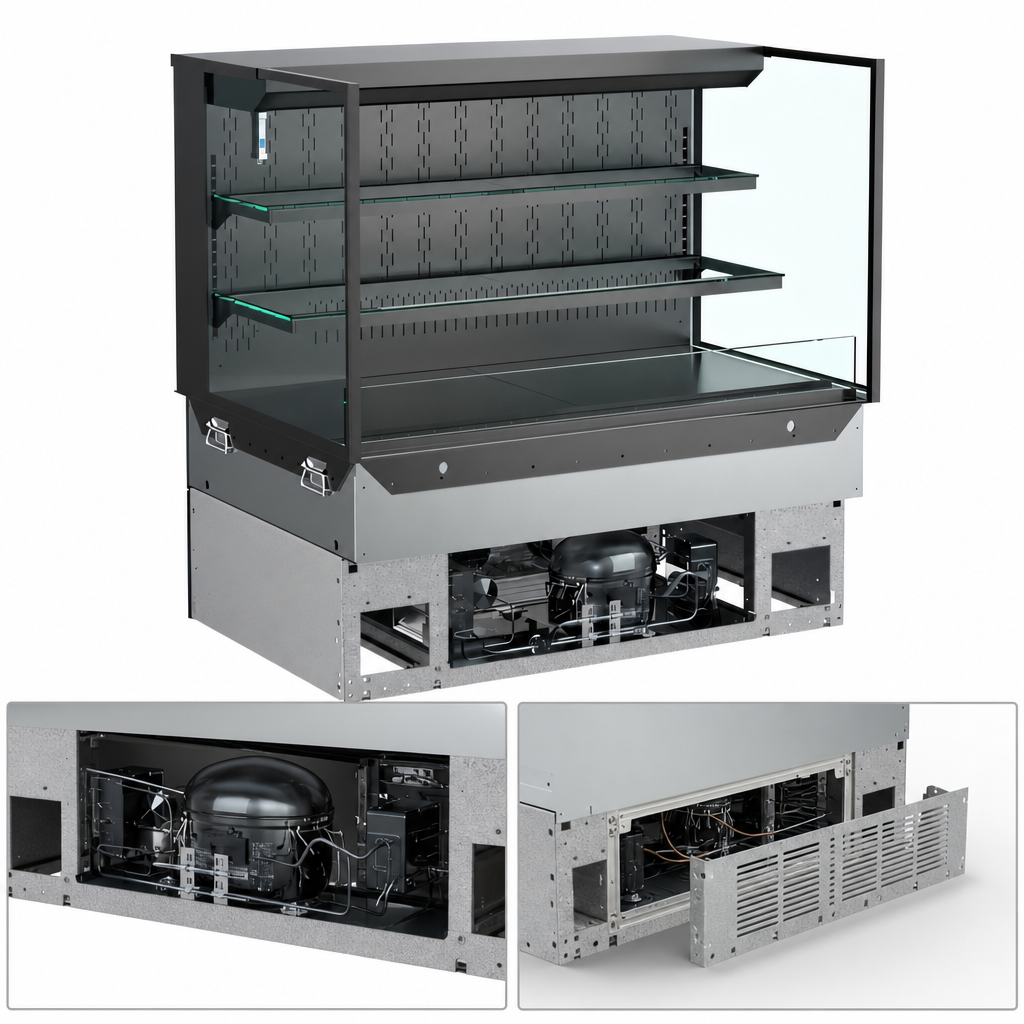

950.0 lbBreeze-E Type II refrigeration
Self-contained refrigeration system using R290 refrigerant.

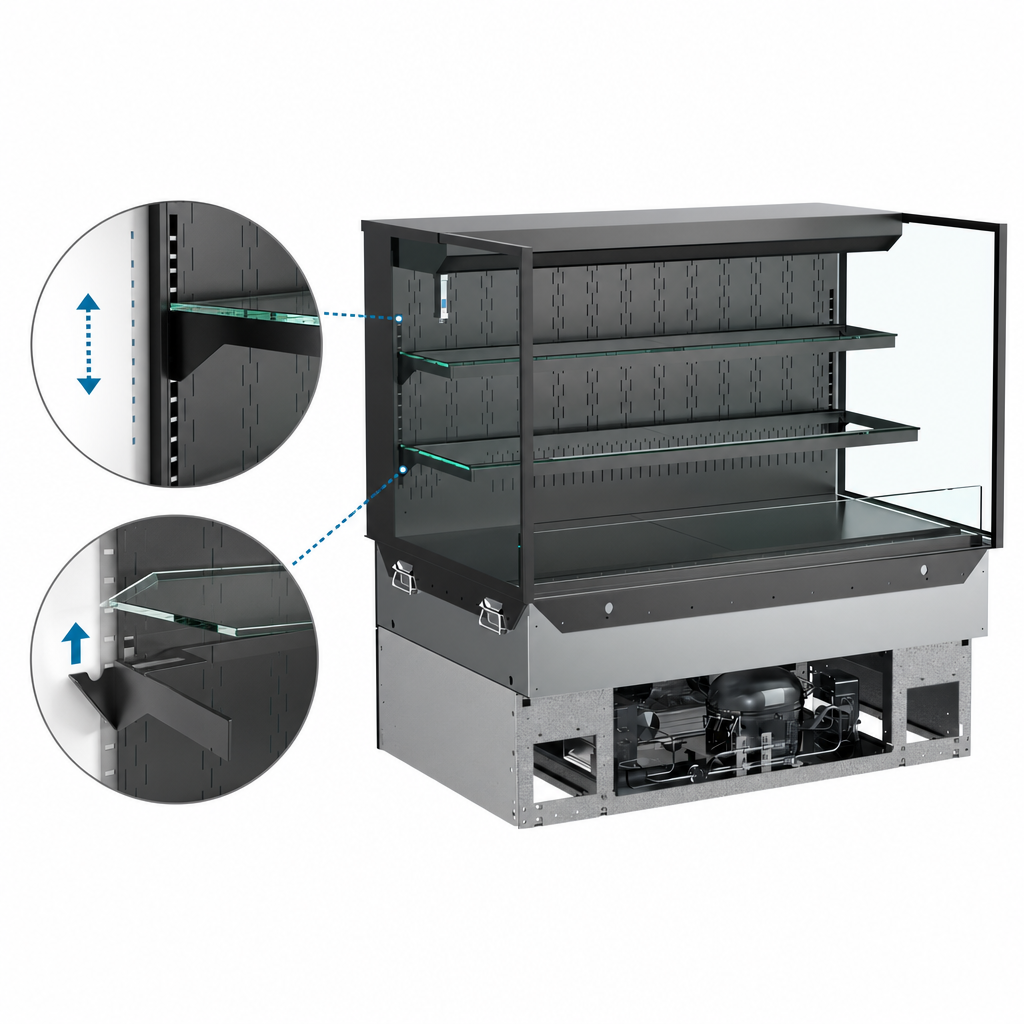

Adjustable clear glass shelving
Includes two removable shelves adjustable on 1-inch centers.
LED display lighting
LED top and shelf lights illuminate the display area.
Slide-in counter design
Designed as a refrigerated self-service slide-in counter case.
Glass ends and solid rear panel
Includes glass ends and an upper rear solid back panel.
ABS plastic tub
Uses a one-piece formed ABS plastic tub.
Self-contained airflow layout
Compressor air intake is at the rear and discharge is at the front.
Condensate management
Includes a condensate pan for self-contained refrigeration.
