Structural Concepts Reveal® NE4820HSV Heated Self-Service Slide-In Counter Case, 47-3/4-Inch Wide, Convection Heat, Adjustable Glass Shelf
- Amperage
- 19.87 A
- Phase
- 1 phase
- Dimensions
- 47.75"W × 33.0"D × 39.63"H
- Service type
- Self-service
- Case type
- Heated slide-in counter case
- Overall height
- 39-5/8 in
Specifications
Description
The Structural Concepts Reveal® NE4820HSV is a heated self-service slide-in counter case measuring 47-3/4 inches wide and 33 inches deep. It uses convection heat with one removable, adjustable clear glass shelf, LED top and shelf lights, vertical swing-out front glass, rear sliding glass doors, glass ends, and a stainless steel interior.
The case is 20-3/8 inches high above the counter and 39-5/8 inches high overall, including the below-counter portion.
- Shelf: One clear glass shelf, removable and adjustable on 1-inch centers
- Lighting: LED top and shelf lights
- Glass: UV-bonded frameless glass with vertical swing-out front glass
- Electrical: 208-240 V, single phase, 60 Hz, 19.87 A, 3,940 W
Overall Dimensions:
47.75"W x 33.0"D x 39.63"HProduct Weight:

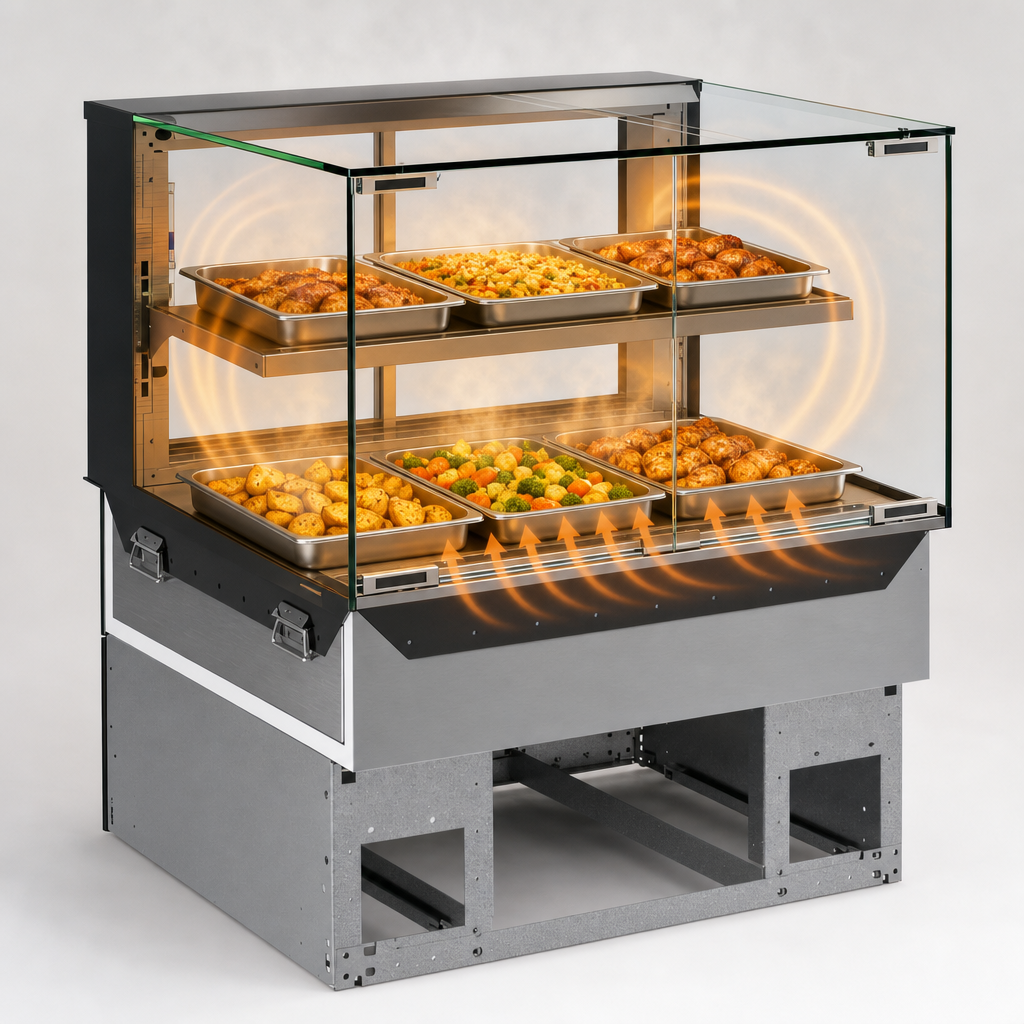

950.0 lbConvection heat
Provides convection heat for packaged or unpackaged heated products.

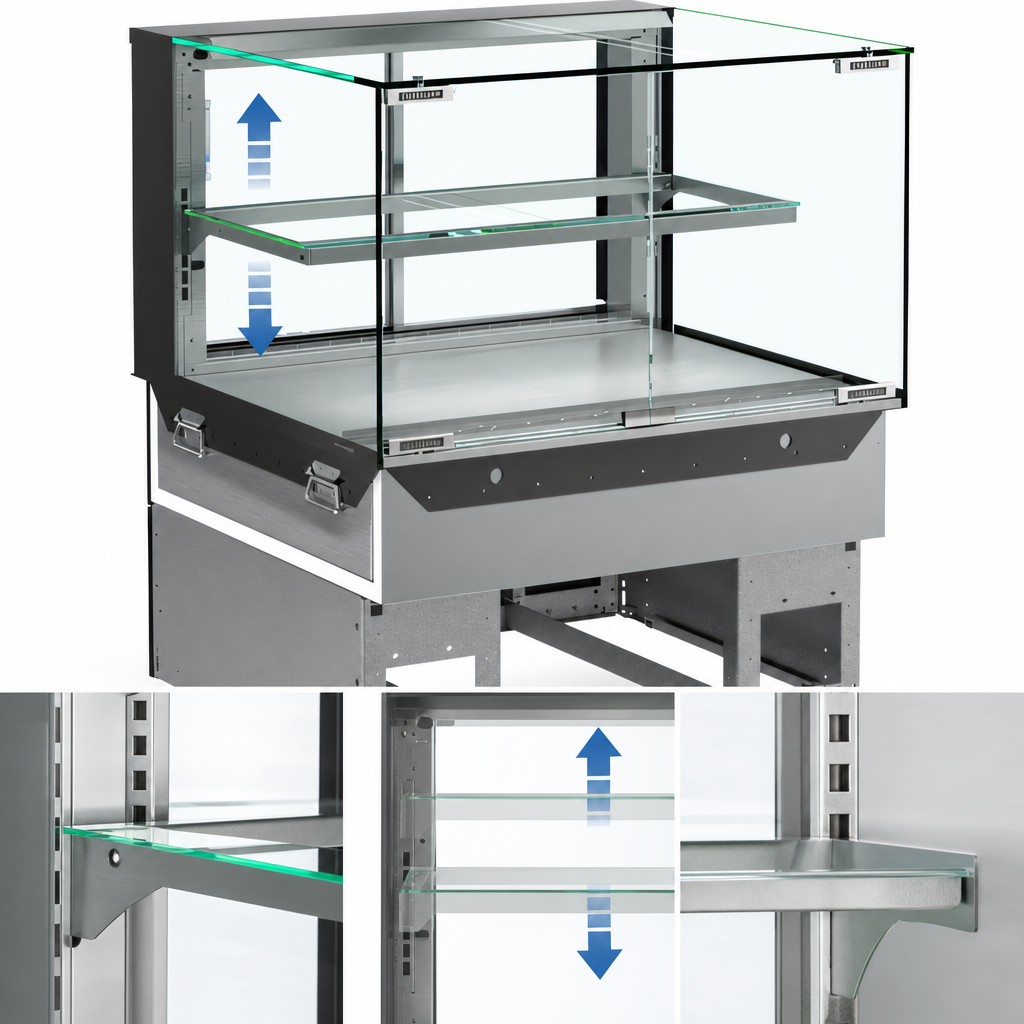

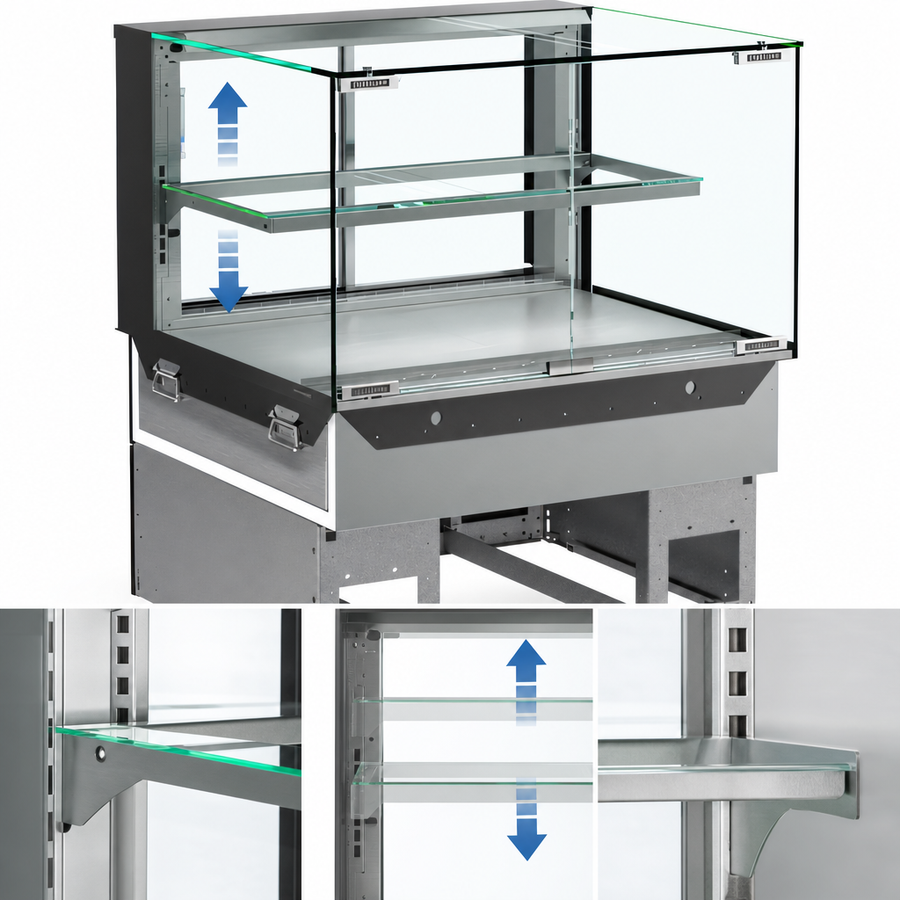

Adjustable clear glass shelf
Includes one removable clear glass shelf adjustable on 1-inch centers.
LED top and shelf lights
Includes LED lighting at the top and shelf.
Vertical swing-out front glass
The front glass swings out vertically.
Rear sliding glass doors
The rear of the case has clear glass sliding doors.
Slide-in counter case
Designed as a slide-in counter case with a 20-3/8-inch above-counter height.
UV-bonded frameless glass
Uses UV-bonded frameless glass and glass ends.
Stainless steel interior
The case has a stainless steel interior.
