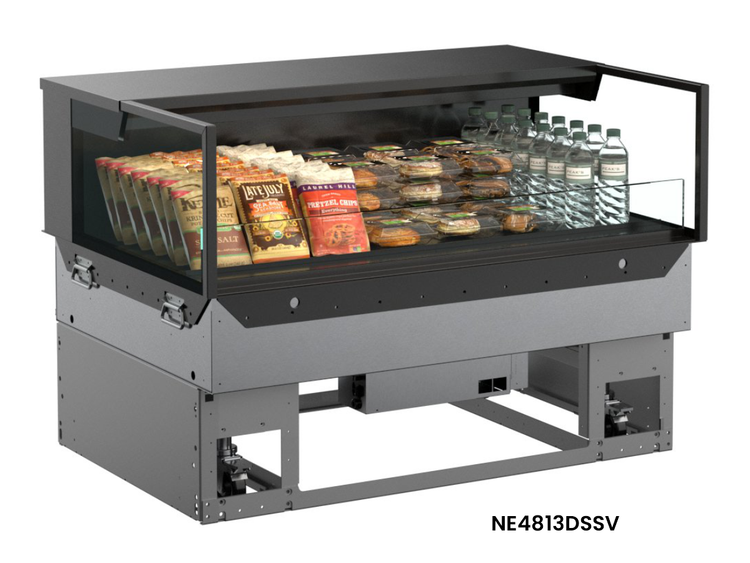

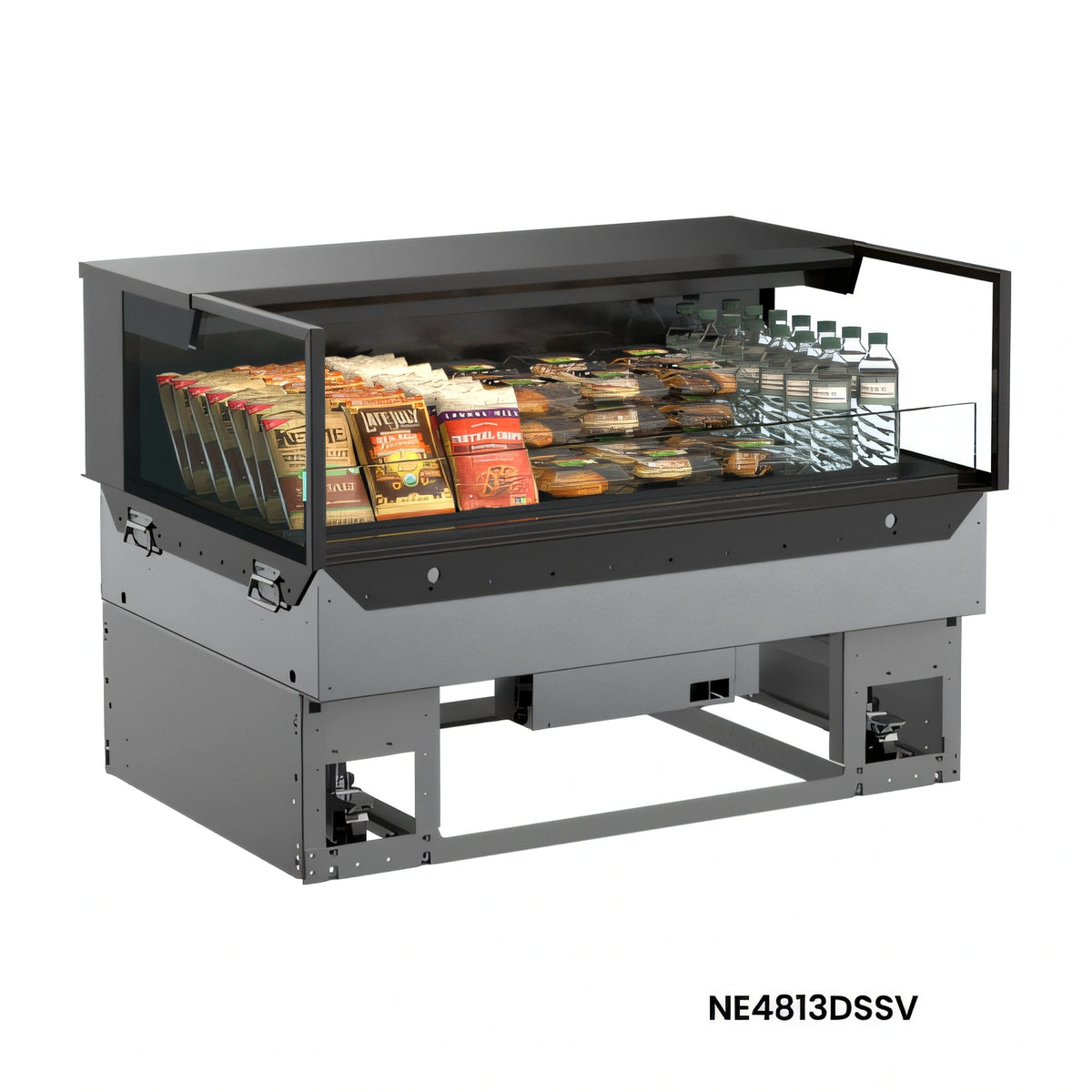

Structural Concepts Reveal® NE4813DSSV Self-Service Non-Refrigerated Slide-In Counter Display Case with LED Top Light
$10,570.00
/each
Ships in 16–19 business days
- Amperage
- 0.70 A
- Phase
- 1
- Dimensions
- 47.75"W × 33.0"D × 32.88"H
- Product type
- Non-refrigerated self-service slide-in counter case
- Intended product
- Packaged non-refrigerated products
- Service type
- Self-service
Specifications
Product type
Non-refrigerated self-service slide-in counter case
Intended product
Packaged non-refrigerated products
Service type
Self-service
Shelf configuration
Deck only
Installation configuration
Slide-in base
Above-counter height
13-5/8 in
Overall height
32-7/8 in
Glass configuration
Fixed vertical glass with glass ends
Rear panel
Solid rear panel
Tub construction
One-piece formed ABS plastic tub
Exterior color
Black
Interior color
Black
Light type
LED top light
Electrical connection
5-15P or L5-15P
Voltage
110-120 V
Amperage
0.70 A
Frequency
60 Hz
Phase
1
Operating environment
Type I; 75°F and 55% relative humidity
Required beneath-counter space
19.25 in minimum
Required counter cutout width
47 in
Required counter cutout depth
32.25 in
Description
The Reveal® NE4813DSSV is a non-refrigerated, self-service slide-in counter display case for packaged non-refrigerated products.
- Display configuration: Fixed vertical glass, glass ends, and a solid rear panel.
- Lighting: LED top light.
- Construction: One-piece formed ABS plastic tub.
- Finish: Black exterior and interior.
- Installation: Slide-in base configuration with a deck-only shelf arrangement.
The case measures 47-3/4 inches wide by 33 inches deep, with a 13-5/8-inch height above the counter and a 32-7/8-inch overall height.
Overall Dimensions:
47.75"W x 33.0"D x 32.88"HProduct Weight:
600.0 lbNon-refrigerated self-service design
Intended for packaged non-refrigerated products and self-service use.

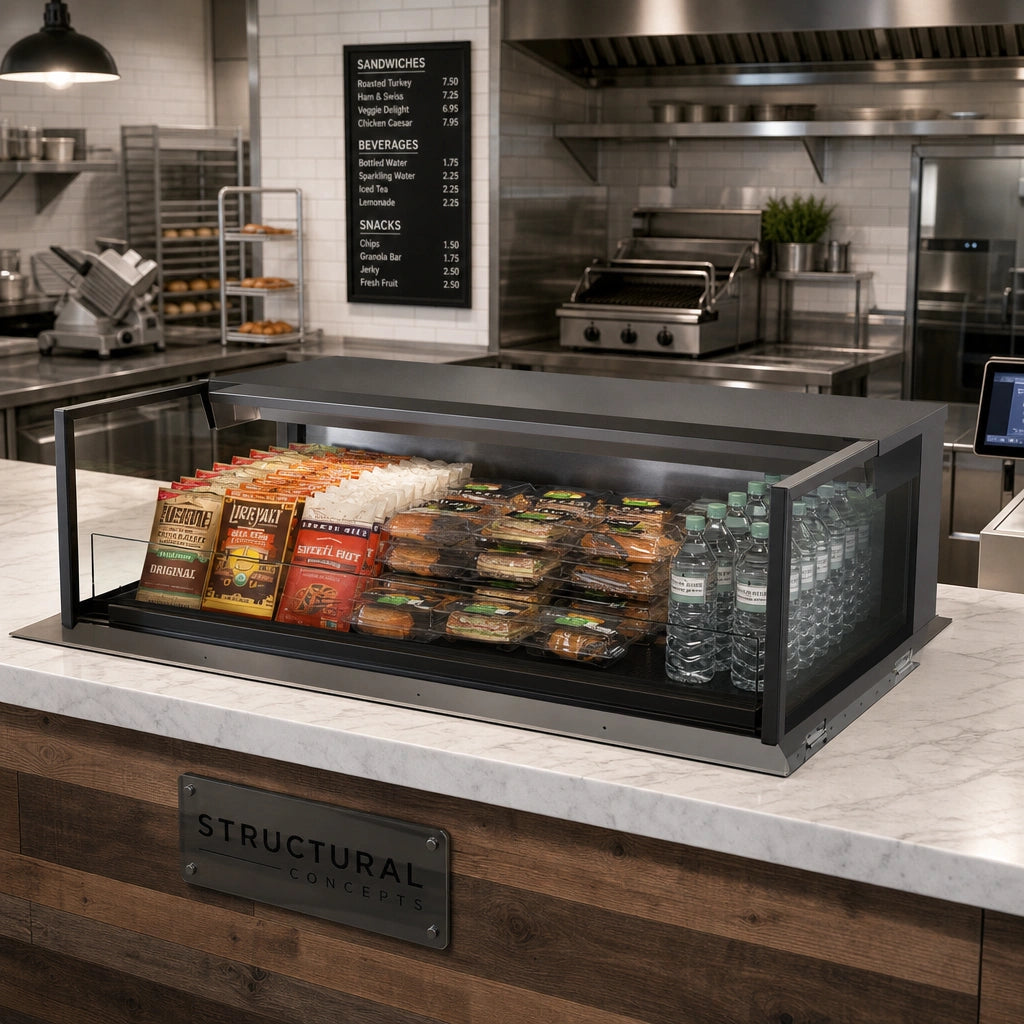

Slide-in counter installation
Configured with a slide-in base.

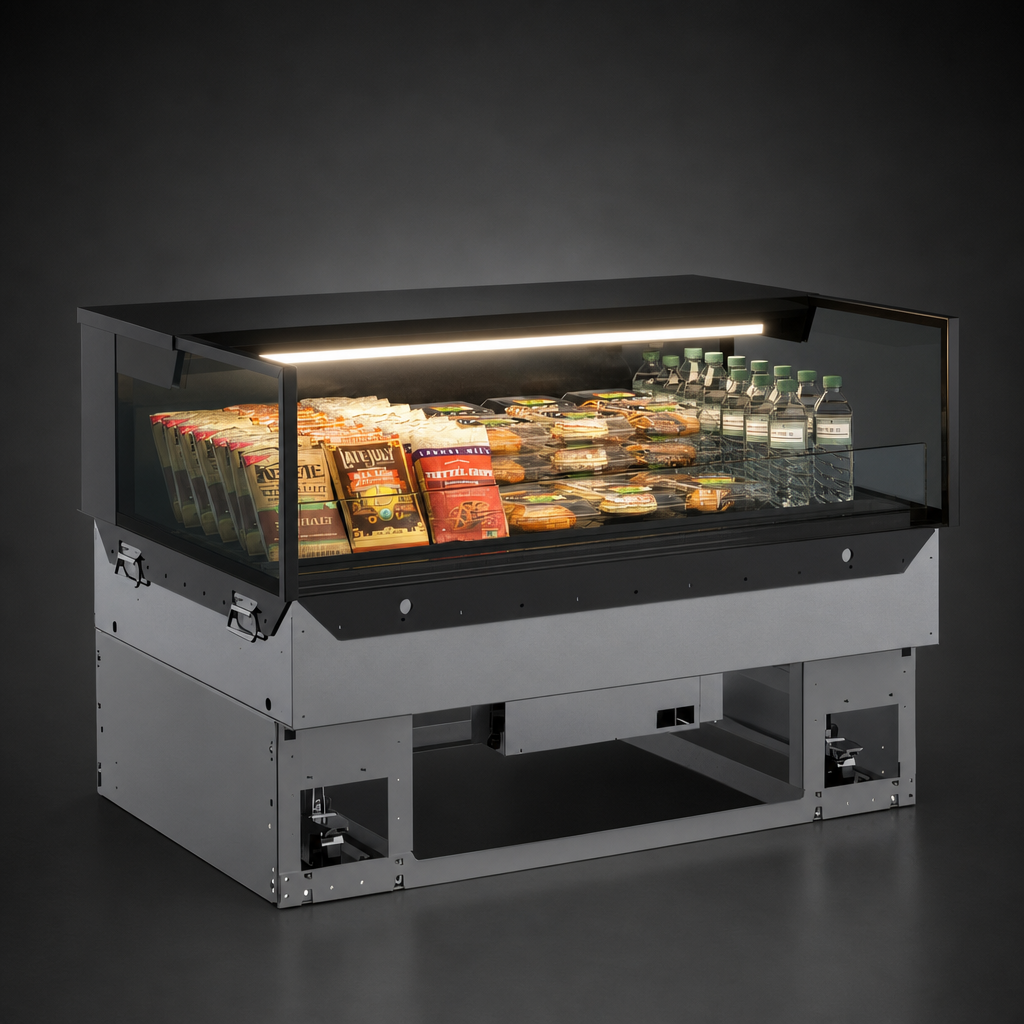

LED top light

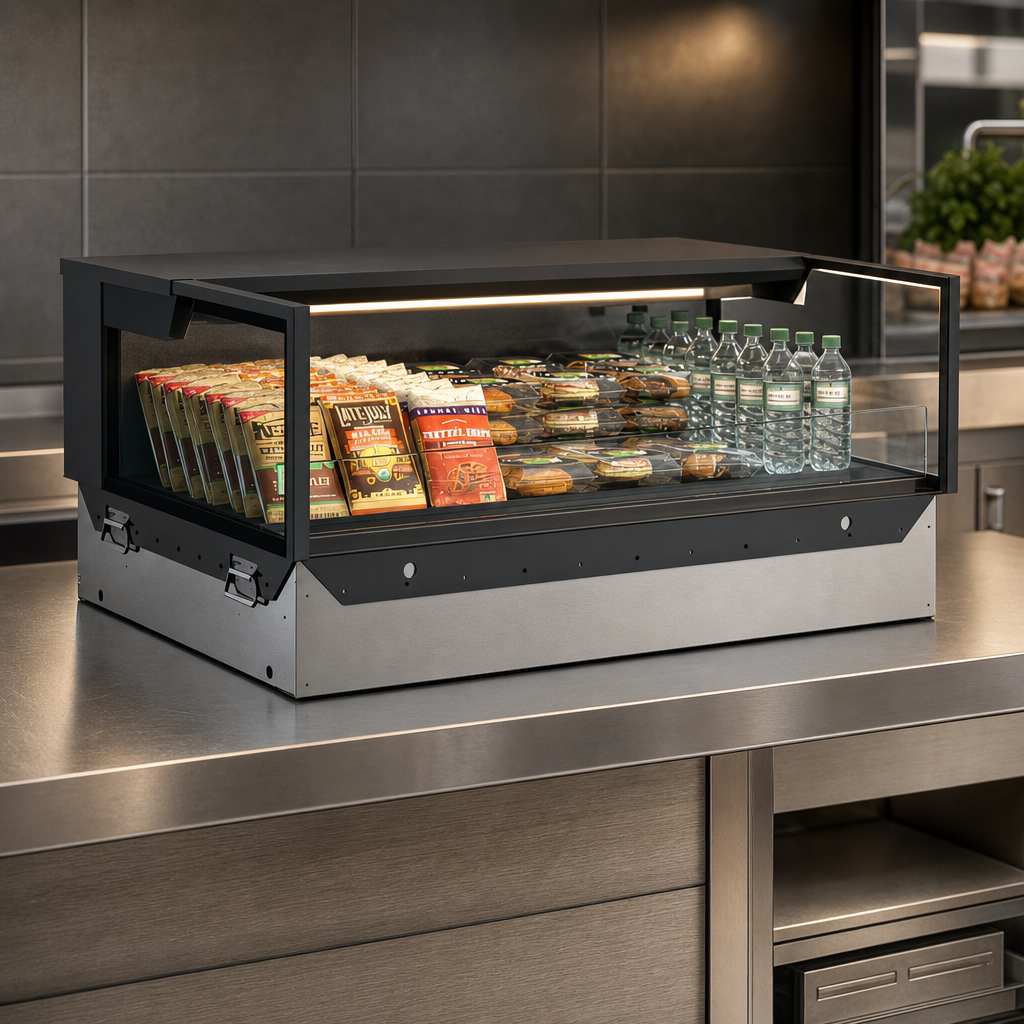

Fixed vertical glass
Glass ends
Solid rear panel
Formed ABS plastic tub
One-piece formed ABS plastic tub.
Black exterior and interior
Documentation
Cutsheet
PDF Download
Scc product nomenclature
PDF Download
Map policy
PDF Download
Exterior finishes and bumpers
PDF Download
Spec guide
PDF Download
Design guide
PDF Download
Warranty
PDF Download
Owner's manual
PDF Download
Warranty
PDF Download
Adjoinment guide
PDF Download
Certifications & Compliance
Frequently Asked Questions
No. It is a non-refrigerated case intended for packaged non-refrigerated products.
It is 47-3/4 in wide by 33 in deep, with a 13-5/8 in height above the counter and a 32-7/8 in overall height.
The specifications list a 5-15P or L5-15P plug, 110-120 V, 0.70 A, 60 Hz, and single-phase power.
Yes. It includes an LED top light.
The cutsheet specifies a one-year parts and labor warranty. It also notes that the glass warranty applies only to the first point of delivery.
