Structural Concepts Reveal® NE3620HSV Heated Self-Service Slide-In Counter Case, 35-3/4"W x 33"D, Convection Heat, 1 Glass Shelf
- Product Type
- Heated self-service slide-in counter case
- Service Type
- Self-service
- Heating Method
- Convection heat
- Dimensions
- 35.75"W × 33.0"D × 39.63"H
- Height Above Counter
- 20-3/8 in
- Overall Height
- 39-5/8 in
Specifications
Description

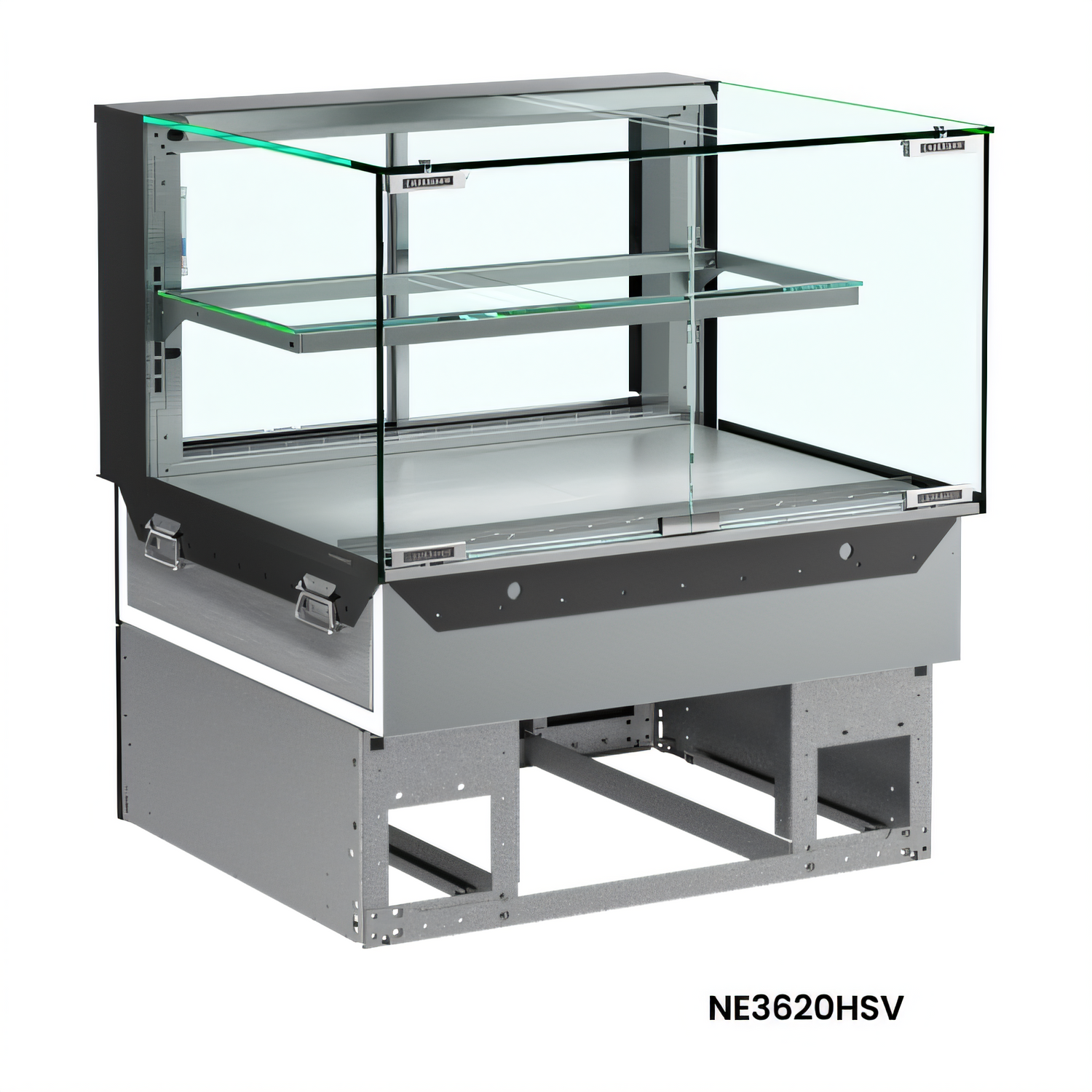

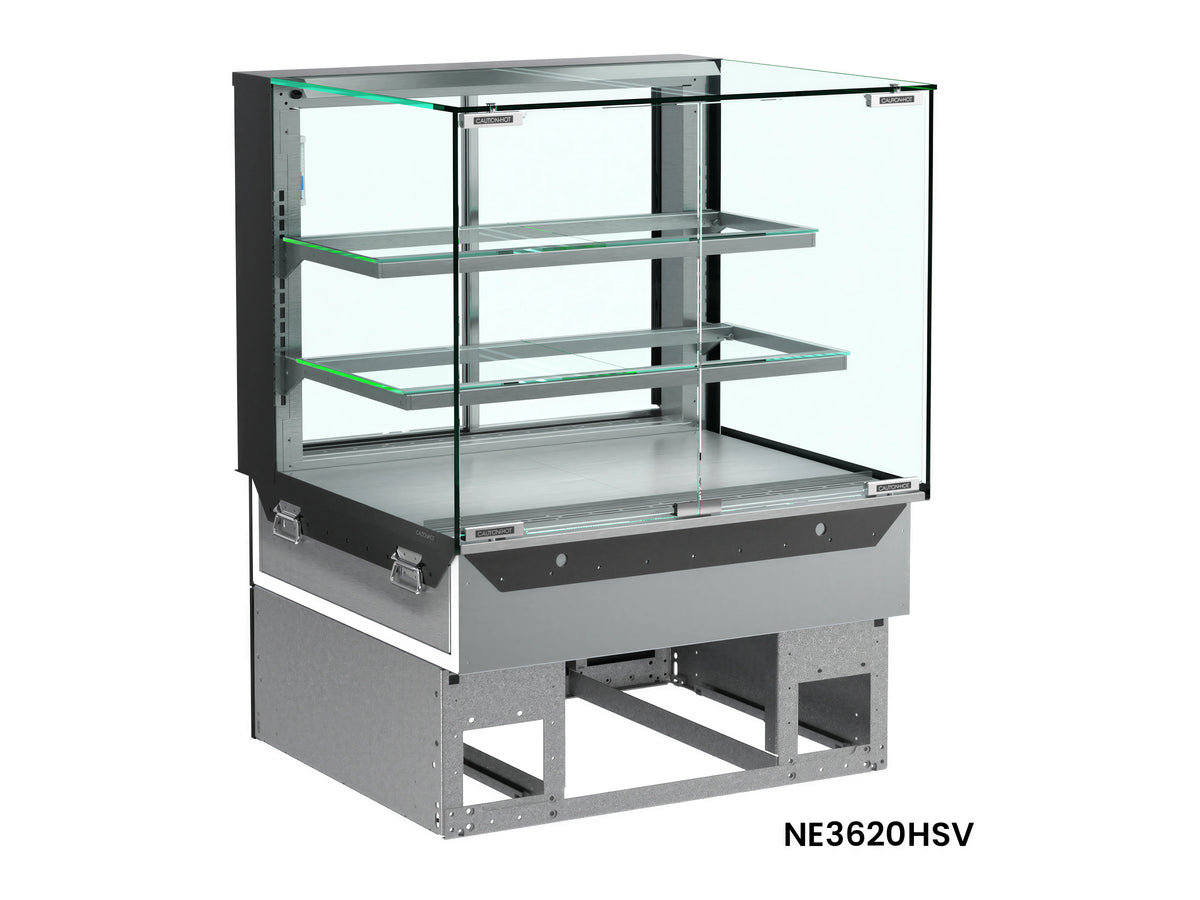

The Reveal® NE3620HSV is a heated self-service slide-in counter case measuring 35-3/4 inches wide by 33 inches deep, with a 20-3/8-inch height above the counter and a 39-5/8-inch overall height.
It uses convection heat and includes one removable, adjustable clear glass shelf, LED top and shelf lights, vertical swing-out front glass, clear glass rear sliding doors, glass ends, and a stainless steel interior.
The case is specified for packaged or unpackaged heated products and uses a 208-240 V, single-phase electrical circuit rated at 14.25 A and 2,803 W.
Overall Dimensions:
35.75"W x 33.0"D x 39.63"HProduct Weight:
660.0 lbConvection heat

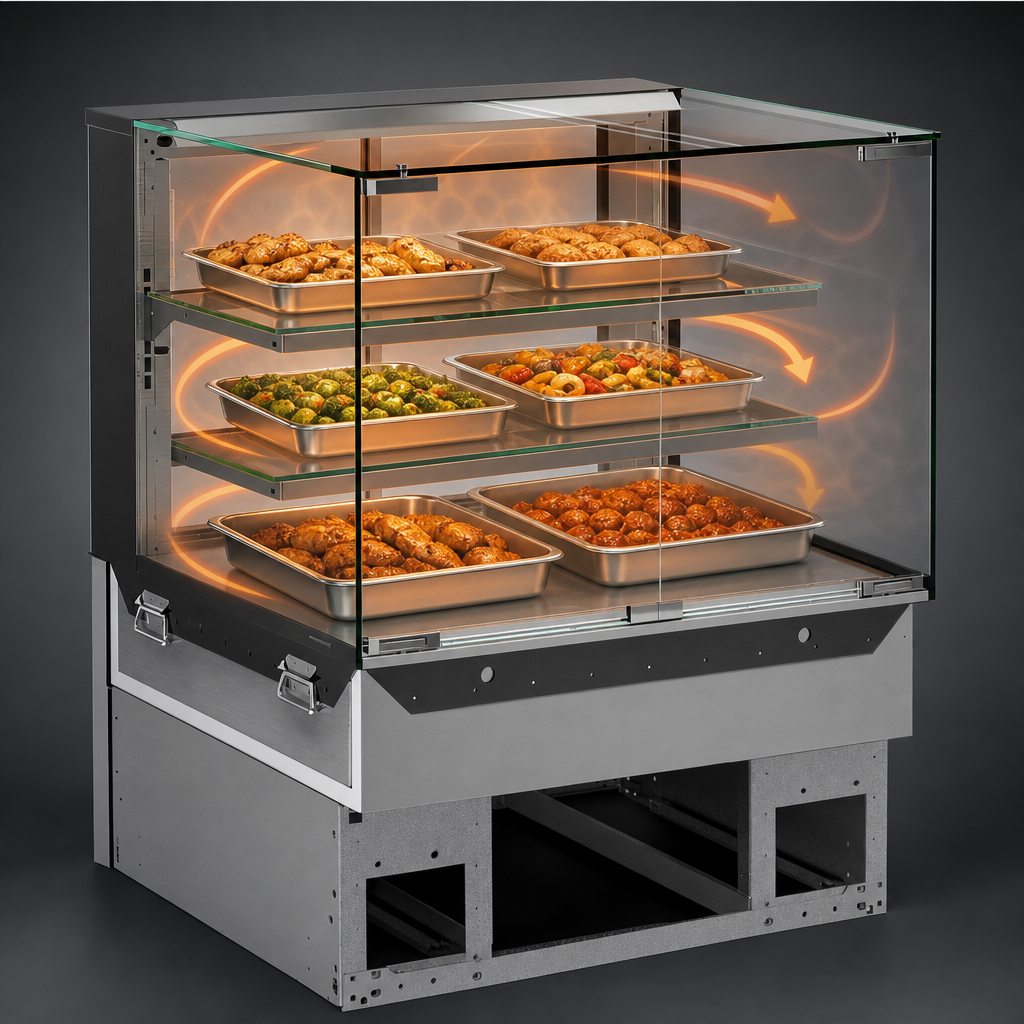

The heated case uses convection heat.
Removable adjustable shelf

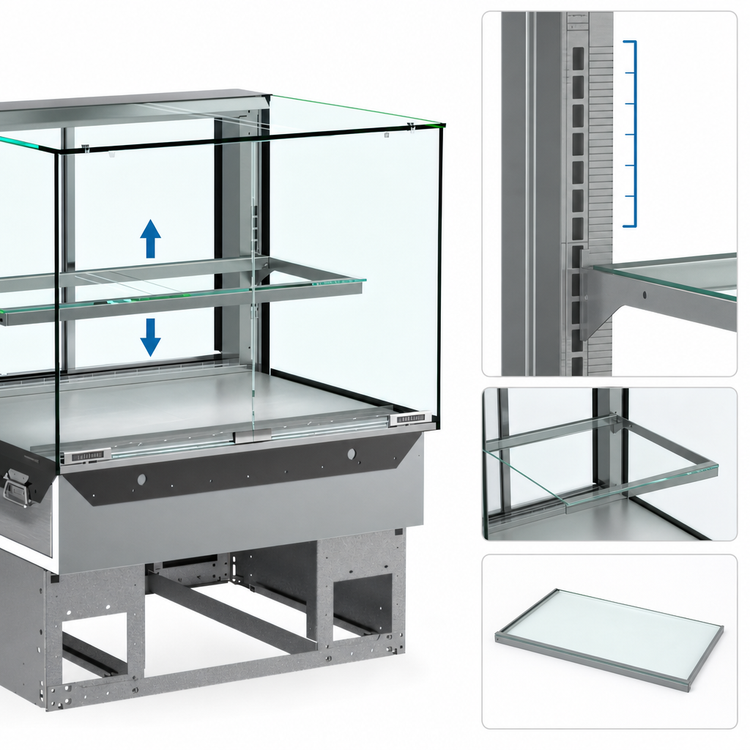

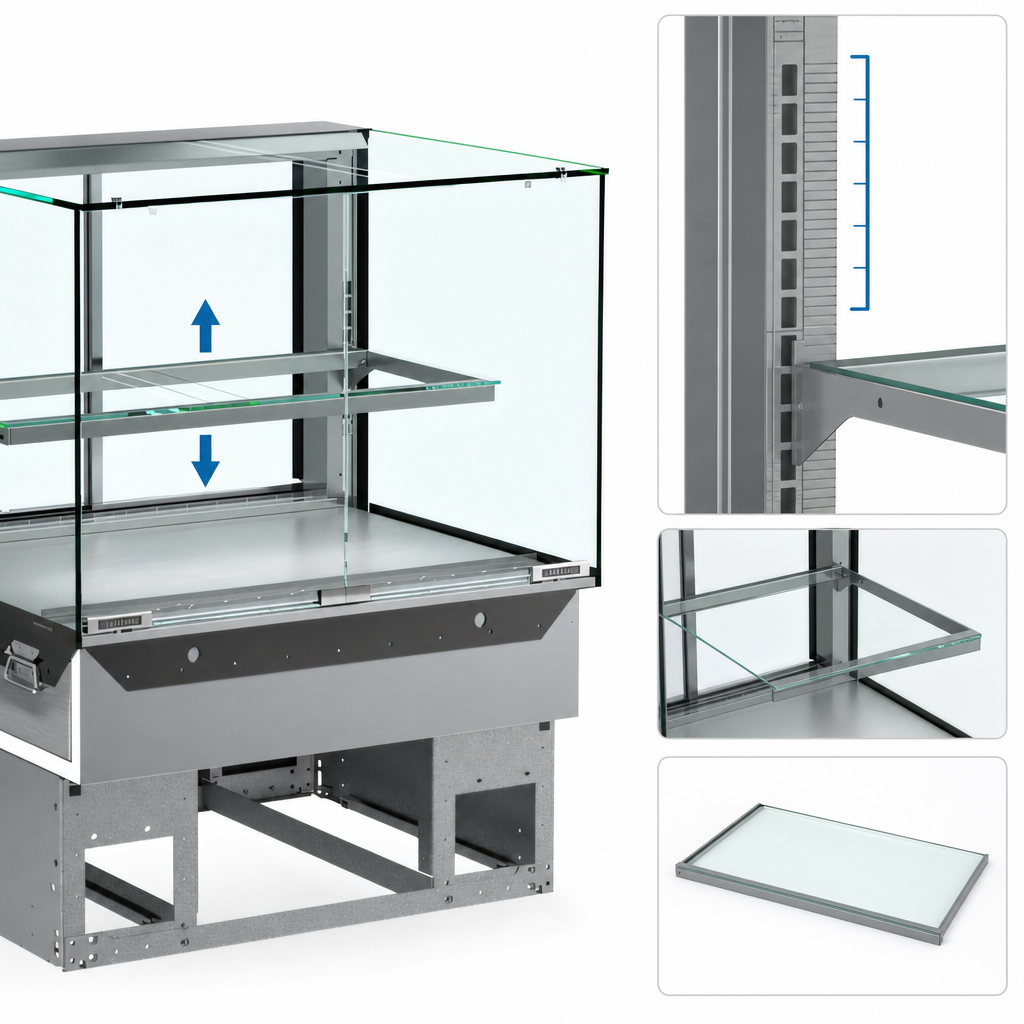

One level of clear glass shelving is removable and adjustable on 1-inch centers.
LED lighting
LED top and shelf lights are included.
Slide-in base
The case includes a slide-in base for counter integration.
Glass access
The case has vertical swing-out front glass and clear glass rear sliding doors.
Glass construction
The case includes glass ends and UV-bonded frameless glass.
Stainless steel interior
The interior is stainless steel.
