Structural Concepts Reveal® NE3620DSSV Non-Refrigerated Self-Service Slide-In Counter Display Case, 35-3/4-Inch, Black, 1 Glass Shelf, LED
$9,732.50
/each
Ships in 16–19 business days
- Amperage
- 0.70 A
- Phase
- 1
- Dimensions
- 35.75"W × 33.0"D × 39.63"H
- Product Type
- Non-refrigerated self-service slide-in counter case
- Service Type
- Self-service
- Intended Product
- Packaged non-refrigerated products
Specifications
Product Type
Non-refrigerated self-service slide-in counter case
Service Type
Self-service
Intended Product
Packaged non-refrigerated products
Width
35-3/4 in
Depth
33 in
Height Above Counter
20-3/8 in
Overall Height
39-5/8 in
Shelf Quantity
1
Shelf Type
Removable and adjustable clear glass shelf
Shelf Adjustment
1 in centers
Lighting
LED top and shelf lights
Base Style
Slide-in base
End Panels
Glass ends
Rear Panel
Solid rear panel
Tub Material
One-piece formed ABS plastic
Exterior Color
Black
Interior Color
Black
Voltage
110-120 V
Amperage
0.70 A
Frequency
60 Hz
Phase
1
NEMA Plug
5-15P or L5-15P
Intended Environment
Type I; 75°F and 55% relative humidity
Description
The Structural Concepts Reveal® NE3620DSSV is a non-refrigerated self-service slide-in counter display case for packaged non-refrigerated products.
- Includes one removable and adjustable clear glass shelf with adjustment on 1-inch centers.
- LED top and shelf lights illuminate the display area.
- Features glass ends, a solid rear panel, a one-piece formed ABS plastic tub, and black exterior and interior surfaces.
- Measures 35-3/4 inches wide by 33 inches deep, with a 20-3/8-inch height above the counter and 39-5/8-inch overall height.
Overall Dimensions:
35.75"W x 33.0"D x 39.63"HProduct Weight:
500.0 lbNon-refrigerated design

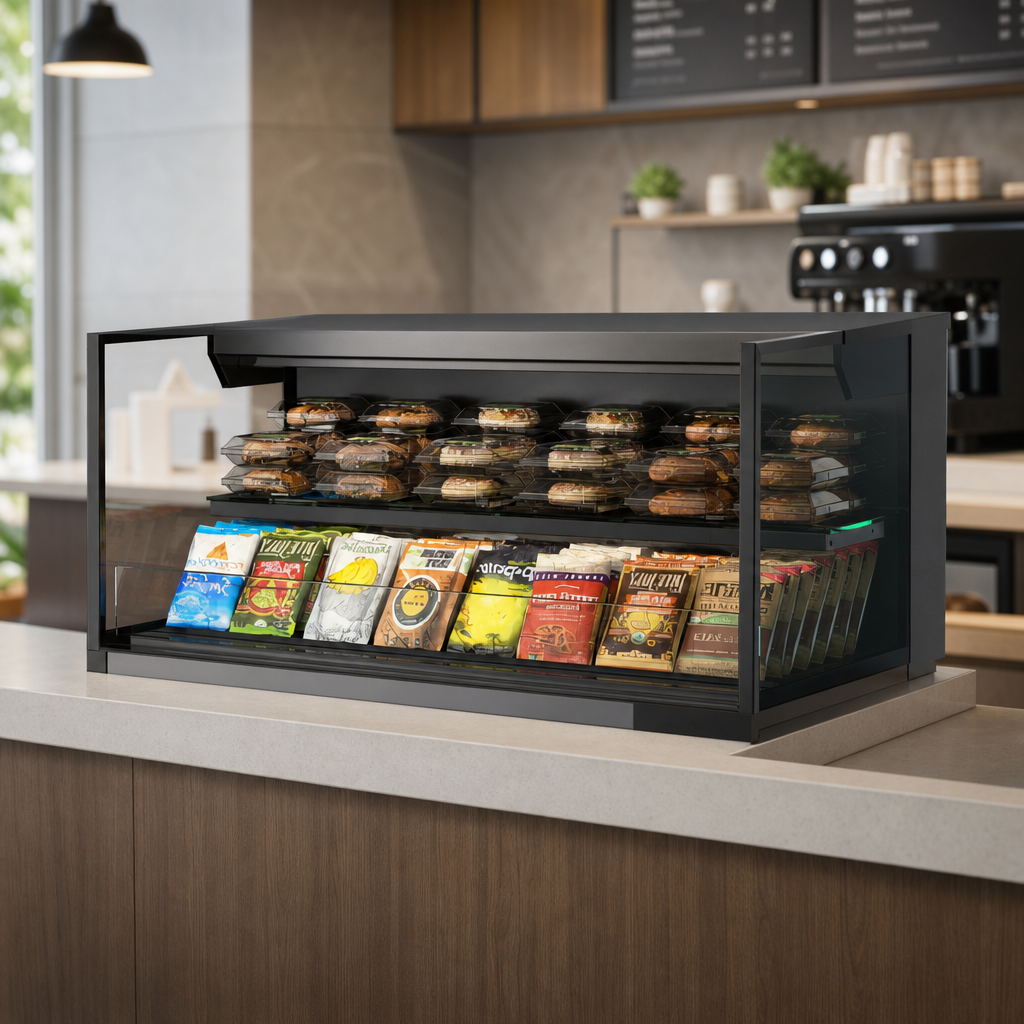

Designed for ambient display of packaged non-refrigerated products.
Self-service format

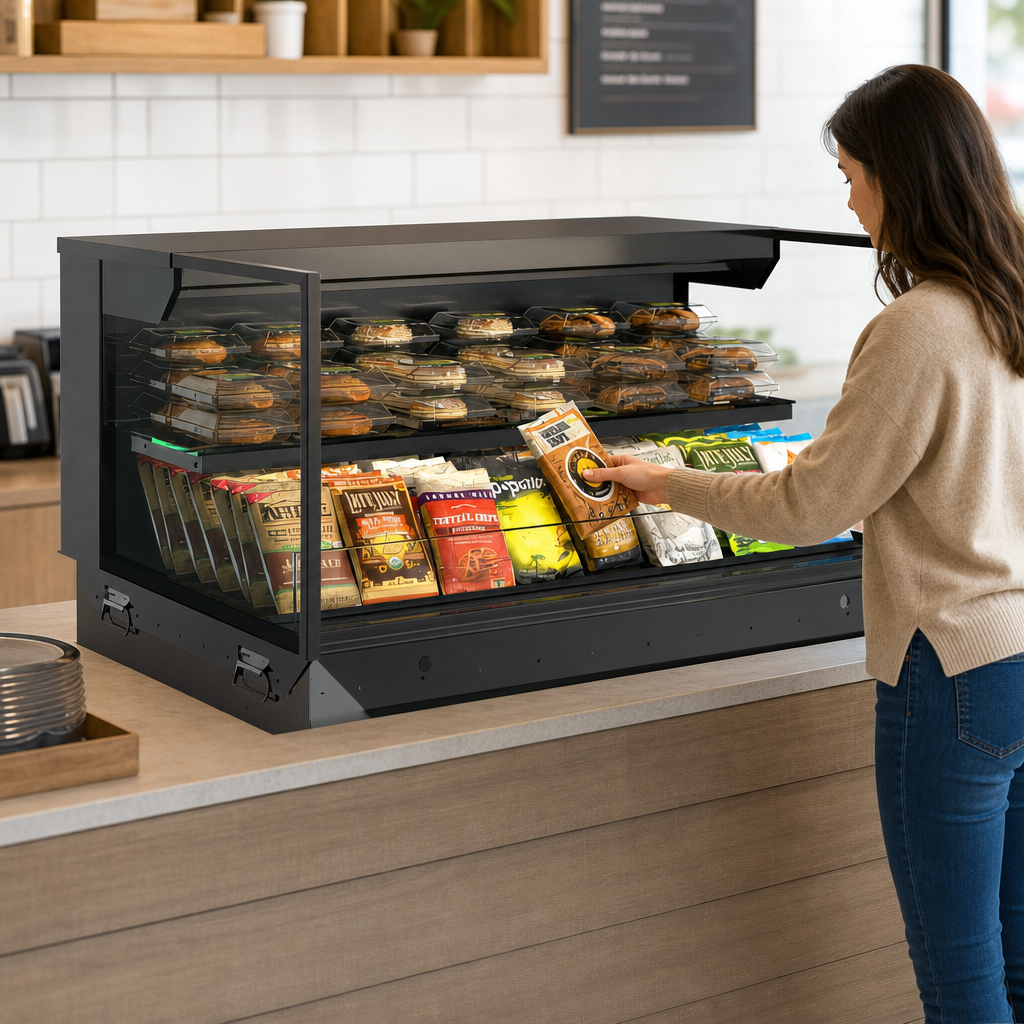

Configured as a self-service counter case.
Adjustable glass shelf
Includes one removable clear glass shelf adjustable on 1-inch centers.
LED lighting
Includes LED top and shelf lights.
Slide-in base

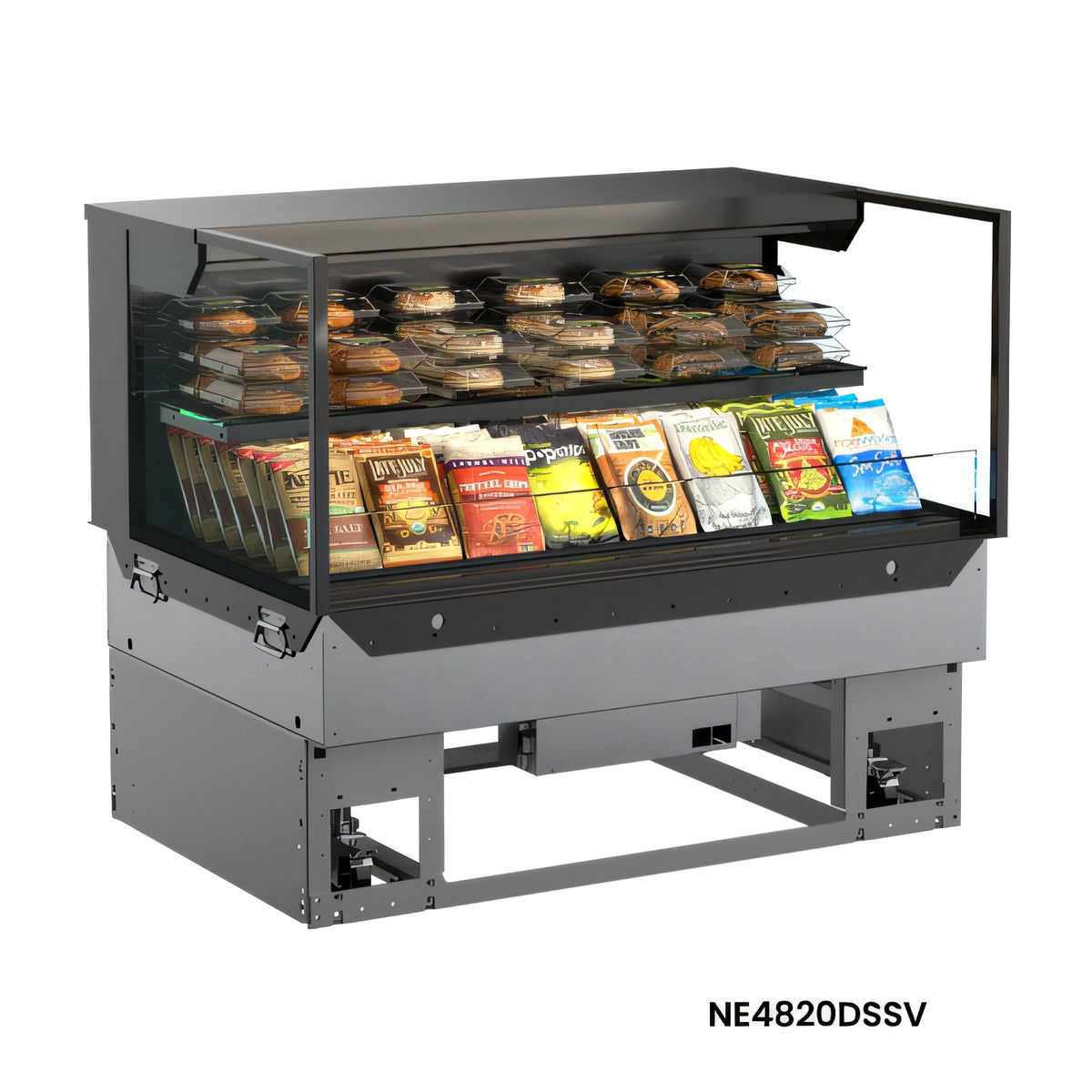

Uses a slide-in base for counter installation.
Case construction
Features glass ends, a solid rear panel, and a one-piece formed ABS plastic tub.
Black finish
The exterior and interior are black.
Documentation
Cutsheet
PDF Download
Adjoinment guide
PDF Download
Map policy
PDF Download
Warranty
PDF Download
Design guide
PDF Download
Exterior finishes and bumpers
PDF Download
Warranty
PDF Download
Owner's manual
PDF Download
Spec guide
PDF Download
Scc product nomenclature
PDF Download
Certifications & Compliance
Frequently Asked Questions
No. It is a non-refrigerated case designed for ambient display of packaged non-refrigerated products.
The case includes one removable and adjustable clear glass shelf.
The clear glass shelf adjusts on 1-inch centers.
It includes LED top and shelf lights.
The case is 35-3/4 inches wide by 33 inches deep, with a 20-3/8-inch height above the counter and 39-5/8-inch overall height.
The exterior and interior are black. The case has glass ends and a solid rear panel.
The case is listed with cETLus and ETL-Sanitation certifications.
The cutsheet specifies a one-year parts and labor warranty. It also notes that the glass warranty applies only to the first point of delivery.
