Structural Concepts

Fusion® Self-Service Refrigerated Open Reach-In Display Case, 50-1/4" W x 37-1/8" D x 78-1/2" H, Remote DX

SKU: MD478R
$14,962.50
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Fusion® Self-Service Refrigerated Open Reach-In Display Case, 50-1/4" W x 37-1/8" D x 78-1/2" H, Remote DX

Open Front, LED Shelf Lighting, Stainless Steel Rear Exterior

A high-profile self-service merchandiser that keeps packaged foods in view with an open front, bright LED lighting, and remote DX refrigeration.

  • Self-service open reach-in design promotes easy customer access and strong impulse sales.
  • Remote DX refrigeration keeps the condensing unit off the sales floor; floor drain required.
  • LED top and shelf lighting helps products stand out on display.
  • Four lighted clear glass shelves come standard, with an optional fifth shelf available.
  • Designed for packaged refrigerated products at 40°F or less in Type I conditions.
  • Powder-coated Silversan Black finish with a stainless steel rear exterior.
  • Includes a one-year parts and labor warranty.

Overall Dimensions:

50.25"W x 37.12"D x 78.5"H

Product Weight:

1300.0 lb

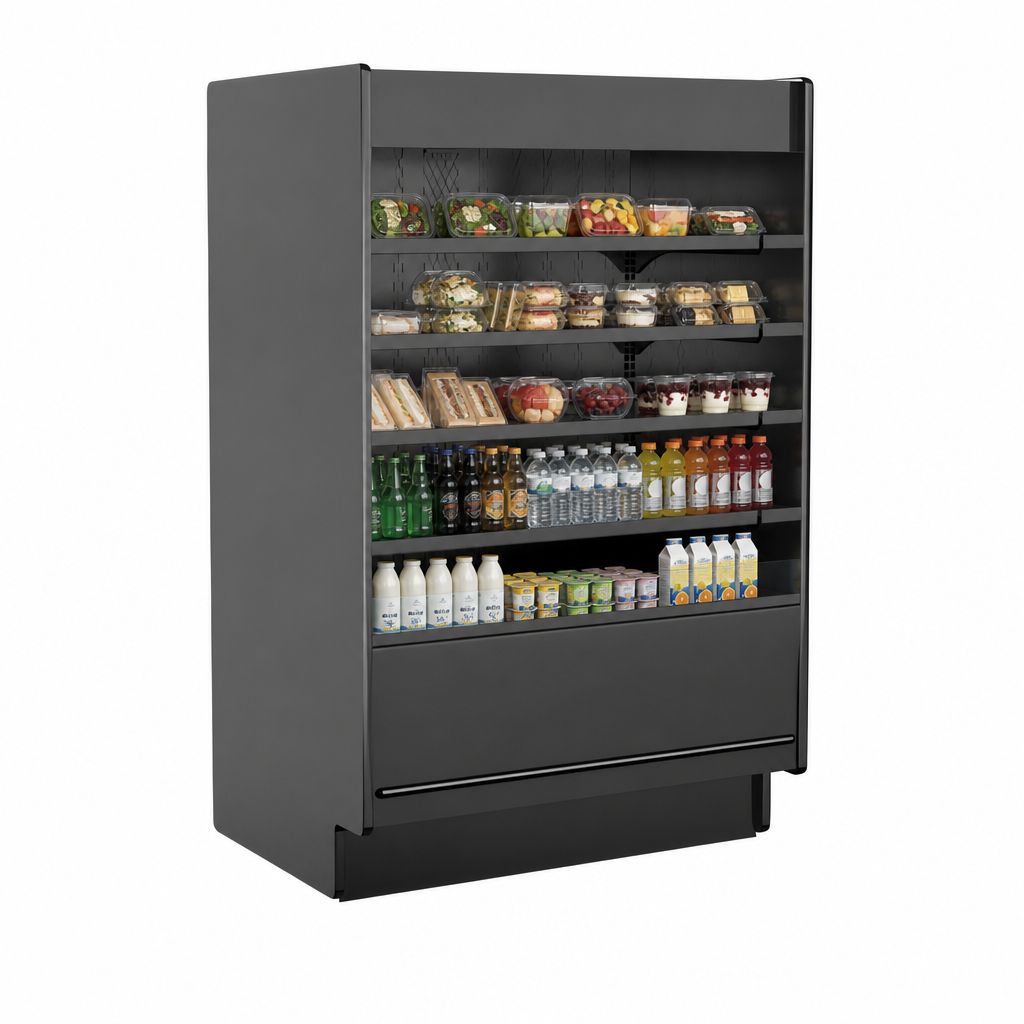

Open Reach-In Front

Self-service open front design gives customers direct access to displayed product.

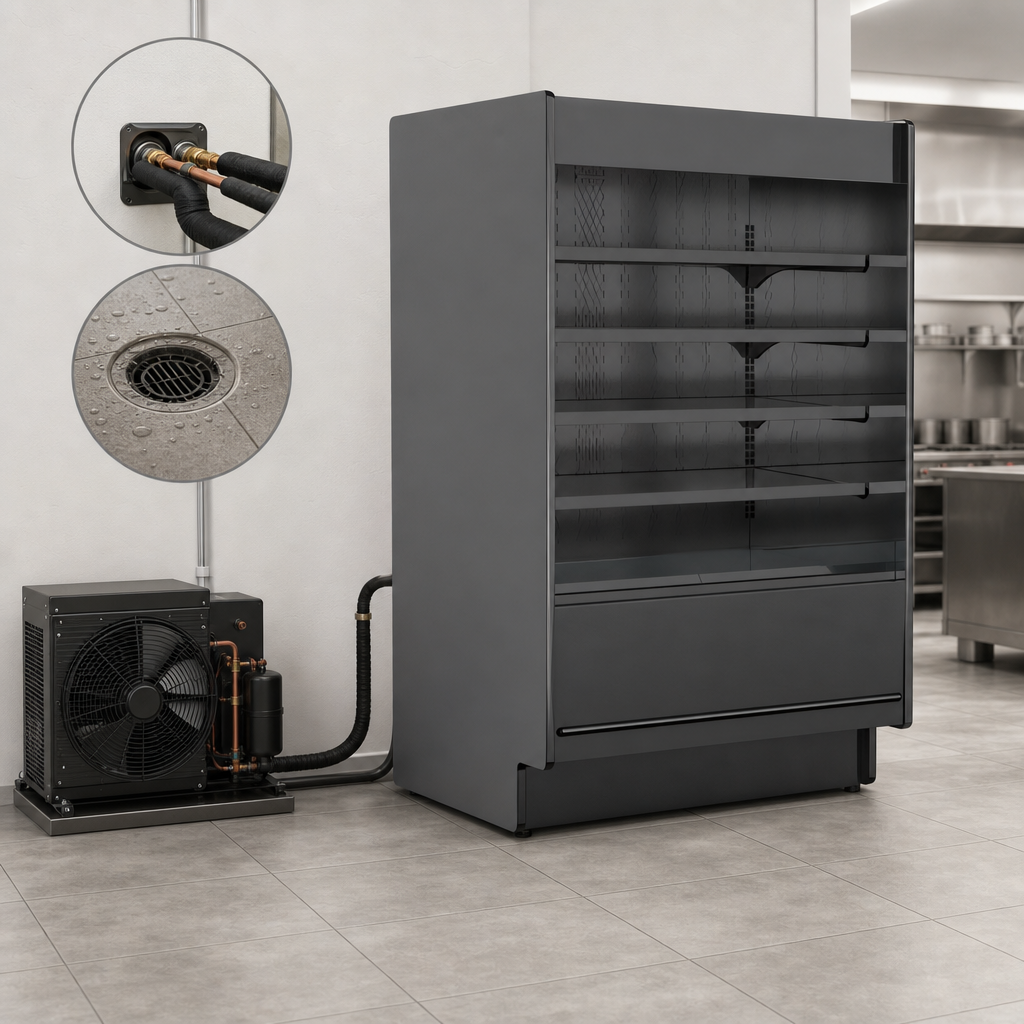

Remote DX Refrigeration

Uses remote DX refrigeration; condensing unit is not included and a floor drain is required.

LED Top & Shelf Lights

3500K LED lighting with frosted lens highlights merchandise across the display.

Four Lighted Clear Glass Shelves

Standard shelving provides multiple display levels while keeping product visible.

40°F Maximum Warmest Average Product Temperature

Designed to hold packaged refrigerated products at a warmest average product temperature of 40°F or less.

Powder-Coated Silversan Black Finish

Features a powder-coated Silversan Black exterior and interior with a stainless steel rear exterior.

Type I Intended Environment

Designed to operate in ambient conditions of 75°F and 55% relative humidity unless otherwise noted.

One-Year Parts & Labor Warranty

Standard warranty coverage includes one year of parts and labor.

Type Self-Service Refrigerated Display Case
Style Open Reach-In
Installation Type Floor Model
Refrigeration Type Remote DX
Voltage 110-120 Volts
Amps 2.26 Amps
Watts 132 Watts
Hertz 60 Hz
Phase 1-Phase
Plug Type Electrical Leads
Color Silversan Black
Finish Powder Coated
Shipping Width 51 Inches
Shipping Depth 38 Inches
Shipping Height 79 Inches
Shipping Weight 1,300 lb.
Selling Unit Each
Units Per Case 1

Frequently Asked Questions

No. It uses remote DX refrigeration, so the condensing unit is not included and a floor drain is required.
Four lighted clear glass shelves are included standard.
Yes. An optional fifth lighted clear glass shelf is listed as an available option.
The case is listed at 110-120 Volts, 1-Phase, 60 Hz, and 2.26 Amps, with electrical leads for the remote connection.
The unit includes a one-year parts and labor warranty.
No. The standard configuration is a solid back panel, with optional solid rear swinging doors with lock available.
