Structural Concepts Fusion GMGV8 99-3/4-Inch Wide Remote Refrigerated Service Case

SKU: GMGV8
$32,600.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Food Displays & Merchandisers New Arrivals Restaurant Equipment Structural Concepts

Structural Concepts Fusion GMGV8 99-3/4-Inch Wide Remote Refrigerated Service Case

Vertical UV-Bonded Lift-Up Front Glass, Clear Glass Rear Sliding Doors, Stainless Steel Rear Exterior

A high-visibility refrigerated service case that pairs remote DX cooling with lift-up front glass, rear sliding doors, and bright LED lighting.

  • 99-3/4-inch-wide remote refrigerated service case for fresh food merchandising.
  • Maintains a warmest average product temperature of 40°F or less.
  • Vertical UV-bonded lift-up front glass and clear rear sliding doors simplify access.
  • LED top lights with frosted lens help showcase displayed product.
  • Stainless steel rear exterior supports durability in busy commercial use.
  • Remote DX refrigeration includes a gravity coil; condensing unit is not included.

Overall Dimensions:

99.75"W x 43.0"D x 51.63"H

Product Weight:

1500.0 lb

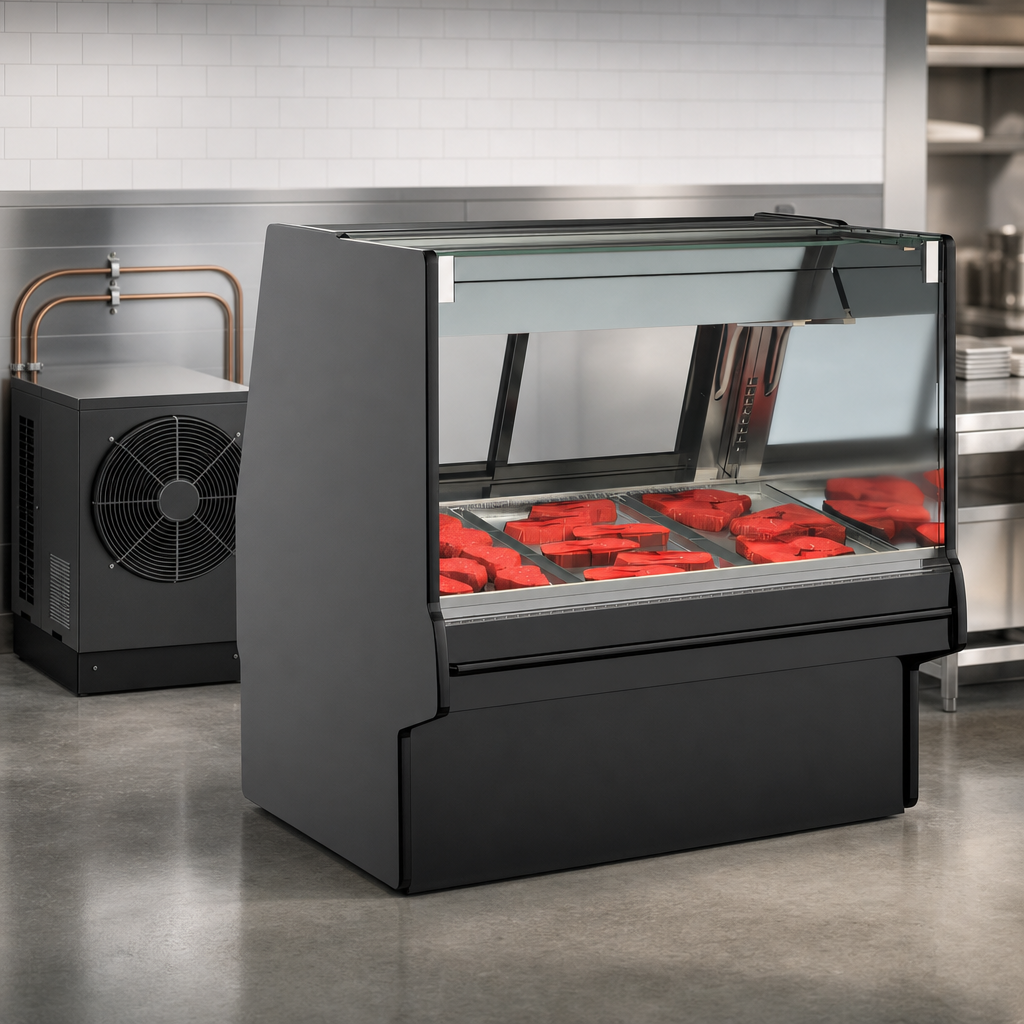

Remote DX Refrigeration

Remote refrigeration is standard for this case and is designed to maintain a warmest average product temperature of 40°F or less.

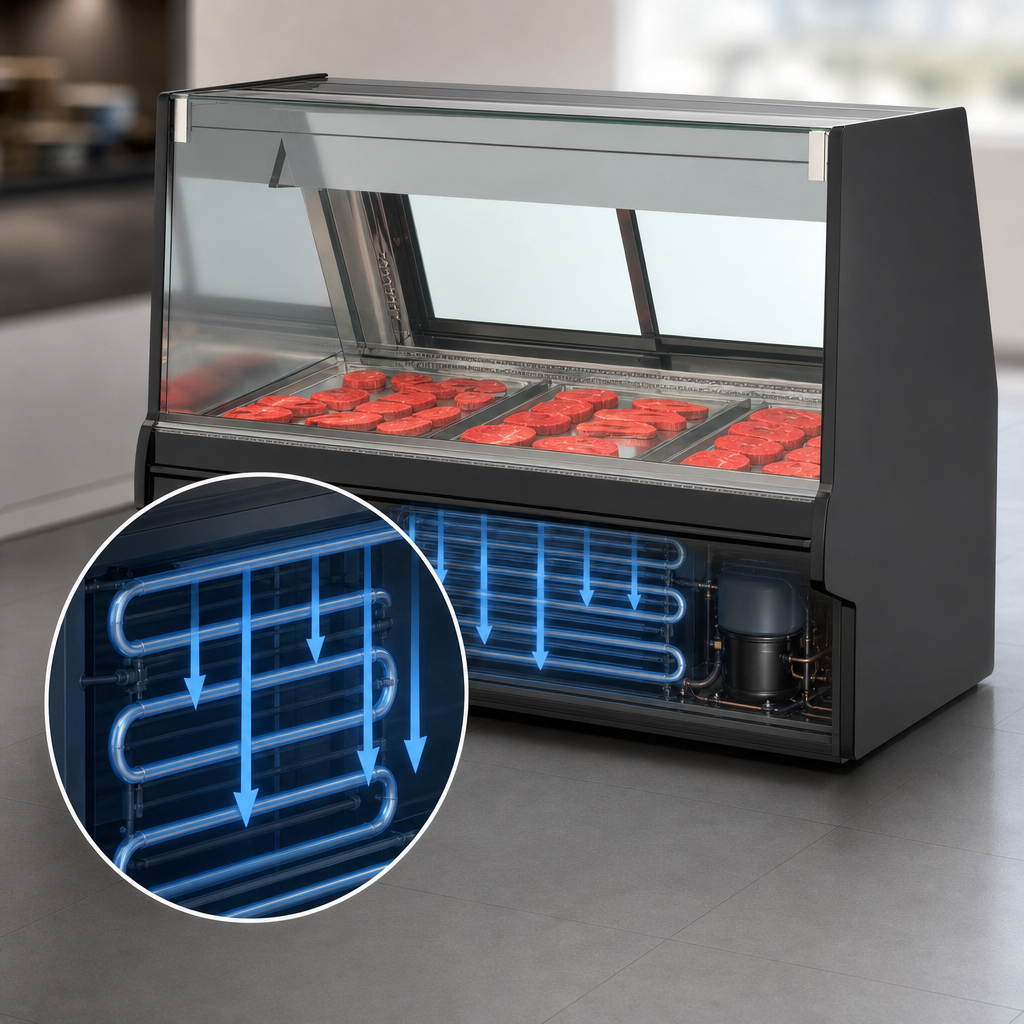

Gravity Coil

Gravity coil refrigeration is included as part of the standard cooling package.

Vertical UV-Bonded Lift-Up Front Glass

Lift-up front glass provides easy merchandising access and is supplied without a lock standard.

Clear Glass Rear Sliding Doors

Sliding rear doors provide convenient back-of-house access for stocking and service.

LED Top Lights with Frosted Lens

LED 4000K top lighting with a frosted lens helps create bright, even product presentation.

Stainless Steel Rear Exterior

A stainless steel rear exterior adds durability and makes cleaning easier.

Type I Ambient Design

Designed to operate in ambient conditions of 75°F and 55% relative humidity.

Remote Installation Requirement

Remote refrigeration requires a separate condensing unit and a floor drain; the condensing unit is not included.

Type Refrigerated Service Case
Refrigeration Type Remote DX
Installation Type Floor Model
Temperature Range 40°F or Less
Voltage 110-120 Volts
Amps 3.42 Amps
Watts 156 Watts
Hertz 60 Hz
Phase 1-Phase
Material Stainless Steel
Interior Finish Stainless Steel
Shipping Width 100 Inches
Shipping Depth 43 Inches
Shipping Height 52 Inches
Shipping Weight 1,500 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Warranty PDF Download PDF Exterior finishes and bumpers PDF Download PDF Scc product nomenclature PDF Download PDF Spec guide PDF Download PDF Map policy PDF Download

Frequently Asked Questions

No. The case uses remote DX refrigeration, and the condensing unit is not included.
It is designed for a warmest average product temperature of 40°F or less.
Standard access includes a vertical UV-bonded lift-up front glass and clear glass rear sliding doors.
Yes. The cutsheet notes that remote refrigeration requires a floor drain.
LED top lights with a frosted lens are included standard.
