Fusion® GMGV6 75-3/8" Remote Refrigerated Service Case with Gravity Coil

43" Deep x 51-5/8" High, Lift-Up Glass Front, Clear Rear Sliding Doors

Showcase refrigerated products at 40°F or less with bright LED lighting, a lift-up glass front, and rear sliding-door service access.

  • 75-3/8" wide refrigerated service case designed for unpackaged refrigerated product display.
  • Remote DX refrigeration with gravity coil helps maintain a warmest average product temperature of 40°F or less.
  • Vertical UV-bonded lift-up front glass without a lock and clear glass rear sliding doors support easy service.
  • LED top light with frosted lens improves product visibility and presentation.
  • Stainless steel rear exterior with stainless steel interior adds durability and easy cleaning.
  • Remote refrigeration installation requires a separate circuit and a floor drain.

Overall Dimensions:

75.37"W x 43.0"D x 51.63"H

Product Weight:

1400.0 lb

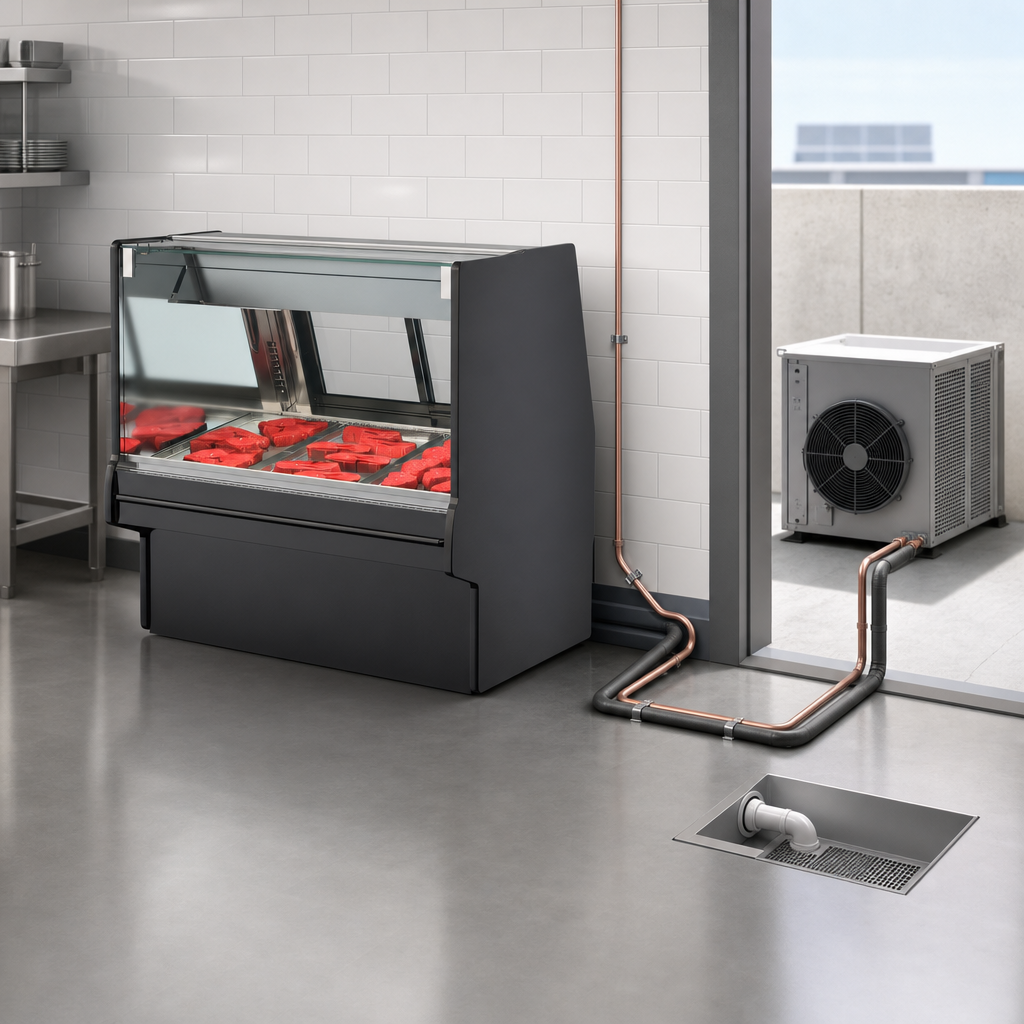

Remote DX Refrigeration

Designed for remote refrigeration; condensing unit is not included and a floor drain is required.

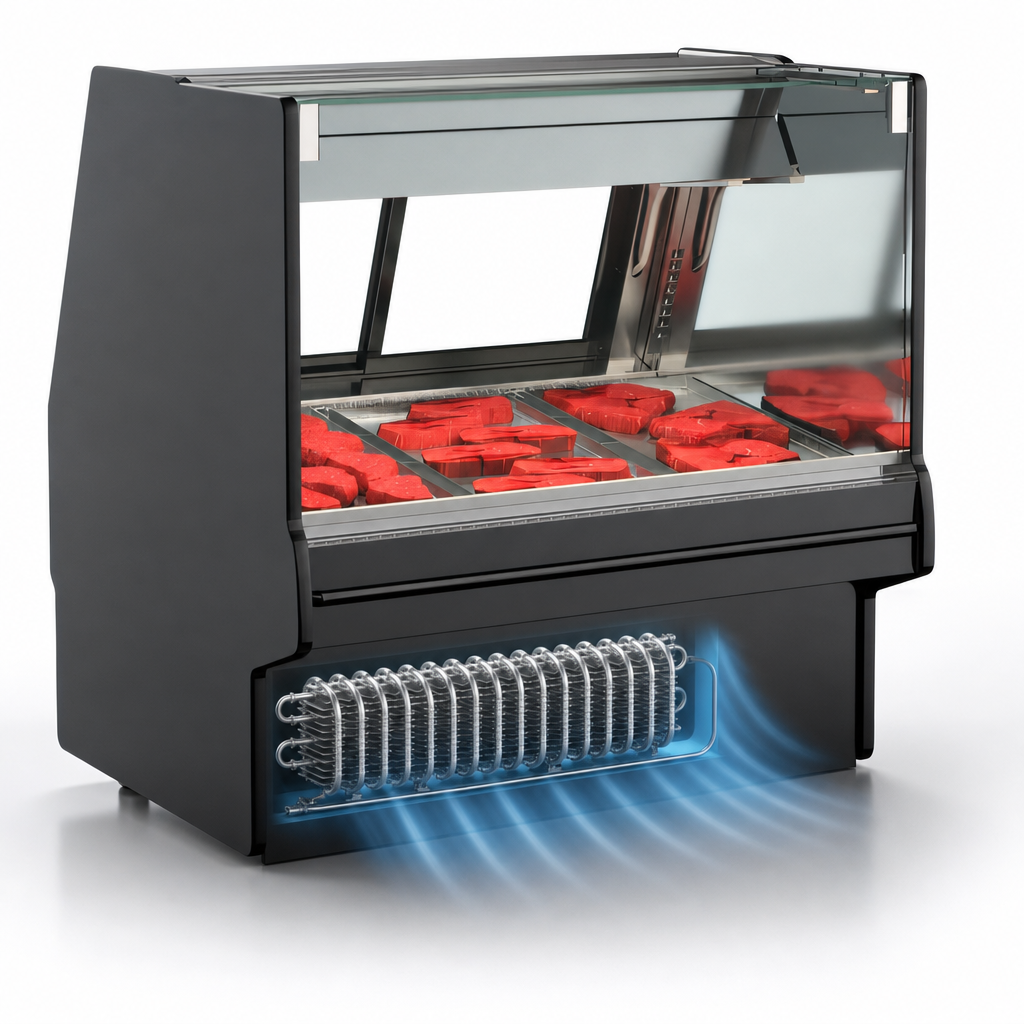

Gravity Coil

Includes a gravity coil for refrigerated service display performance.

Lift-Up Front Glass

Vertical UV-bonded front glass lifts up for service access and does not include a lock standard.

Clear Glass Rear Sliding Doors

Rear sliding doors provide back-of-house access while keeping product visible.

LED Top Lighting

LED top light with frosted lens helps illuminate merchandise.

Temperature Performance

Built to maintain a warmest average product temperature of 40°F or less.

Stainless Steel Construction

Features a stainless steel rear exterior and stainless steel interior finish.

Type I Environment

Intended to operate in ambient conditions of 75°F and 55% relative humidity.

Type Refrigerated Service Case
Style Vertical Lift-Up Front Glass
Installation Type Floor Model
Refrigeration Type Remote Gravity DX
Material Stainless Steel
Interior Finish Stainless Steel
Voltage 110-120 Volts
Amps 1.48 Amps
Watts 47 Watts
Hertz 60 Hz
Phase 1-Phase
Plug Type Electrical Leads
Shipping Width 76 Inches
Shipping Depth 43 Inches
Shipping Height 52 Inches
Shipping Weight 1,400 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Spec guide PDF Download PDF Scc product nomenclature PDF Download PDF Exterior finishes and bumpers PDF Download PDF Map policy PDF Download PDF Warranty PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

It is designed for a warmest average product temperature of 40°F or less; the intended display zone for unpackaged refrigerated products is 38°F.
The case includes remote DX refrigeration and a gravity coil, but the condensing unit is not included.
It comes standard with vertical UV-bonded lift-up front glass without a lock and clear glass rear sliding doors.
The case includes LED top lighting with a frosted lens (4000K).
Yes. The series also includes GMGV4, GMGV8, and GMGV12.
Remote refrigeration requires a separate circuit and a floor drain, and the unit must be shimmed level and plumb during installation.
