Structural Concepts Fusion Remote Refrigerated Deli Service Case, 99-3/4 Inch Wide, Vertical UV-Bonded Lift-Up Front Glass

SKU: GMDSV8R REMOTE
$23,992.50
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Refrigeration Commercial Refrigerators Deli Cases Merchandising & Display Refrigeration New Arrivals Refrigeration, Freezing & Ice Restaurant Equipment Structural Concepts

Structural Concepts Fusion Remote Refrigerated Deli Service Case, 99-3/4 Inch Wide, Vertical UV-Bonded Lift-Up Front Glass

40°F or Less Average Product Temp, Clear Rear Sliding Doors, Stainless Steel Rear Exterior

This wide remote service case delivers high-visibility deli merchandising with lift-up front glass, rear sliding doors, and LED lighting.

  • Remote DX refrigeration keeps the condensing unit off the case for flexible installation.
  • Designed to maintain a warmest average product temperature of 40°F or less.
  • Vertical UV-bonded lift-up front glass provides a clear, modern display.
  • Clear glass rear sliding doors support easy back-of-house service.
  • LED top and shelf lighting with frosted lenses helps showcase product.
  • Includes one solid shelf and a stainless steel rear exterior.
  • Remote installation notes include a separate circuit, floor drain, and rail base with shims.

Overall Dimensions:

99.75"W x 43.0"D x 51.63"H

Product Weight:

1575.0 lb

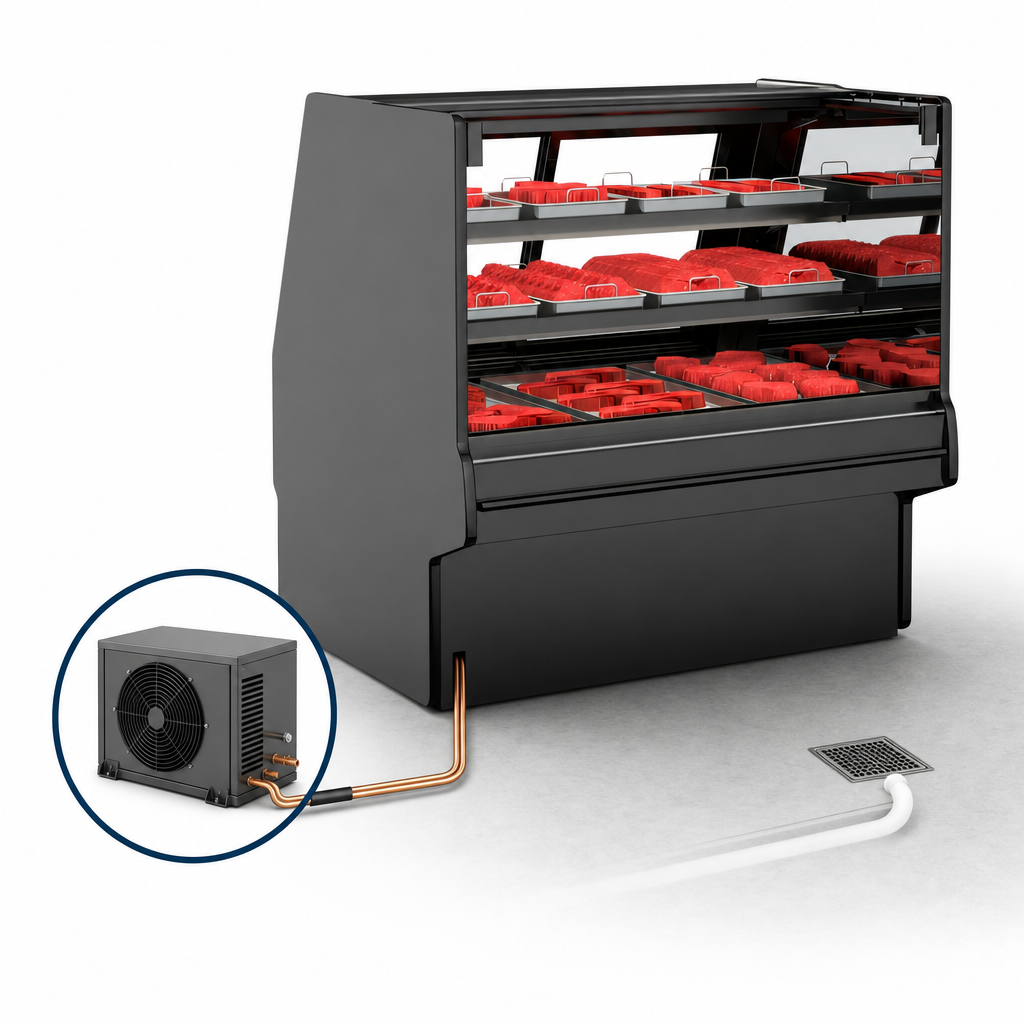

Remote DX Refrigeration

Remote refrigeration system; condensing unit is not included. The manufacturer notes that a separate circuit and floor drain are required.

Remote DX Refrigeration

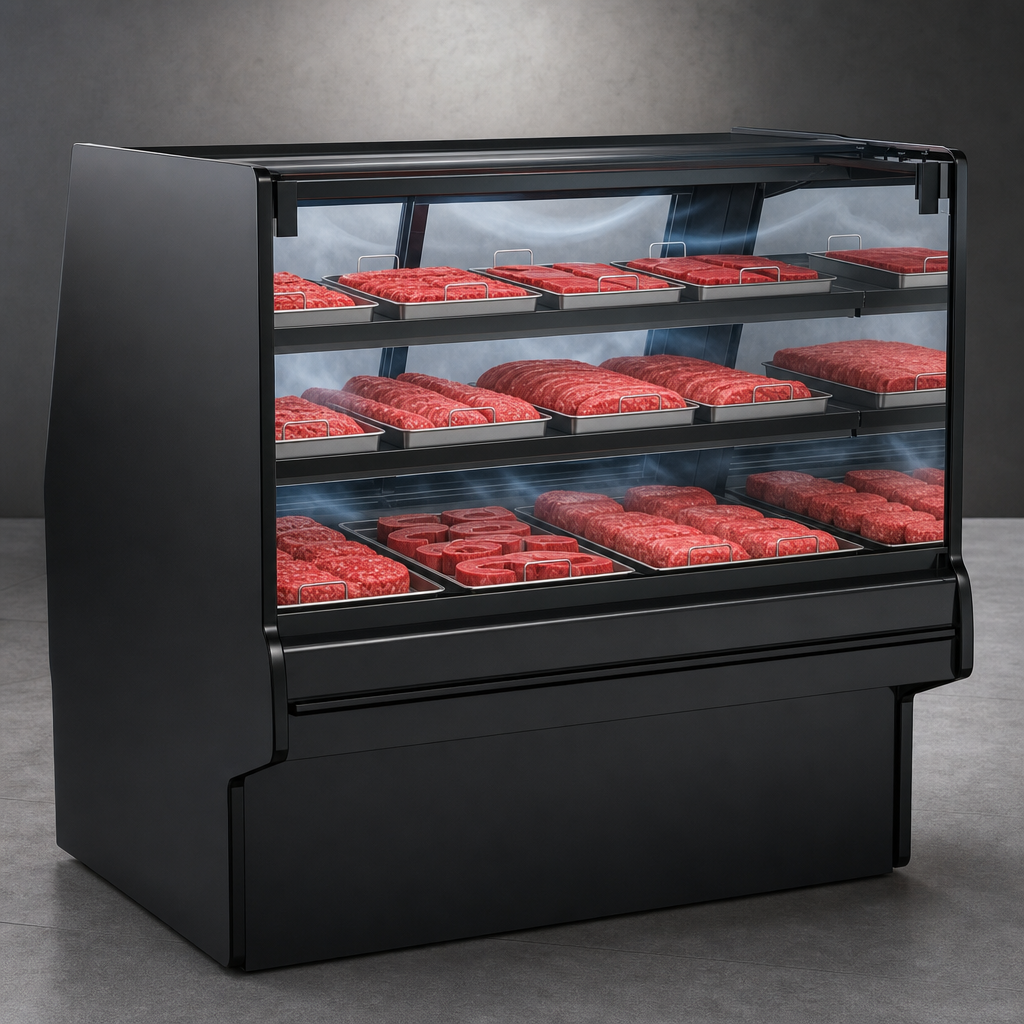

40°F Or Less Average Product Temperature

Designed for unpackaged refrigerated products with a warmest average product temperature of 40°F or less.

40°F Or Less Average Product Temperature

Vertical UV-Bonded Lift-Up Front Glass

Clear vertical front glass lifts up for service access and is specified without a lock.

Clear Glass Rear Sliding Doors

Rear sliding doors provide access from the back while keeping the display visible.

LED Top and Shelf Lights With Frosted Lens

LED lighting helps illuminate the display area and present product clearly.

Solid Shelf

Includes one solid shelf for organized product presentation.

Stainless Steel Rear Exterior

Durable stainless steel rear exterior for back-of-house use.

Rail System for Shims

Remote models use a rail system for shims to support leveling during installation.

Type Refrigerated Service Case
Style Remote
Installation Type Floor Model
Refrigeration Type Remote DX
Temperature Range 40°F Or Less
Voltage 110-120 Volts
Amps 3.08 Amps
Watts 173 Watts
Hertz 60 Hz
Phase 1-Phase
Plug Type Leads Multiple
Shipping Width 100 Inches
Shipping Depth 43 Inches
Shipping Height 52 Inches
Shipping Weight 1575 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Scc product nomenclature PDF Download PDF Warranty PDF Download PDF Exterior finishes and bumpers PDF Download PDF Owner's manual PDF Download PDF Map policy PDF Download PDF Spec guide PDF Download

Frequently Asked Questions

No. It is specified as remote refrigeration, and the condensing unit is not included.
The warmest average product temperature is 40°F or less.
It has vertical UV-bonded lift-up front glass without a lock.
The case includes clear glass rear sliding doors.
The manufacturer notes a separate circuit is required, a floor drain is required, and the remote version uses a rail base with shims.
Yes. LED top and shelf lights with frosted lenses are included.
