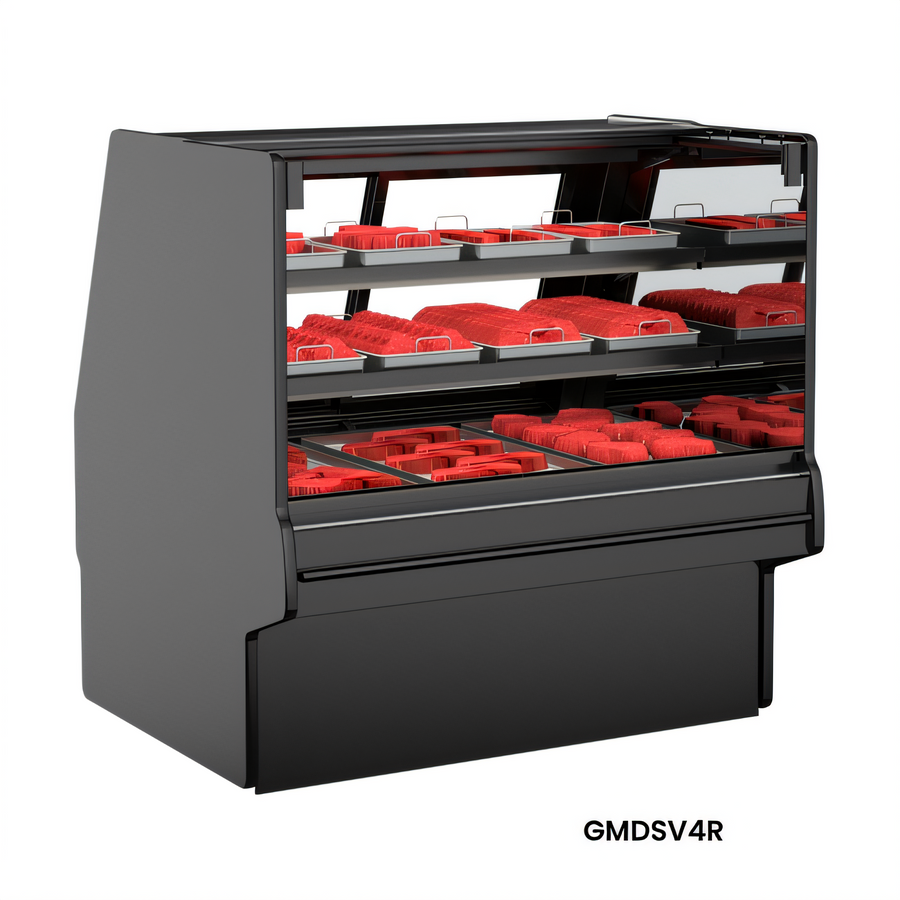

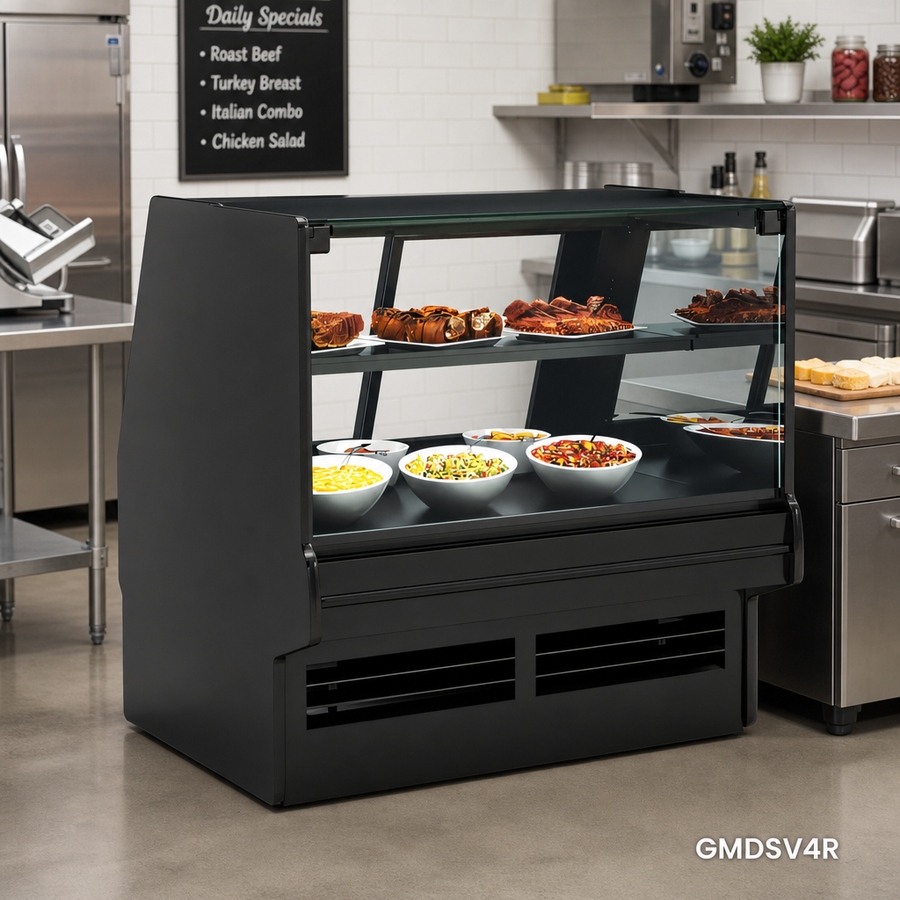

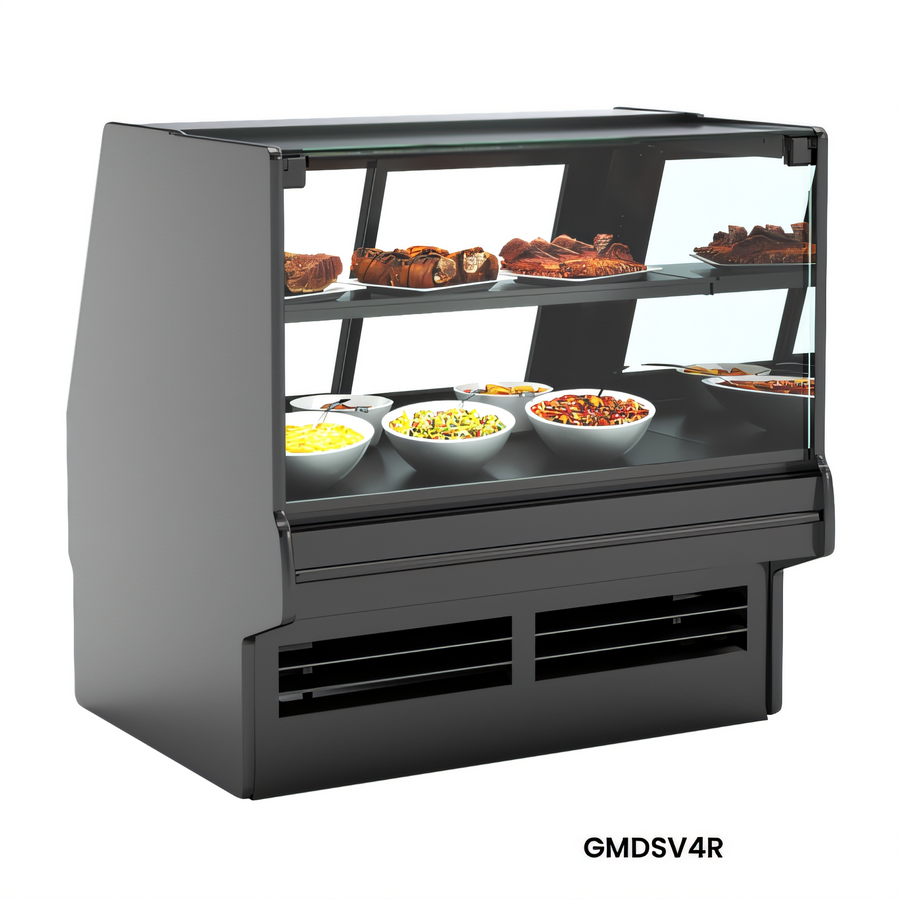

Structural Concepts Fusion 51-Inch Remote Refrigerated Deli Service Case with Vertical Lift-Up Front Glass

Remote DX refrigeration, clear glass rear sliding doors, 40°F or less

Showcase chilled products in a bright, service-friendly remote case that holds an average product temperature of 40°F or less.

  • 51-inch-wide remote refrigerated service case for deli and grab-and-go presentations.
  • Maintains an average product temperature of 40°F or less.
  • Vertical UV-bonded lift-up front glass and clear glass rear sliding doors support easy service access.
  • LED top and shelf lights with frosted lens help merchandise stand out.
  • Includes one solid shelf and a stainless steel rear exterior.
  • Remote refrigeration requires a separate circuit and floor drain; condensing unit is not included.

Overall Dimensions:

51.0"W x 43.0"D x 51.63"H

Product Weight:

950.0 lb

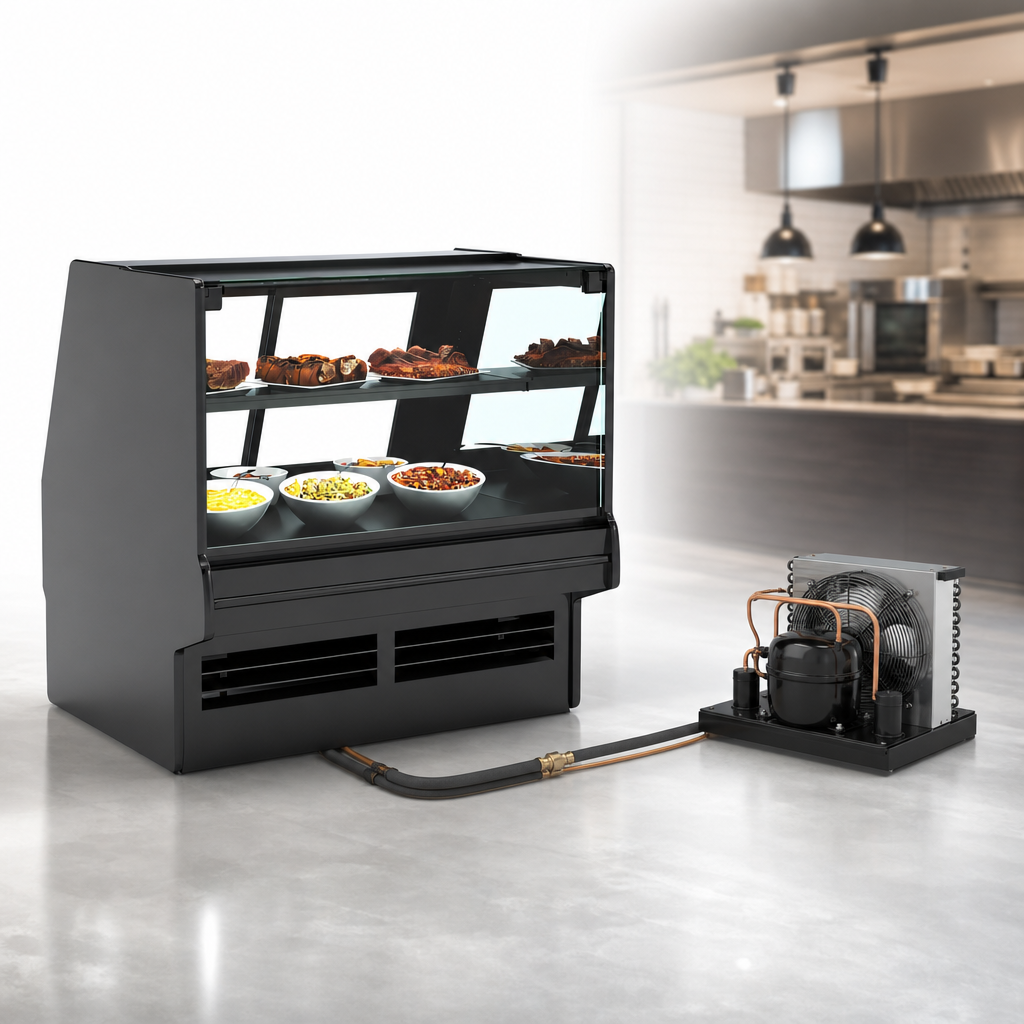

Remote DX Refrigeration

Remote refrigeration is included; the condensing unit is not included.

Remote DX Refrigeration

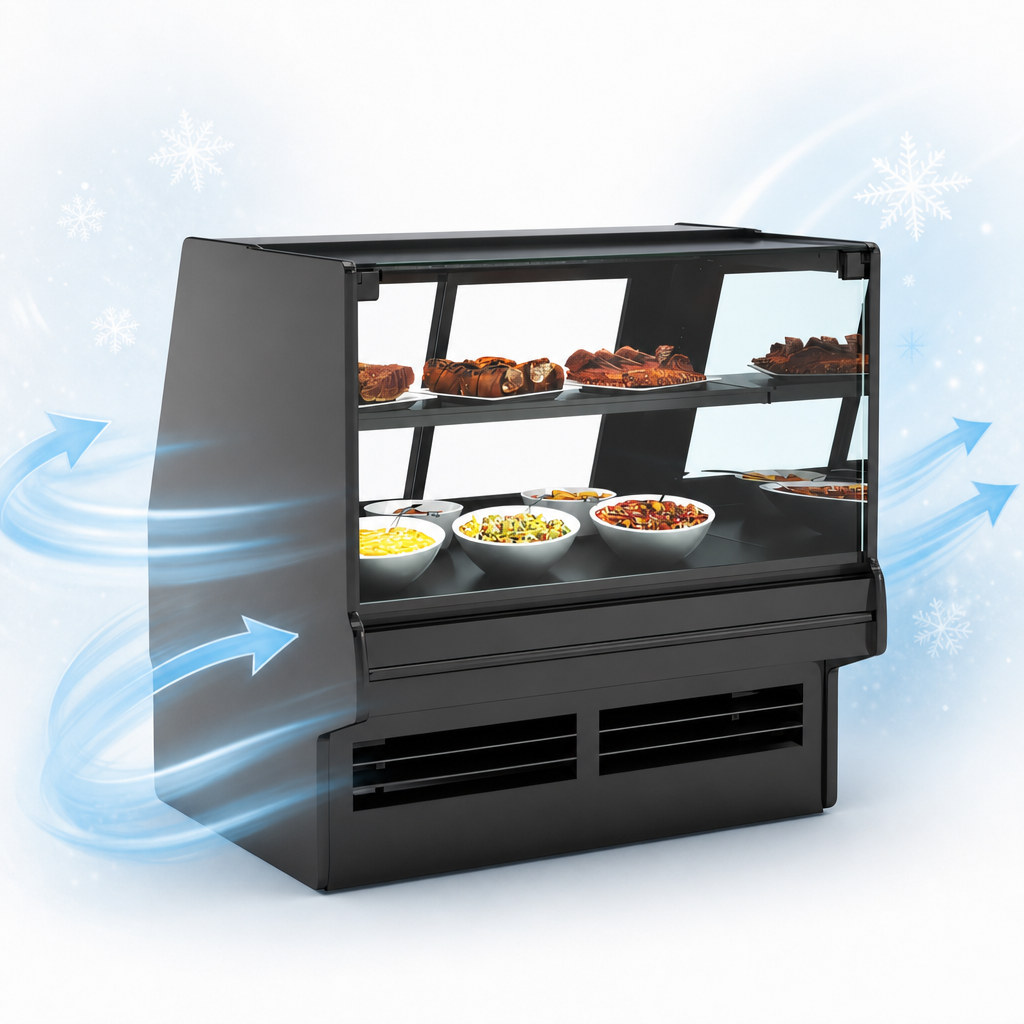

40°F Or Less Product Temperature

Designed to maintain a warmest average product temperature of 40°F or less.

40°F Or Less Product Temperature

Vertical UV-Bonded Lift-Up Front Glass

Lift-up front glass improves display visibility and service access; no front glass lock is included.

LED Display Lighting

LED top and shelf lights with a frosted lens brighten the display.

Clear Glass Rear Sliding Doors

Rear sliding doors provide back-of-house access while keeping product visible.

Stainless Steel Rear Exterior

Durable stainless steel rear exterior is built for commercial use.

Included Shelf

One 16-inch solid shelf is included standard.

Remote Installation Notes

Remote refrigeration requires a separate circuit, a floor drain, and rail base shims; the unit must be leveled and plumb.

Type Refrigerated Service Case
Style Vertical Lift-Up Front Glass
Installation Type Floor Model
Refrigeration Type Remote DX
Temperature Range 40°F Or Less
Voltage 110-120 Volts
Amps 1.70 Amps
Watts 71 Watts
Hertz 60 Hz
Phase 1-Phase
Plug Type Electrical Leads
Shipping Width 51 Inches
Shipping Depth 43 Inches
Shipping Height 52 Inches
Shipping Weight 950 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

1-year parts and labor; 5-year compressor warranty

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Spec guide PDF Download PDF Exterior finishes and bumpers PDF Download PDF Warranty PDF Download PDF Owner's manual PDF Download PDF Map policy PDF Download PDF Scc product nomenclature PDF Download

Frequently Asked Questions

No. This is a remote refrigeration case, so the condensing unit is not included.
It is designed for a warmest average product temperature of 40°F or less. The intended zone for unpackaged refrigerated products is 38-40°F.
One solid shelf is included standard.
It includes vertical UV-bonded lift-up front glass without a lock and clear glass rear sliding doors.
A separate circuit is required, a floor drain is required, and the unit must be shimmed and leveled during installation.
The cutsheet lists a 1-year parts and labor warranty plus a 5-year compressor warranty.
