Structural Concepts

Fusion® Remote Refrigerated Deli Service Case, 148-1/2" W x 43" D x 51-5/8" H

SKU: GMDSV12R REMOTE
$41,830.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Refrigeration Commercial Refrigerators Deli Cases New Arrivals Restaurant Equipment Structural Concepts

Fusion® Remote Refrigerated Deli Service Case, 148-1/2" W x 43" D x 51-5/8" H

Vertical UV-Bonded Lift-Up Front Glass, Clear Glass Rear Sliding Doors

A large remote refrigerated service case that keeps displayed product at 40°F or less while showcasing it with glass access, LED lighting, and a high-visibility deli presentation.

  • Remote DX refrigeration design; condensing unit is not included.
  • Maintains a warmest average product temperature of 40°F or less.
  • Vertical UV-bonded lift-up front glass without a lock for clean merchandising access.
  • Clear glass rear sliding doors support stocking and service from the back.
  • LED top and shelf lights with frosted lens help illuminate product display.
  • Includes one solid shelf and a stainless steel rear exterior.
  • Remote installation requires a separate circuit, floor drain, and rail base with shims.

Overall Dimensions:

148.5"W x 43.0"D x 51.63"H

Product Weight:

1750.0 lb

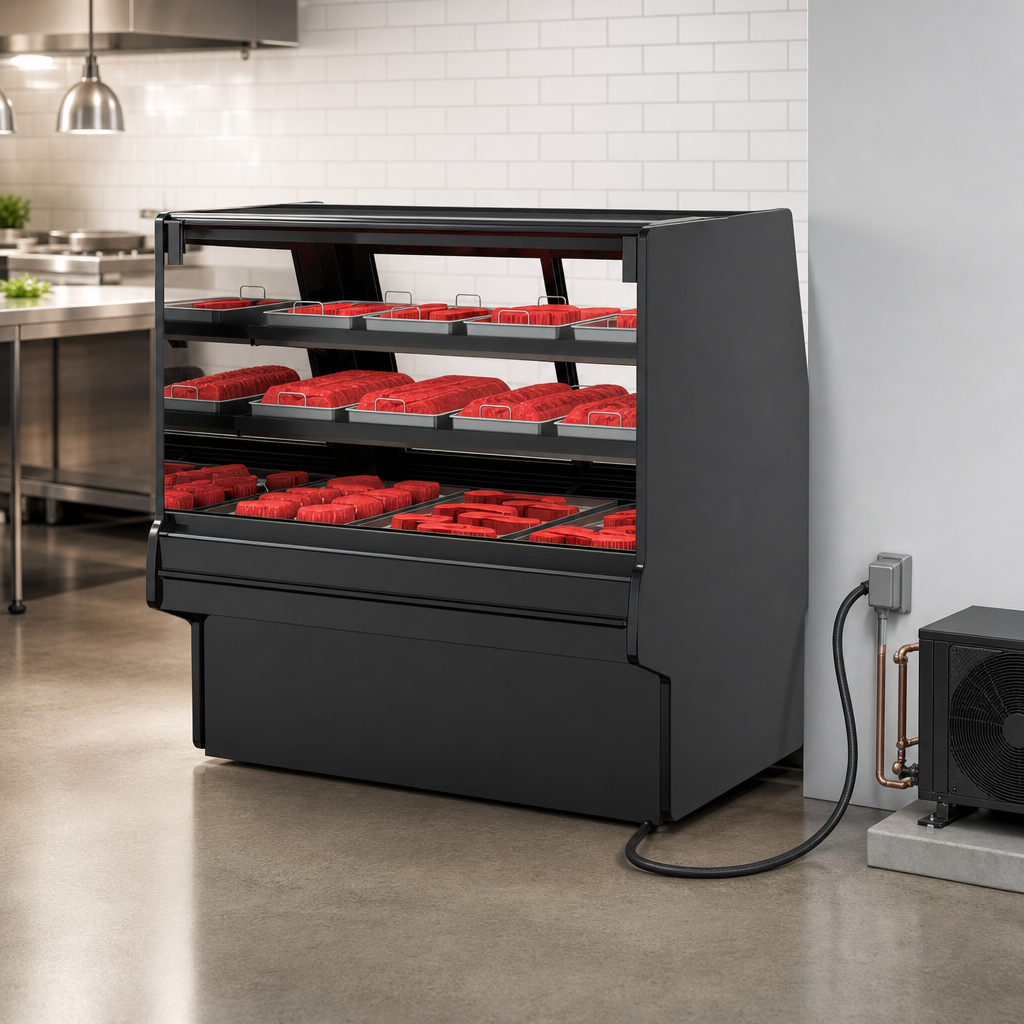

Remote DX Refrigeration

Designed for remote refrigeration applications; the condensing unit is not included and electrical leads are supplied.

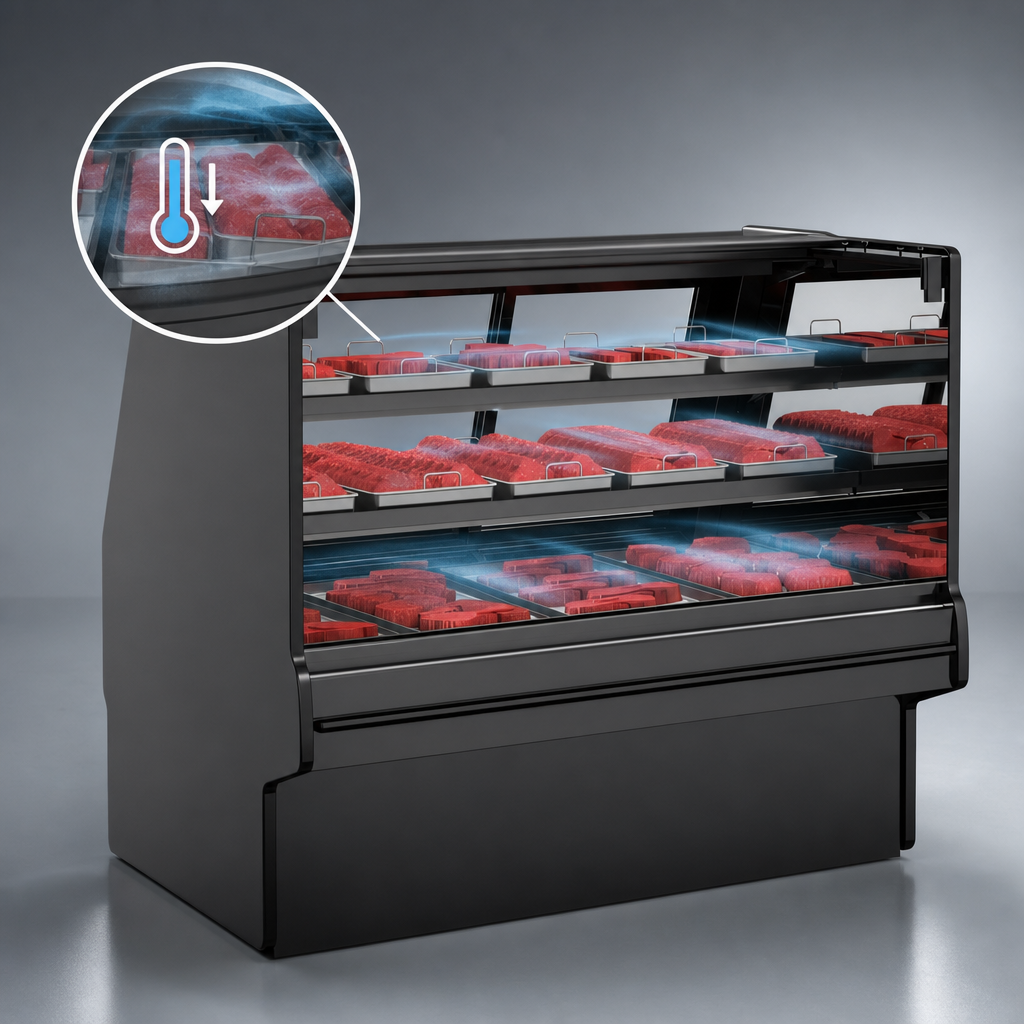

Low Product Temperature Display

Built to maintain a warmest average product temperature of 40°F or less.

Vertical Lift-Up Front Glass

UV-bonded front glass provides a clear merchandising view and lifts up for access; standard configuration is without a front lock.

Clear Glass Rear Sliding Doors

Rear sliding doors make it easy to stock and service product from behind the case.

LED Display Lighting

LED top and shelf lights with a frosted lens help brighten the display area.

Solid Shelf Included

Includes one solid shelf for product presentation.

Stainless Steel Rear Exterior

Durable stainless steel rear exterior adds strength and a clean commercial look.

Installation Notes

Remote operation requires a separate circuit, floor drain, and rail base with shims; the toe kick cannot be blocked.

Type Refrigerated Service Case
Style Vertical Lift-Up Front Glass
Installation Type Floor Model
Refrigeration Type Remote DX
Temperature Range 38°F to 40°F
Voltage 110-120 Volts
Amps 4.62 Amps
Watts 540 Watts
Hertz 60 Hz
Phase 1-Phase
Shipping Width 149 Inches
Shipping Depth 43 Inches
Shipping Height 52 Inches
Shipping Weight 1,750 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

1-year parts and labor; 5-year compressor warranty

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Exterior finishes and bumpers PDF Download PDF Spec guide PDF Download PDF Map policy PDF Download PDF Warranty PDF Download PDF Owner's manual PDF Download PDF Scc product nomenclature PDF Download

Frequently Asked Questions

No. This model is designed for remote refrigeration, and the condensing unit is not included.
The case is designed to maintain a warmest average product temperature of 40°F or less.
The case measures 148-1/2 inches wide, 43 inches deep, and 51-5/8 inches high.
It includes LED top and shelf lights with a frosted lens.
It comes with clear glass rear sliding doors.
Yes. The remote installation requires a separate circuit, a floor drain, and a rail base with shims.
