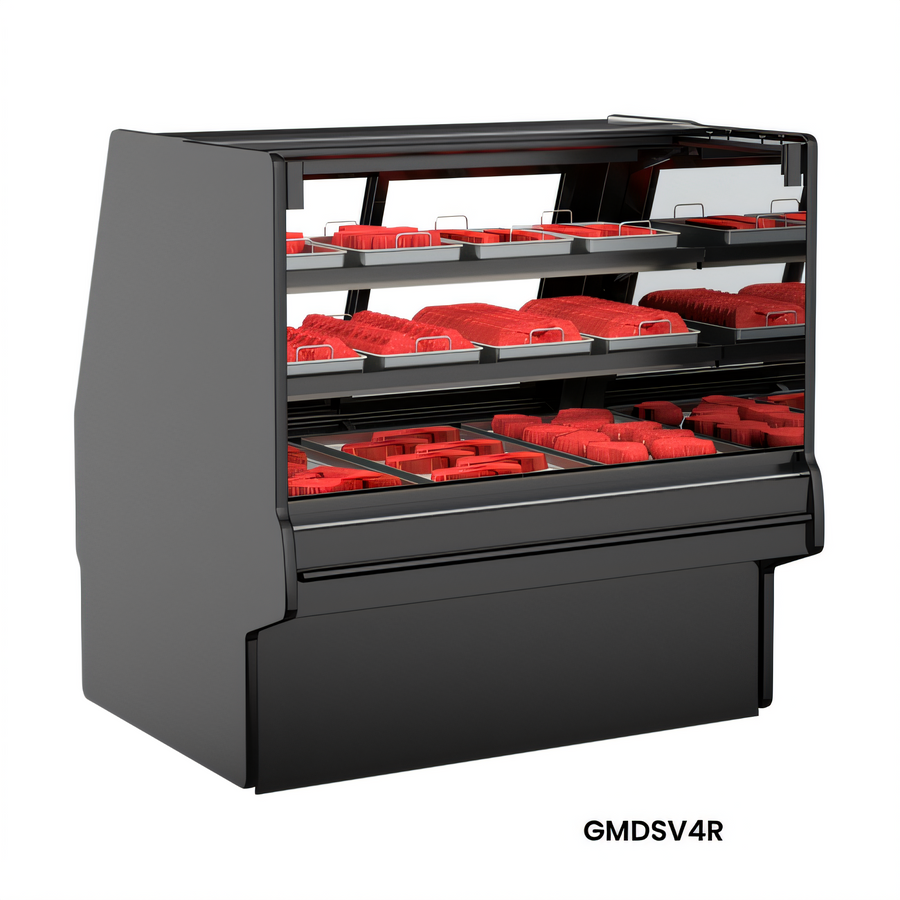

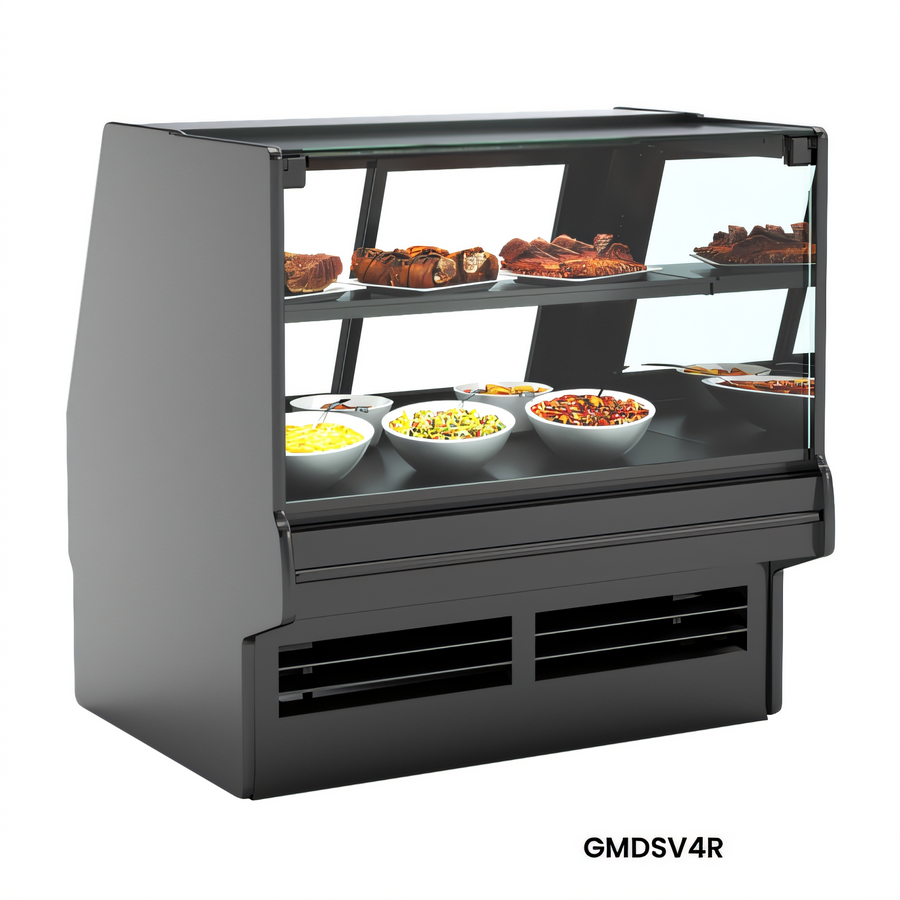

Structural Concepts Fusion® GMDSV10R REMOTE Refrigerated Deli Service Case, Remote DX, Lift-Up Front Glass, Rear Sliding Doors, LED Lighting
- Amperage
- 6.05 A
- Phase
- Single phase
- Dimensions
- 123.38"W × 43.0"D × 51.63"H
- Product type
- Refrigerated service case
- Refrigeration
- Remote DX
- Integrated average product temperature
- 40°F or less
Specifications
Description
Structural Concepts Fusion® GMDSV10R REMOTE is a refrigerated service case with remote DX refrigeration, vertical UV bonded lift-up front glass without a lock, and clear glass rear sliding doors.
The case includes one solid shelf, LED top and shelf lights with a frosted lens, and a stainless steel rear exterior. Its specified integrated average product temperature is 40°F or less.
- 123.38 in. wide x 43 in. deep x 51.63 in. high
- Remote refrigeration does not include the condensing unit and requires a floor drain
- Electrical leads for remote connection
Overall Dimensions:
123.38"W x 43.0"D x 51.63"HProduct Weight:

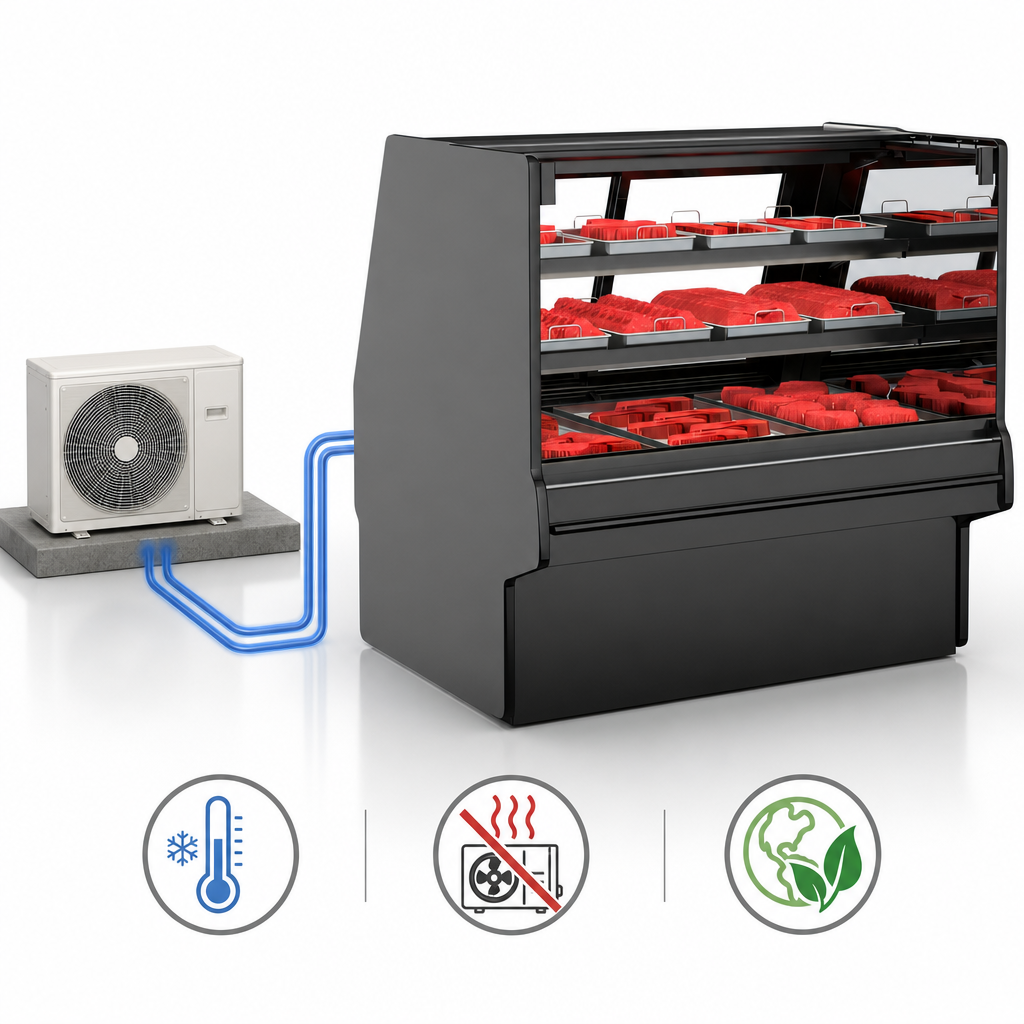

1600.0 lbRemote DX refrigeration
Uses remote DX refrigeration; the condensing unit is not included and a floor drain is required.
Refrigerated product temperature
Specified for an integrated average product temperature of 40°F or less.
Lift-up front glass
Features vertical UV bonded lift-up front glass without a lock.
Clear glass rear doors
Includes clear glass rear sliding doors.
LED lighting
Includes LED top and shelf lights with a frosted lens.
Solid shelf
Includes one solid shelf.
Stainless steel rear exterior
The rear exterior is stainless steel.
Remote installation support
The remote model uses a rail system for shims and must be shimmed during installation to be level and plumb.
