Structural Concepts Fusion GMDS6R Curved Glass Self-Contained Refrigerated Deli Service Case, 75-3/8 Inch W

Full-service model with rear sliding doors and one solid shelf

Built for full-service deli merchandising, this 75-3/8-inch curved-glass case combines self-contained Breeze refrigeration with bright LED lighting and easy rear access.

  • Full-service refrigerated display case for deli and prepared-food presentation
  • Maintains a warmest average product temperature of 40°F or less
  • Breeze self-contained refrigeration simplifies installation
  • Curved lift-up front glass and clear rear sliding doors improve presentation and service access
  • Includes one solid shelf plus LED top and shelf lights with frosted lens
  • Stainless steel rear exterior and black interior support a clean, professional look

Overall Dimensions:

75.37"W x 42.75"D x 51.63"H

Product Weight:

1300.0 lb

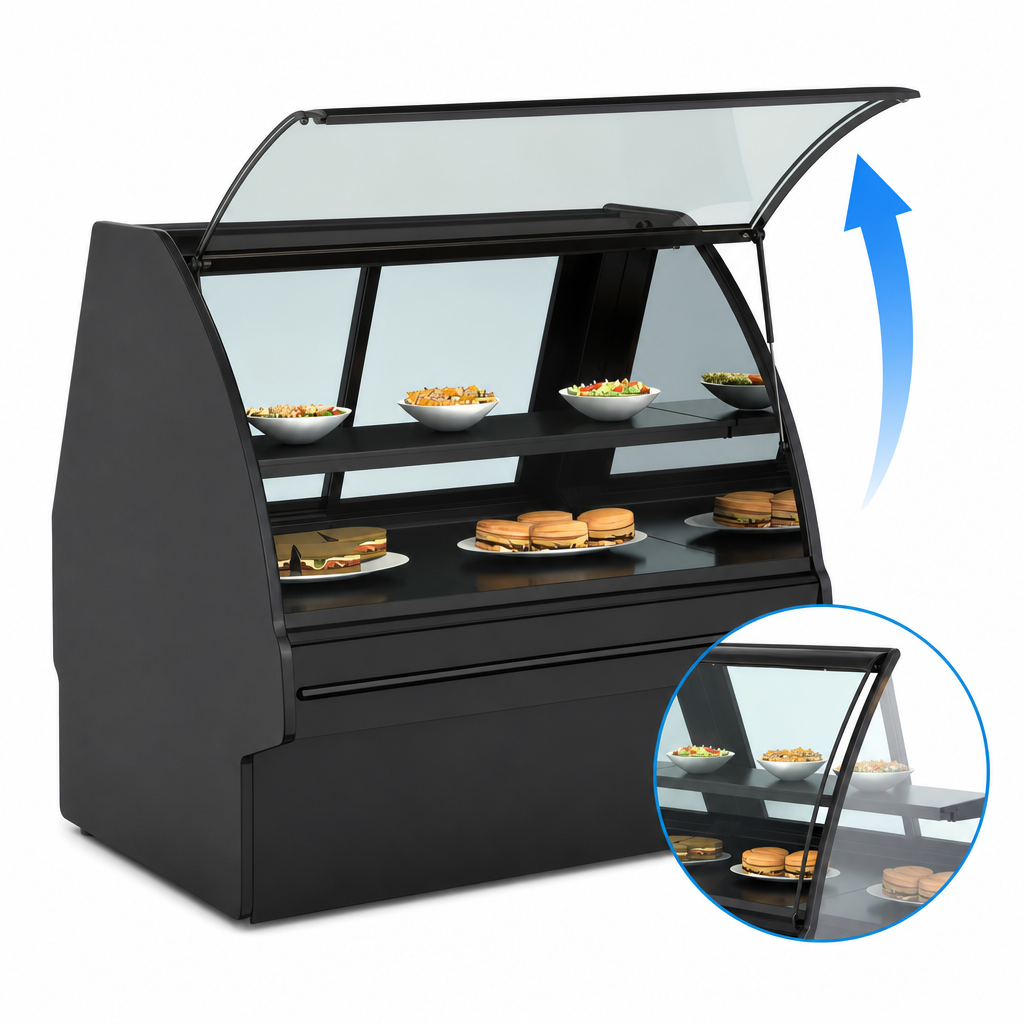

Curved Lift-Up Front Glass

Curved front glass creates an upscale display and lifts up for service access.

Curved Lift-Up Front Glass

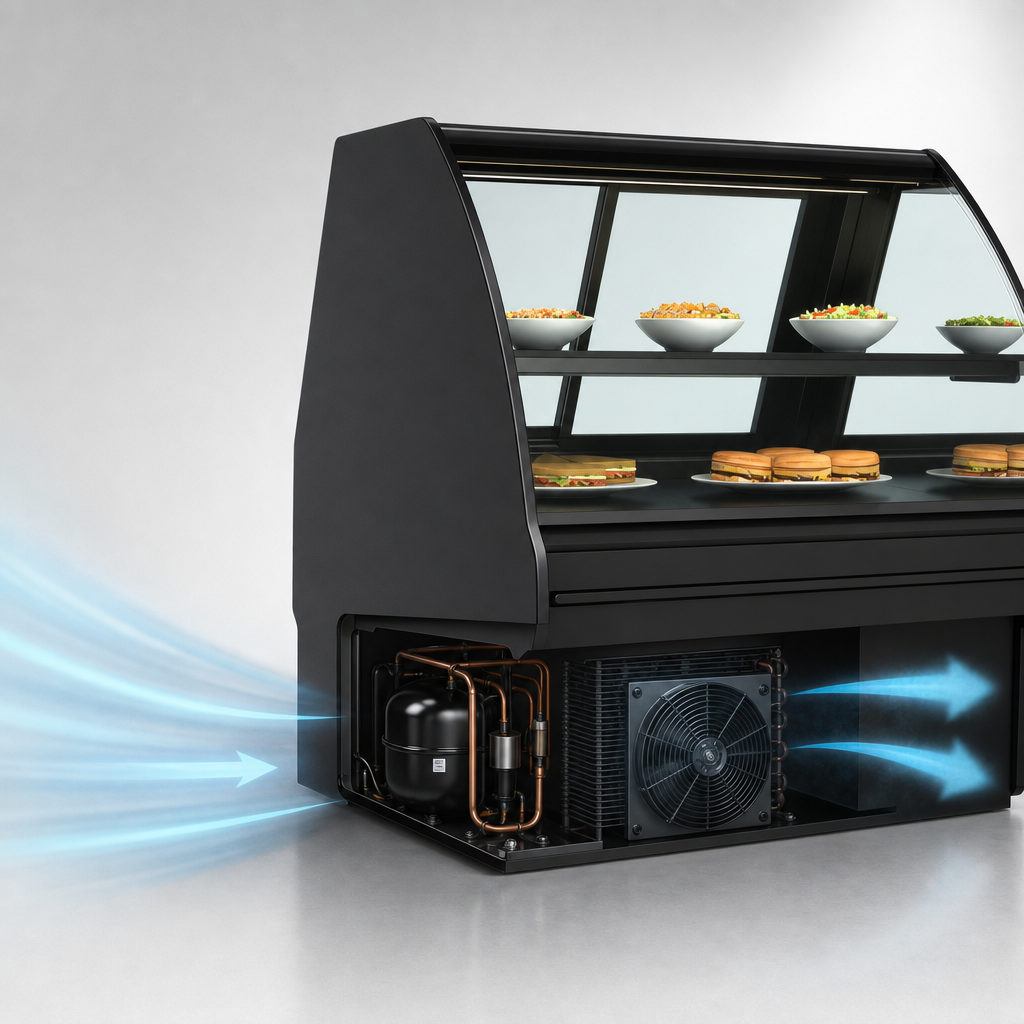

Breeze Self-Contained Refrigeration

Built-in refrigeration system reduces installation complexity.

Breeze Self-Contained Refrigeration

40°F Or Less Product Temperature

Designed to maintain a warmest average product temperature of 40°F or less.

Clear Glass Rear Sliding Doors

Rear sliding doors allow quick product access from the service side.

LED Top and Shelf Lighting

LED lighting with frosted lens helps merchandise look bright and appealing.

One Solid Shelf

Includes one solid shelf for organized display space.

Stainless Steel Rear Exterior

Durable stainless steel rear exterior stands up to commercial use.

Type I Environment Rated

Intended for operation in 75°F ambient conditions at 55% relative humidity.

Type Refrigerated Service Case
Style Full Service
Installation Type Floor Model
Refrigeration Type Self-Contained
Refrigerant Type R290
Temperature Range 40°F or Less
Voltage 110-120 Volts
Amps 15.06 Amps
Watts 1.585 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-20P or L5-20P
Shipping Width 76 Inches
Shipping Depth 43 Inches
Shipping Height 52 Inches
Shipping Weight 1,300 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

1-year parts and labor; 5-year compressor warranty

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Exterior finishes and bumpers PDF Download PDF Scc product nomenclature PDF Download PDF Map policy PDF Download PDF Warranty PDF Download PDF Spec guide PDF Download

Frequently Asked Questions

The case measures 75-3/8 inches wide, 42-3/4 inches deep, and 51-5/8 inches high.
It is designed for a warmest average product temperature of 40°F or less.
Yes. The unit uses Breeze self-contained refrigeration.
The case includes one solid shelf.
It operates on 110-120 volts, 1-phase, 60 Hz, and 15.06 amps with a NEMA 5-20P or L5-20P plug; the documentation also notes that a separate circuit is required.
The documentation lists a one-year parts and labor warranty plus a five-year compressor warranty.
