Structural Concepts

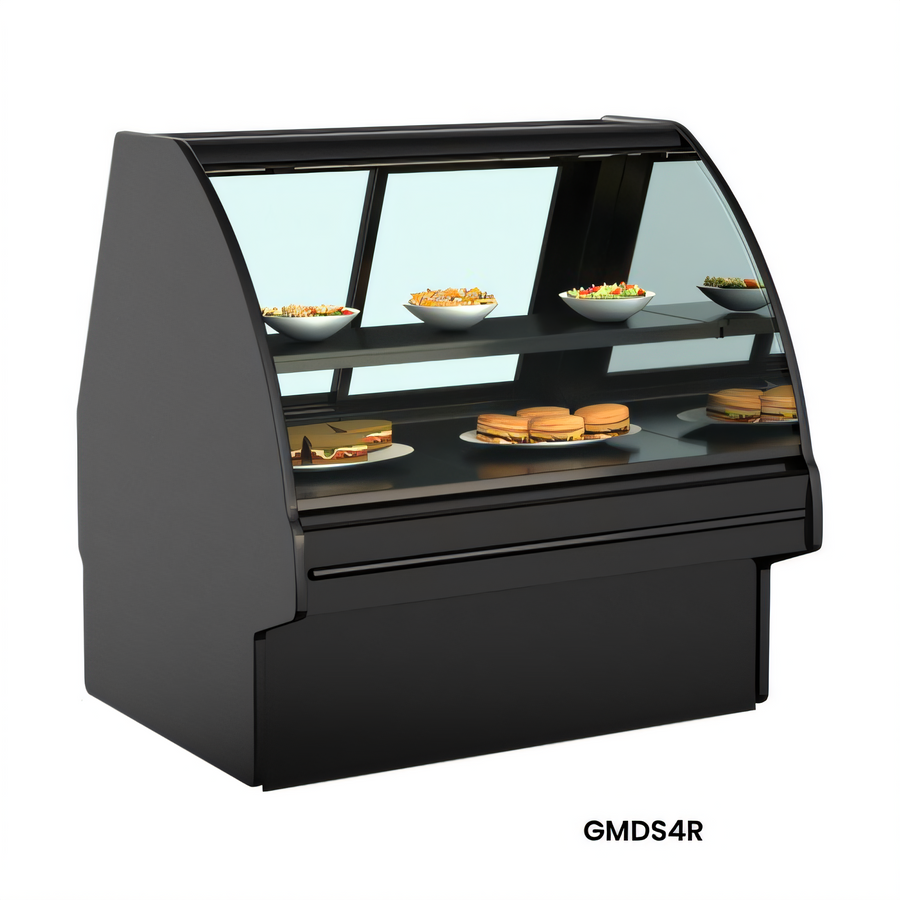

Fusion Full-Service Self-Contained Refrigerated Service Case with Curved Lift-Up Front Glass, 51-Inch Wide

SKU: GMDS4R
$15,375.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

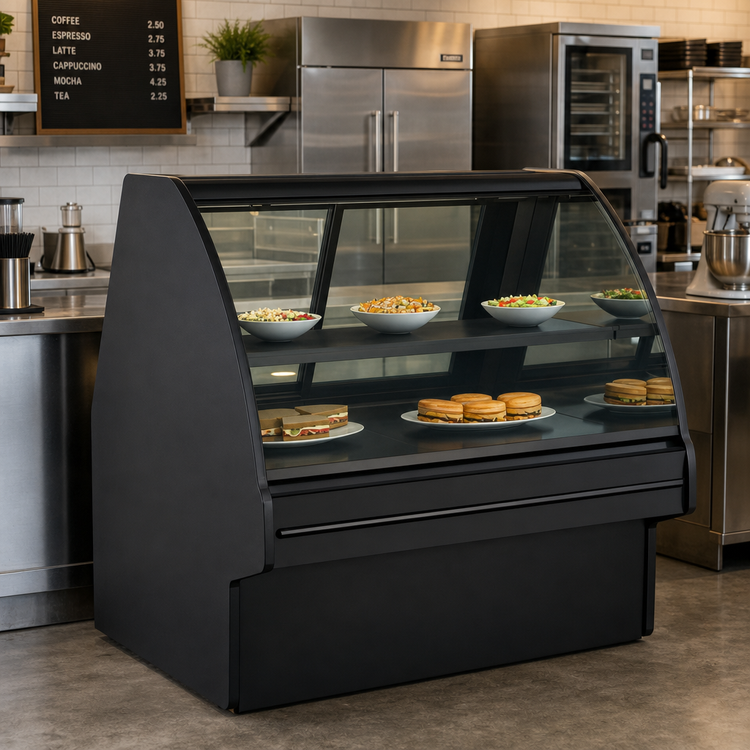

Fusion Full-Service Self-Contained Refrigerated Service Case with Curved Lift-Up Front Glass, 51-Inch Wide

Clear glass rear sliding doors, one solid shelf, and LED top and shelf lighting

A full-service refrigerated display case with self-contained Breeze R290 refrigeration, curved front glass, and bright LED lighting that keeps product at 40°F or less.

  • Self-contained Breeze refrigeration simplifies installation and uses R290 refrigerant.
  • Curved lift-up front glass and clear rear sliding doors support efficient full-service operation.
  • LED top and shelf lights with frosted lens improve product presentation.
  • Designed for a warmest average product temperature of 40°F or less.
  • Includes one solid shelf for organized merchandising.
  • Standard warranty includes 1 year parts and labor plus a 5 year compressor warranty.

Overall Dimensions:

51.0"W x 42.75"D x 51.63"H

Product Weight:

950.0 lb

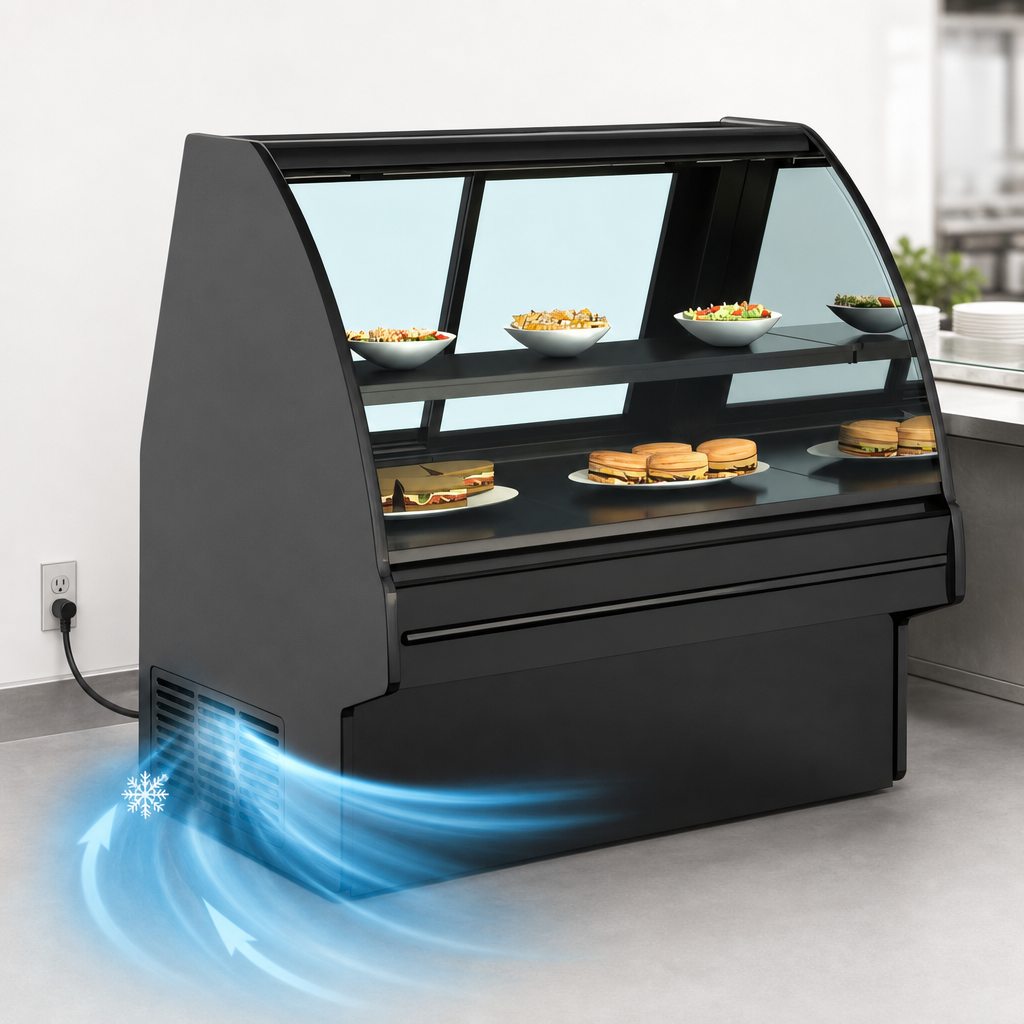

Breeze Self-Contained Refrigeration

Plug-in refrigeration system designed for self-contained installation.

Breeze Self-Contained Refrigeration

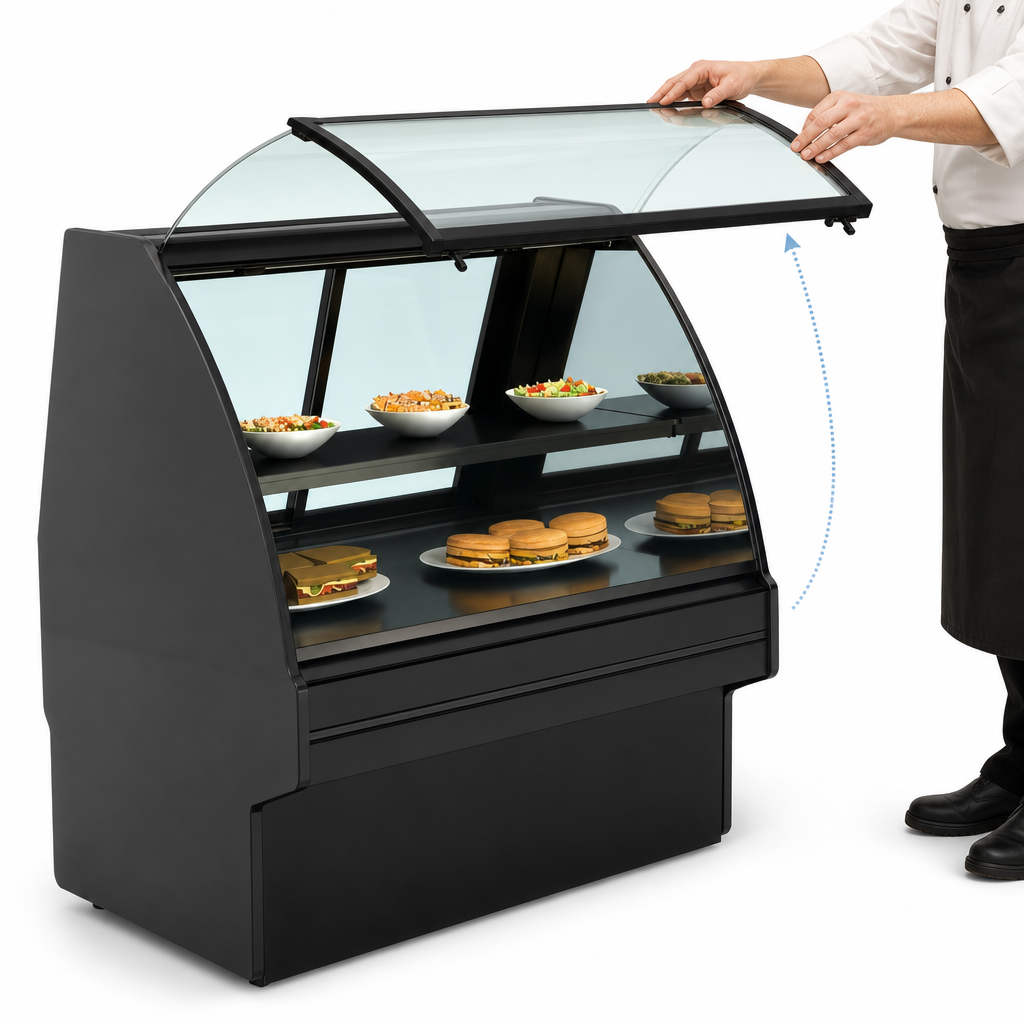

Curved Lift-Up Front Glass

Curved front glass provides an attractive display and lift-up access.

Curved Lift-Up Front Glass

Clear Glass Rear Sliding Doors

Rear sliding doors allow convenient access for service.

LED Top and Shelf Lighting

LED lights with frosted lens help illuminate displayed products evenly.

One Solid Shelf

Includes a single solid shelf for product merchandising.

40°F Or Less Product Temperature

Built to maintain a warmest average product temperature of 40°F or less.

Stainless Steel Rear Exterior

Durable stainless steel rear exterior surfaces the back of the case.

Type I Ambient Design

Designed to operate in ambient conditions of 75°F and 55% relative humidity.

Type Full-Service Refrigerated Service Case
Style Curved Glass
Installation Type Floor Model
Refrigeration Type Self-Contained
Refrigerant Type R290
Temperature Range 40°F or Less
Voltage 110-120 Volts
Amps 14.61 Amps
Watts 1.53 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type 5-20P or L5-20P
Cord Length 6 Feet
Selling Unit Each
Units Per Case 1

Frequently Asked Questions

It is designed for a warmest average product temperature of 40°F or less.
Yes. It uses Breeze self-contained refrigeration with R290 refrigerant.
It features a curved lift-up front glass and clear glass rear sliding doors.
The case includes LED top and shelf lights with frosted lens.
The unit operates on 110-120 Volts, 1-Phase, 60 Hz, and 14.61 Amps, with a 5-20P or L5-20P plug type. A separate circuit is required.
The cut sheet lists a 1 year parts and labor warranty and a 5 year compressor warranty.
