Structural Concepts

Fusion Open Curved Remote Refrigerated Self-Service Display Case, 99-3/4 Inch Wide

SKU: GLDSS843R
$16,490.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

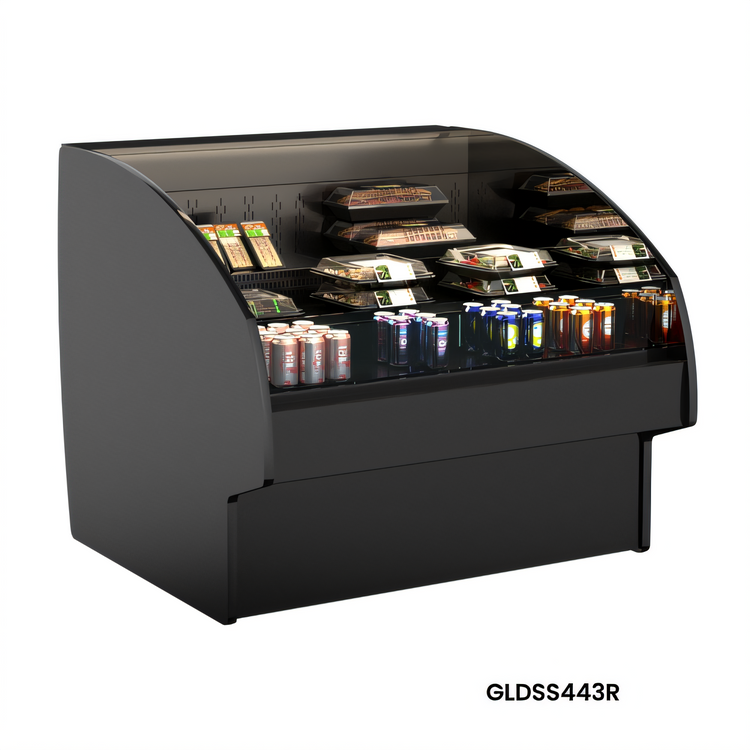

Fusion Open Curved Remote Refrigerated Self-Service Display Case, 99-3/4 Inch Wide

43-3/8-Inch High, 40°F or Less, Black Sanalite Rear Ledge

An open-curved merchandiser that keeps packaged refrigerated products at a 40°F-or-lower average temperature with remote refrigeration.

  • Open-curved, self-service design creates a clean and inviting presentation.
  • Remote DX refrigeration keeps the condensing unit off-site; condensing unit not included.
  • Designed to maintain a warmest average product temperature of 40°F or less.
  • Stainless steel rear exterior and black Sanalite rear ledge provide a finished merchandising look.
  • Intended for packaged refrigerated products in Type I ambient conditions.
  • Includes a standard one-year parts and labor warranty.

Overall Dimensions:

99.5"W x 46.88"D x 43.38"H

Product Weight:

1500.0 lb

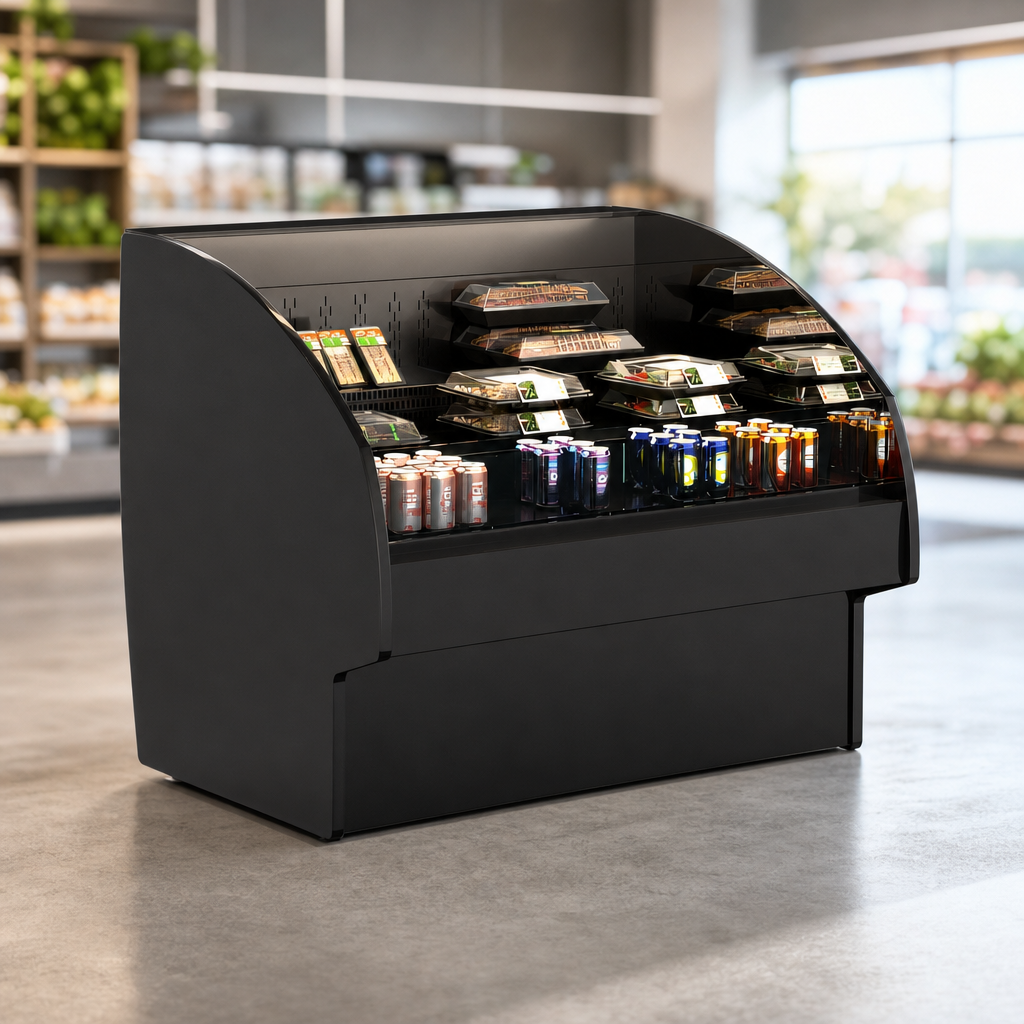

Open Curved Profile

Provides strong product visibility and an inviting self-service presentation.

Open Curved Profile

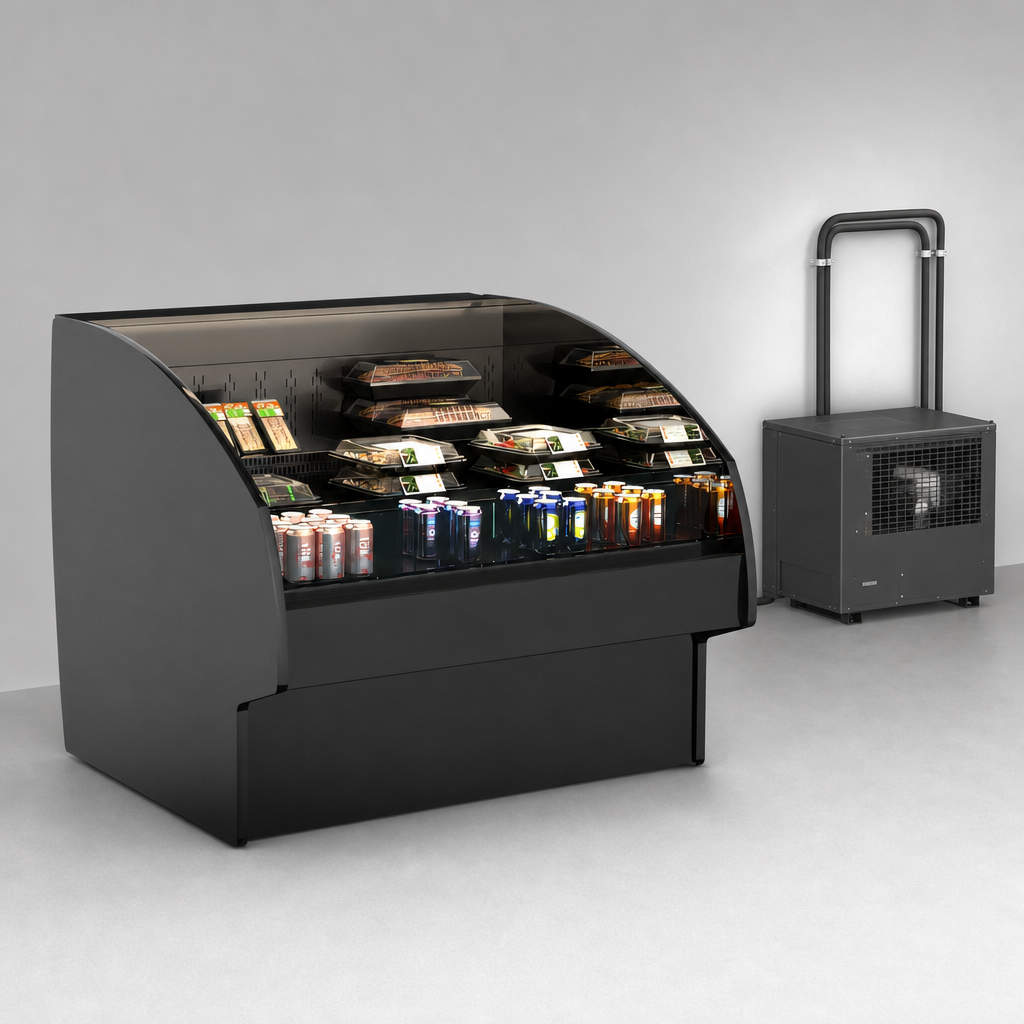

Remote DX Refrigeration

Uses remote refrigeration; the condensing unit is not included.

Remote DX Refrigeration

40°F Maximum Average Product Temperature

Designed to hold packaged refrigerated products at a warmest average product temperature of 40°F or less.

Stainless Steel Rear Exterior

Durable stainless rear exterior helps the unit stand up to commercial use.

Black Sanalite Rear Ledge

Creates a clean serving edge and merchandising surface at the rear.

Type I Ambient Rating

Intended to operate in ambient conditions of 75°F with 55% relative humidity.

One-Year Parts & Labor Warranty

Includes a standard one-year parts and labor warranty.

Type Refrigerated Self-Service Case
Style Open Curved
Installation Type Countertop
Refrigeration Type Remote DX
Temperature Range 40°F or Less
Voltage 110-120 Volts
Amps 0.97 Amps
Watts 72 Watts
Hertz 60 Hz
Phase 1-Phase
Plug Type Leads Multiple
Selling Unit Each
Units Per Case 1
Shipping Width 100 Inches
Shipping Depth 48 Inches
Shipping Height 44 Inches
Shipping Weight 1,500 lb.

Frequently Asked Questions

No. It uses remote DX refrigeration, and the condensing unit is not included.
Packaged refrigerated products.
It is designed for a warmest average product temperature of 40°F or less.
Yes. The remote refrigeration notes specify that a floor drain is required.
A 50-inch minimum door entry clearance is required without the shipping skid.
