Fusion 62-3/4-Inch W Refrigerated Service Case with Vertical Swing-Out Front Glass

Remote DX refrigeration, clear glass rear sliding doors, and 3 solid shelves

A high-visibility refrigerated merchandiser that keeps unpackaged product at 40°F or less while giving staff easy access from both the front and rear.

  • Remote DX refrigeration is designed for remote condensing setups.
  • Maintains a warmest average product temperature of 40°F or less for unpackaged refrigerated products.
  • Vertical swing-out front glass and clear glass rear sliding doors support easy service and strong visibility.
  • LED top and shelf lights with frosted lenses help showcase displayed product.
  • Includes three solid shelves and a stainless steel rear exterior.
  • Designed for Type I ambient conditions and includes a one-year parts and labor warranty.

Overall Dimensions:

62.75"W x 43.0"D x 55.63"H

Product Weight:

900.0 lb

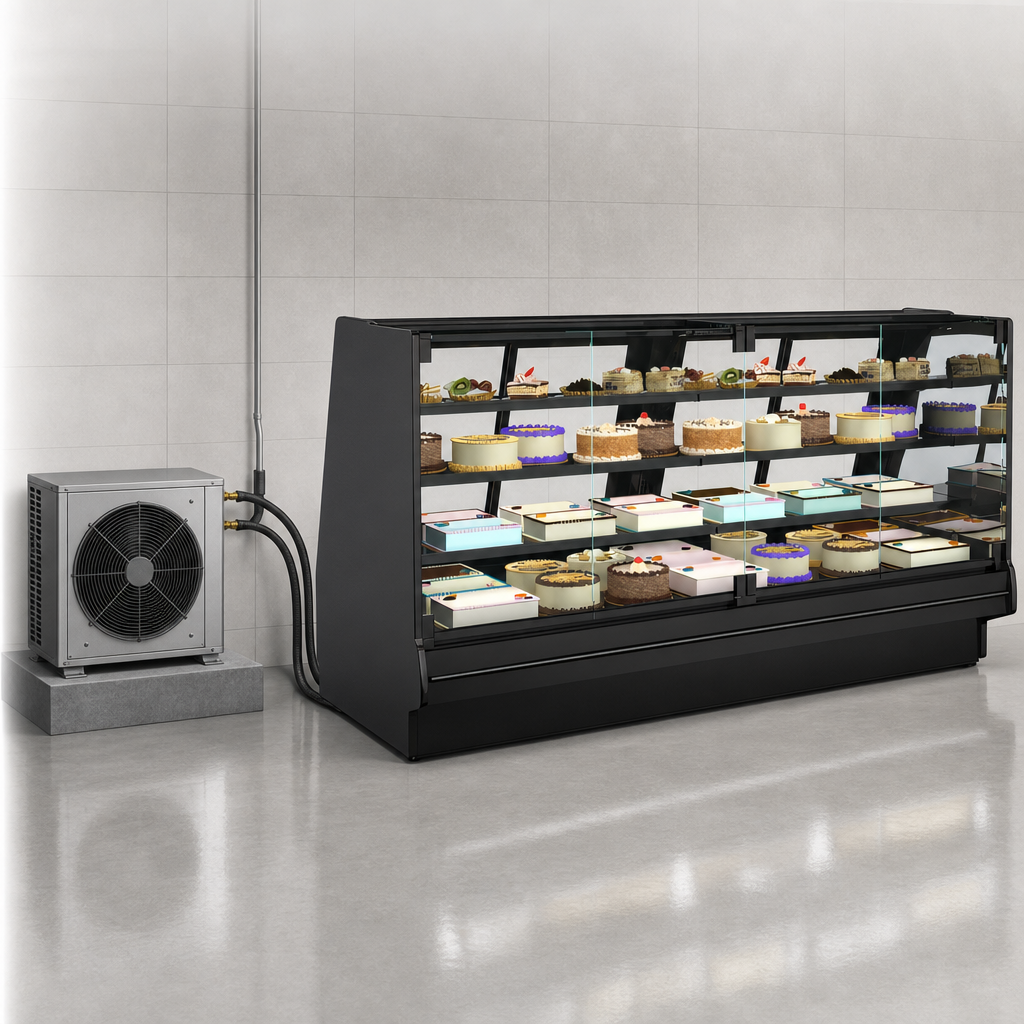

Remote DX Refrigeration

Designed for remote refrigeration systems; the condensing unit is not included.

Remote DX Refrigeration

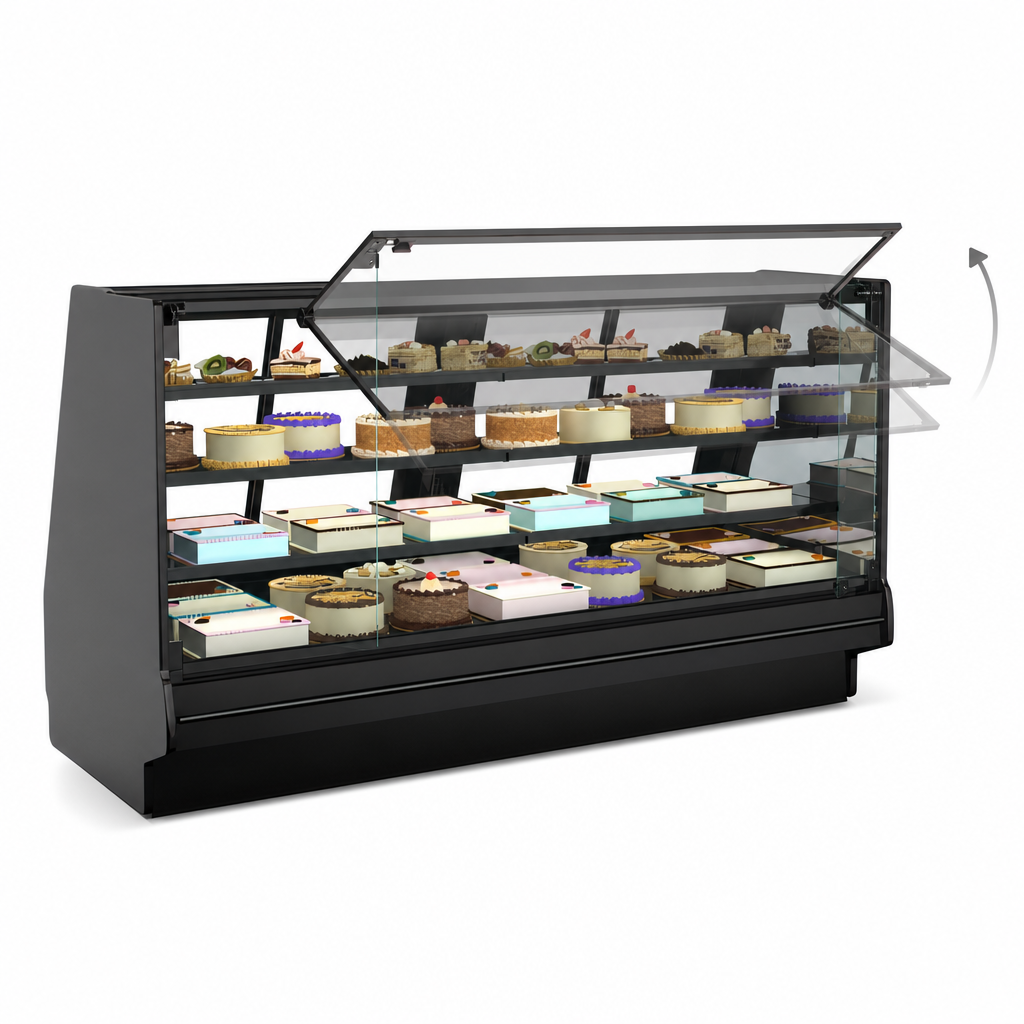

Vertical Swing-Out Front Glass

Provides front access while keeping the display area visible to customers.

Vertical Swing-Out Front Glass

Clear Glass Rear Sliding Doors

Rear doors support service access and visibility from the back side.

LED Top And Shelf Lighting

LED lighting with frosted lens brightens the display area.

Three Solid Shelves

Standard shelving included for refrigerated merchandising.

40°F Or Less Product Temperature

Built to maintain a warmest average product temperature of 40°F or less for unpackaged refrigerated products.

Stainless Steel Rear Exterior

Durable rear exterior finish for back-of-house use.

Type I Ambient Rating

Intended to operate in ambient conditions of 75°F with 55% relative humidity.

One-Year Warranty

Includes one year parts and labor warranty.

Type Refrigerated Service Case
Style Vertical Swing-Out Front Glass
Installation Type Floor Model
Refrigeration Type Remote DX
Temperature Range 40°F Or Less
Voltage 110-120 Volts
Amps 2.94 Amps
Watts 142 Watts
Hertz 60 Hz
Phase 1-Phase
Plug Type Leads Single
Shipping Width 63 Inches
Shipping Depth 43 Inches
Shipping Height 56 Inches
Shipping Weight 900 lb.
Selling Unit Each
Units Per Case 1

Frequently Asked Questions

It is designed for unpackaged refrigerated products with a warmest average product temperature of 40°F or less.
It uses remote DX refrigeration, and the condensing unit is not included.
The case includes three solid shelves; the cut sheet lists 12", 16", and 18" solid shelving as the standard shelving configuration.
It has a vertical swing-out front glass and clear glass rear sliding doors.
A separate circuit is required, a floor drain is required for remote refrigeration, and a 45-inch minimum door entry clearance is needed without the shipping skid.
Yes, the cut sheet lists a one-year parts and labor warranty.
