Structural Concepts

Fusion® 52-Inch High Refrigerated Service Case, 62-7/8-Inch Wide, Remote DX, Vertical Swing-Out Front Glass

SKU: GHSV552RLB
$17,837.50
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Fusion® 52-Inch High Refrigerated Service Case, 62-7/8-Inch Wide, Remote DX, Vertical Swing-Out Front Glass

Three solid shelves, clear rear sliding doors, LED lighting

Merchandise chilled grab-and-go items with a bright, service-friendly refrigerated case that keeps product at 40°F or less while allowing access from both the front and rear.

  • 62-7/8-inch wide refrigerated service case for unpackaged refrigerated products.
  • Remote DX refrigeration helps maintain a warmest average product temperature of 40°F or less.
  • Vertical swing-out front glass and clear glass rear sliding doors support merchandising from both sides.
  • Includes three solid shelves plus LED top and shelf lighting with frosted lens.
  • Stainless steel rear exterior adds durability in busy service environments.
  • Backed by a one-year parts and labor warranty.

Overall Dimensions:

62.87"W x 42.75"D x 51.75"H

Product Weight:

1050.0 lb

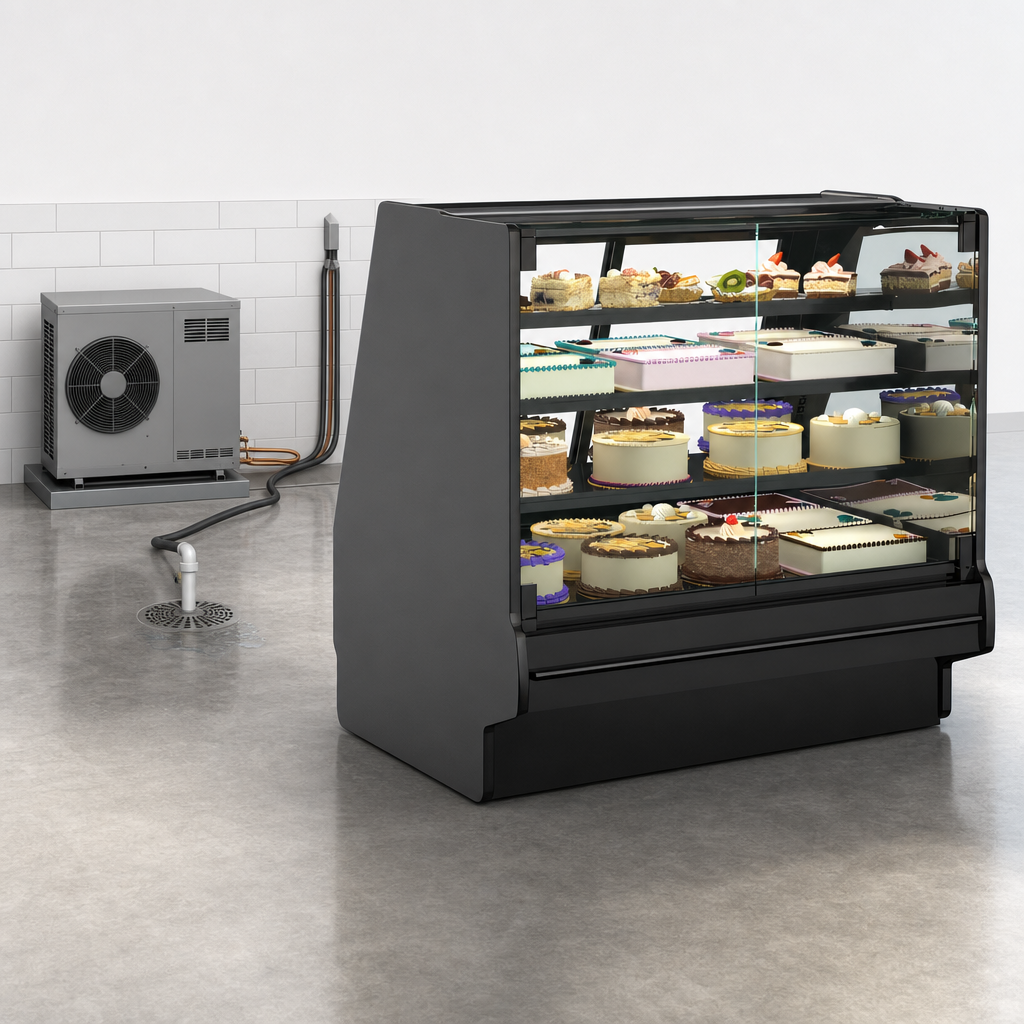

Remote DX Refrigeration

Remote refrigeration system is standard; the condensing unit is not included and a floor drain is required.

Remote DX Refrigeration

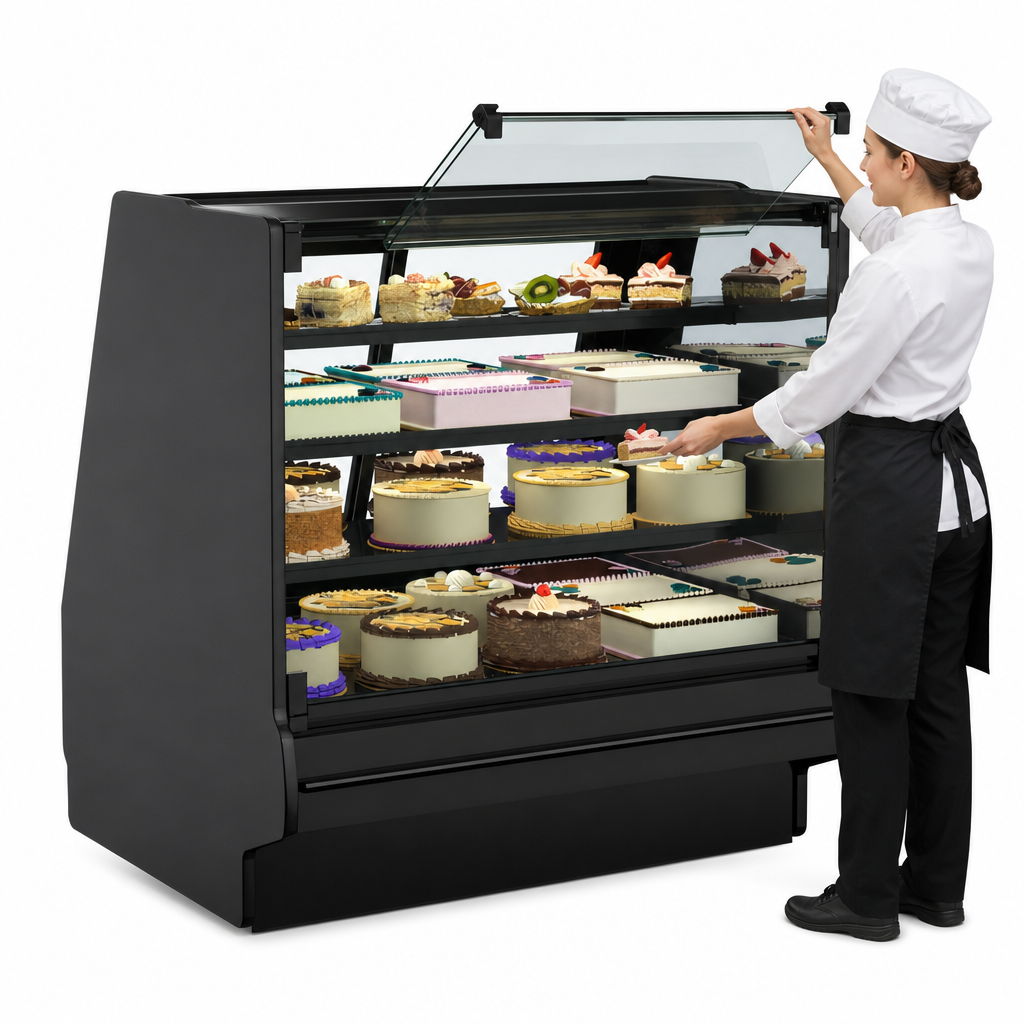

Vertical Swing-Out Front Glass

Provides front-service access while keeping the product display open and visible.

Vertical Swing-Out Front Glass

Clear Glass Rear Sliding Doors

Rear sliding doors make loading and serving easier from the back of the case.

Three Solid Shelves

Includes 12-inch, 16-inch, and 18-inch solid shelving for product presentation.

LED Top and Shelf Lighting

LED 3500K lights with frosted lens help illuminate displayed product evenly.

40°F Or Less Average Product Temperature

Designed to maintain a warmest average product temperature of 40°F or less for unpackaged refrigerated products.

Stainless Steel Rear Exterior

Durable stainless steel rear exterior supports long-term use in service environments.

Type I Ambient Rating

Designed to operate in ambient conditions of 75°F with 55% relative humidity.

cETLus / ETL-Sanitation Approvals

Documented with cETLus and ETL-Sanitation approvals.

Type Refrigerated Service Case
Style Vertical Swing-Out Front Glass
Installation Type Floor Model
Refrigeration Type Remote DX
Voltage 110-120 Volts
Amps 1.92 Amps
Watts 78 Watts
Hertz 60 Hz
Phase 1-Phase
Plug Type Leads Single
Shipping Width 63 Inches
Shipping Depth 43 Inches
Shipping Height 52 Inches
Shipping Weight 1,050 lb.
Selling Unit Each
Units Per Case 1

Frequently Asked Questions

It uses remote DX refrigeration. The condensing unit is not included, and a floor drain is required.
The case is designed for a warmest average product temperature of 40°F or less.
It has vertical swing-out front glass and clear glass rear sliding doors for front and rear access.
Standard lighting includes LED top and shelf lights with a frosted lens in 3500K.
The unit is rated 110-120 Volts, 1-Phase, 60 Hz, and 1.92 Amps with remote electrical leads. The cutsheet also notes separate circuit required and 45" minimum door entry clearance without the shipping skid.
The cutsheet states a one-year parts and labor warranty is included.
