Structural Concepts

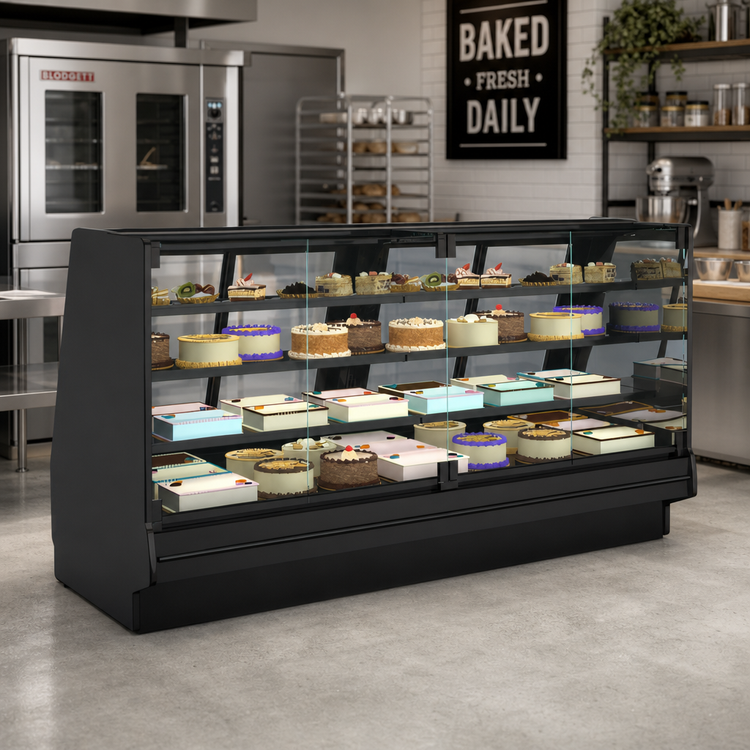

Fusion 51-Inch Wide Refrigerated Service Case with Vertical Swing-Out Front Glass, 3 Solid Shelves, and Remote DX Refrigeration

SKU: GHSV456RLB
$15,180.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Fusion 51-Inch Wide Refrigerated Service Case with Vertical Swing-Out Front Glass, 3 Solid Shelves, and Remote DX Refrigeration

43-Inch Deep, 55-5/8-Inch High, Clear Glass Rear Sliding Doors

A compact remote DX refrigerated service case built to keep product at 40°F or less while showcasing it with bright LED lighting and easy front-and-rear access.

  • Remote DX refrigeration helps maintain a warmest average product temperature of 40°F or less.
  • Vertical swing-out front glass and clear rear sliding doors streamline loading and service.
  • LED top and shelf lights with frosted lens enhance product visibility.
  • Three solid shelves provide organized display space.
  • Stainless steel rear exterior adds durability in busy service areas.
  • One-year parts and labor warranty is included.

Overall Dimensions:

51.0"W x 43.0"D x 55.63"H

Product Weight:

800.0 lb

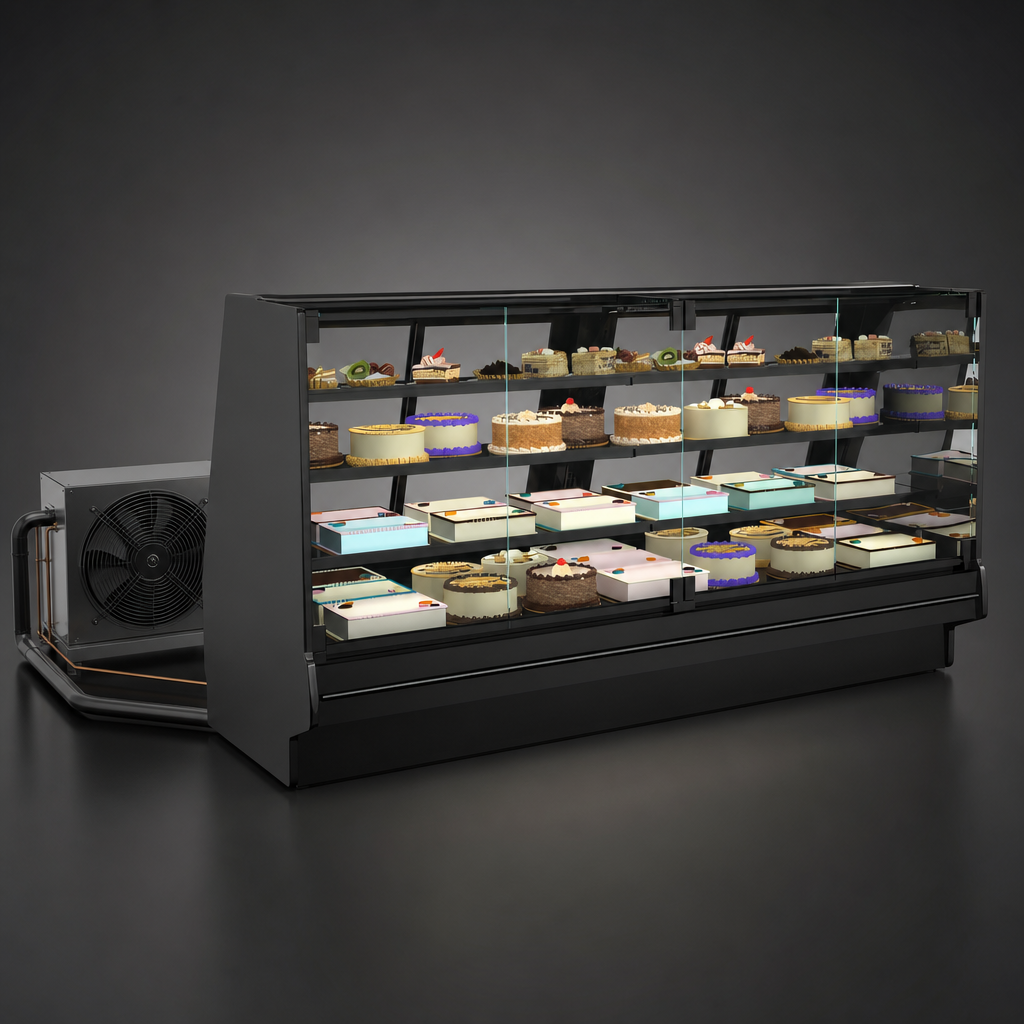

Remote DX Refrigeration

Remote refrigeration system; condensing unit is not included.

Remote DX Refrigeration

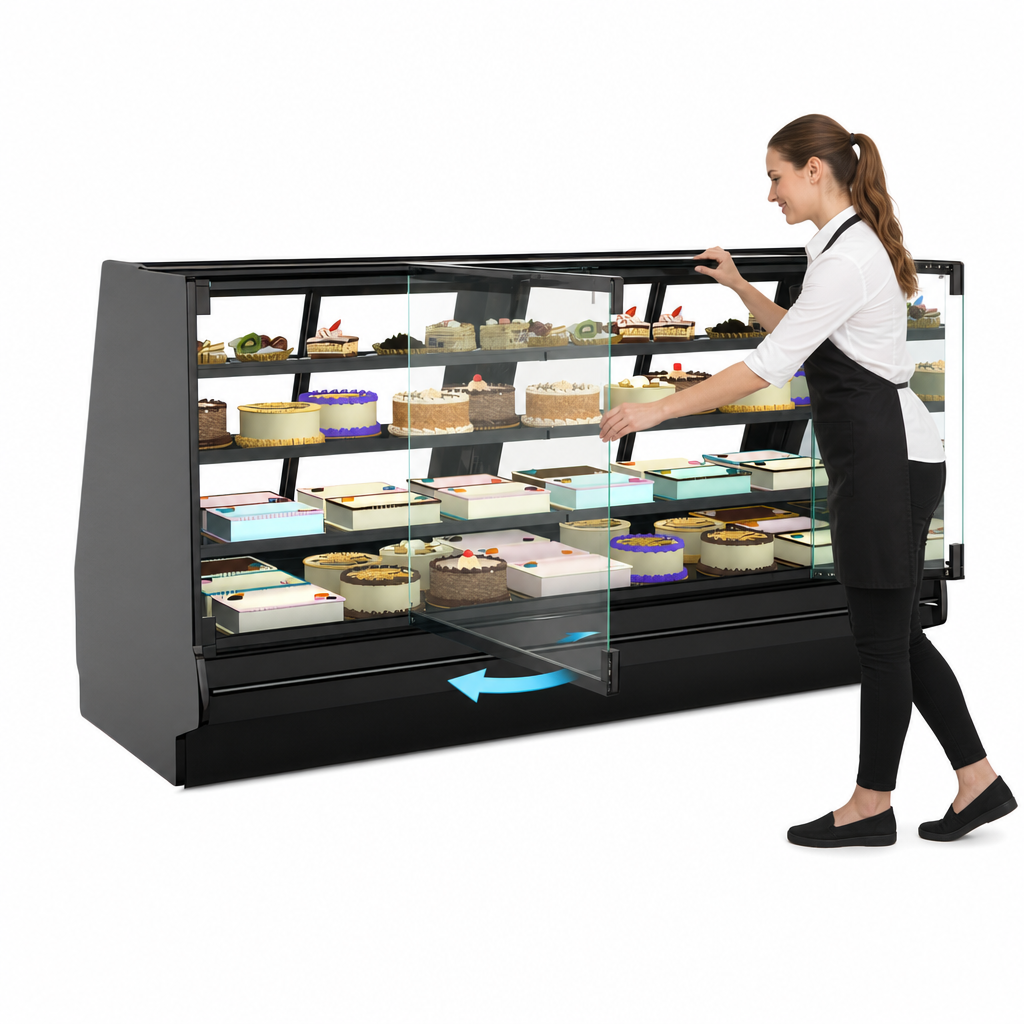

Vertical Swing-Out Front Glass

Front glass swings out for easier loading, cleaning, and service access.

Vertical Swing-Out Front Glass

Clear Glass Rear Sliding Doors

Rear sliding doors provide back-of-house access while keeping product visible.

LED Top And Shelf Lighting

LED lights with a frosted lens illuminate the display for better merchandising.

Three Solid Shelves

Standard shelving helps organize and present refrigerated products inside the case.

40°F Or Less Product Temperature

Designed to maintain a warmest average product temperature of 40°F or less.

Stainless Steel Rear Exterior

Durable rear exterior surface suited to service-area use.

Type I Ambient Rating

Designed to operate in ambient conditions of 75°F and 55% relative humidity.

Type Refrigerated Service Case
Style Vertical Swing-Out Front Glass
Installation Type Floor Model
Refrigeration Type Remote DX
Temperature Range 40°F Or Less
Voltage 110-120 Volts
Phase 1-Phase
Hertz 60 Hz
Amps 1.84 Amps
Watts 83 Watts
Plug Type Leads Multiple
Shipping Width 51 Inches
Shipping Depth 43 Inches
Shipping Height 56 Inches
Shipping Weight 800 lb.
Selling Unit Each
Units Per Case 1

Frequently Asked Questions

No. It uses remote DX refrigeration, so a condensing unit is not included.
The warmest average product temperature is 40°F or less.
Three solid shelves are included standard.
It includes clear glass rear sliding doors.
The cutsheet lists a one-year parts and labor warranty.
A separate circuit is required, a floor drain is required for remote refrigeration, and a 45-inch minimum door entry clearance is required without the shipping skid.
