Structural Concepts

Fusion® 51-Inch Refrigerated Service Case with Remote DX Refrigeration

SKU: GHSV452RLB
$15,287.50
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Fusion® 51-Inch Refrigerated Service Case with Remote DX Refrigeration

Vertical Swing-Out Front Glass, Clear Glass Rear Sliding Doors, 3 Solid Shelves

Showcase unpackaged refrigerated items at 40°F or less with a remote DX service case that offers bright LED lighting, front-and-rear access, and a clean stainless steel rear exterior.

  • 51-inch refrigerated service case designed for unpackaged refrigerated display items.
  • Maintains a warmest average product temperature of 40°F or less.
  • Remote DX refrigeration keeps the condensing unit off the case.
  • Vertical swing-out front glass and clear glass rear sliding doors simplify merchandising and service.
  • LED top and shelf lights with frosted lens improve product visibility.
  • Includes three solid shelves and a stainless steel rear exterior.

Overall Dimensions:

51.0"W x 42.75"D x 51.75"H

Product Weight:

1100.0 lb

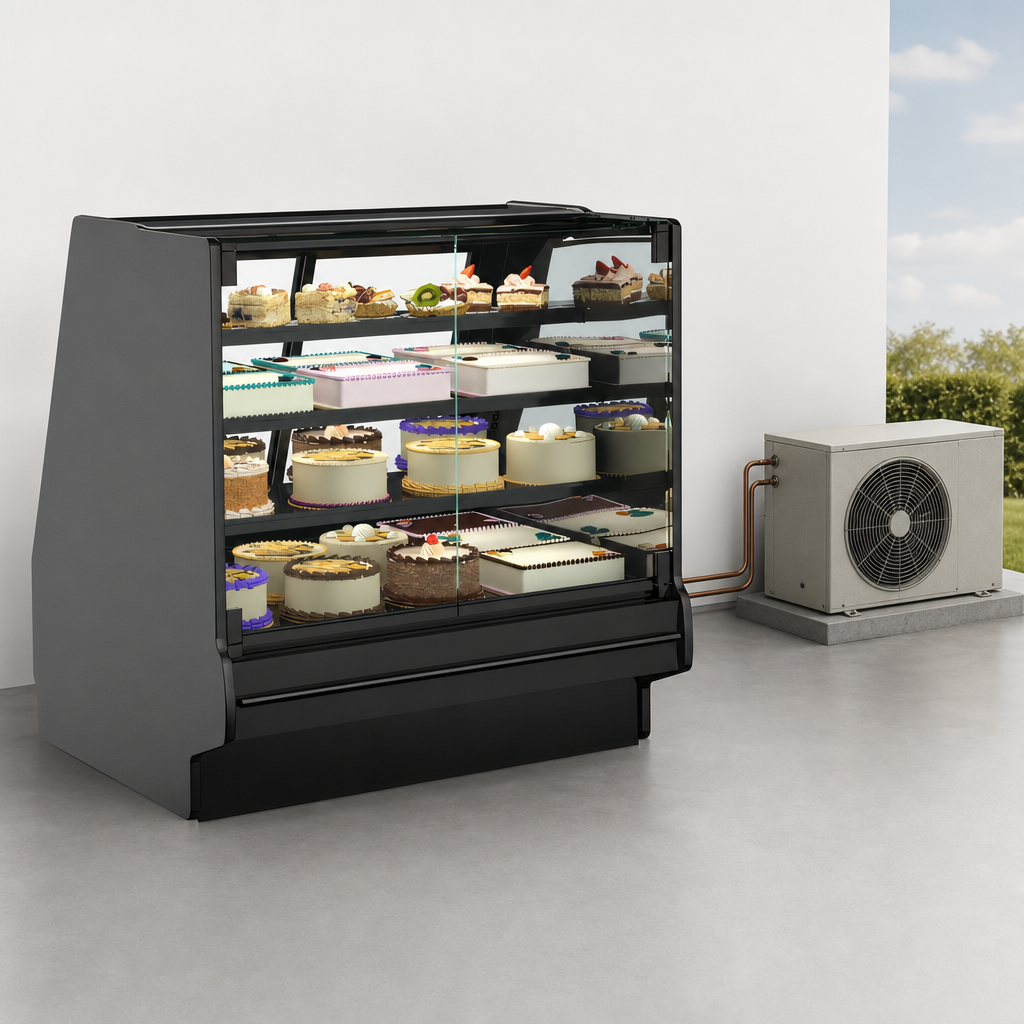

Remote DX Refrigeration

Remote refrigeration is standard; the condensing unit is not included and a separate circuit is required.

Remote DX Refrigeration

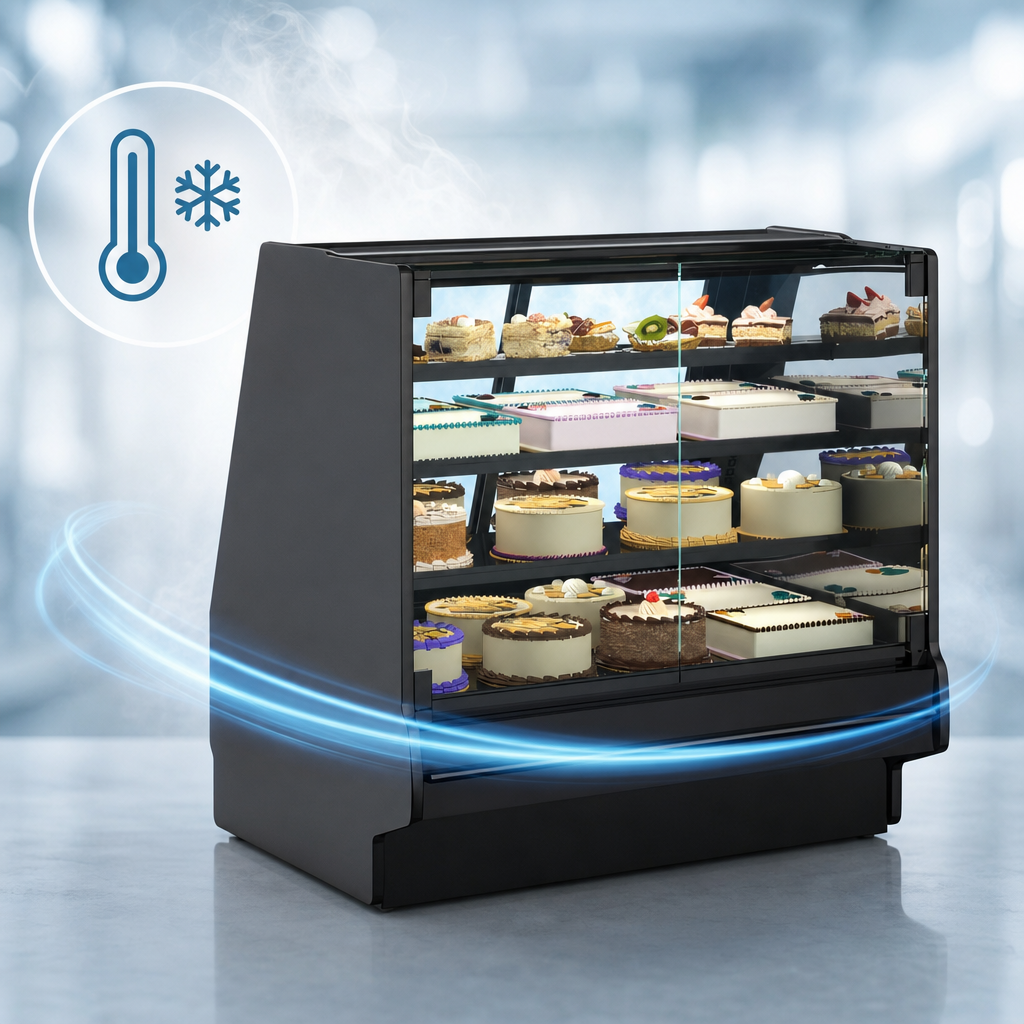

40°F Maximum Average Product Temp

Designed to maintain a warmest average product temperature of 40°F or less for unpackaged refrigerated products.

40°F Maximum Average Product Temp

Vertical Swing-Out Front Glass

Front glass swings out vertically for convenient access and product presentation.

Clear Glass Rear Sliding Doors

Clear rear sliding doors provide visibility and easy access from the back of the case.

LED Top and Shelf Lights

LED lighting with a frosted lens illuminates the display area for better merchandising.

Three Solid Shelves

Includes three solid shelves for organized refrigerated display.

Stainless Steel Rear Exterior

Durable stainless steel rear exterior adds a clean, serviceable finish.

Type Refrigerated Service Case
Style Vertical Swing-Out Front Glass
Installation Type Floor Model
Refrigeration Type Remote DX
Temperature Range 40°F or Less
Voltage 110-120 Volts
Amps 1.84 Amps
Watts 61 Watts
Hertz 60 Hz
Phase 1-Phase
Plug Type Electrical Leads
Shipping Width 51 Inches
Shipping Depth 43 Inches
Shipping Height 52 Inches
Shipping Weight 1,100 lb.
Selling Unit Each
Units Per Case 1

Frequently Asked Questions

No. It uses remote DX refrigeration, so the condensing unit is not included. A floor drain is required.
The warmest average product temperature is 40°F or less.
It includes a vertical swing-out front glass panel and clear glass rear sliding doors.
The unit operates on 110-120 Volts, 1-Phase, 60 Hz, and uses remote electrical leads. A separate circuit is required, and if GFCI is required, a GFCI breaker must be used instead of a GFCI receptacle.
A one-year parts and labor warranty is included.
It is intended for Type I environments and is designed to operate in ambient conditions of 75°F with 55% relative humidity unless otherwise noted.
