Structural Concepts Fusion® GHSS860RLB (FLAT) 99-3/4" W Flat-Profile Refrigerated Self-Service Display Case with Remote DX and LED Lighting

SKU: GHSS860RLB (FLAT)
$25,027.50
/each
Enter ZIP for a shipping estimate

Want to speak to an expert?

Fusion® GHSS860RLB Flat Profile Refrigerated Self-Service Display Case, 99-3/4" W x 43" D x 59-5/8" H, Remote DX

Open flat profile with LED top and shelf lights, solid back panel

This remote-refrigerated merchandiser keeps packaged products at 40°F or less while delivering a clean, high-visibility display.

  • 99-3/4-inch wide flat-profile case for packaged refrigerated products.
  • Remote DX refrigeration keeps the condensing unit out of the cabinet.
  • Designed to maintain a warmest average product temperature of 40°F or less.
  • LED top and shelf lights with frosted lens enhance display visibility.
  • Solid back panel and stainless steel rear exterior create a clean, durable finish.
  • Built for Type I ambient conditions at 75°F and 55% relative humidity.

Overall Dimensions:

99.75"W x 43.0"D x 59.63"H

Product Weight:

1225.0 lb

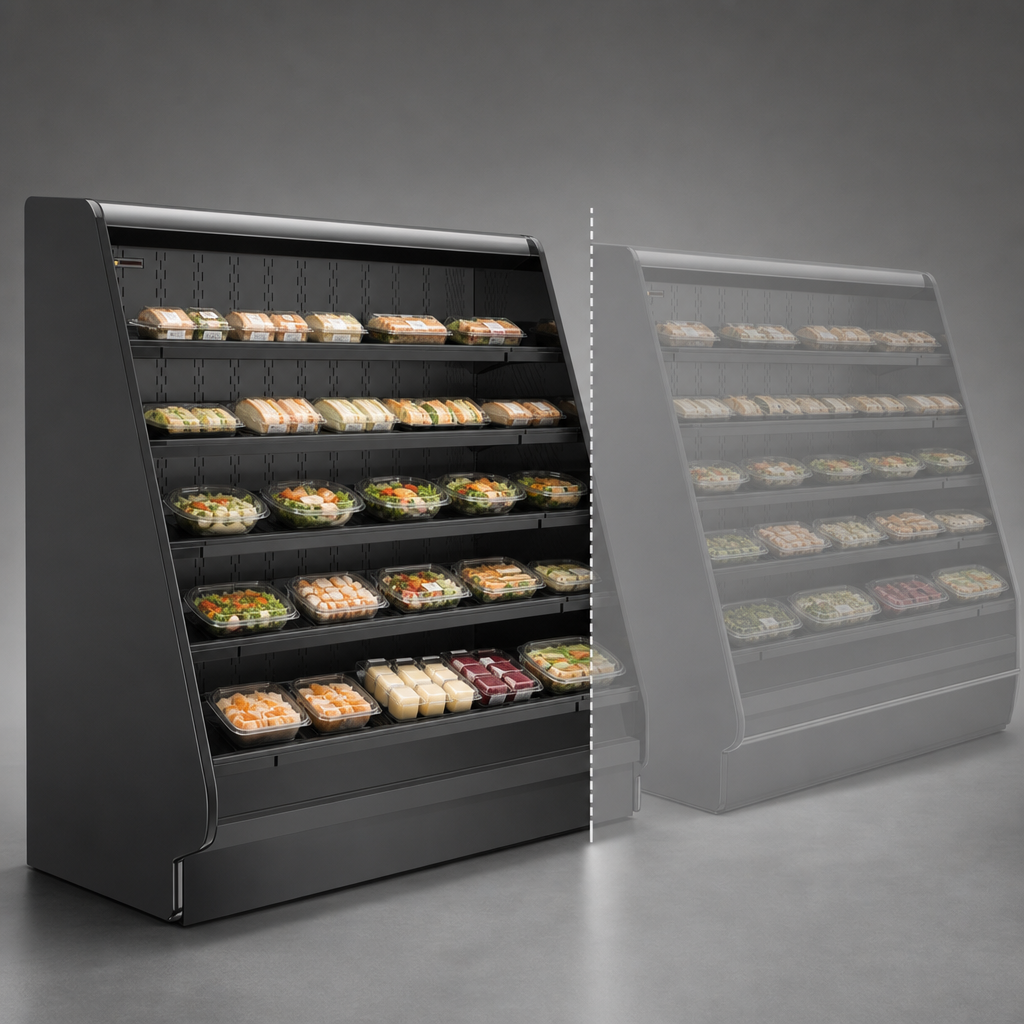

Flat Profile Design

Open flat profile creates a clean self-service presentation for refrigerated packaged items.

Flat Profile Design

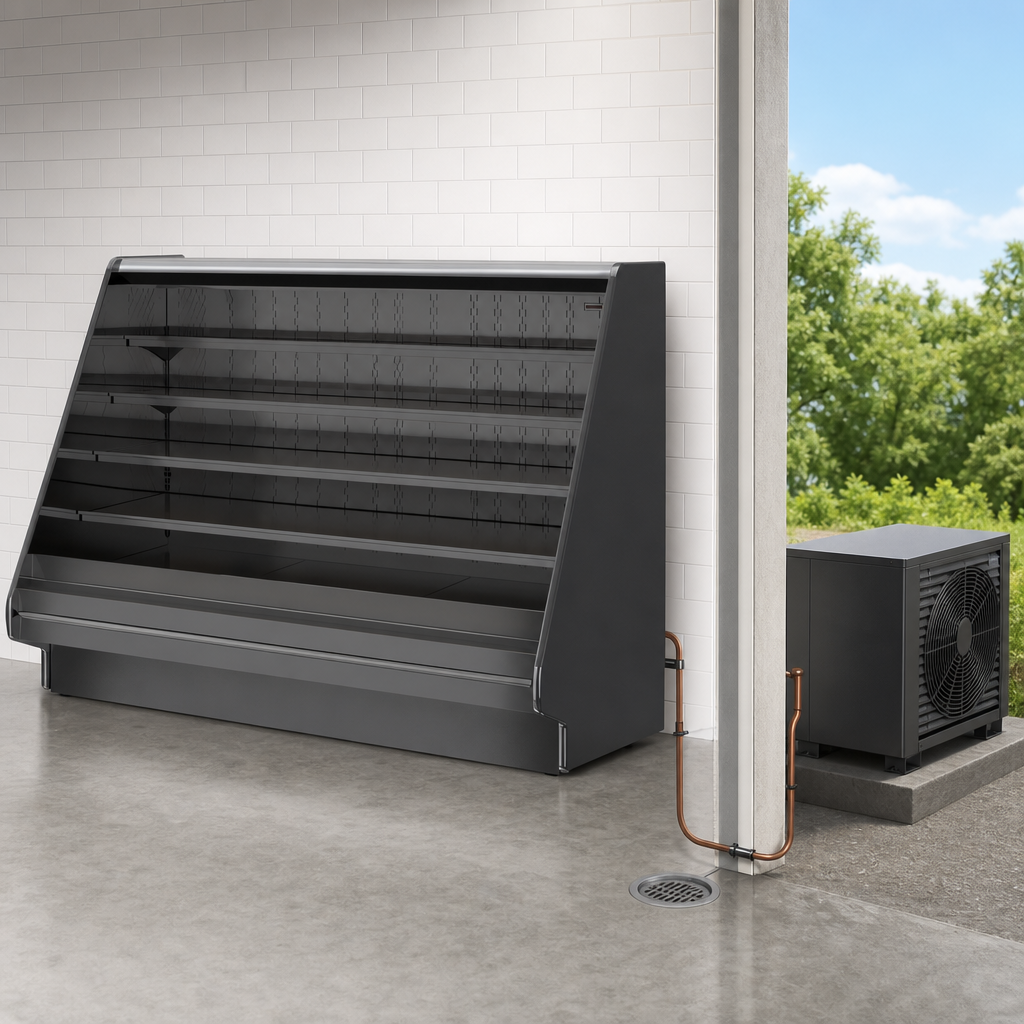

Remote DX Refrigeration

Remote refrigeration keeps the heat-producing condensing unit out of the case; floor drain required.

Remote DX Refrigeration

40°F Or Less Product Temperature

Designed for a warmest average product temperature of 40°F or less.

LED Top And Shelf Lights

3500K LED lighting with frosted lens helps merchandise stand out.

Solid Back Panel

Standard solid rear panel provides a finished back-of-house appearance.

Stainless Steel Rear Exterior

Includes a stainless steel rear exterior for added durability.

Type I Ambient Rating

Intended to operate in ambient conditions of 75°F with 55% relative humidity.

Type Refrigerated Self-Service Case
Style Flat Profile
Installation Type Floor Model
Refrigeration Type Remote DX
Voltage 110-120 Volts
Phase 1-Phase
Hertz 60 Hz
Amps 3.00 Amps
Watts 249 Watts
Width 100 Inches
Depth 43 Inches
Height 60 Inches
Weight 1,225 lb.
Selling Unit Each
Units Per Case 1

Frequently Asked Questions

It is designed for a warmest average product temperature of 40°F or less.
No. It uses remote DX refrigeration, so the condensing unit is not included.
LED top and shelf lights with a frosted lens are standard, and the standard color temperature is 3500K.
A floor drain is required for remote refrigeration, and a minimum 45-inch door entry clearance is needed without the shipping skid.
Available accessories include a drain strainer, a retractable non-locking night curtain, and a removable locking wire security cover.
The unit includes a one-year parts and labor warranty.
