Fusion Flat Profile Refrigerated Self-Service Display Case, 75-3/8" W x 43" D x 59-5/8" H, Remote DX

Open flat profile with LED lighting and 40°F-or-less product temperature

This remote-refrigerated self-service case combines a flat open presentation, bright LED lighting, and durable construction to showcase chilled packaged products effectively.

  • Open flat profile supports self-service merchandising and strong product visibility.
  • Remote DX refrigeration is designed for remote condensing equipment; condensing unit not included.
  • Maintains a warmest average product temperature of 40°F or less for packaged refrigerated products.
  • LED top and shelf lights with frosted lens improve product presentation.
  • Solid back panel and stainless steel rear exterior provide a clean, durable build.
  • Includes a standard one-year parts and labor warranty.

Overall Dimensions:

75.37"W x 43.0"D x 59.63"H

Product Weight:

1050.0 lb

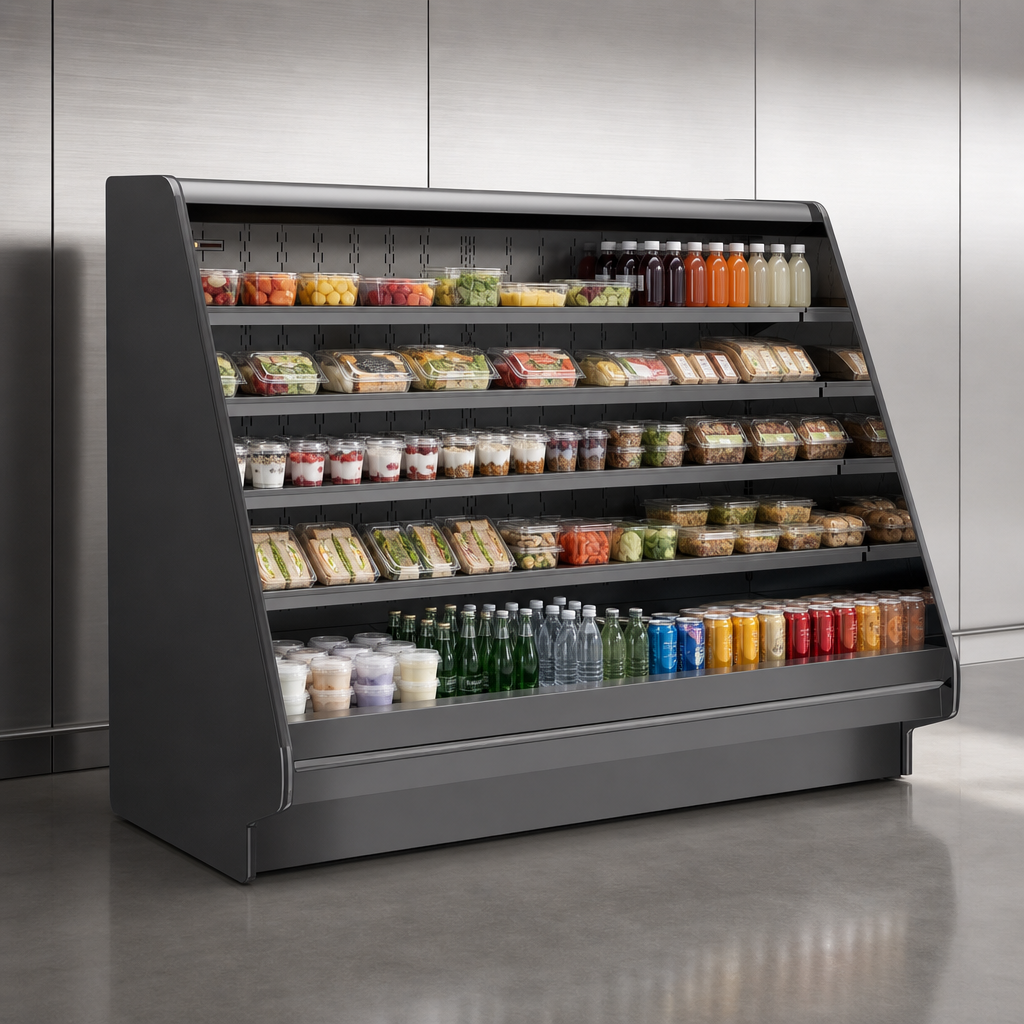

Open Flat Profile

Low-profile self-service design presents packaged refrigerated products clearly and accessibly.

Open Flat Profile

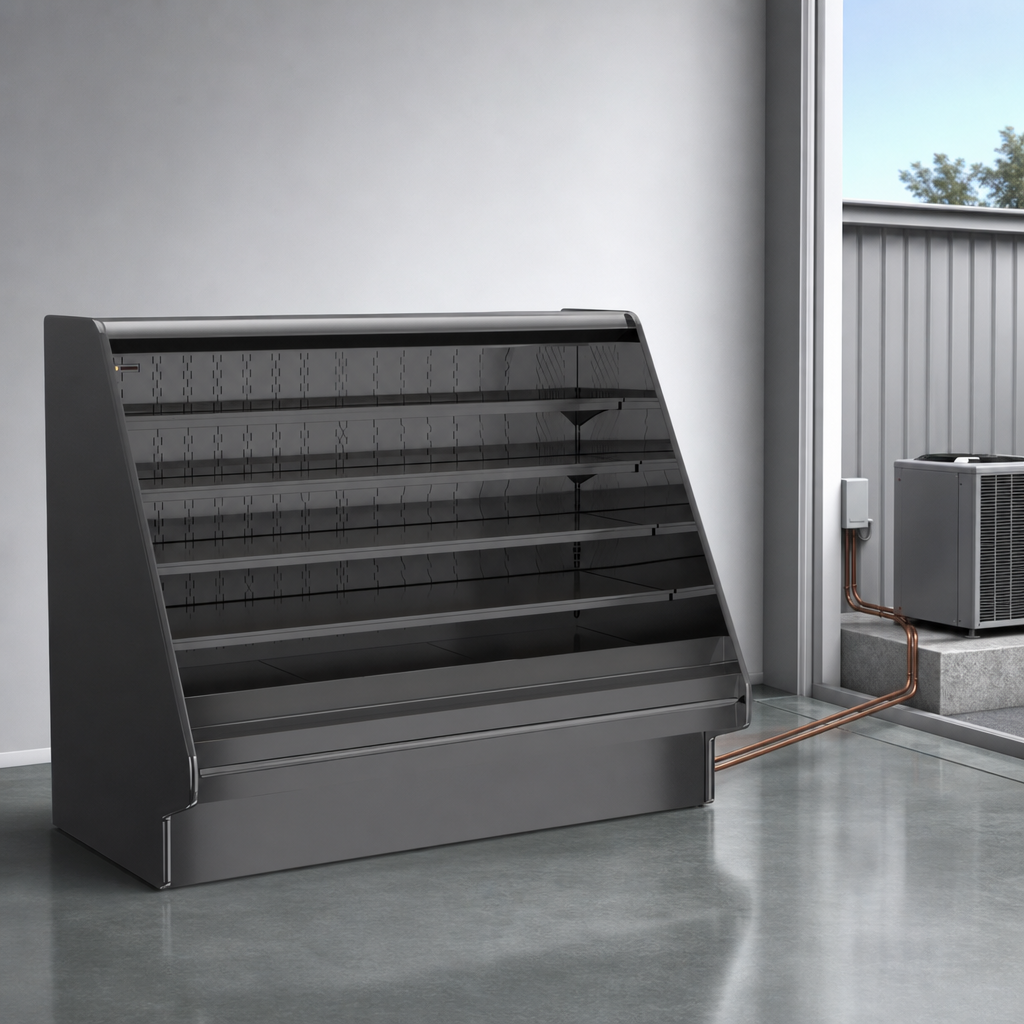

Remote DX Refrigeration

Uses remote DX refrigeration and requires separate condensing equipment; condensing unit is not included.

Remote DX Refrigeration

40°F Or Less Product Temperature

Built to hold packaged refrigerated products at a warmest average product temperature of 40°F or below.

LED Top and Shelf Lighting

LED lighting with frosted lens helps brighten the display and improve product visibility.

Solid Back Panel

Standard solid rear panel provides a clean rear appearance for lineup installations.

Stainless Steel Rear Exterior

Durable stainless steel rear exterior adds wear resistance in service areas.

Type I Environment

Designed for ambient conditions of 75°F and 55% relative humidity.

One-Year Parts & Labor Warranty

Includes a standard one-year parts and labor warranty.

Type Refrigerated Self-Service Case
Style Flat Profile
Installation Type Floor Model
Refrigeration Type Remote DX
Temperature Range 40°F or Less
Voltage 110-120 Volts
Phase 1-Phase
Hertz 60 Hz
Amps 2.62 Amps
Watts 193 Watts
Plug Type Electrical Leads
Color Black
Shipping Width 76 Inches
Shipping Depth 43 Inches
Shipping Height 60 Inches
Shipping Weight 1,050 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Warranty PDF Download PDF Owner's manual PDF Download PDF Map policy PDF Download PDF Spec guide PDF Download PDF Exterior finishes and bumpers PDF Download PDF Scc product nomenclature PDF Download

Frequently Asked Questions

It is designed for a warmest average product temperature of 40°F or less.
No. This model uses remote DX refrigeration, and the condensing unit is not included.
Standard configuration is a solid back panel with no rear doors. Optional solid rear swinging doors with lock are available.
LED top and shelf lights with a frosted lens are included.
Yes. The remote refrigeration note states that a floor drain is required.
The cutsheet lists a one-year parts and labor warranty.
