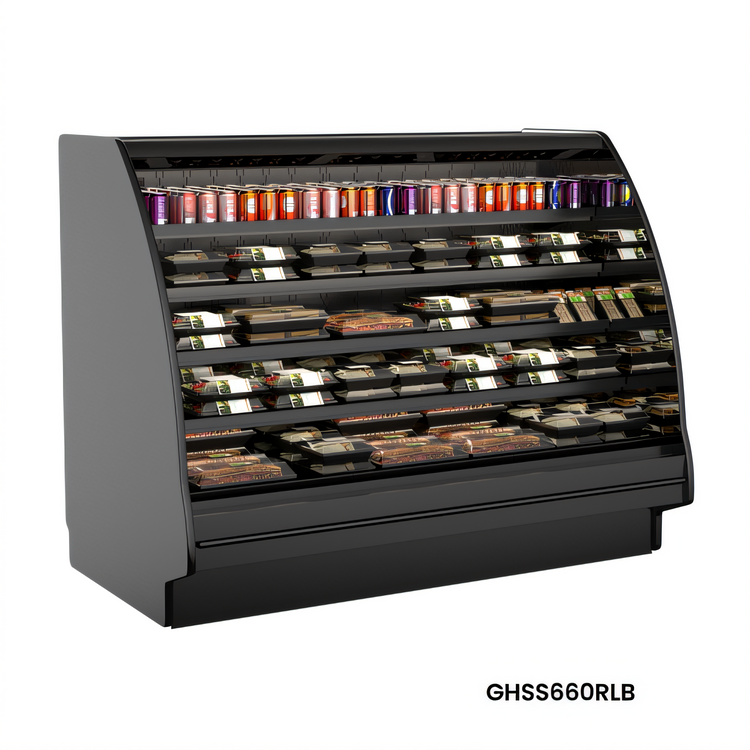

Structural Concepts Fusion® GHSS660RLB Curved Profile Refrigerated Self-Service Case, 75-3/8" W x 43" D x 59-5/8" H, Remote DX

SKU: GHSS660RLB (CURVED)
$17,967.50
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Countertop Food Displays Countertop Refrigerated Display Cases Food Displays & Merchandisers Merchandising & Display Refrigeration New Arrivals Refrigeration, Freezing & Ice Restaurant Equipment Structural Concepts

Structural Concepts Fusion® GHSS660RLB Curved Profile Refrigerated Self-Service Case, 75-3/8" W x 43" D x 59-5/8" H, Remote DX

Solid Back Panel, LED Shelf Lights, 40°F or Less Average Product Temp

Merchandise packaged refrigerated products in a curved-display case with remote DX cooling and bright LED shelf lighting.

  • Curved-profile refrigerated self-service case designed for packaged refrigerated products.
  • Remote DX refrigeration maintains a warmest average product temperature of 40°F or less.
  • LED top and shelf lights with frosted lenses improve product visibility.
  • Solid back panel and stainless steel rear exterior support a clean, durable presentation.
  • Designed for Type I environments; condensing unit is not included and a floor drain is required.

Overall Dimensions:

75.37"W x 43.0"D x 59.63"H

Product Weight:

1200.0 lb

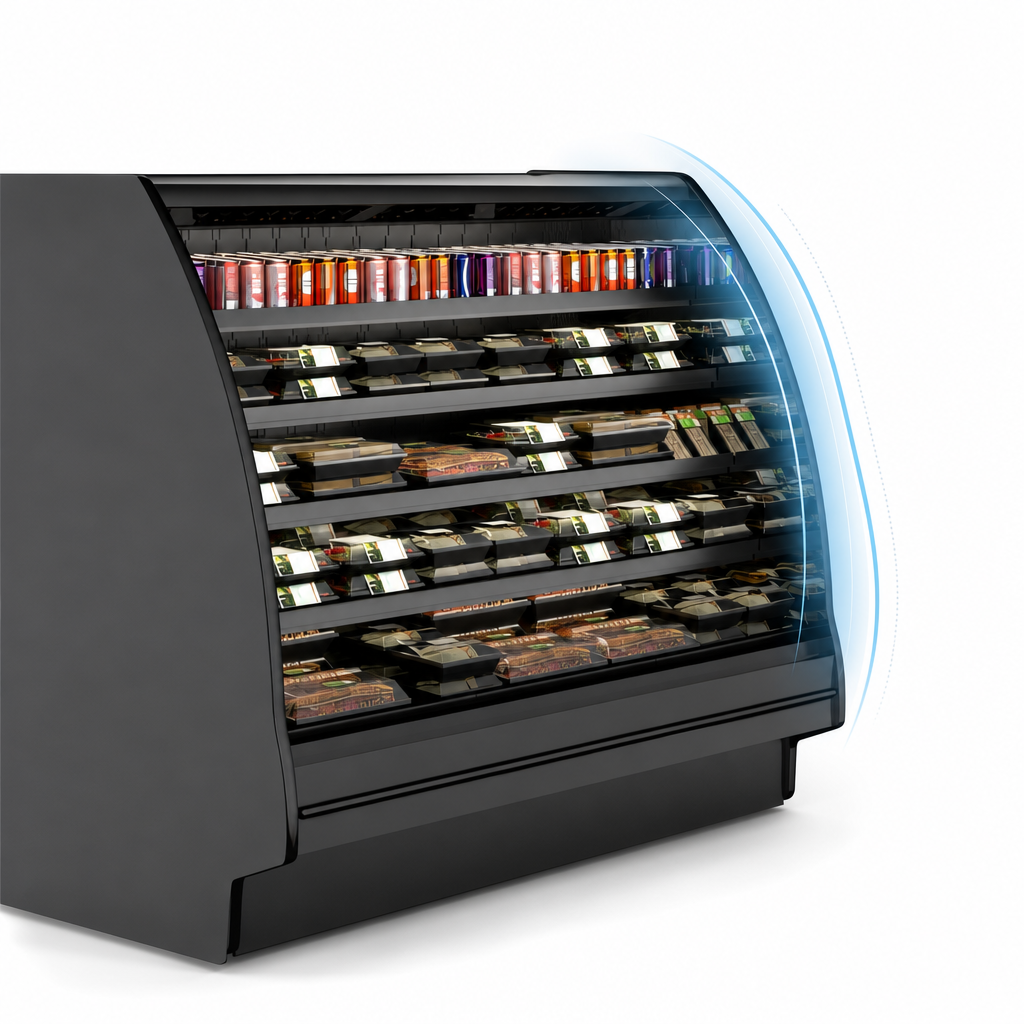

Curved Profile

Open curved profile provides a clear merchandising view from the customer side.

Curved Profile

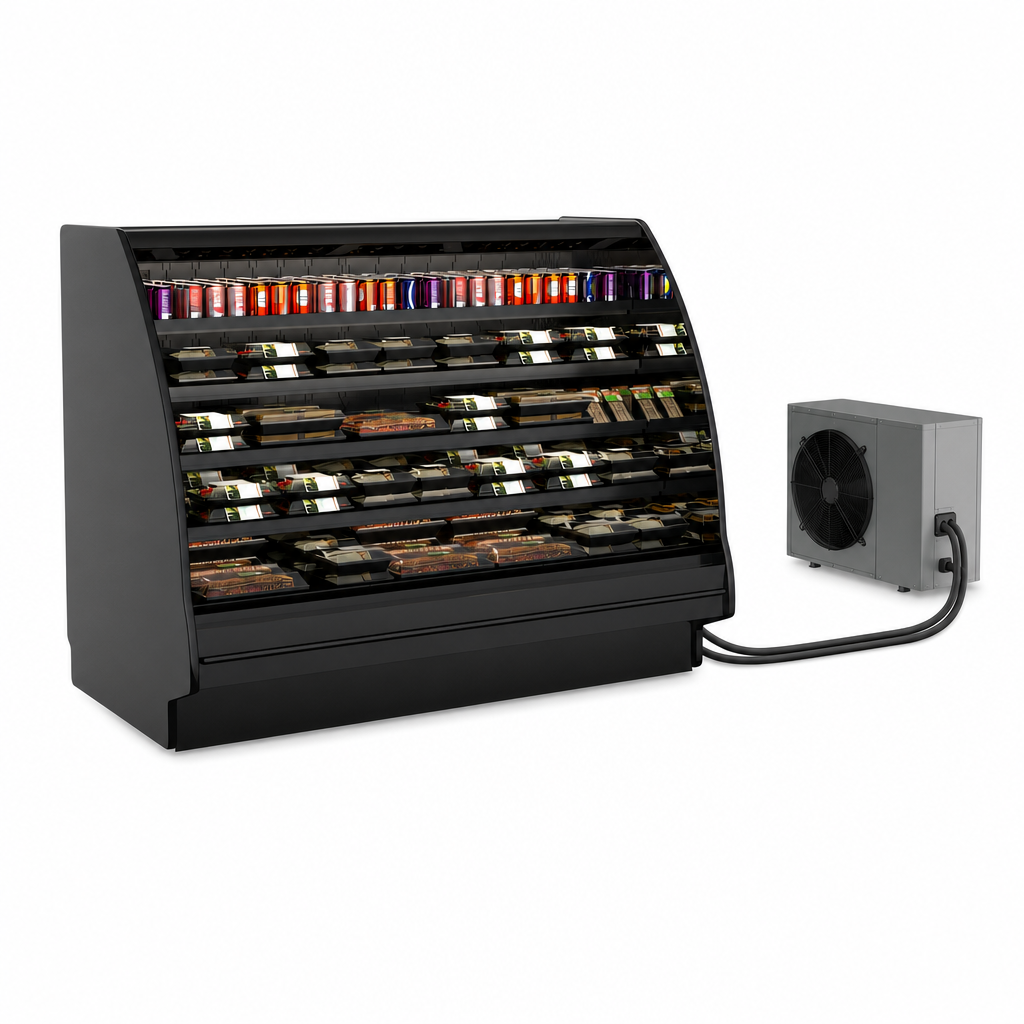

Remote DX Refrigeration

Uses remote DX refrigeration; condensing unit is not included.

Remote DX Refrigeration

LED Top & Shelf Lighting

LED top and shelf lights with frosted lenses brighten the display area.

Solid Back Panel

Standard rear opening is a solid back panel for a clean self-service presentation.

40°F or Less Average Product Temp

Designed to keep packaged refrigerated products at a warmest average product temperature of 40°F or less.

Stainless Steel Rear Exterior

Stainless steel rear exterior adds durability and a professional finish.

Type I Environment

Intended for ambient conditions of 75°F and 55% relative humidity.

Electrical Leads Supplied

Electrical junction box is supplied with leads for remote refrigeration connection.

One-Year Parts & Labor Warranty

Includes a one-year parts and labor warranty.

Type Refrigerated Self-Service Case
Style Curved Profile
Installation Type Floor Model
Refrigeration Type Remote DX
Temperature Range 40°F or Less
Voltage 110-120 Volts
Amps 2.62 Amps
Watts 193 Watts
Hertz 60 Hz
Phase 1-Phase
Plug Type Leads
Material Laminate
Color Black
Selling Unit Each
Units Per Case 1
Shipping Width 76 Inches
Shipping Depth 43 Inches
Shipping Height 60 Inches
Shipping Weight 1,200 lb.

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Map policy PDF Download PDF Scc product nomenclature PDF Download PDF Spec guide PDF Download PDF Owner's manual PDF Download PDF Warranty PDF Download PDF Exterior finishes and bumpers PDF Download

Frequently Asked Questions

It is intended for packaged refrigerated products.
No. It uses remote DX refrigeration, so the condensing unit is not included.
The warmest average product temperature is 40°F or less.
LED top and shelf lights with frosted lenses are included.
No. The standard configuration uses a solid back panel; solid rear swinging doors with lock are optional.
A floor drain is required, 45-inch minimum door entry clearance is needed, and the unit must be shimmed level and plumb during installation.
